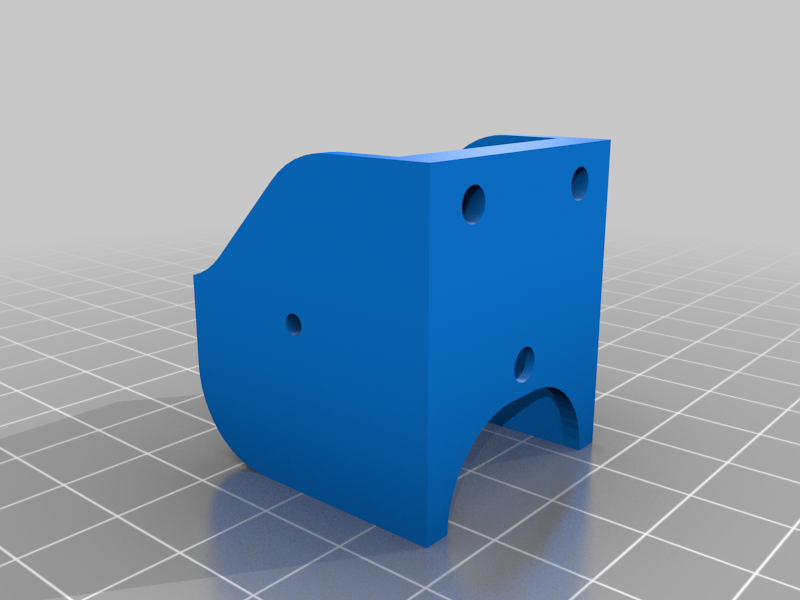

EACHINE Wizard X220 Micro Camera Adapter.

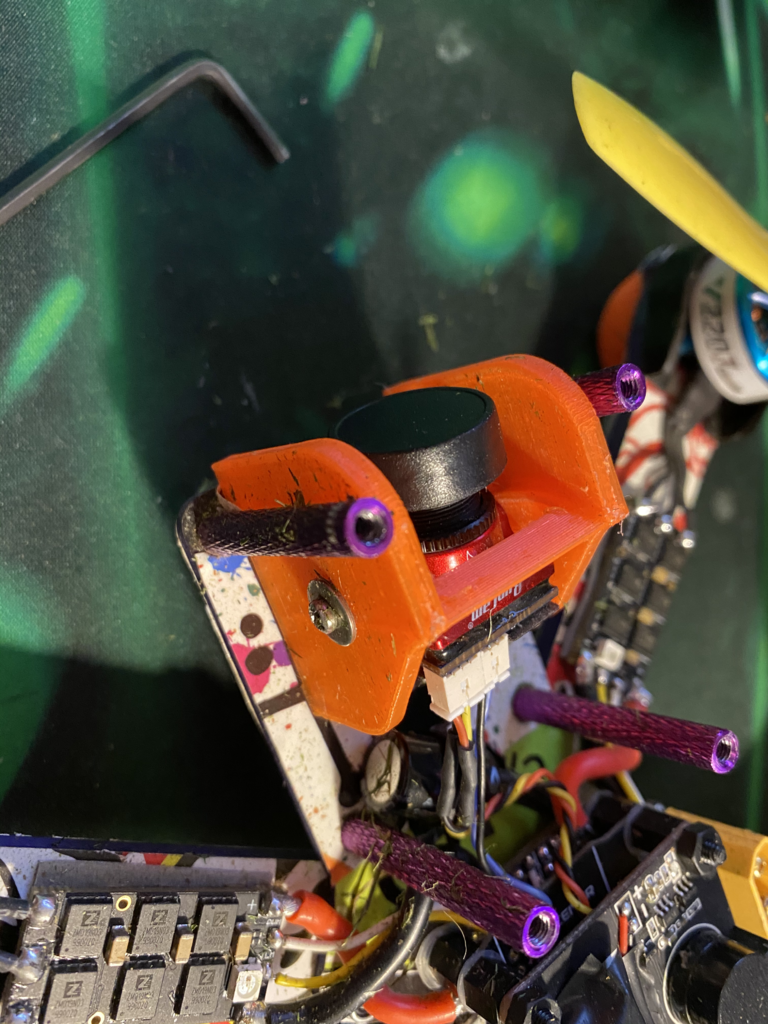

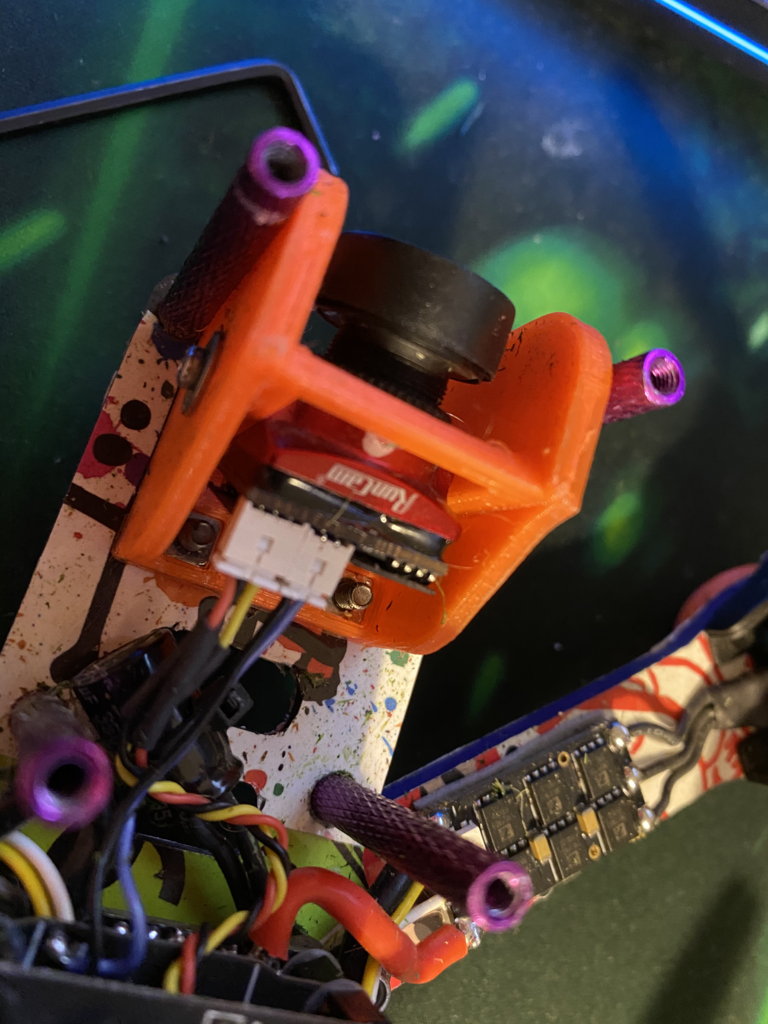

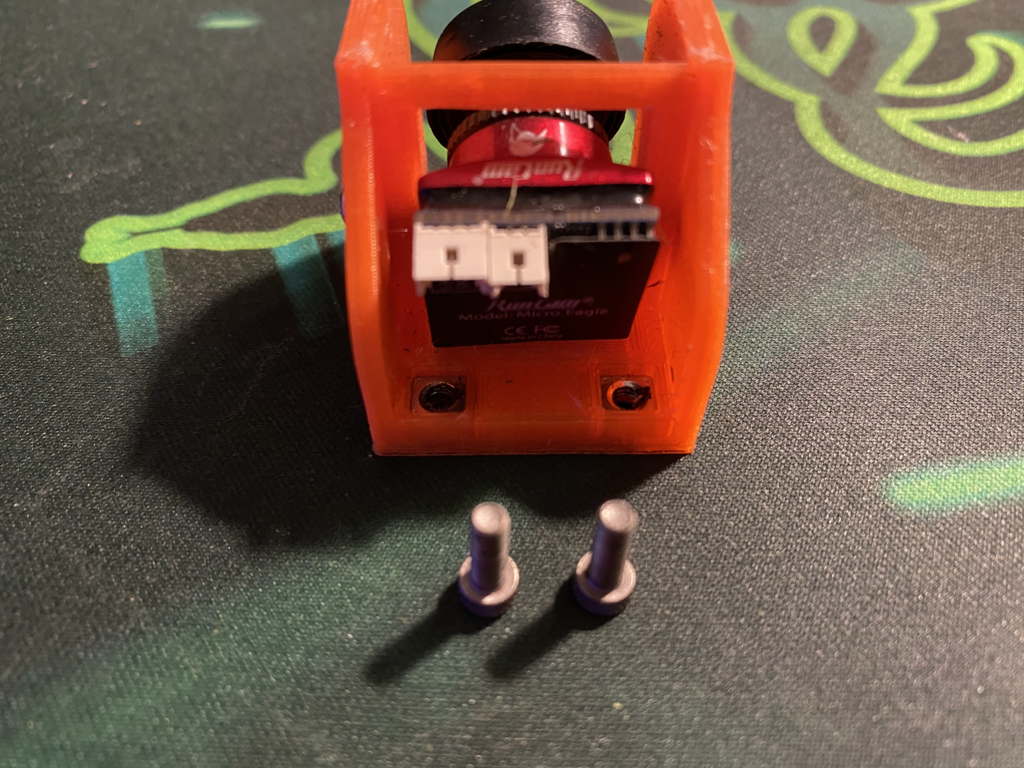

I've designed a micro camera adapter for my EACHINE Wizard X220, it currently holds a Runcam Eagle Micro but it should hold other micro-cameras as well.

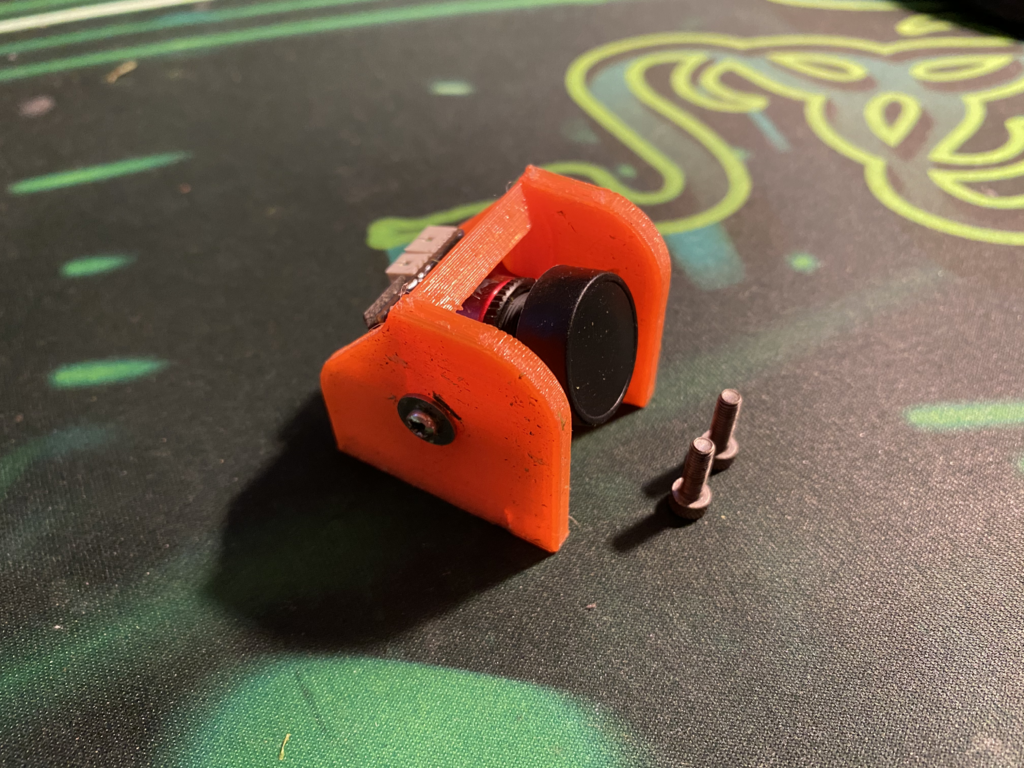

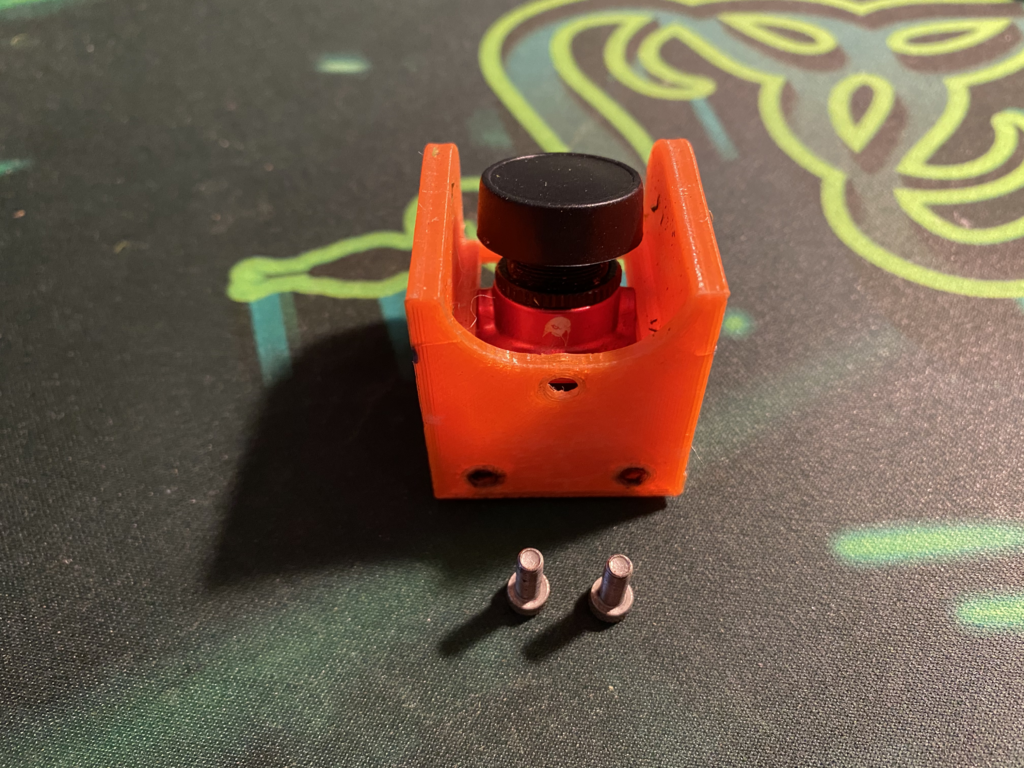

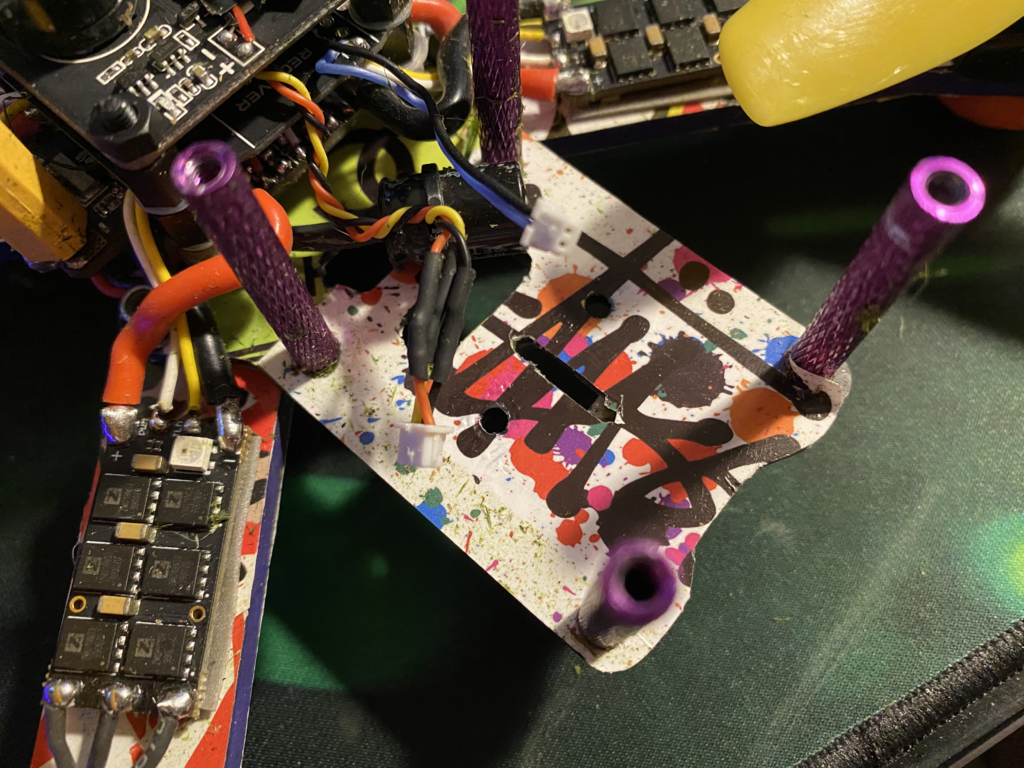

It attaches to the front 2 M3 holes of the quad and replaces the carbon fibre camera holder, it protects the front of the camera as the print protrudes further than the lens.
The max angle is about 35 degrees.

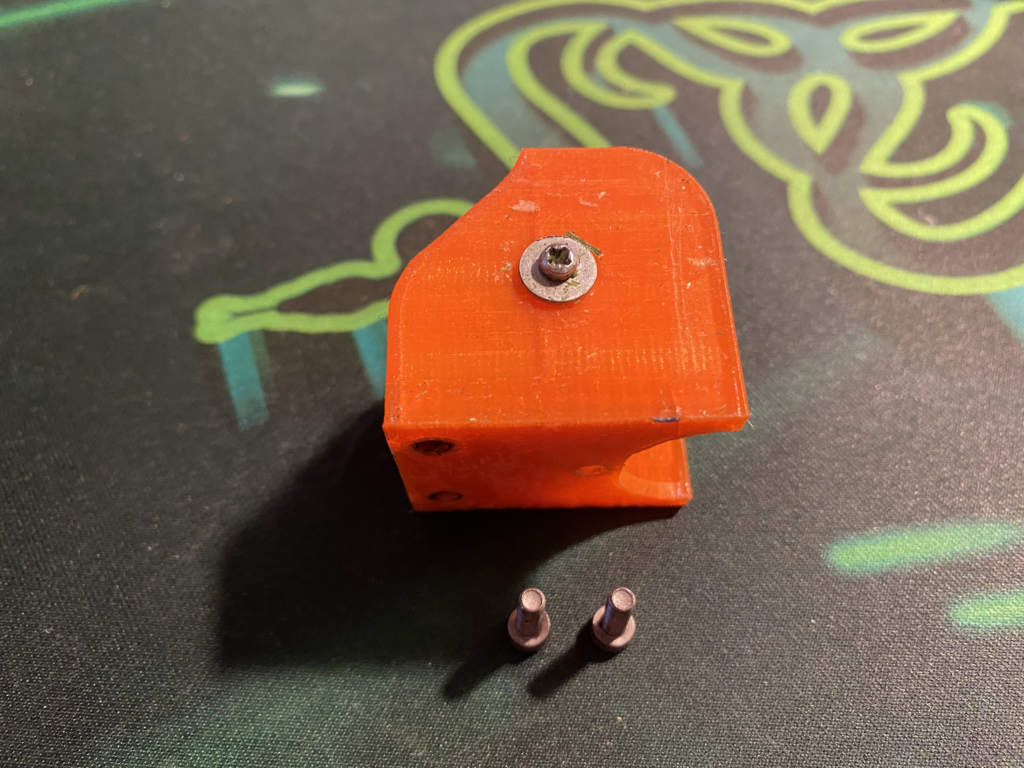

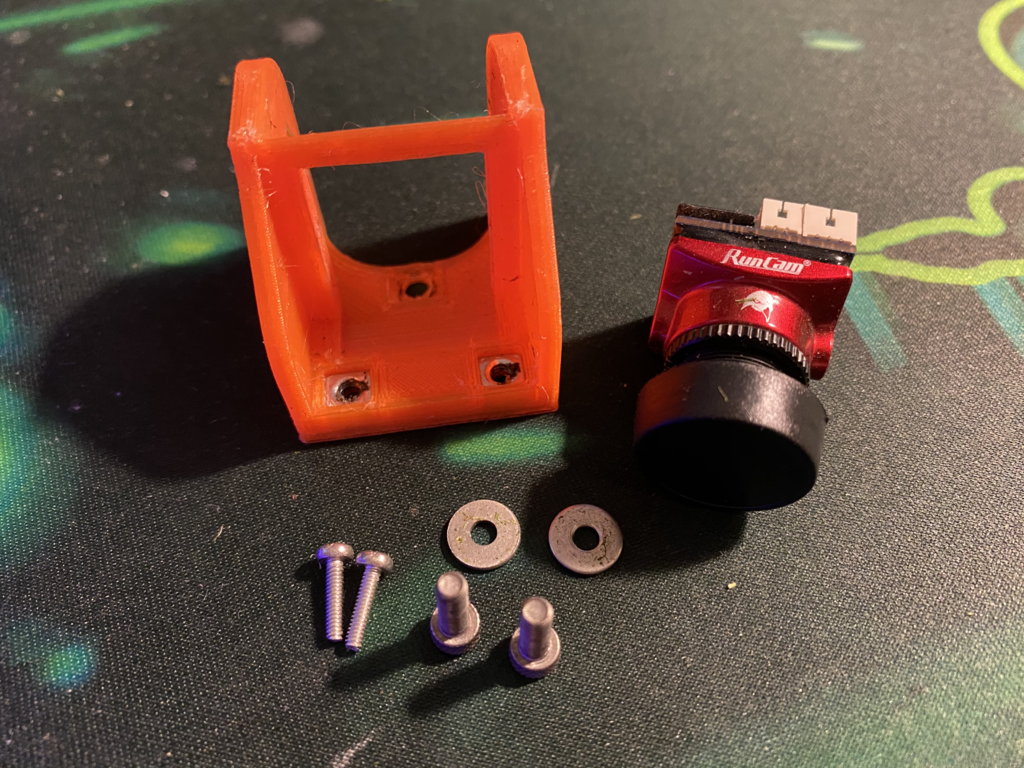

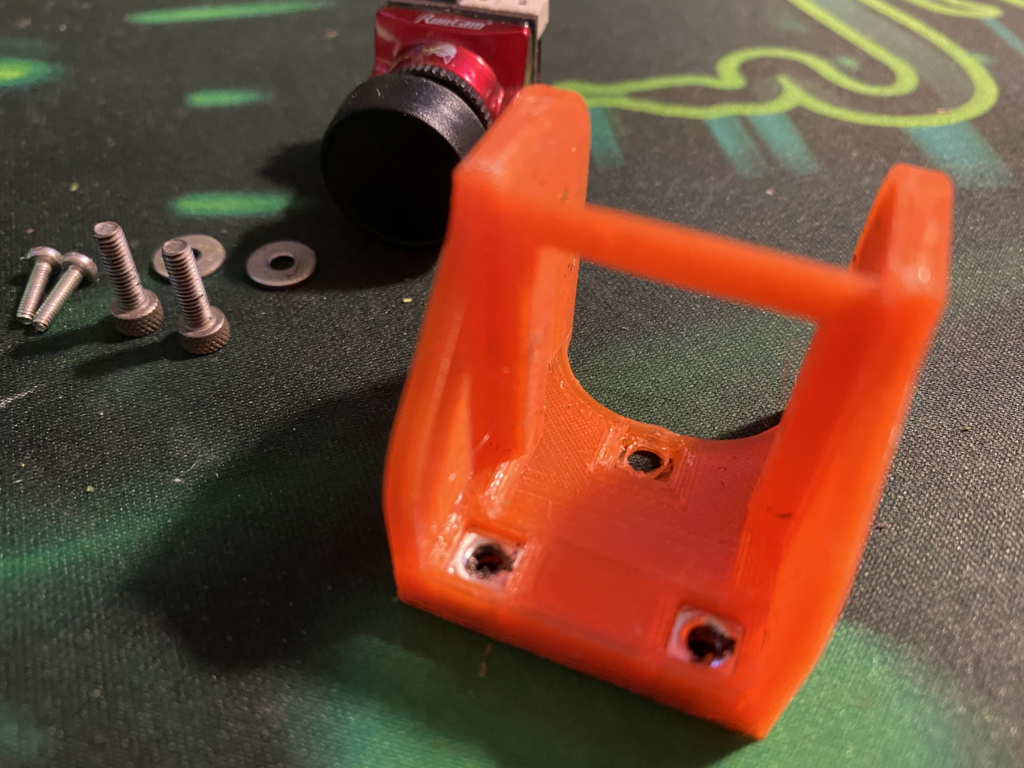

The fixings which you would need:
(2x) M3 square nut
(2x) M2x12mm bolt
(2x) M2 washer
(2x) M3x10mm bolt
Printed in PETG. No Supports.
Print Settings
Printer Brand:
TEVO
Printer:
Tornado
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
100%
Filament: Real Filament PETG Orange
Category: R/C Vehicles
