POST INSULATOR OUTRIGGER V2 now available https://www.printables.com/model/225180-post-insulator-outrigger-v2

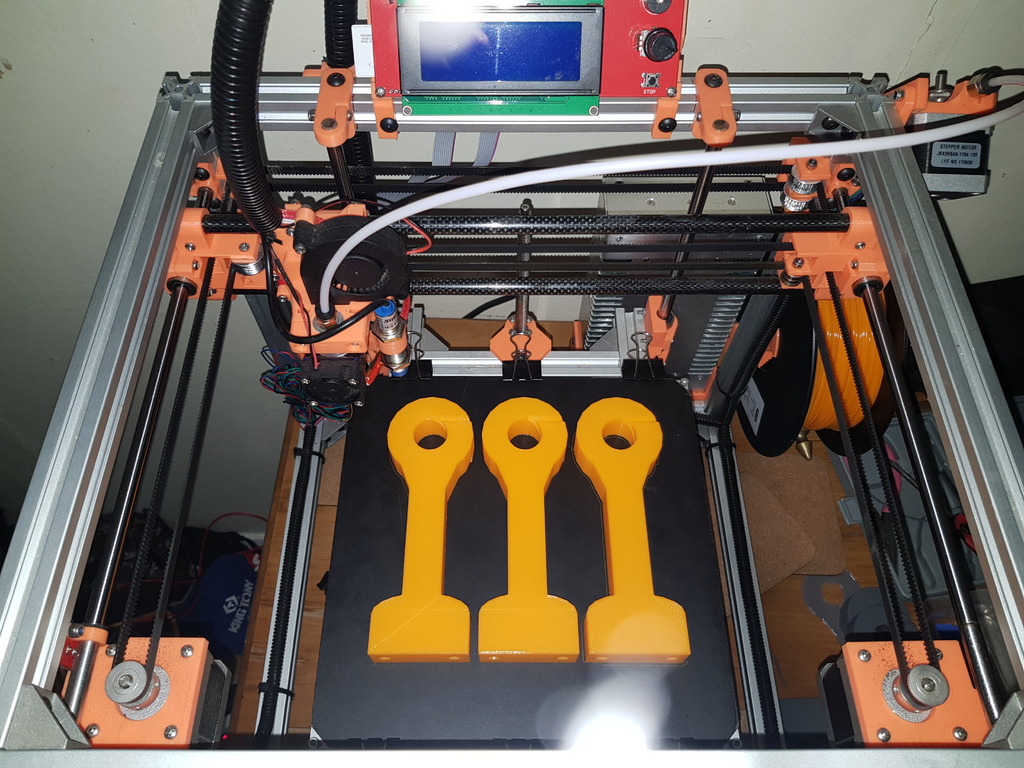

Needed outriggers for my horse. They are expensive at farming stores so I threw this together for a fraction of the price worth of filament. did a couple test prints with tweaks to improve model. I'm printing 66 of these suckers :)

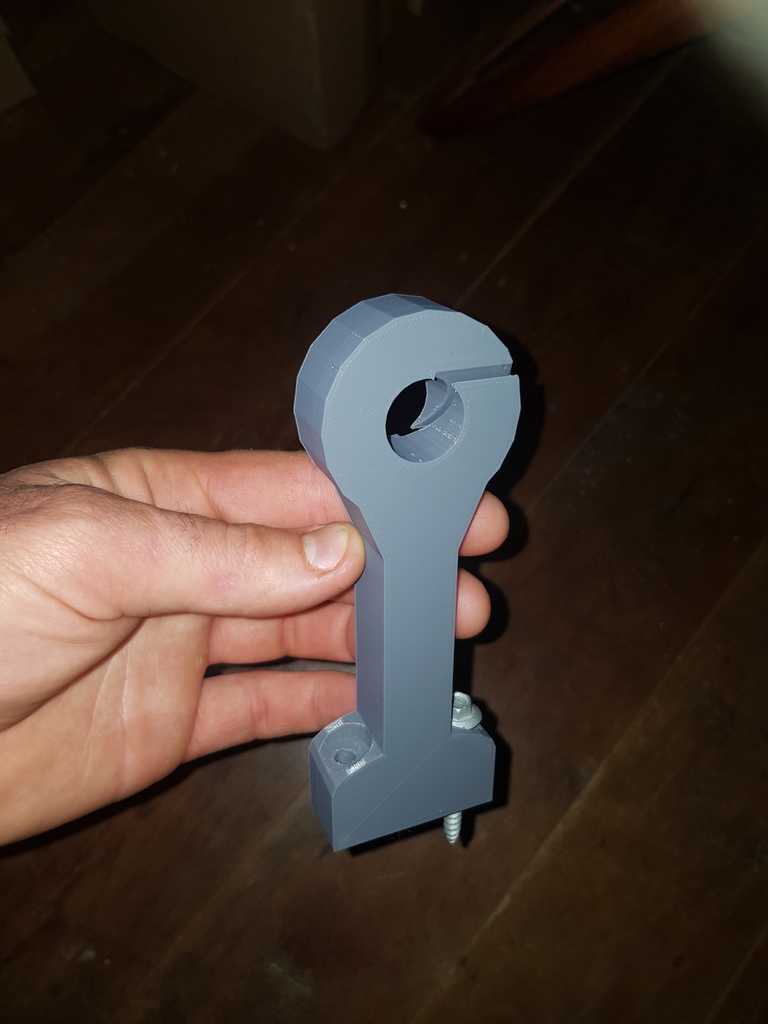

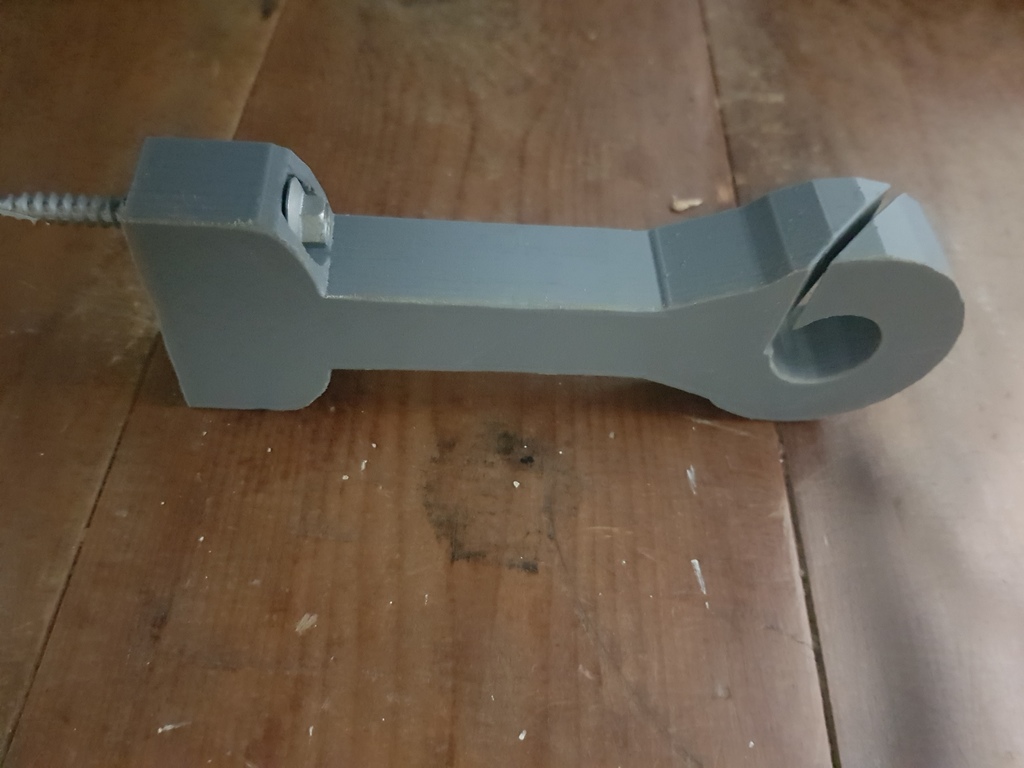

Designed for timber Tek screws but should work with nails.
3 top and bottom solid layers along with 3 shells should be strong enough for most applications.
Added insulator with 90 degree bend with 2 mm gap.
I've changed the infill percentage to 15 as 30 is still kind of overkill.
If you appreciate the model Consider…
buying me a coffee.
Print Settings
Printer:
HyperCube
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2
Infill:
15%
Notes:
1 to 3 mm gap size in slot for string or tape wire.
This is where I say print in ABS or similar even though I printed this in PLA ;p
