Modular (bicycle) mount for older Garmin eTrex GPS receivers (and everything else you want to attach).

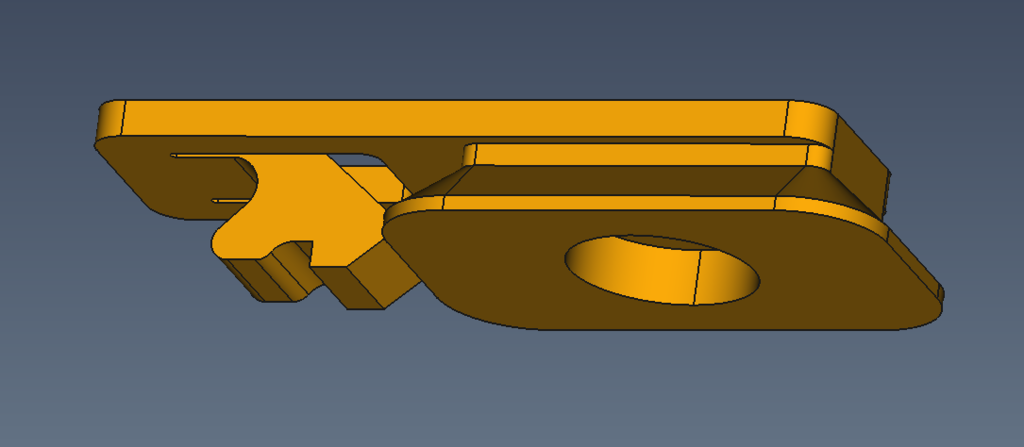

Basically this is my design idea for a mounting system that I've specialized for my old Garmin eTrex Legend HCx. The goal was a modular system that can be adapted easily to different handlebars (or belt clips etc), easy to print and easy to modify for other devices.
Included are an adapter for a 24 mm handlebar and for the Garmin eTrex Legend/Vista HCx (which requires the original screw!).
Print all three parts (0.2 mm should work fine, supports required for the main part (garmin_mount_v1.stl). Screw the garmin_mount_slider_v1.stl to the back of your GPS receiver and attach the adapter with the mount to your handlebar using an 8 mm cable tie.
I've tested it for 100 km on my bicycle and the PLA was strong enough. Still it is recommended to use a lanyard for the safety of your device. ;)
