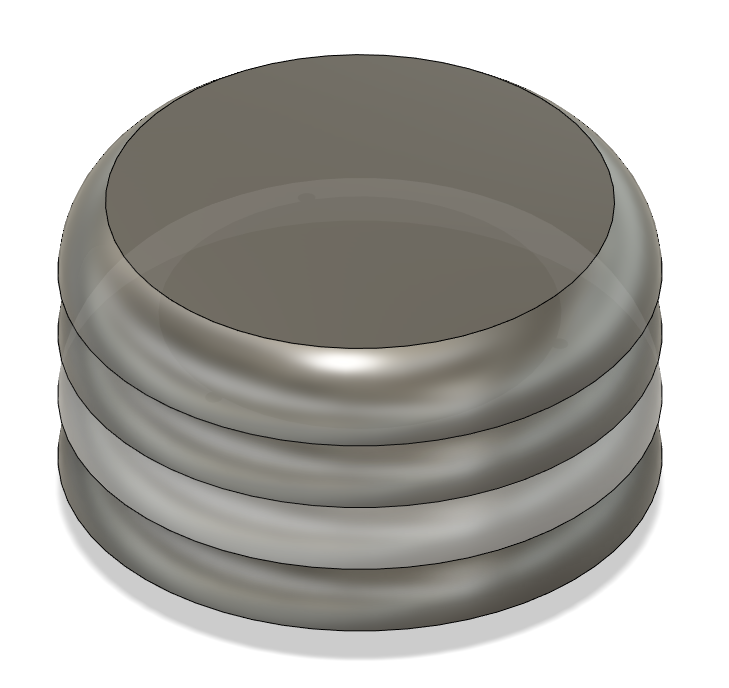

A stevenson screen, i made it for my own weather station based on an ESP01 (ESP8266) and a BMS280. I self printed it in white PET-G. It is also possible in PLA but then you have the problem that it will dissolve over time.

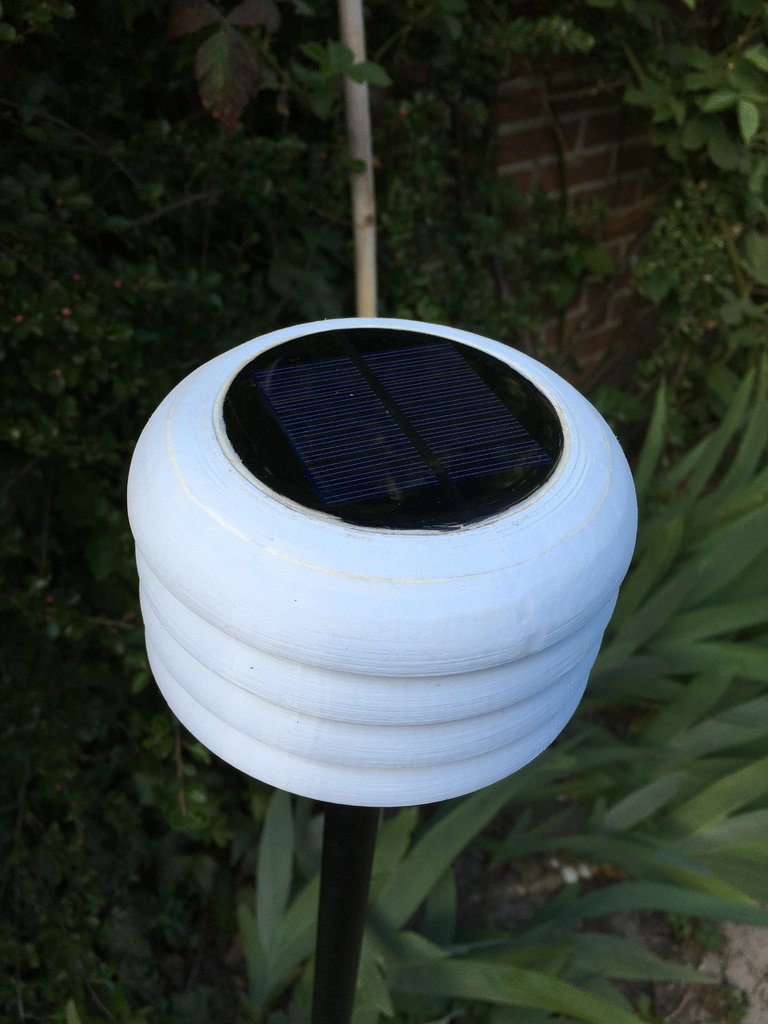

In my picture i used kit to attach the solar panel and made an external ring that would fit arround the solar panel. The solar panel that i have used is a 80mm chinees solar panel.

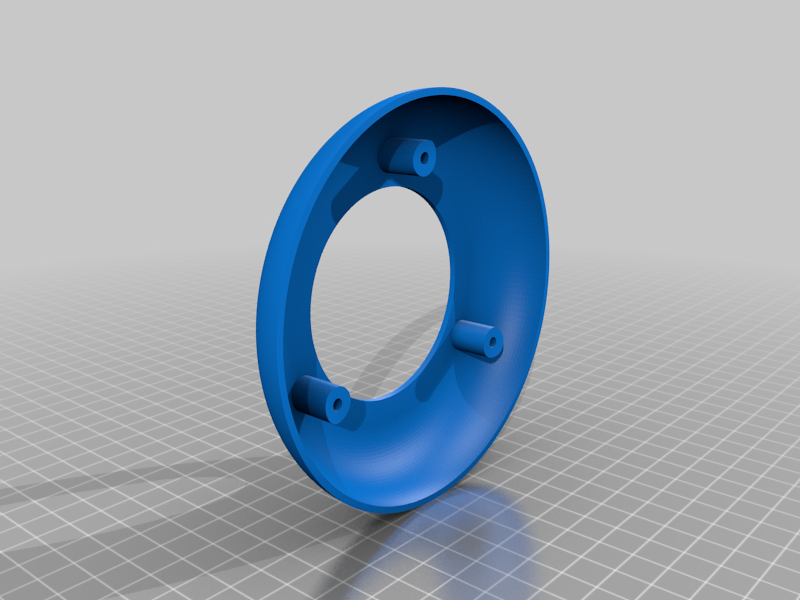

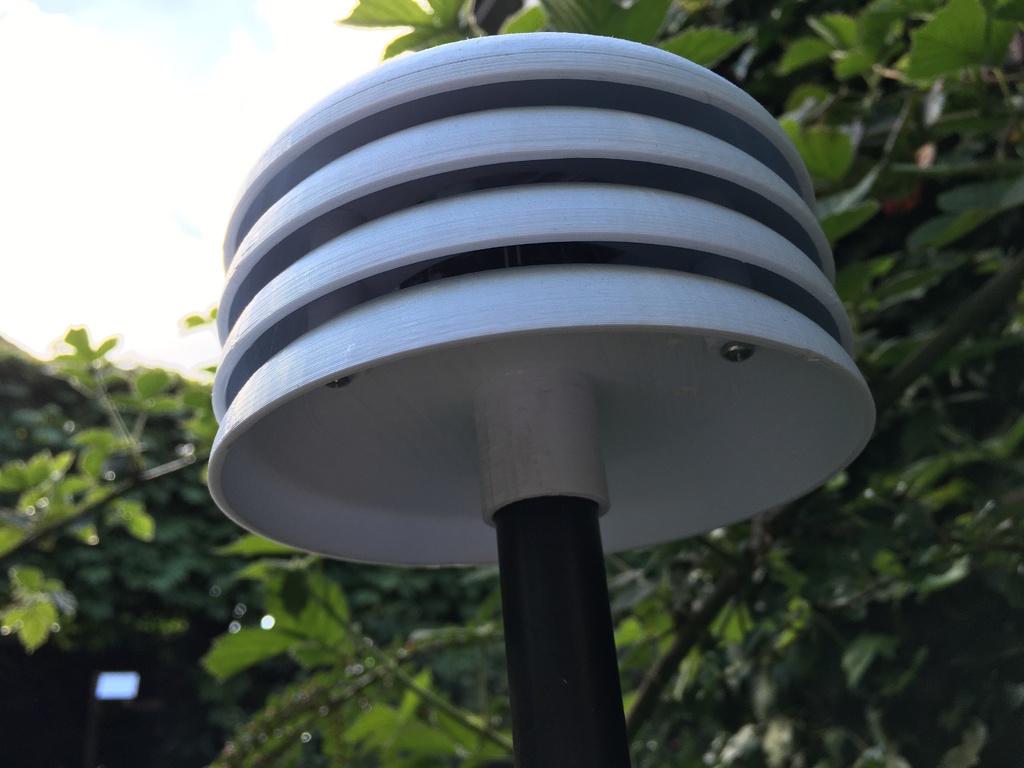

This stevenson screen can be extremely easy attach to an 19mm PVC electrical pipe. The section are holded together with 3 M3 bolts that are threaded in to the top. You need to threaded yourself because it is not embedded in the 3d model.
