RAK19003-micro case for Meshtastic

**You can purchase this case and others already printed:**

US customers can purchase from QuantumShadow3D:
(https://www.etsy.com/shop/QuantumShadow3D)

UK/EU customers can purchase from 3DChicken:
(https://www.3dchicken.co.uk)


These models are intended for personal use only.
DO NOT copy, sell, trade or otherwise gain from my designs without my explicit permission.

Anyone interested in licensing this design for non-commercial (i.e. private) sale can message me here to discuss.  Please respect the Creative Commons license restrictions I have chosen (http://creativecommons.org/licenses/by-nc-nd/4.0/) and I encourage anyone who sees my designs for sale contact me.

With all that said, now on to the models…


Update 5-September-2023:

• Uploaded v13 of all case models with many refinements
• Added new ‘Waves’ pattern
• Added back covers to support 6mm, 8mm, and 10mm thick li-po batteries

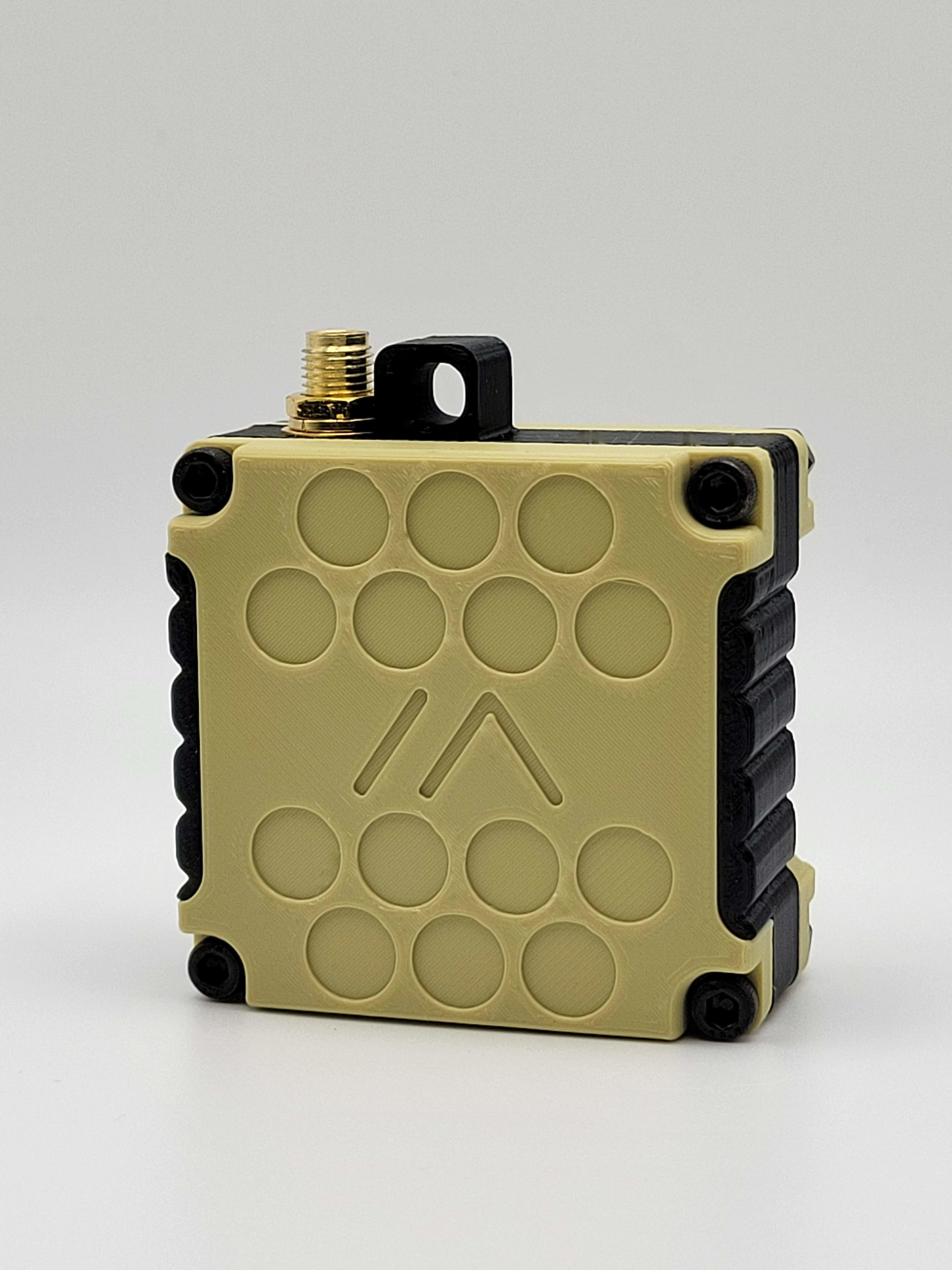

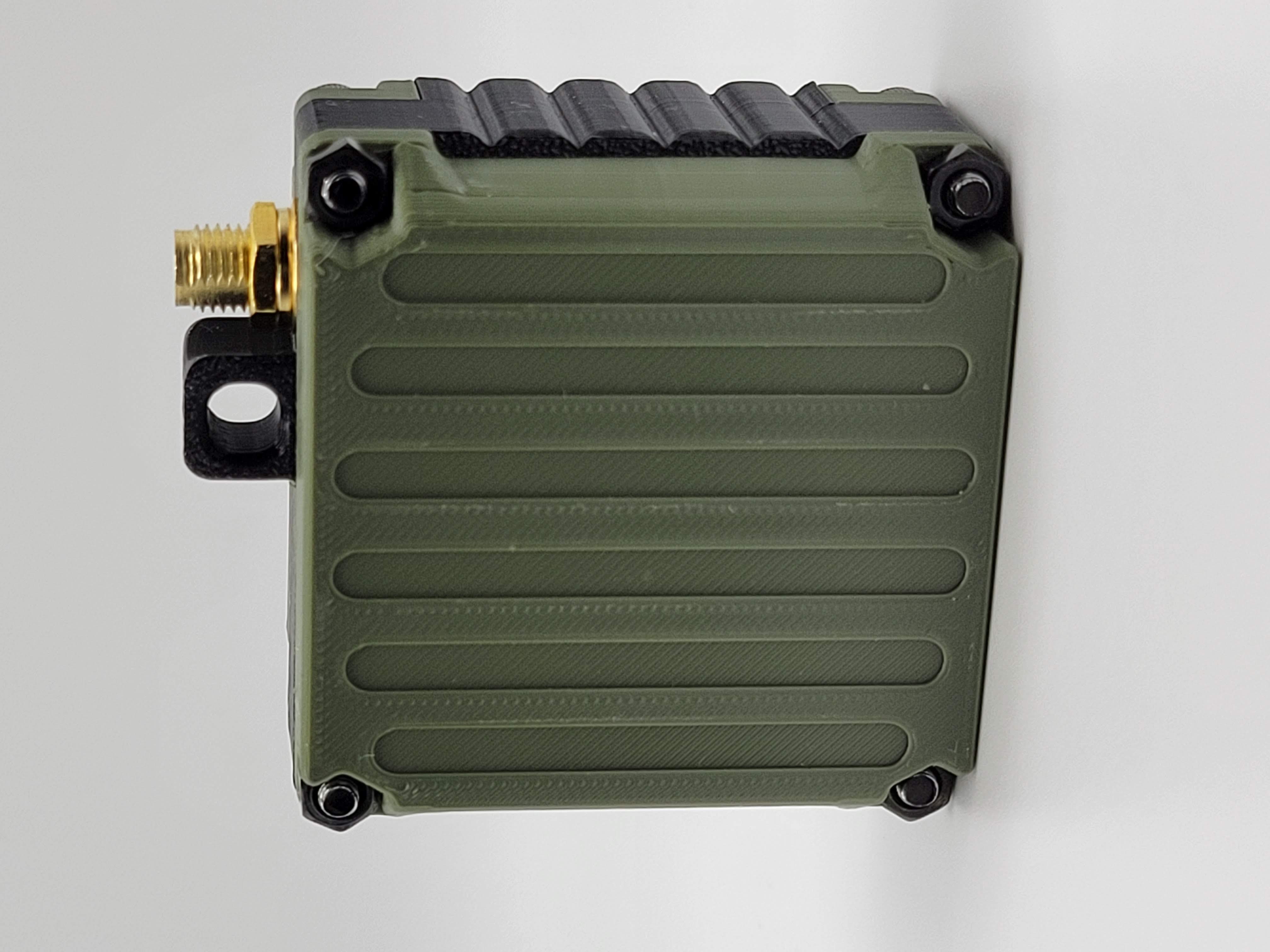

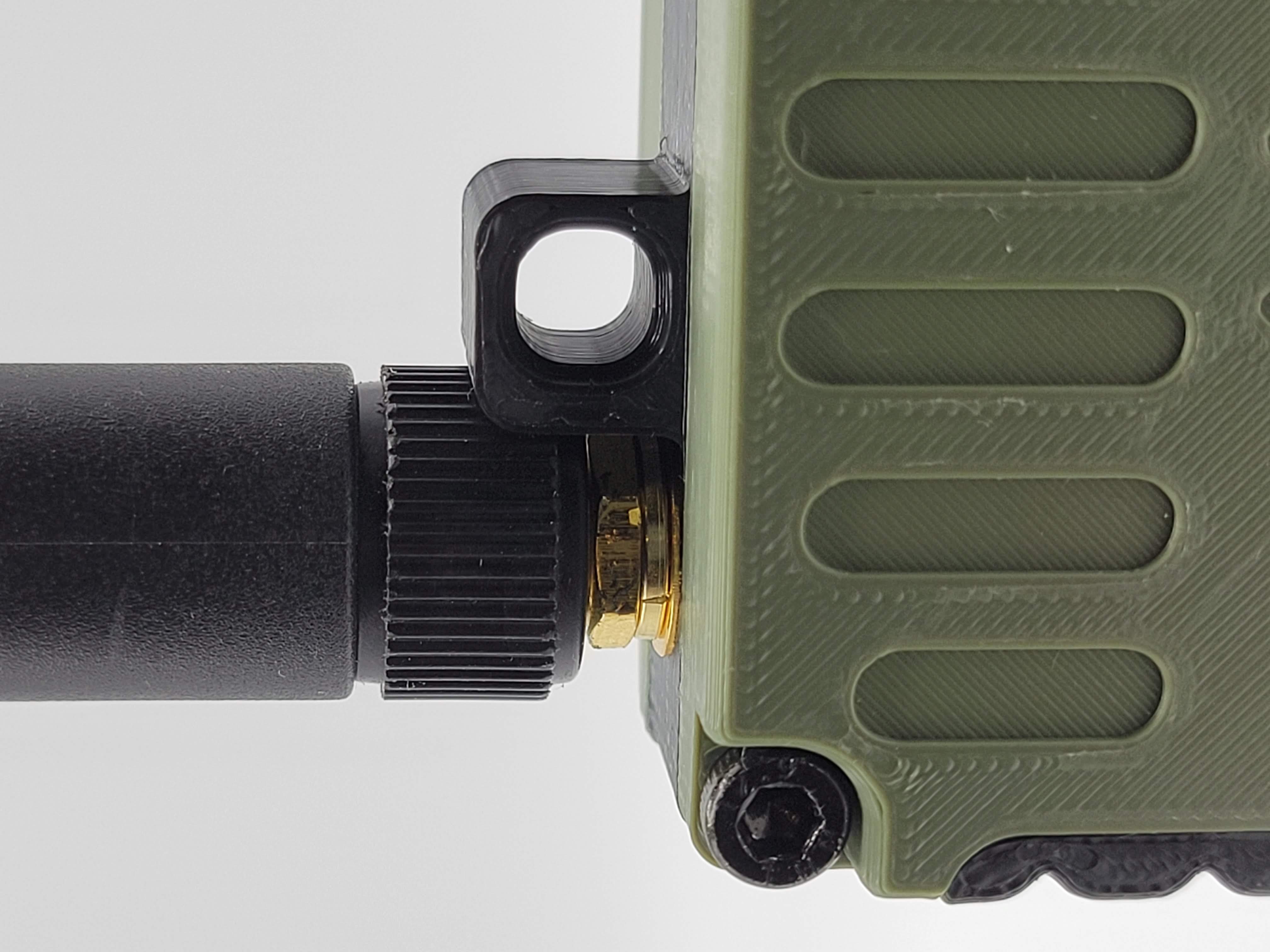

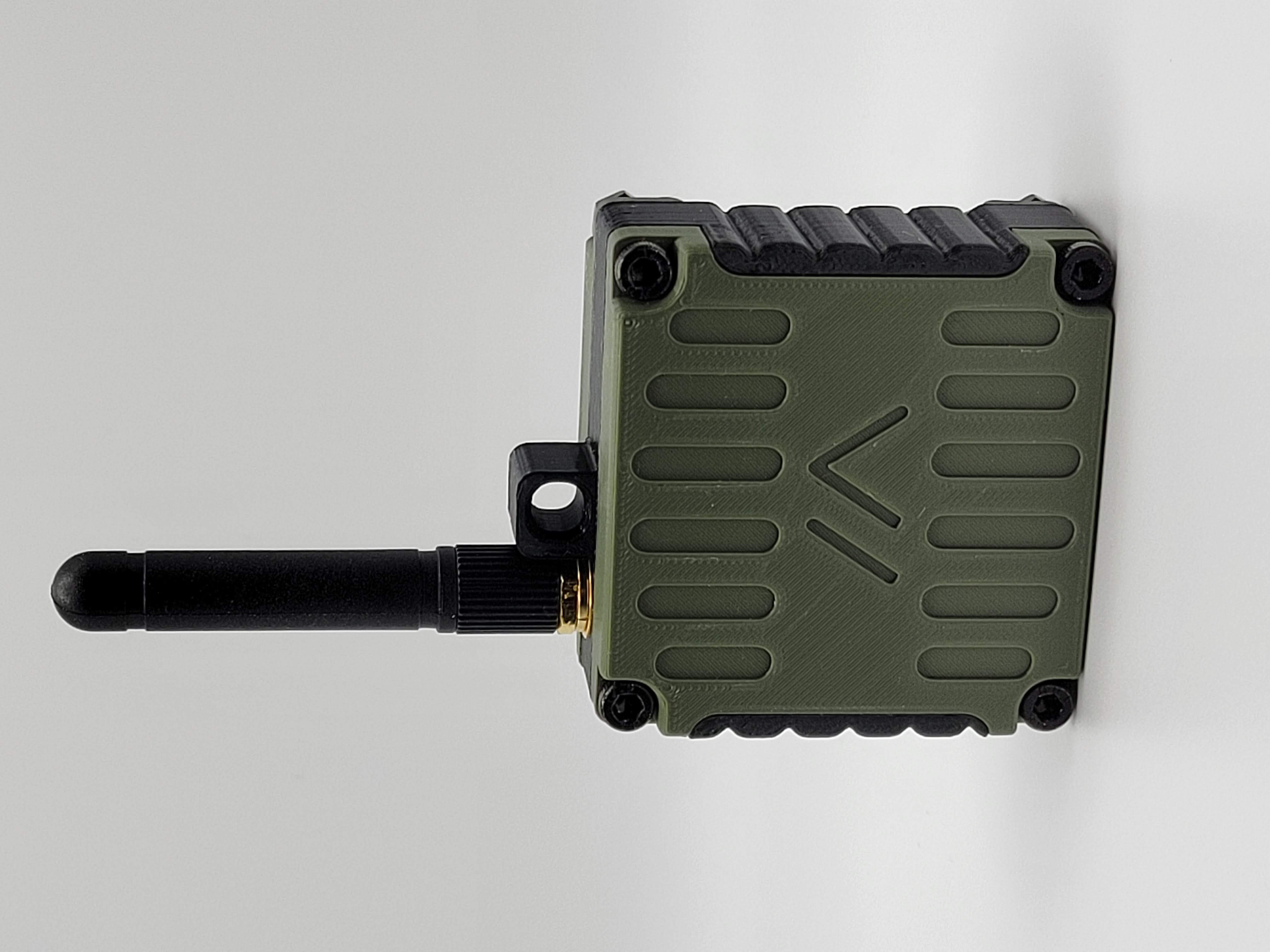

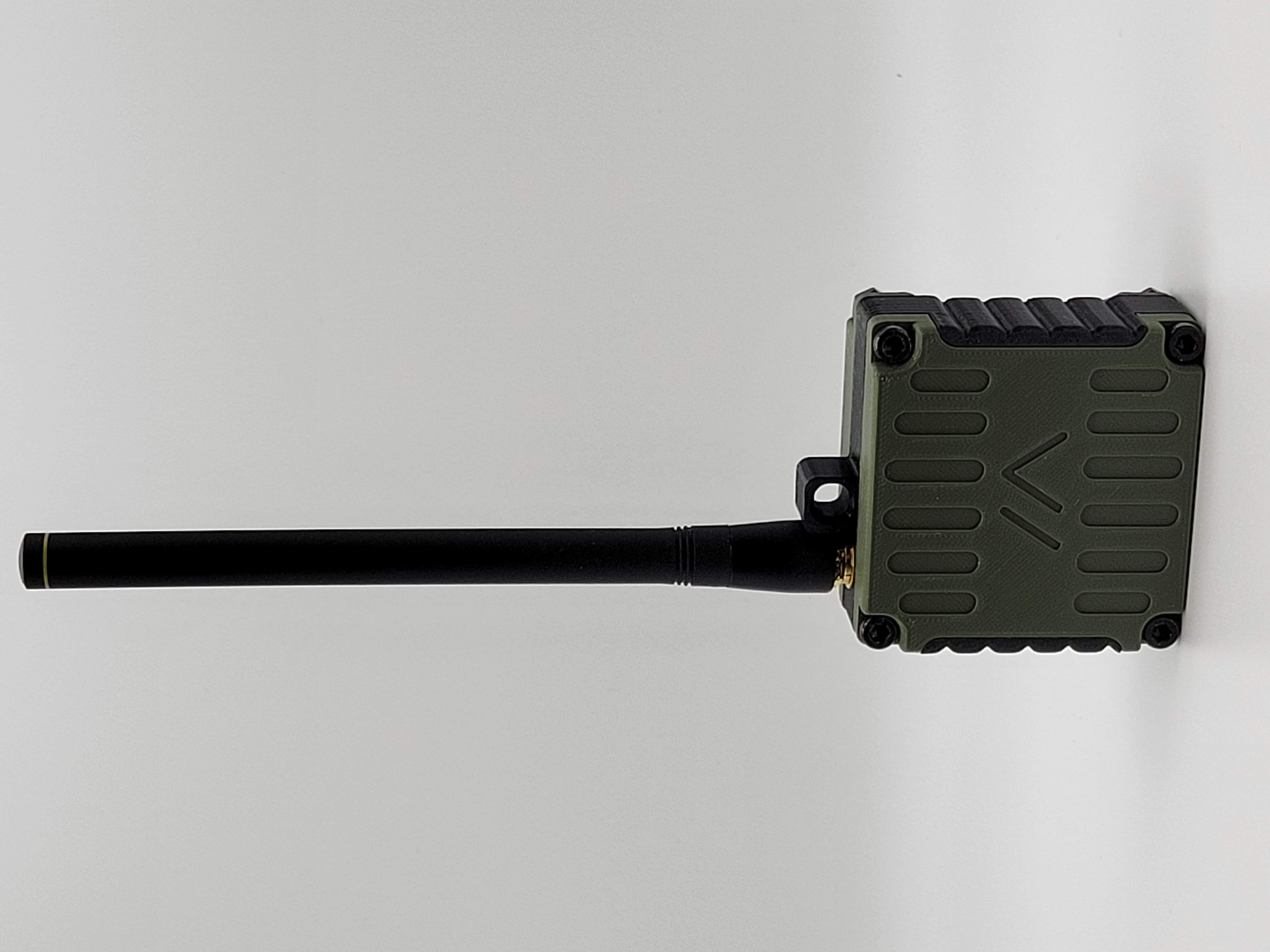

This is a micro case for a RAKwireless RAK19003 WisBlock base board, designed with the Meshtastic project (https://meshtastic.org) in mind. It will accommodate the RAK19003 base board plus the RAK4631 (LoRa), RAK12500 (GNSS/GPS), and RAK18001 (piezo buzzer) modules.

Required hardware:

• Four (4) M3x20mm socket head cap screws
• Four (4) M3 nuts
• Two (2) M2.5 screws (to secure RAK board to frame)
• One (1) LiPo battery pack: 500mAh from https://amazon.com/gp/product/B091FKGW8H

Optional hardware:

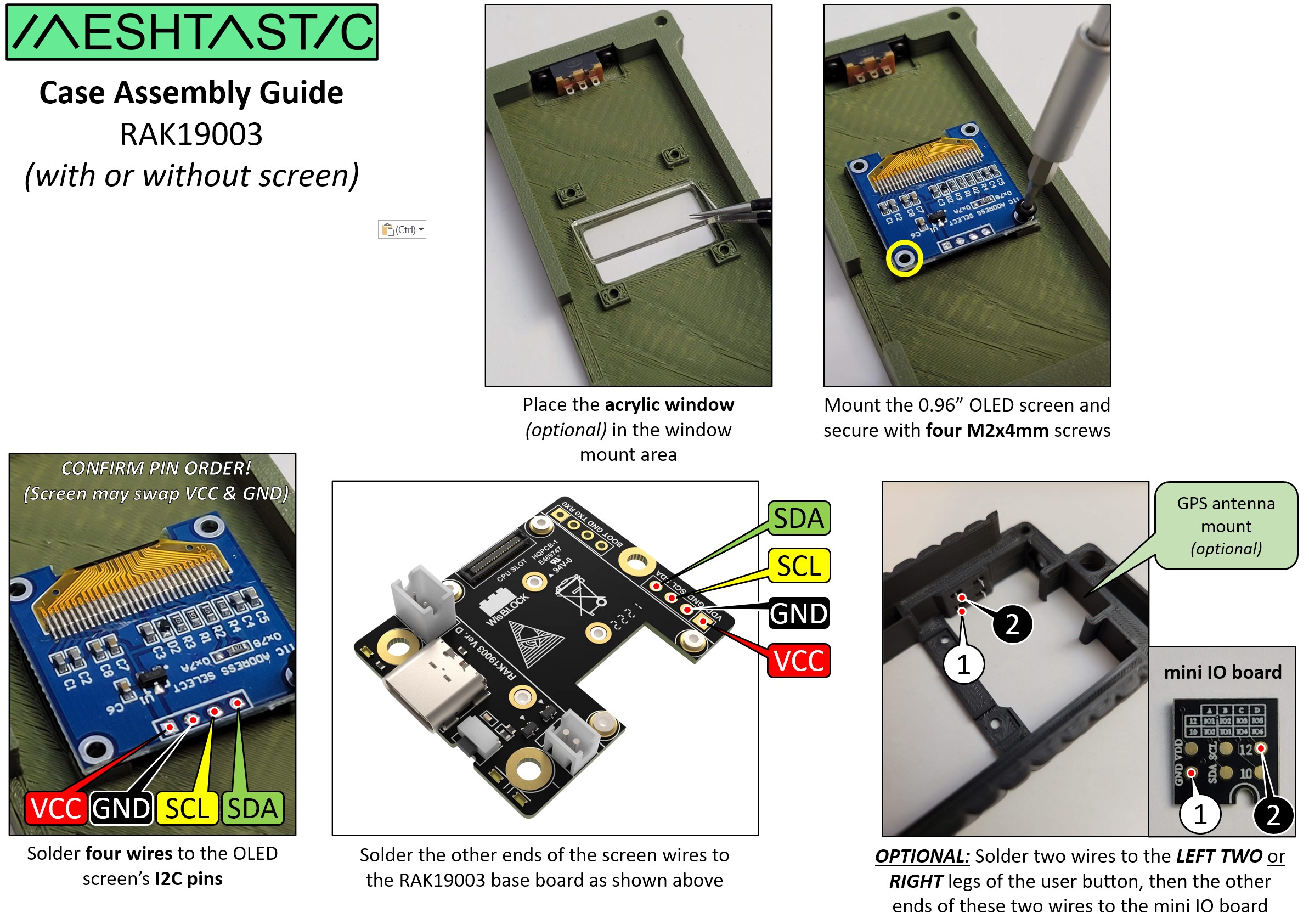

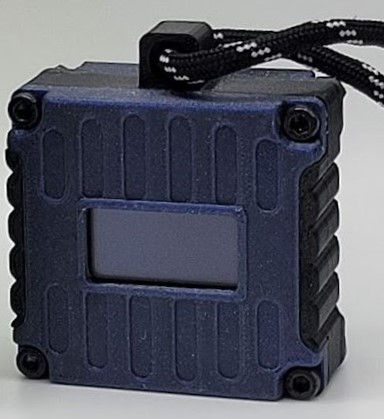

• RAK1921 or similar 0.96" OLED screen
• Four (4) M2x4mm screws (to mount the OLED screen)
• Four (4) M2 washers (to mount the OLED screen)
• One (1) momentary micro push button (for IO5/user button): https://amazon.com/gp/product/B07C7211PJ - Note: user button requires a “mini IO board” that exposes the IO5 pin not physically present on the RAK19003 base board (https://www.etsy.com/listing/1254963521/mini-io-expansion-board-for-rak-wireless)
• One (1) latching (not momentary) micro push button switch: https://amazon.com/gp/product/B086L2GPGX - Note: only needed if a battery cutoff switch is desired; cannot be used simultaneously with the momentary pushbutton for IO5/user button

Minimum required model files:

• RAK19003-micro_back_noGPS-<your pattern choice> (battery installed under front cover)
• +OR+ RAK19003-micro-back-<pattern> (must be used with OLED screens to fit battery under back cover)
• RAK19003-micro_button-reset
• RAK19003-micro_frame
• RAK19003-micro_front-<your pattern choice>
• +OR+ RAK19003-micro_front_noscreen-<pattern>

Optional model files:

• RAK19003-micro_frame-internal-antenna (for use with RAK PCB antenna only)

Notes:

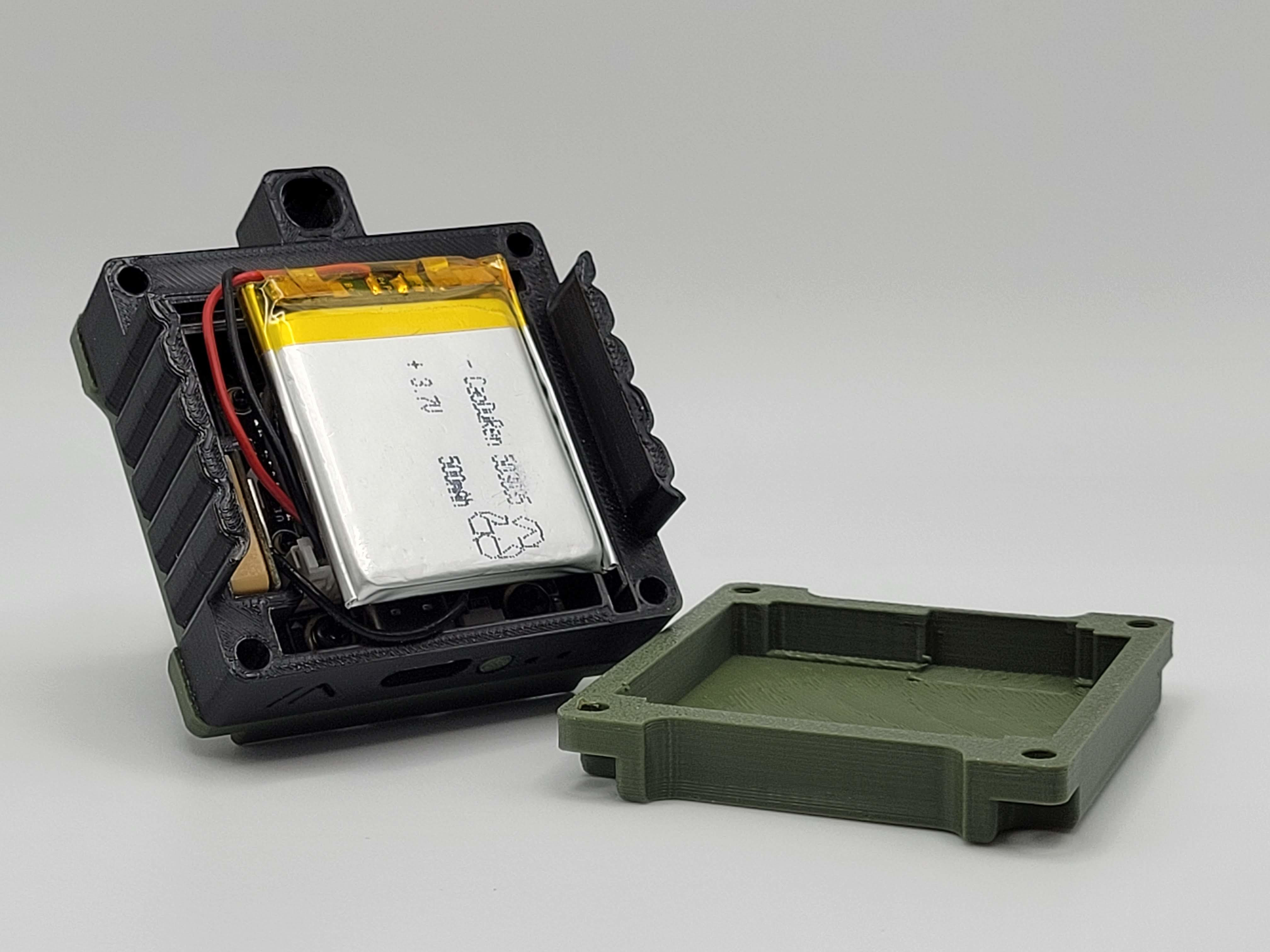

• If using an OLED screen the battery must be mounted in the rear of the case, and you must use an back_noGPS-<pattern> back with it, else the battery will not fit.
• Dimensions: 50mm (L) x 48mm (W) x 24mm (H)
