2x3 Downspout Strap
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Remix of Gutter Downspout Mount Set by wnnorton
https://www.thingiverse.com/thing:2743708Gutter Downspout Mount Set

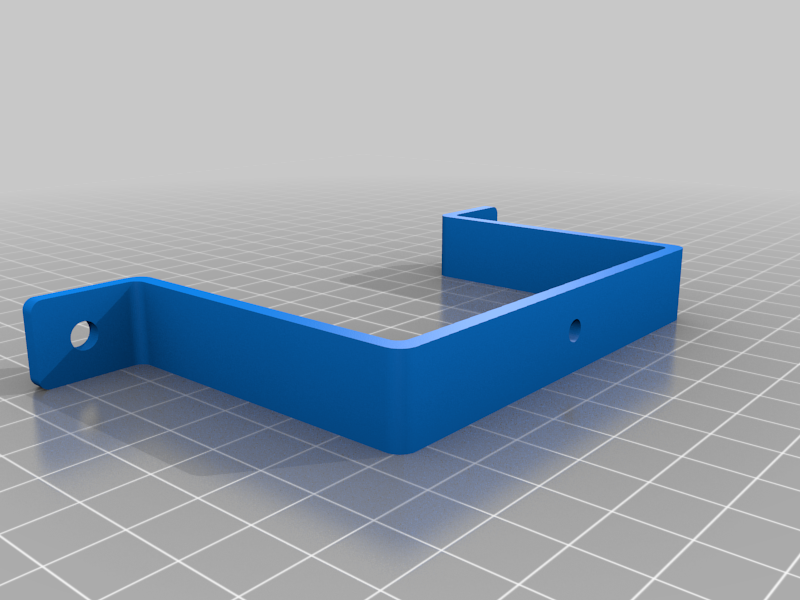

I'm not sure what downspouts wnnorton designed mounts for, but none seem to fit the 2x3" downspouts that are common in the U.S.. I made a few small changes to the CAD file to adapt to holding a 2x3" downspout flat against a wall.

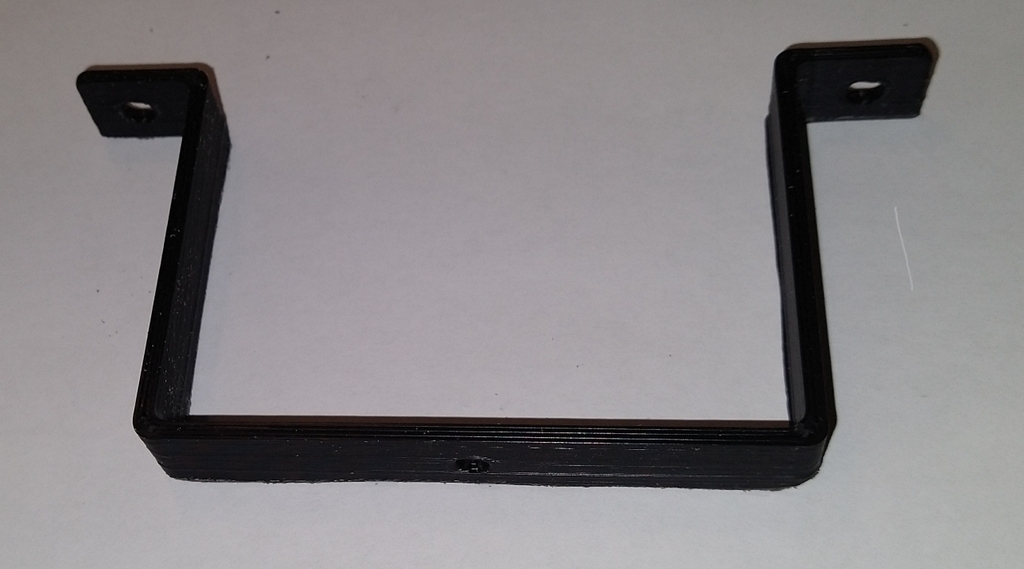

Strap is symmetric. Photo of the strap on white background looks asymmetrical only because it was photographed at an angle.
Print Settings
Printer Brand:
Creality
Printer:
Ender 3
Resolution:
0.24mm
Infill:
100%
Filament:
Polymaker ASA
black
Notes:
ASA is about ideal for this, but PETG will probably work if that's what your have. PLA does not handle sunlight well, and will probably fail. Supports will help with the screw holes, but you could probably skip them if you don't mind drilling out the holes. It should import into your slicer in the proper orientation.
