Version 2 found here: https://www.printables.com/model/205121-ts80-case-slim

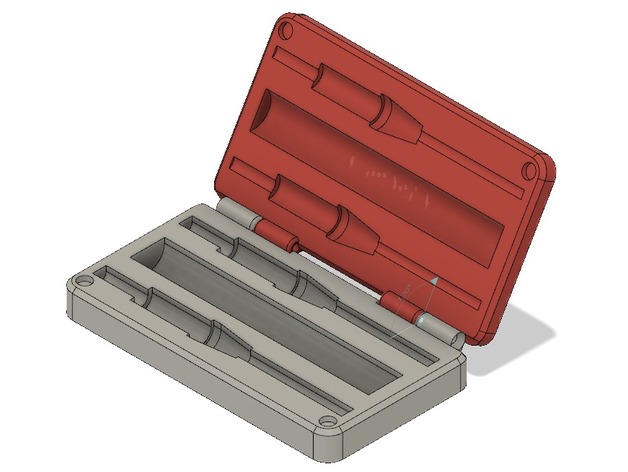

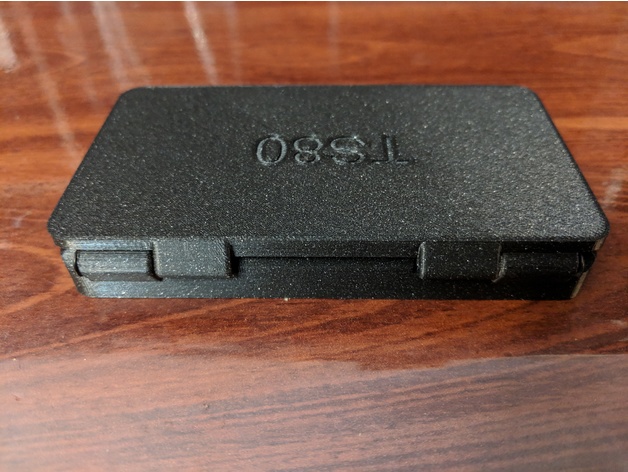

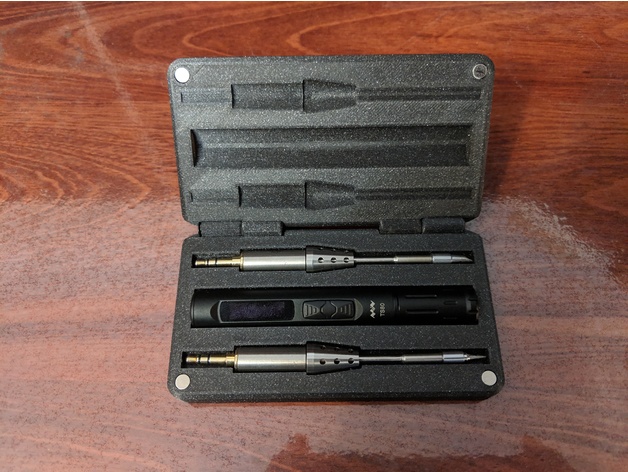

Just a small and simple case for the TS80 Soldering iron. When printing please flip the lid as it is designed to print upside down. I have included the STEP and fusion files so that you can customize the model to suite hardware you may already have. If you have any questions regarding this model please feel free to leave a comment :D
Hardware:
2x M3x30mm countersunk screws
4x 5mmx2mm Neodymium Magnets (Optional)
Links:
https://hobbyking.com/en_us/metal-flat-head-machine-hex-screw-m3x30-10pcs-set.html
https://www.ebay.com.au/itm/NEW-5mm-x-2mm-Rare-Earth-Strong-Magnet-Disc-Round-Cylinder-Neodymium-fridge/152688785592?hash=item238cf5f8b8:m:mjpvReALHkUq2bc6C0JCtHQ:rk:1:pf:0
Print instructions
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: No
Resolution: 0.15
Infill: 20%
Filament_brand: Prusament
Filament_material: PLA or PETG
Notes:
When printing please flip the lid so that it prints upside down.
