A case for your Astroberry project

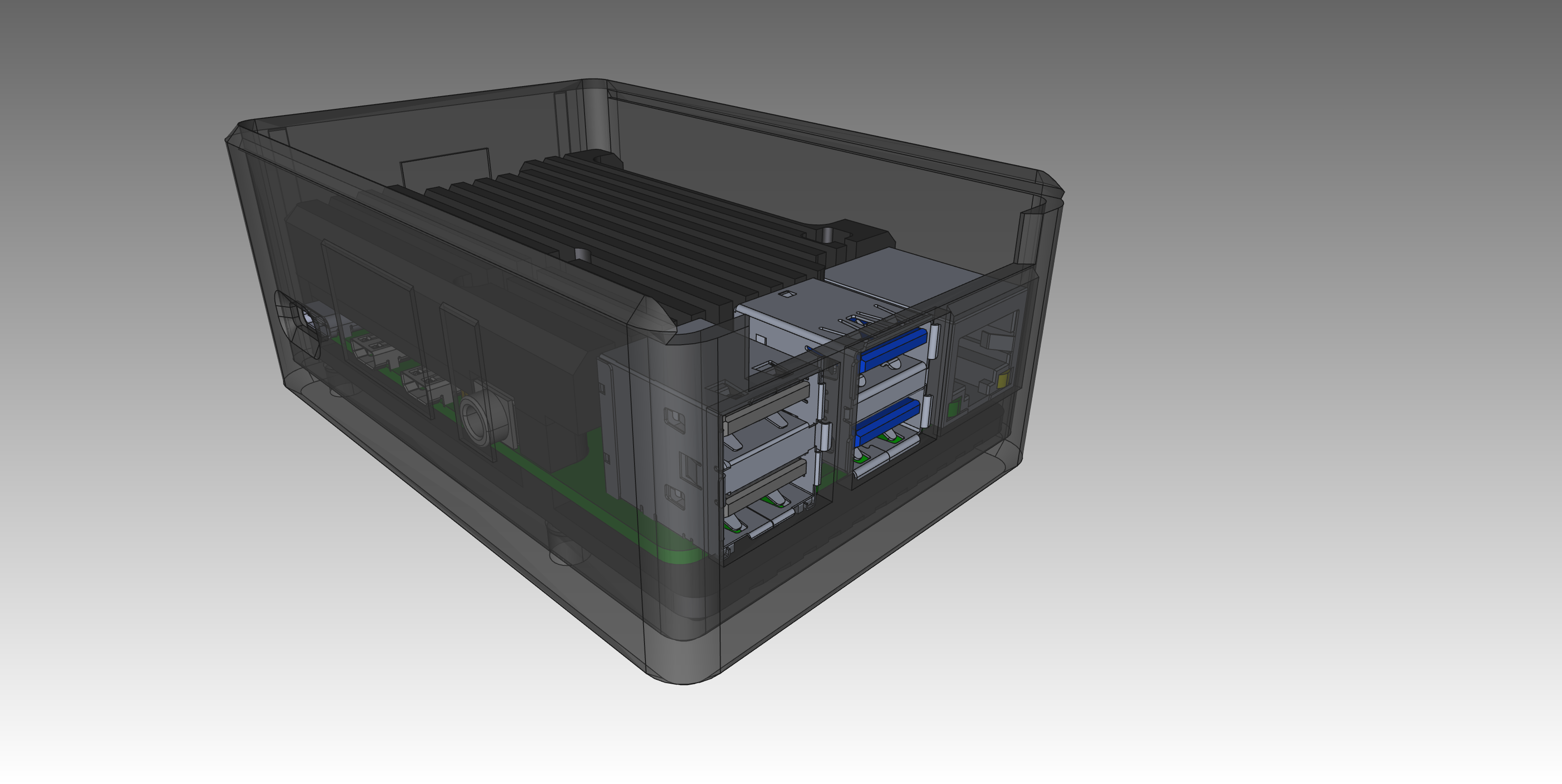

This rugged case is for a Raspberry Pi 4B with a mounted heatsink like this one:
https://amzn.eu/iCX0Fwg or https://amzn.eu/hAALRce

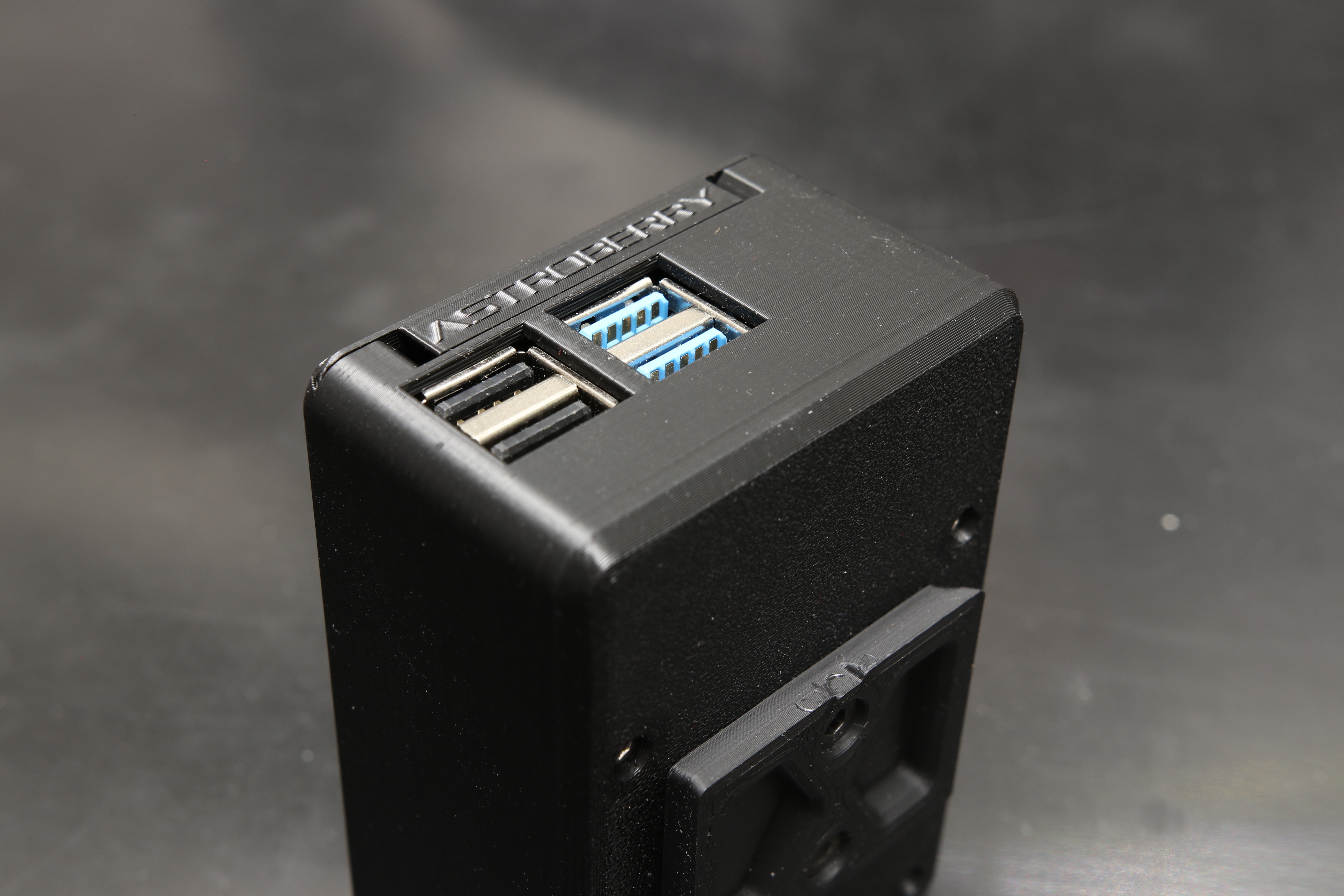

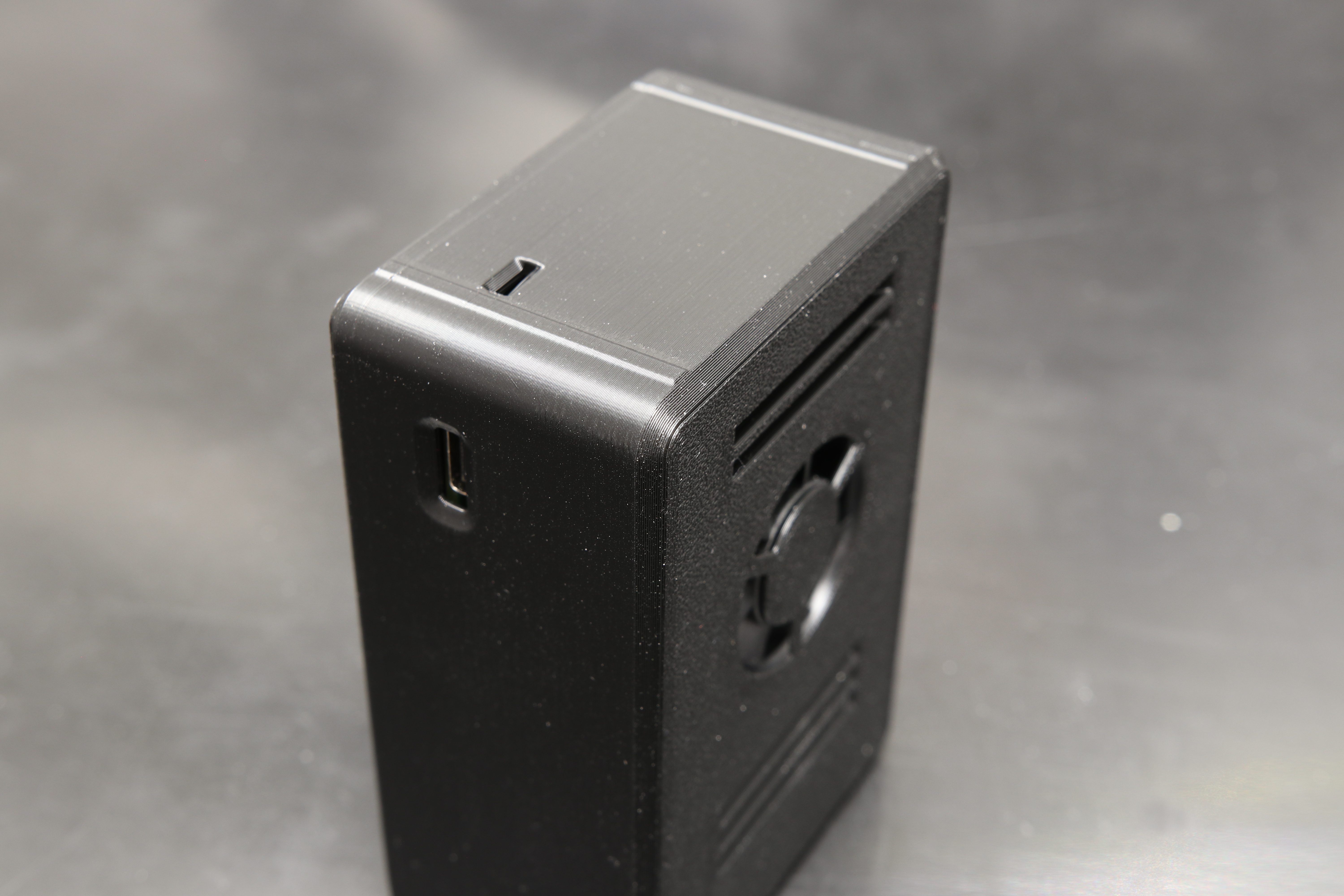

This case has outputs for the 4 USB-A ports and the USB-C port. Everything else is closed and protected from the weather.

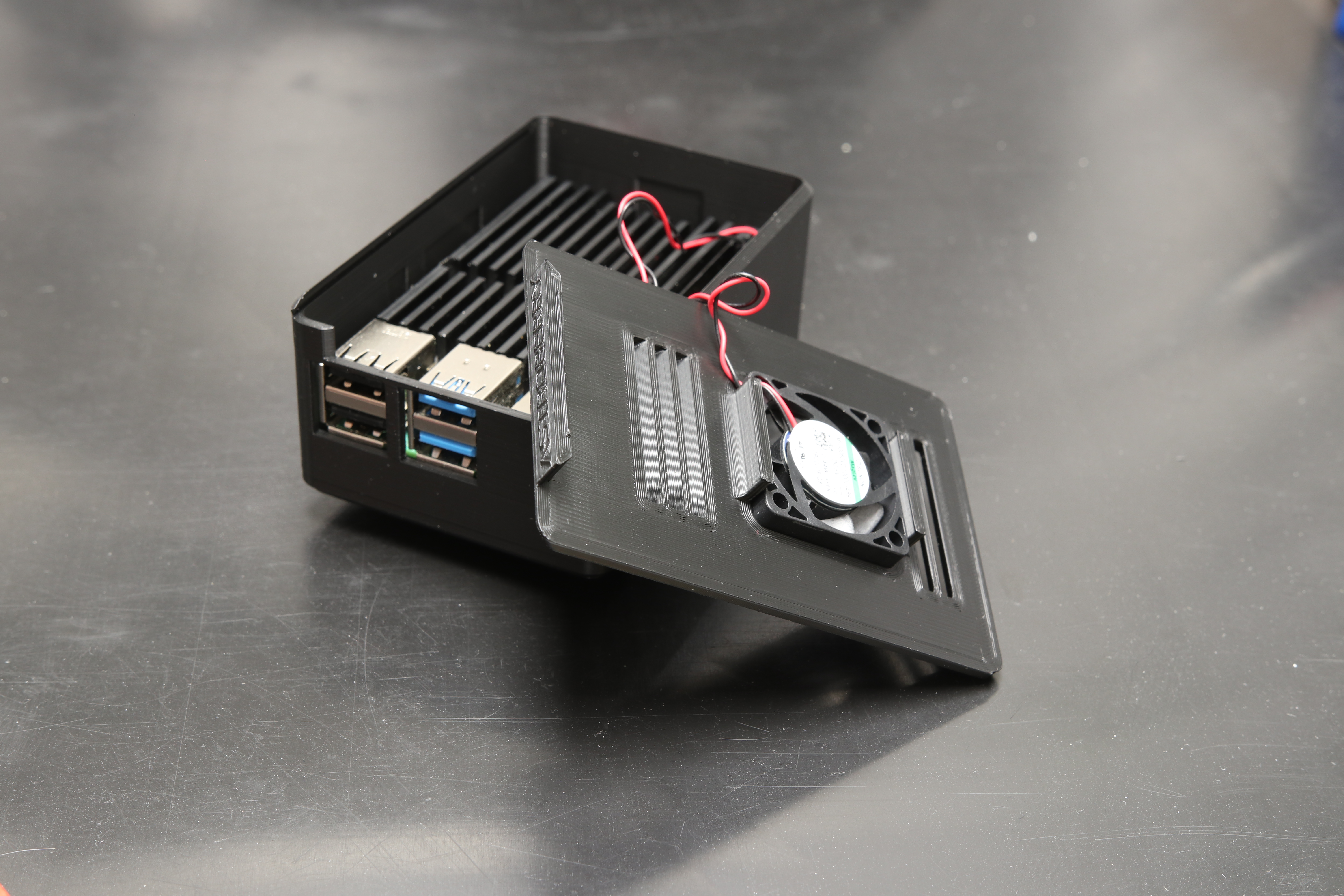

Despite the housing, the RaspberryPi stays pretty cool thanks to the large heat sink and a 30x30x7 fan.

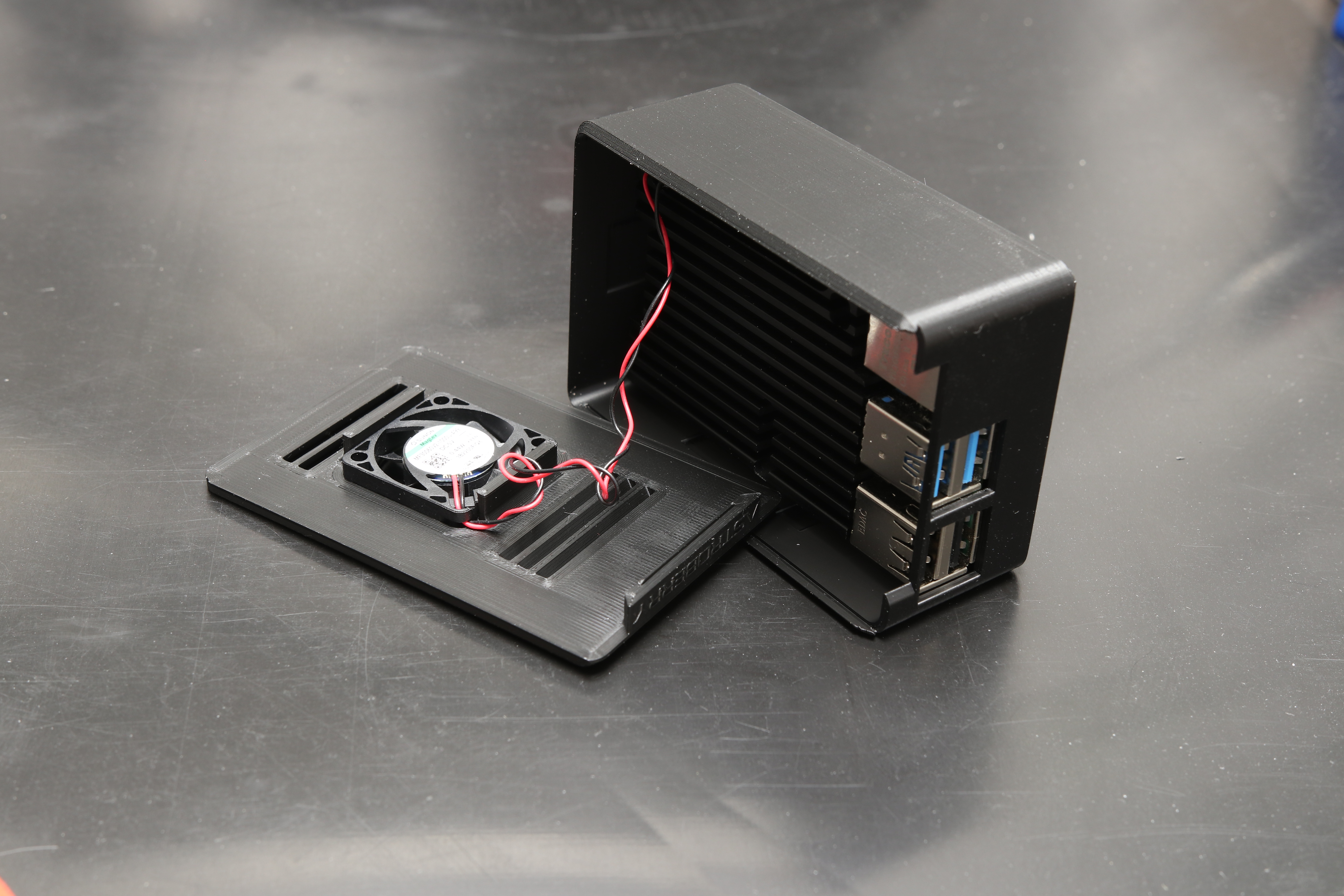

It consists of 2 parts that are pushed into each other and finally snap into place. So no screws are needed and the case doesn't look like DIY :)

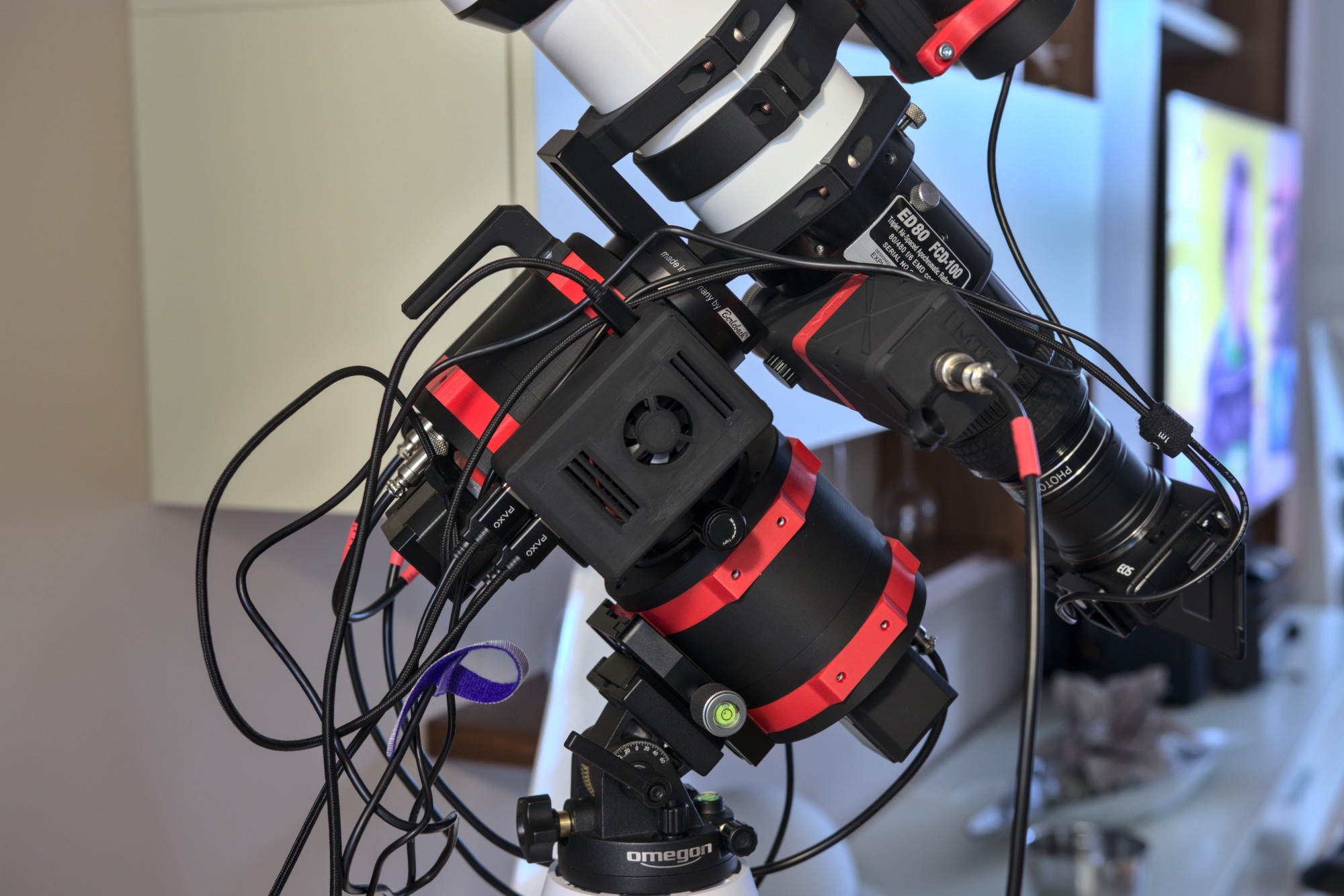

At the bottom there are 2 M4 connection threads, I use them to mount a Dovetail for the KeenOne EQ mount. https://www.printables.com/de/model/273812-keen-one-harmonic-drive-eq-mount
Dovetail: https://www.printables.com/de/model/304131-different-dovetail-for-controller
Dimensions:
- Length: 94.5mm
- Width: 64mm
- Height: 40mm
BOM:
- 4x M2.5x12 Screw for mounting the RPi with heatsink
- 2x M4 hex nut for attaching the housing to astronomical equipment
- 1x Raspberry Pi 4B
- 1x heat sink https://amzn.eu/iCX0Fwg or https://amzn.eu/hAALRce
- 1x 30 x 30 fan up to max. 7.5mm height, 5V
Happy printing :)
