Ender 3 ZAxis Camera Mount for Raspberry Pi Camera V2 (and Arducam IMX519)
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Noncommercial
Codemonkey1973's Ender 3 Camera Mount for Raspberry Pi Camera V2.1 was very well designed but I wanted to cleanly route the cable to the back and saw room for improvement. So I rebuilt it with the following improvements:
- Threaded holes were replaced with M3x10 screws and nuts
- Added optional cable guides to route the flex cable to the rear

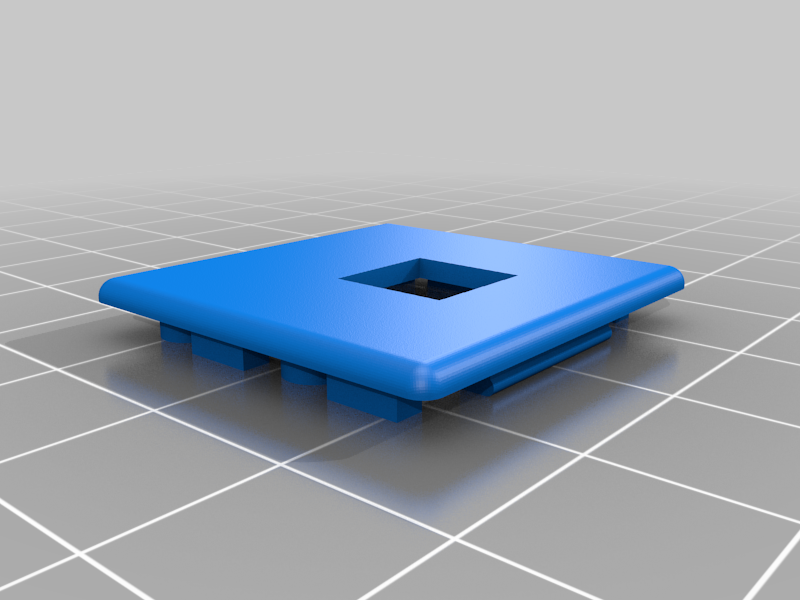

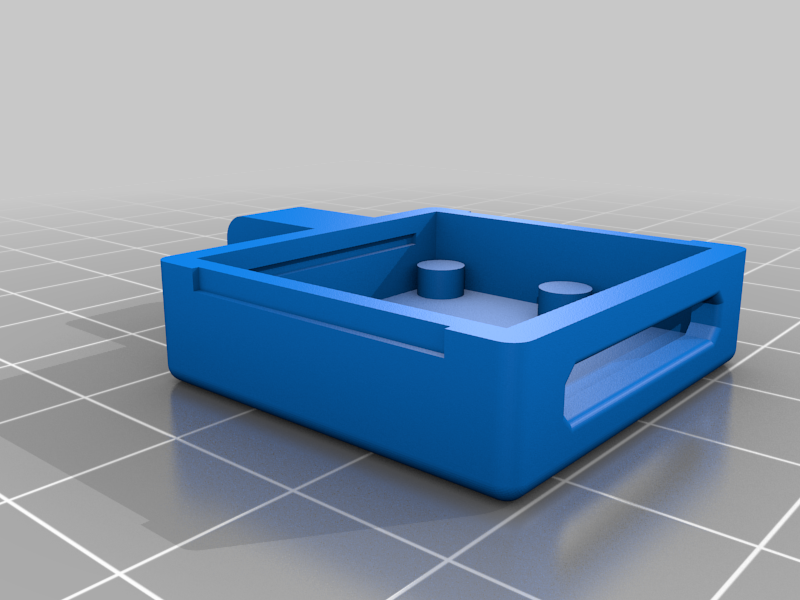

- Improved the front/back camera case locking mechanism
Print Settings
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
20%
Notes:

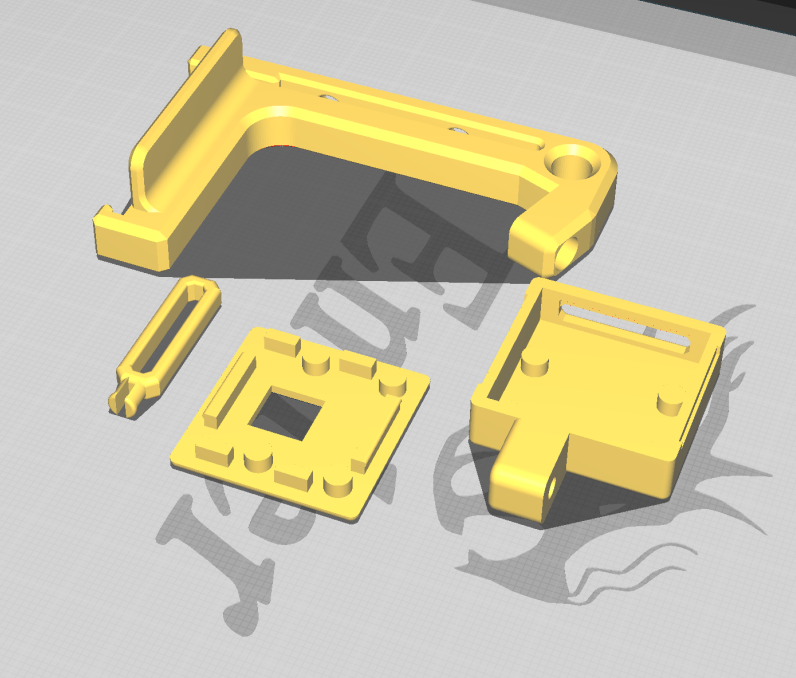

See the image for appropriate print orientation
