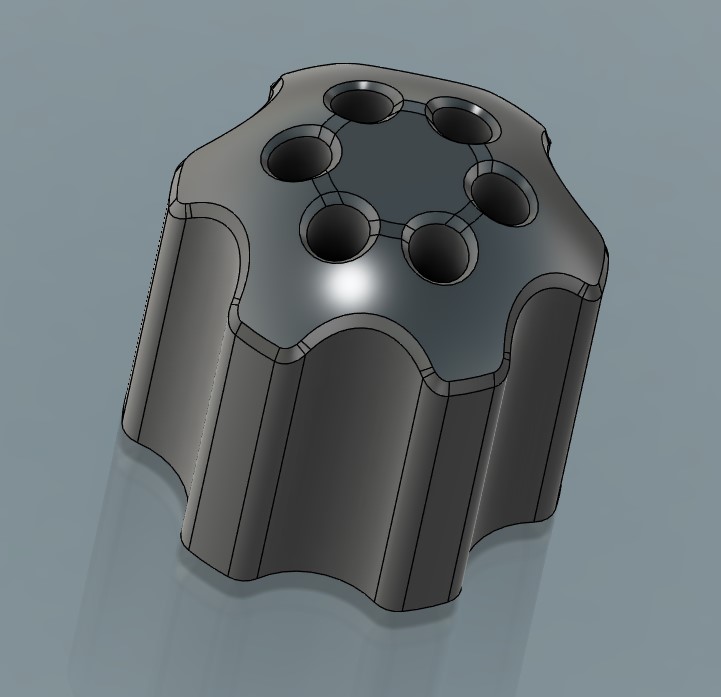

Lots of these out there alread - more of a fun exercise for me to design my own. These handles are great for squeezing into snug places or maybe just convenience.

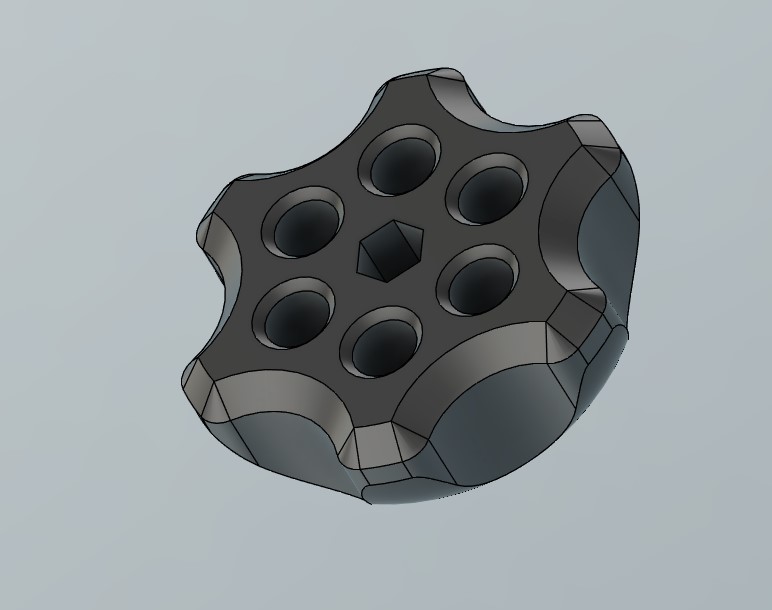

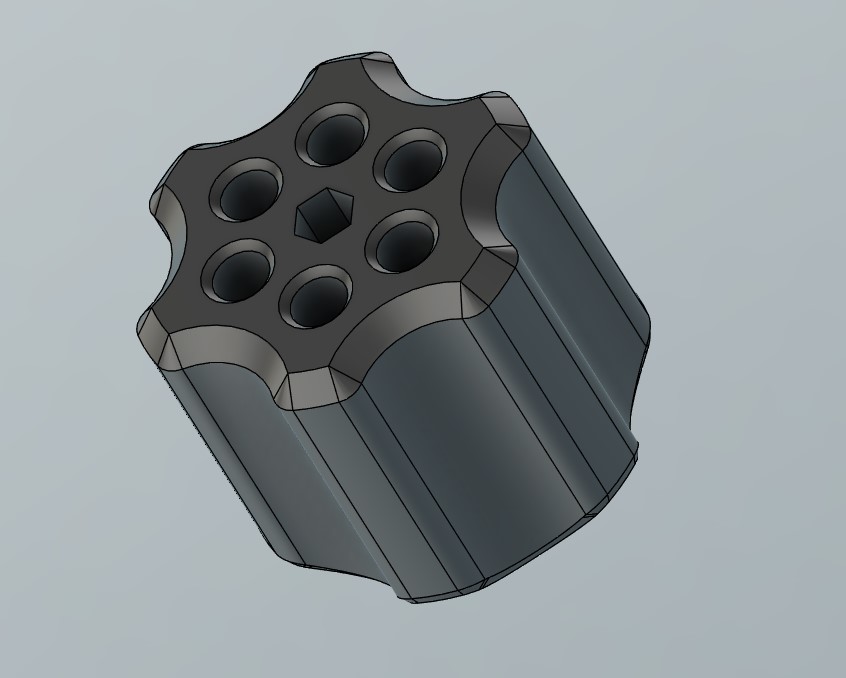

There is a 2mm recess in the bottom of the bit slot for a 6mmx3mm magnet to help hold your bits in place. Put a drop of glue on the magnet and set it in place.
Printing Tips
Designed for total wall/perimeter thickness of 2mm. If you use a 0.6 nozzle - go with 4 walls, or 5 walls for a 0.4 nozzle. The walls from the circular pattern of through holes will help reinforce the walls of the bit slot this way.
No supports, use a rigid material.
The bit slots will be ever so slightly snug. If too tight, reduce your flow multiplier a few percent.
