Create Your Fighter with the pieces from a empty spool.
- Ocena
- 0 / 5
- Polubienia
- 10
- Pobrania
- 16
- Wydruki
- 0
- Wyświetlenia
- 151
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Art & Designs
- Licencja
- Creative Commons — Attribution — Share Alike
This model is a way to reuse the plastic part of a prusament spool. If you don't have a empty spool, don't worry, you will have it before you finish printing this model (it's become a little more bigger than i expect).

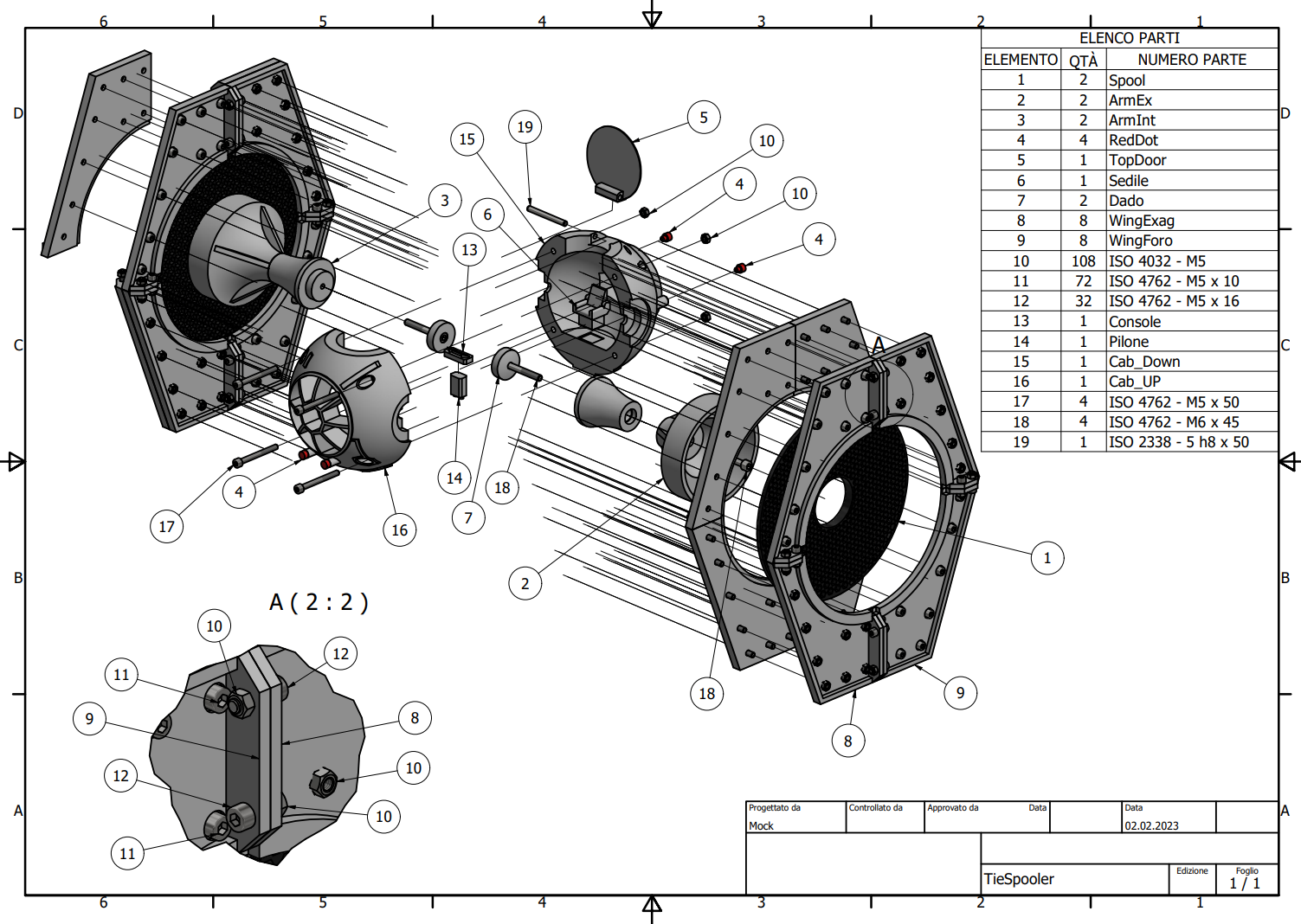

Every wing are made with a pieces of spool, and 8 printed pieces: 4 WingForo and 4WingExag. The gcode for this two article are made with a change color, the console too. I suggest to use the black filament first, then switch on white or gray.
For this model you will need some screw, but you can try to glue it all if you want.
Old version:
x4 M5x50 Cylindrical Head
x4 M6x45 Cylindrical Head
x72 M5x10 Cylindrical Head
x32 M5x16 Cylindrical Head
x108 M5 Hex nut
x1 Ø5 Cylindrical pin
New version:
x8 M6x45 Cylindrical Head
x39 M5x10 Cylindrical Head
x24 M5x16 Cylindrical Head
x64 M5 Hex nut
x4 M6 Hex nut
x1 Ø5x50 Cylindrical pin
