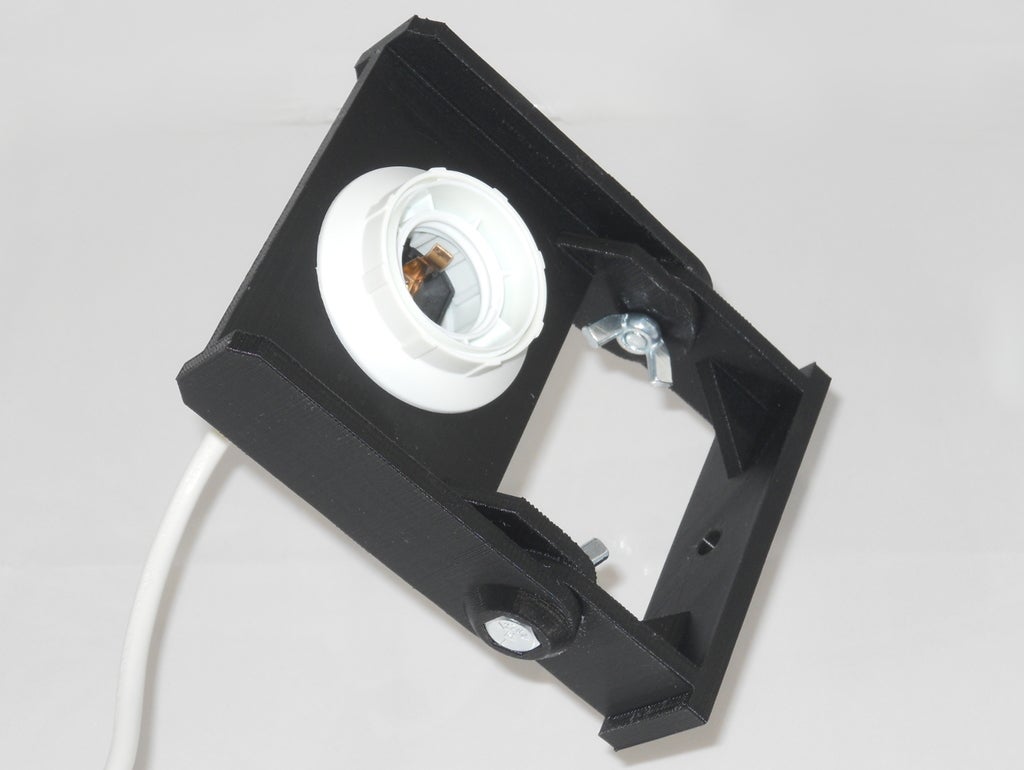

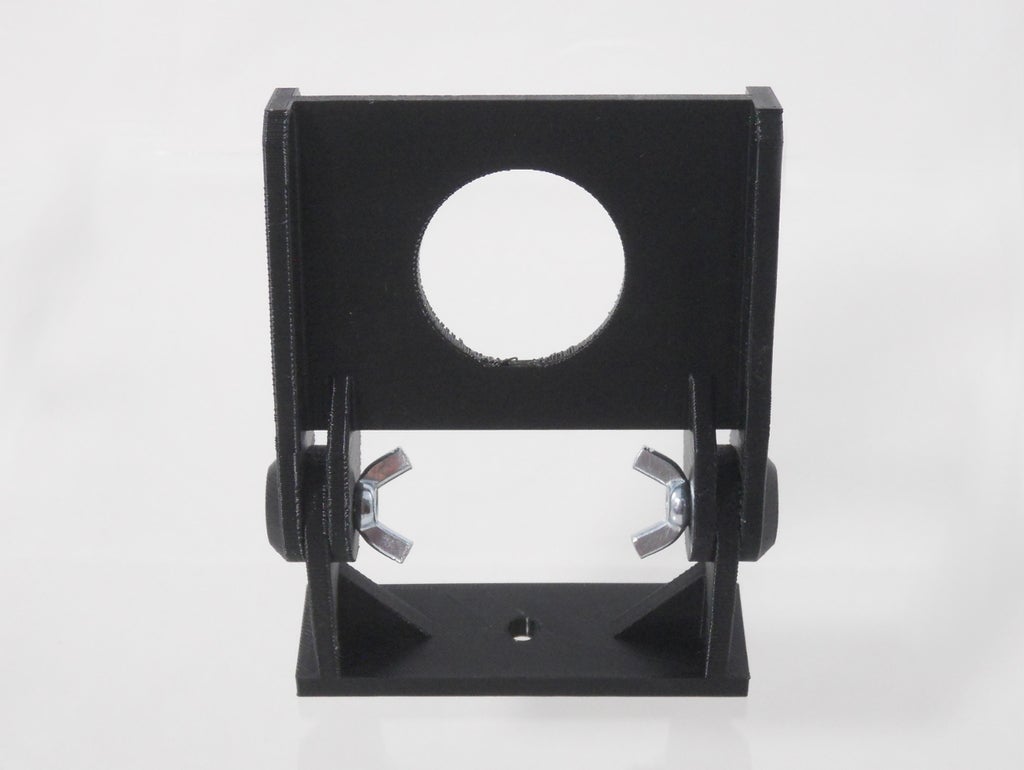

This is a mounting bracket for the Ikea Hemma light socket (E26). It is

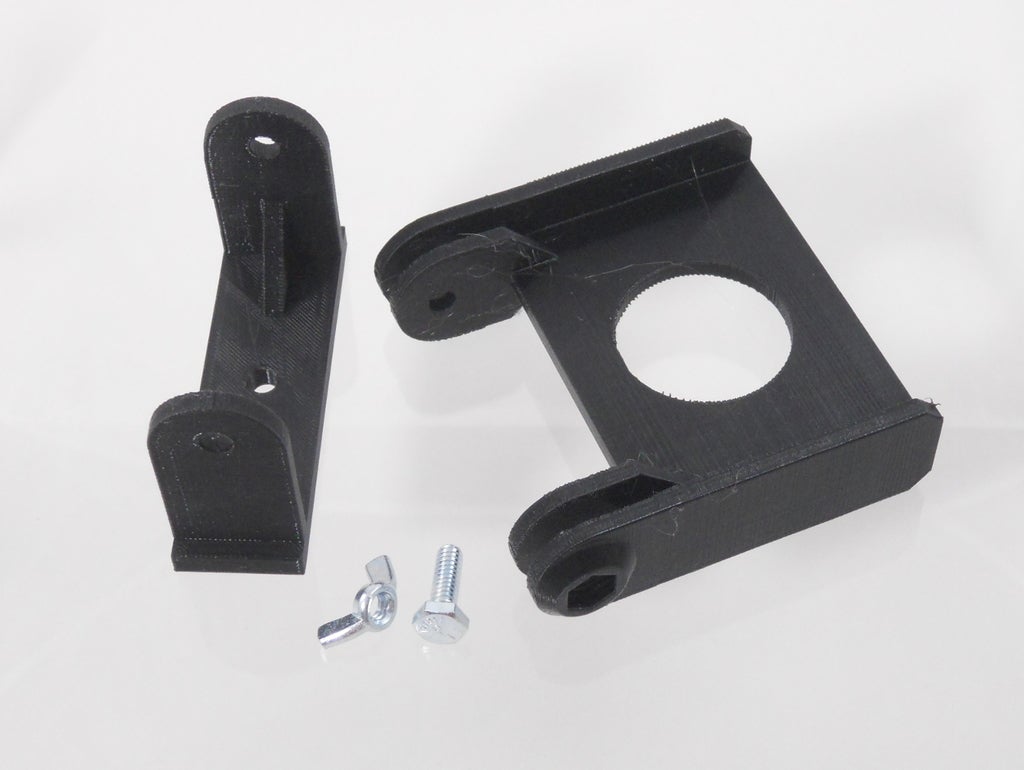

articulated in the Z axis. You will also need 2 hex bolts (1/4" x 3/4" or any
equivalent) and the 2 matching butterfly nuts in order to assemble it.

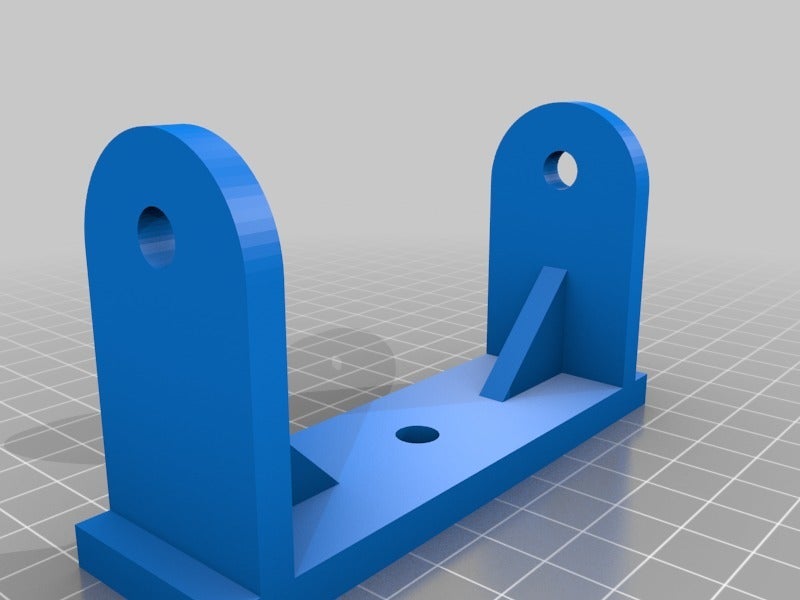

There is a 7 mm hole in the base to mount the bracket on a device such a
tripod, etc. The base is 10 cm x 3cm. The overall height of the bracket is 14
cm.

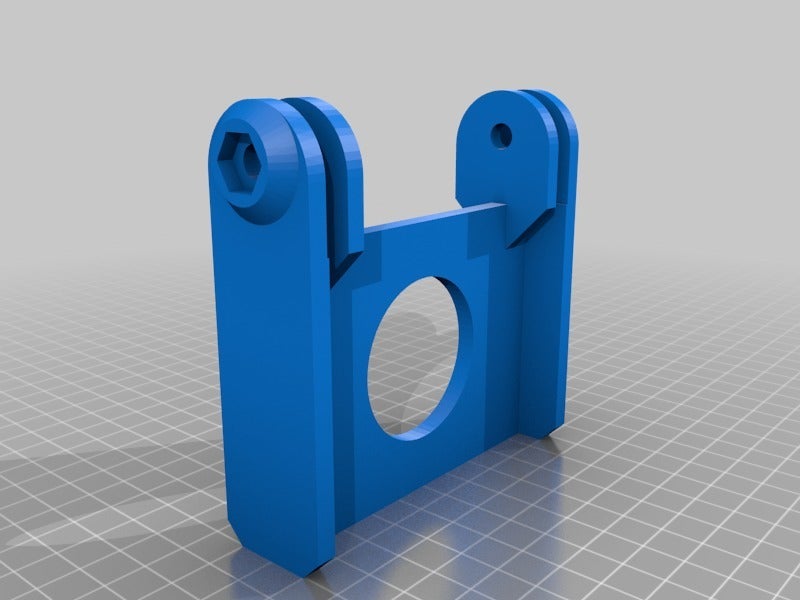

The holder should be printed upside down. A brim might be required. I did not
needed it.
They can be printed without support.
This object main web page is:
http://www.ctheroux.com/ikea-hemma-mounting-bracket/.
You can request the source files on the page listed above.
Print Settings
Printer: FLSun QQ
Rafts: No
Supports: No
Infill: 30%
