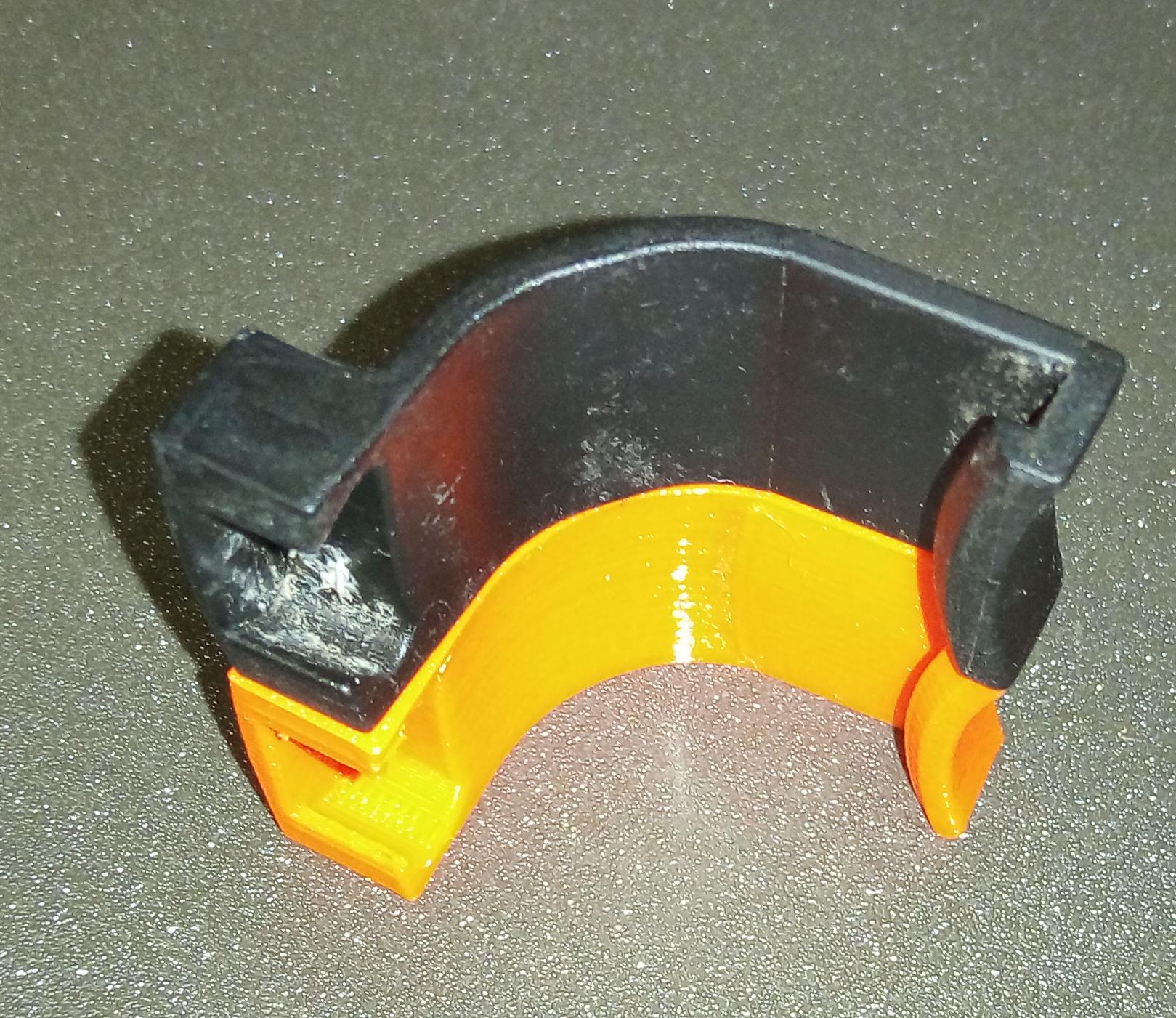

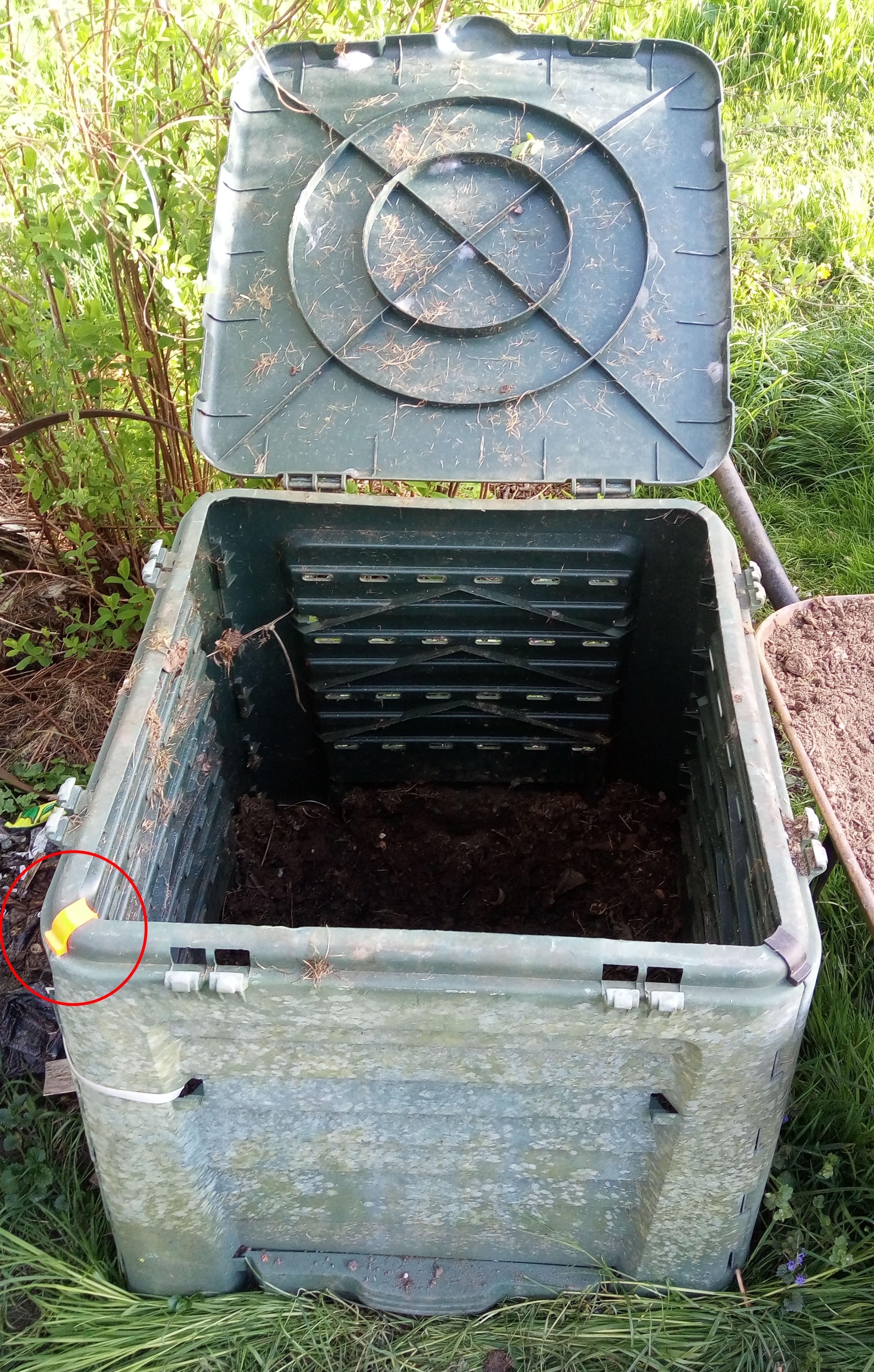

I had to make these clips, because two of the original ones got lost. In the images the original one is black and the new one is orange.

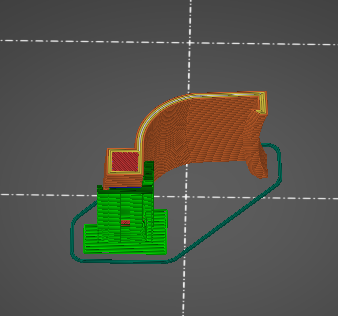

- It's probably better to use the “classic” perimeter generator (expert menu, “print settings:layers and perimeters:perimeter generator:Classic”, “Druckeinstellungen:Schichten und Umfänge:Umfangsgenerator:Klassisch”); “Arachne” won't fill the gap in the middle of the 4 layers in this model, where layers aren't connected
- I had to use supports
- used 3 vertical layers to enhance stability
- 40% infill
- printed using PETG, PLA will be too brittle
Version 2, 14.Mai 2023:
- made the lower opening smaller, because the original design kept getting off when the composter walls were not perfectly aligned.
