Parametric synthesizer stand
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Music
- Licencja
- GNU General Public License v3.0

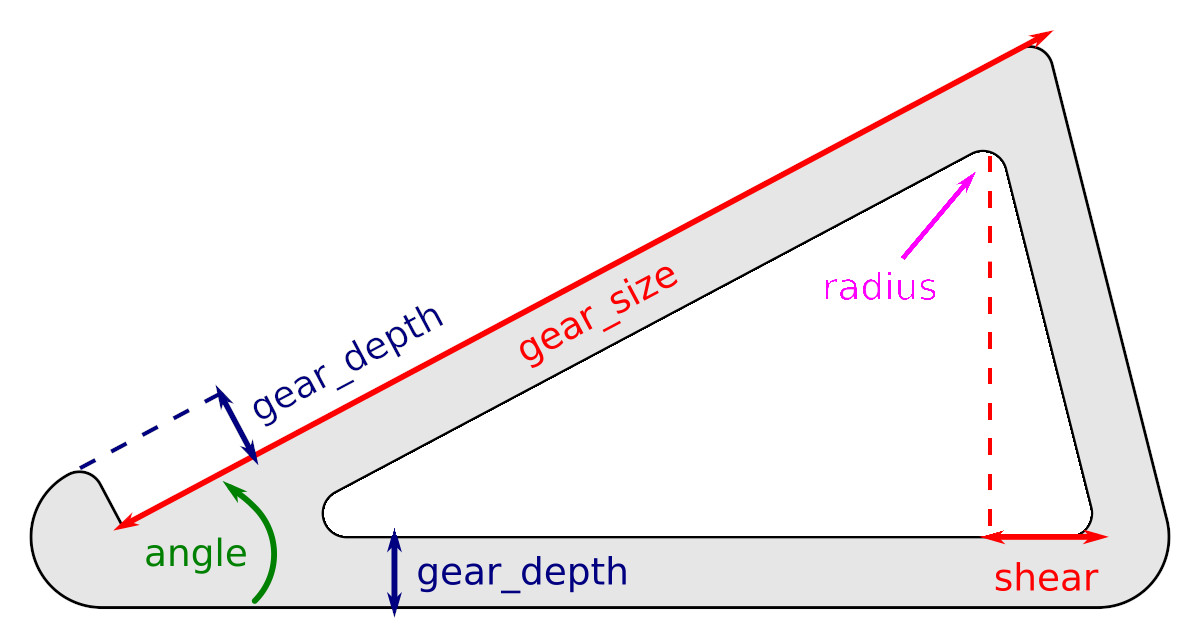

This is a simple parametric synthesizer stand. It was originally designed for the Vector synthesizer but can be used for any other gear after changing the parameters.

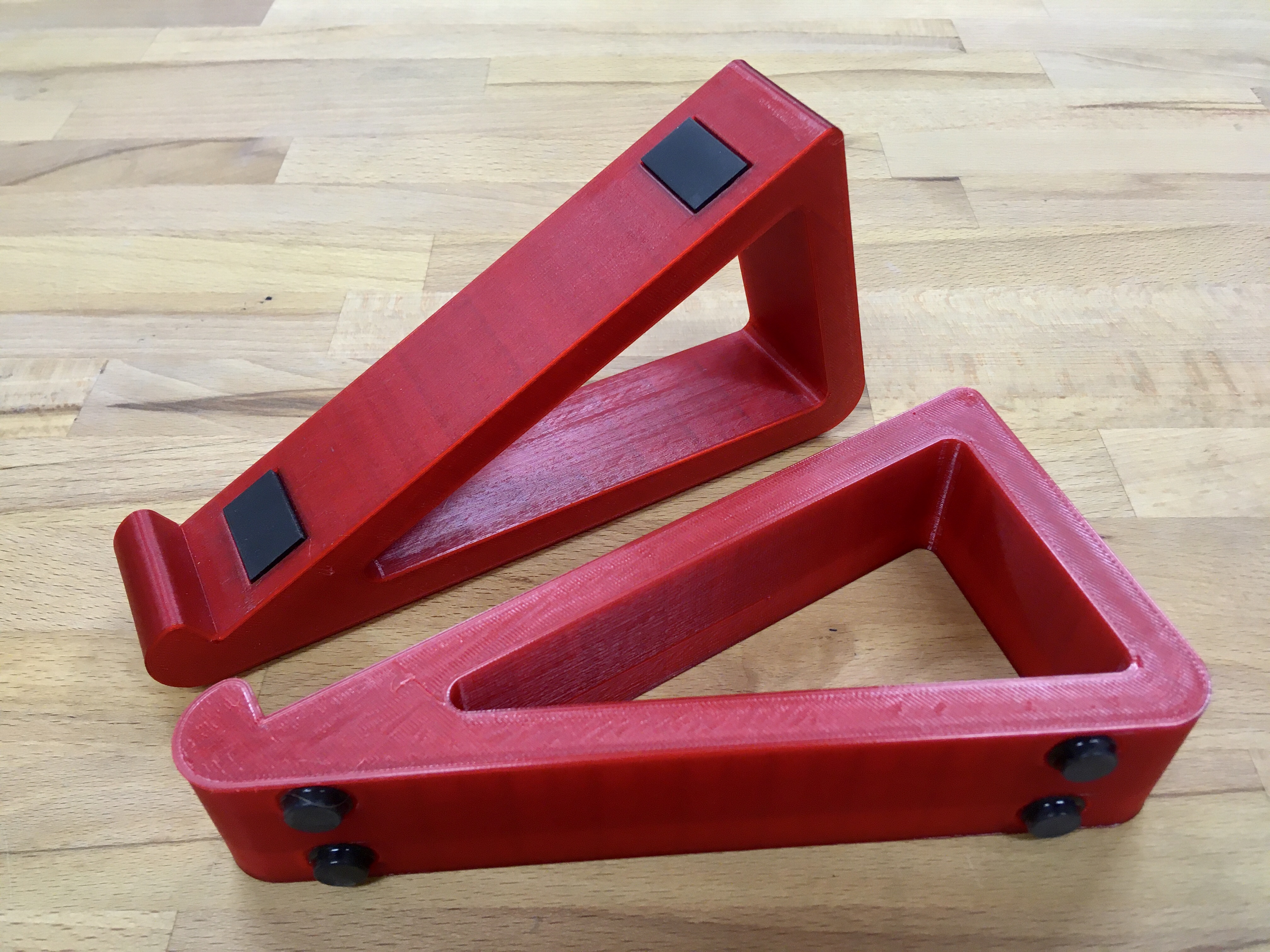

The stand consists of two identical parts. When printed wide enough with the proposed rubber feet, the two parts are pressed down by the weight of the instrument so it does not need any connection between the parts as seen in similar designs (threaded rods etc.).
Components used for one part (two needed in total):
- 2× Anti-slip rubber (25×12mm): Fix & Fasten FIX-SF-152530
- 4× Bottom rubber feet (diameter 12.7mm): 3M Bumpon series SJ5012 (7000001884)
The source code and more details are available at https://github.com/adamheinrich/gear_stand.
Print instructions
Use more perimeters for increased strength.
