I created this model in Fusion360 for Quick Flexis contest. This is my first not a consumer item that I am designing.

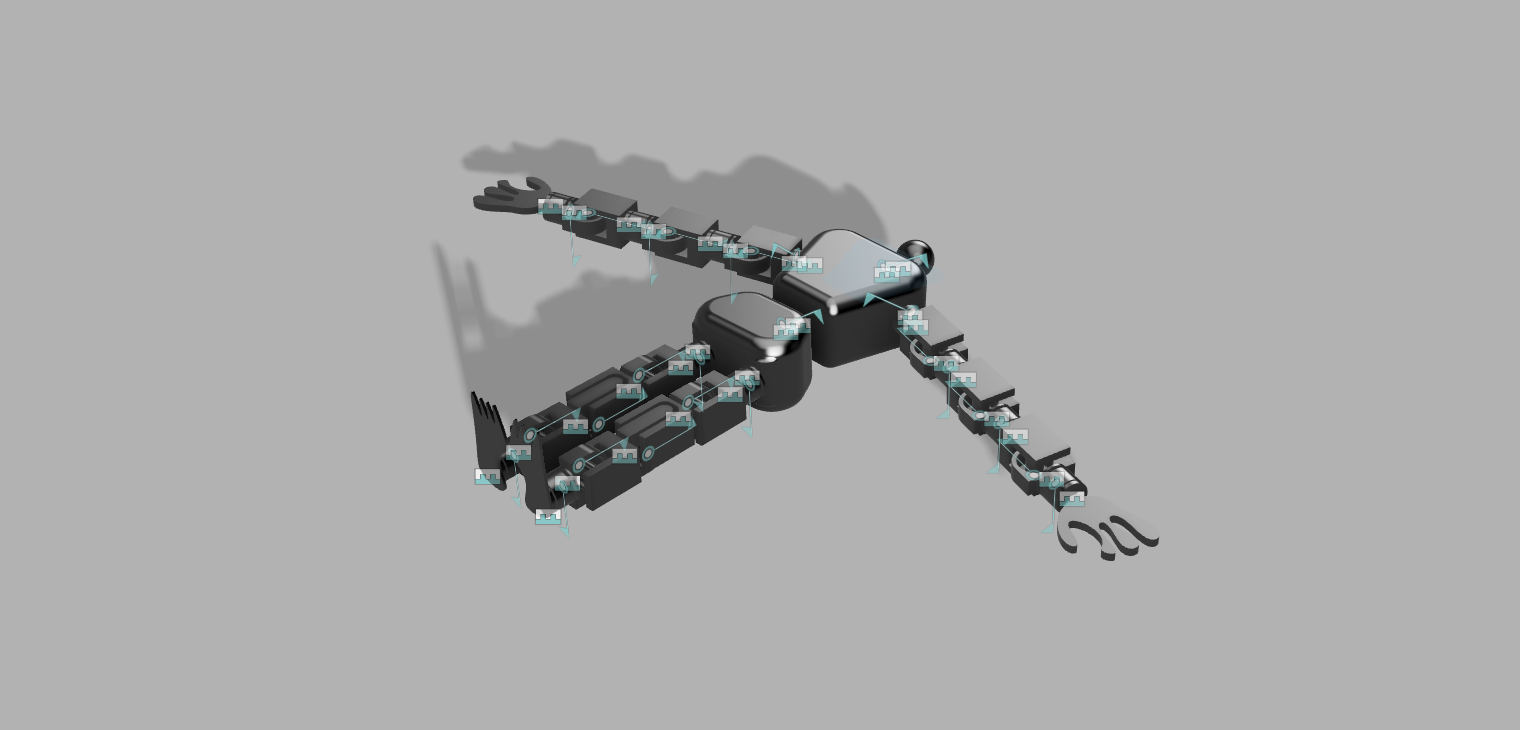

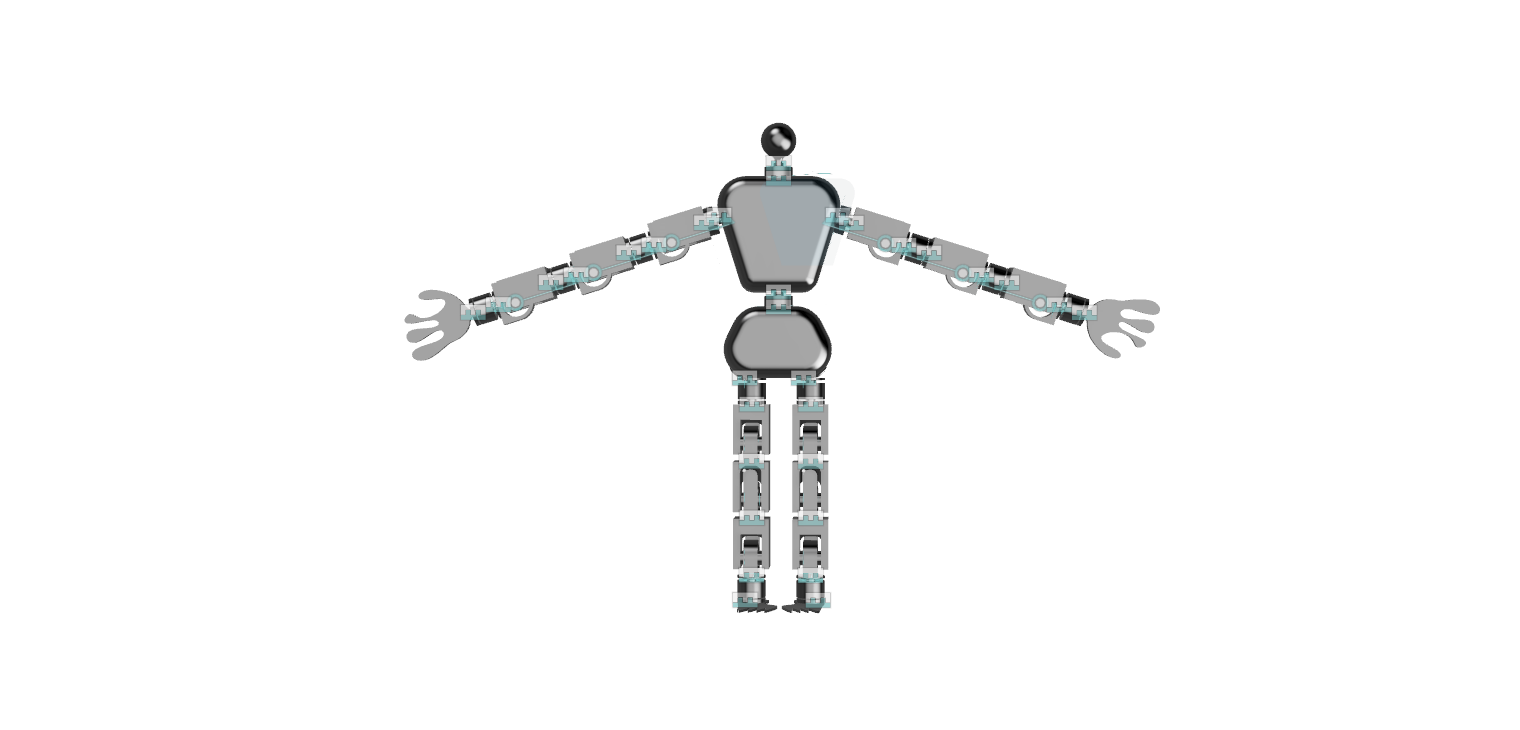

This is a humanoid 3D model, with several moving options, for example:

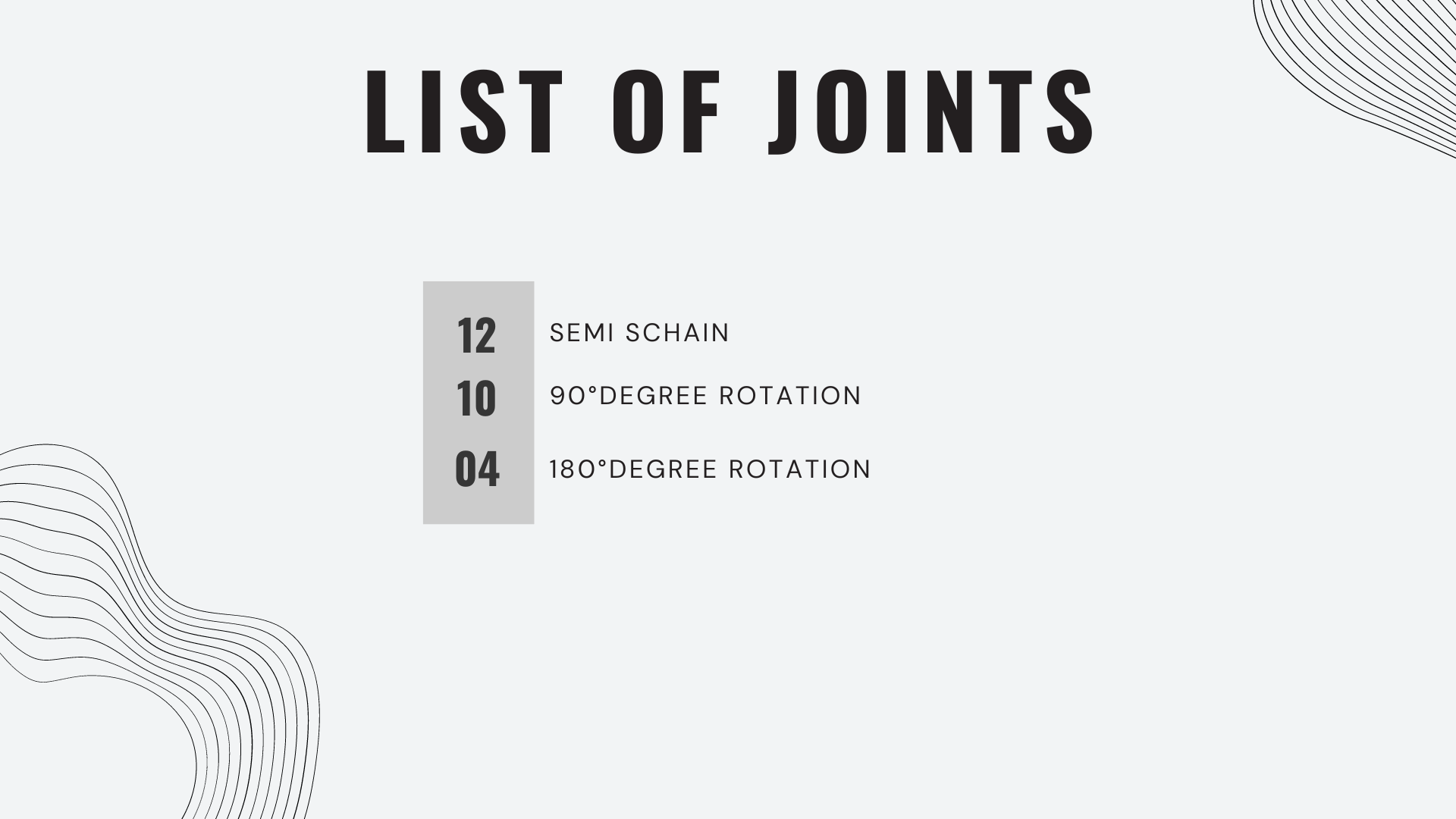

It contains:
- 12 - semi-chain like joints
- 10 - 90° rotation joint
- 4 - 180° rotation joint

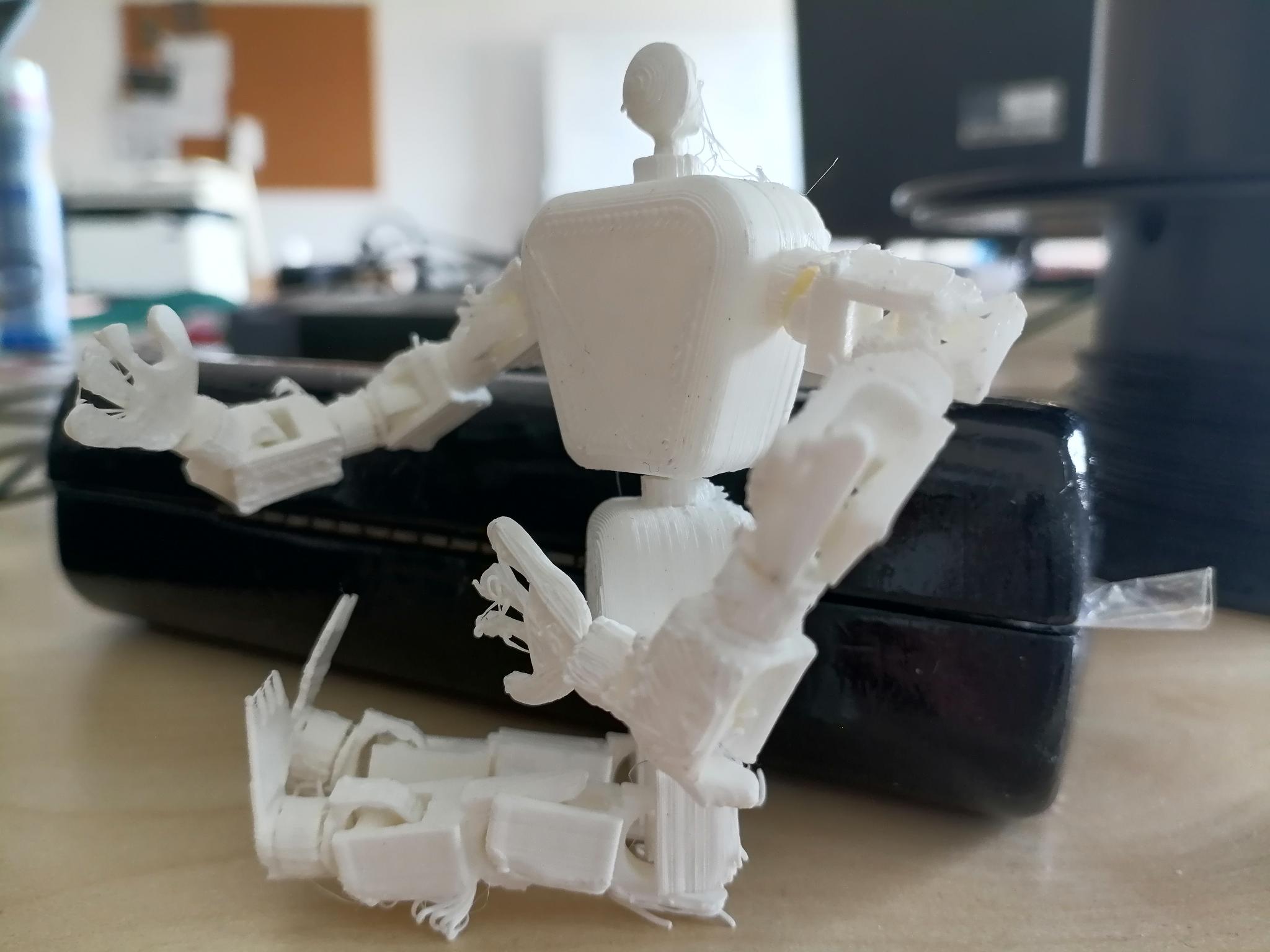

You can insert any kind of head, or you can set it in different positions like artists' manikin. Feel free to change it, I included the Fusion360 files.
Printing:
*I scaled up with 1.66 on uniform scale.

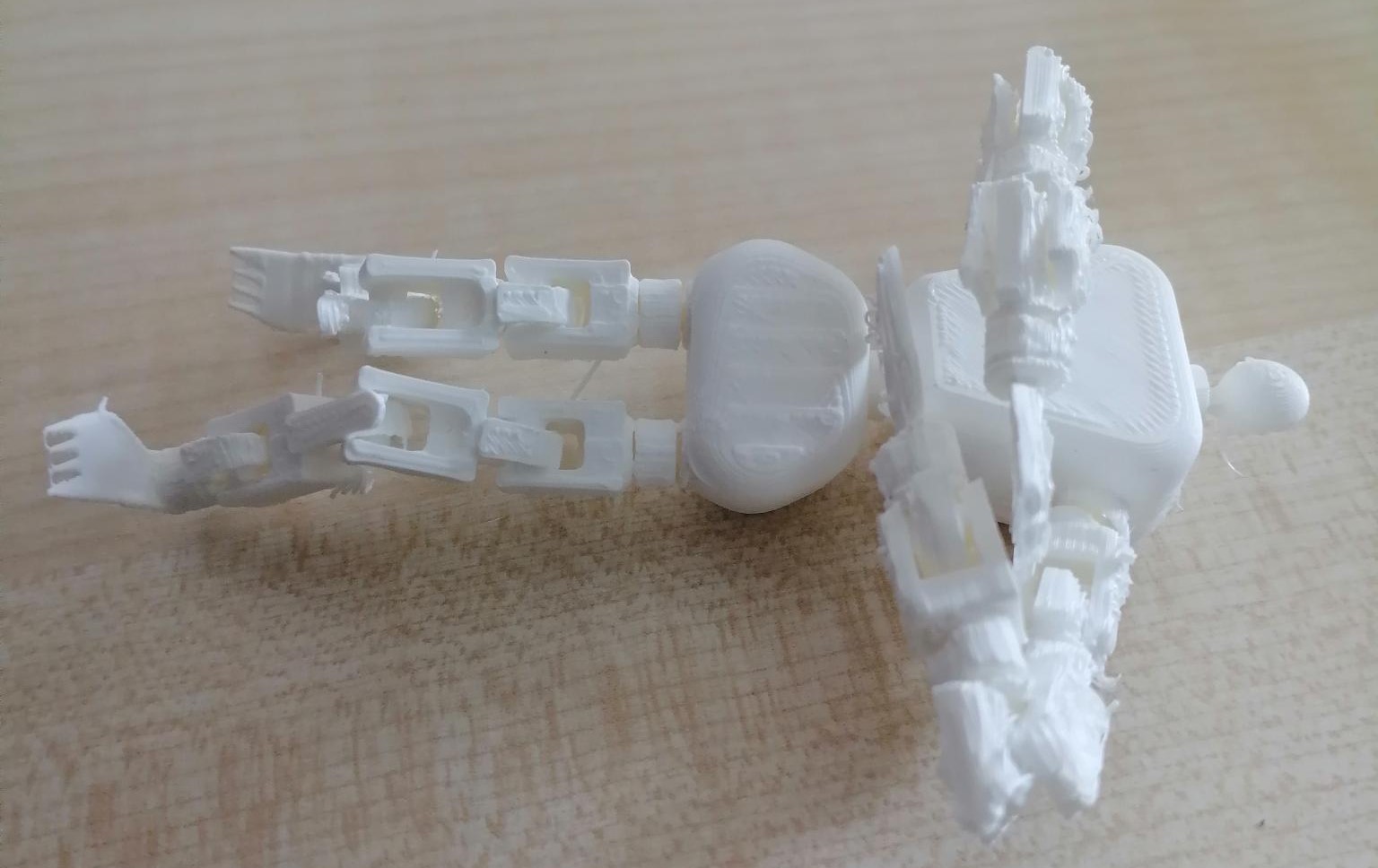

Print it in place, with support only on touching build plate.
Infill density: 15%
Layer Height: 0.2 mm
Support infill density: 10%
Support pattern: line
With these settings it contained 3 hr, 24.4gram PLA filament on Sindoh 3DWOX 7X printer, which is of course not mine.
