Ryobi Mitersaw Trigger
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Noncommercial
The plastic trigger on my Ryobi miter saw broke. I found a new one online for about $4, but it was discontinued and they didn't sell them anymore :(
Perfect project to practice my Solidworks skills and do something with the 3D printer besides XYZ calibration cubes and Benchy's LOL!

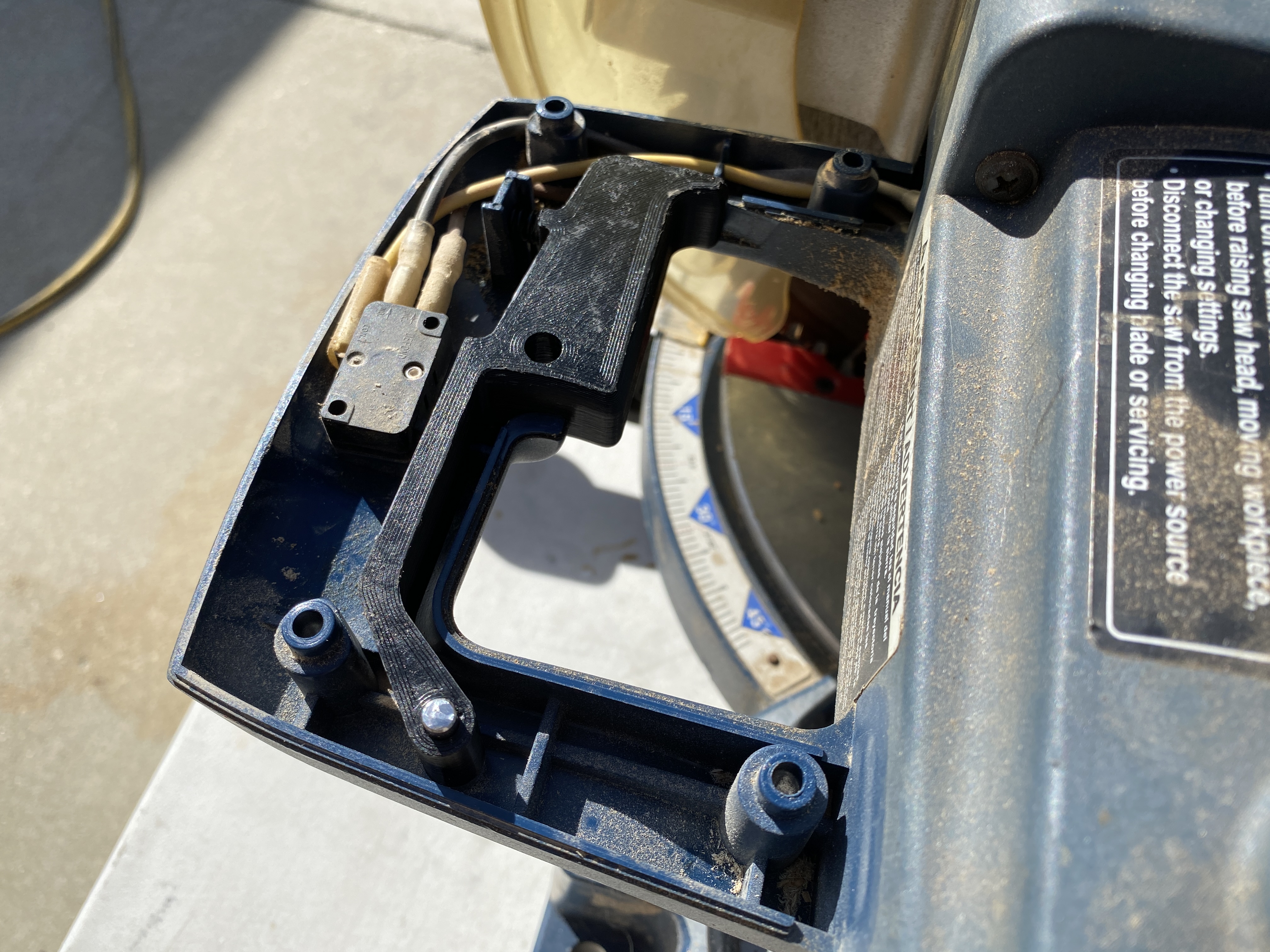

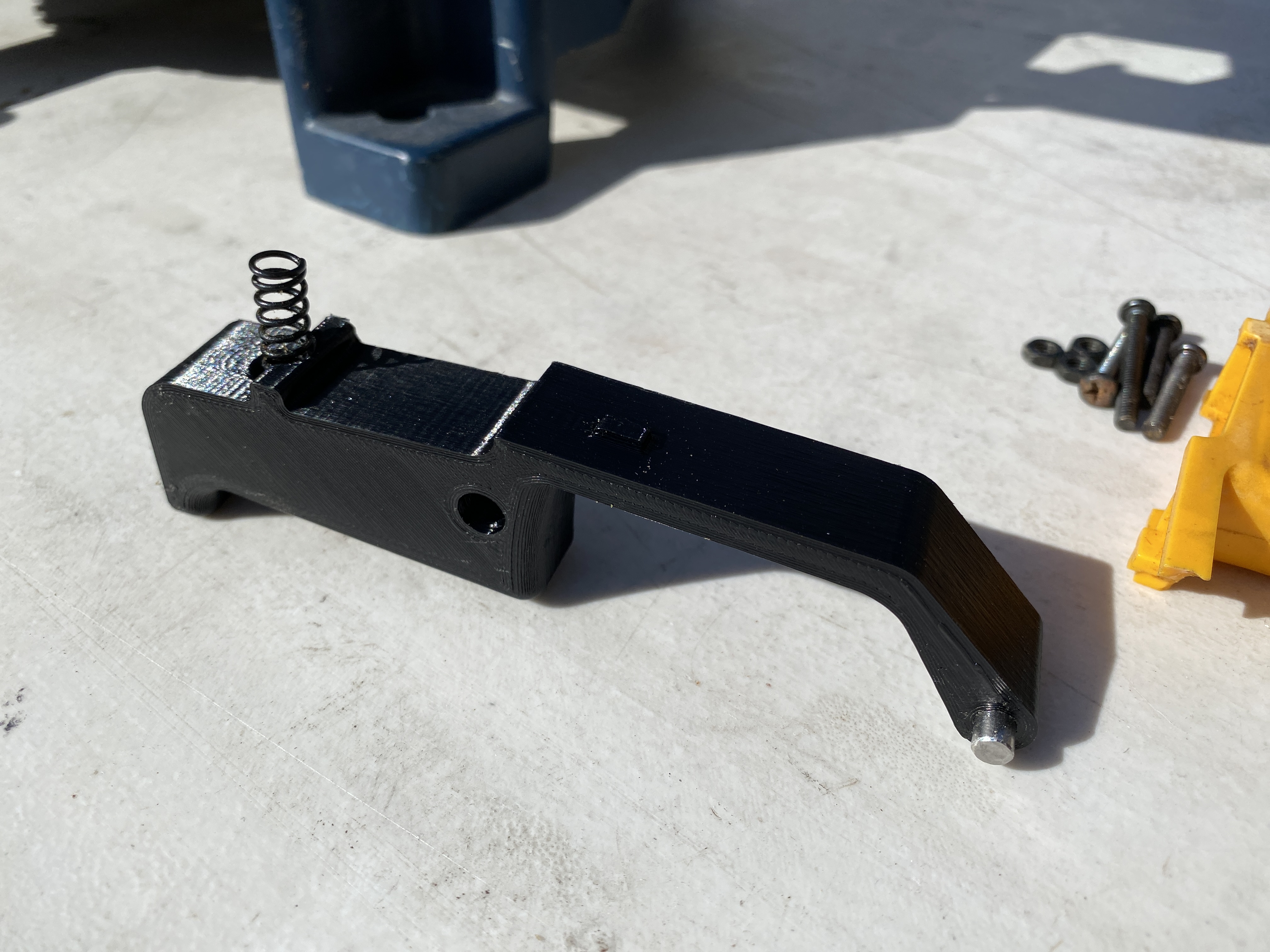

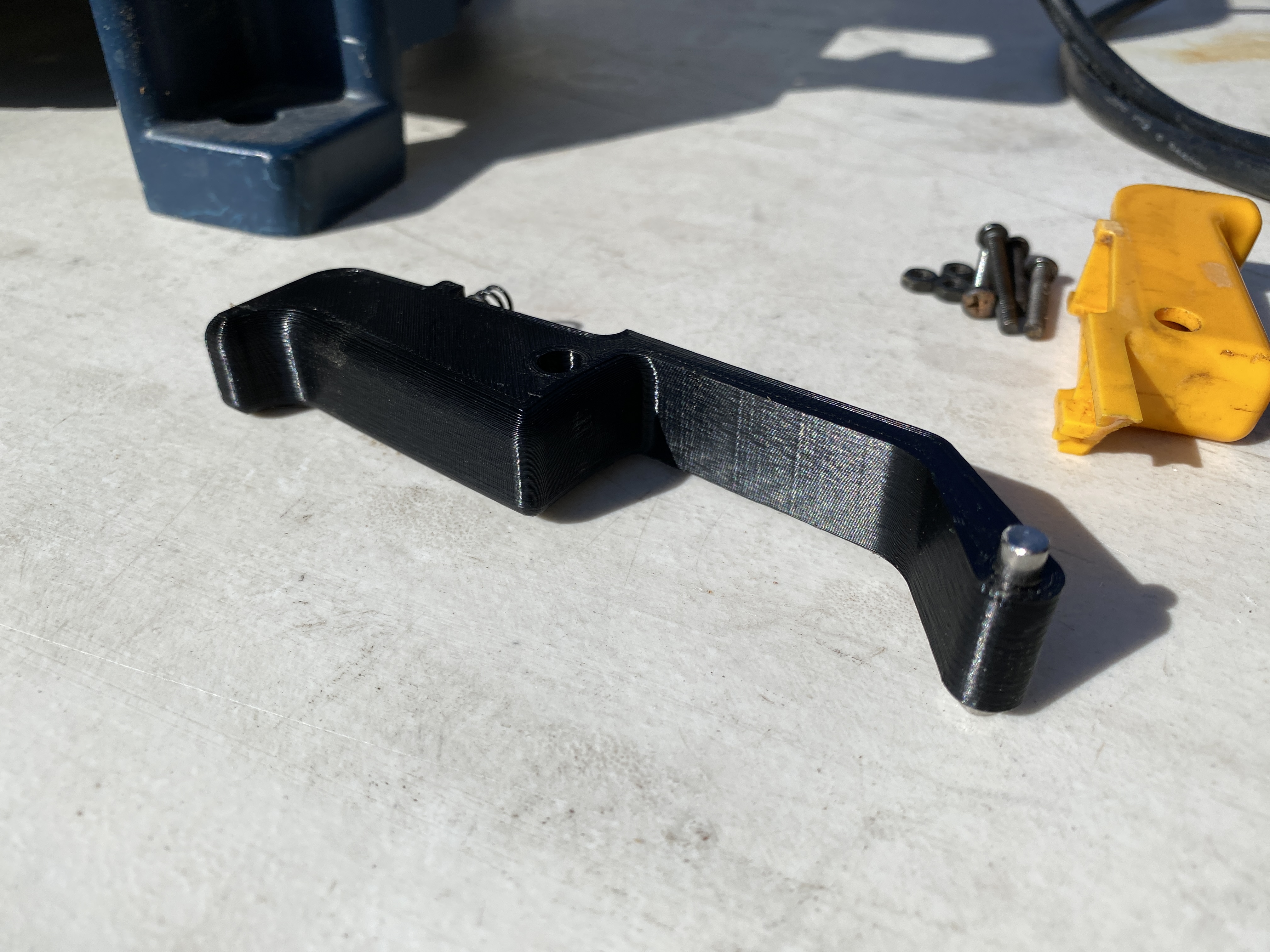

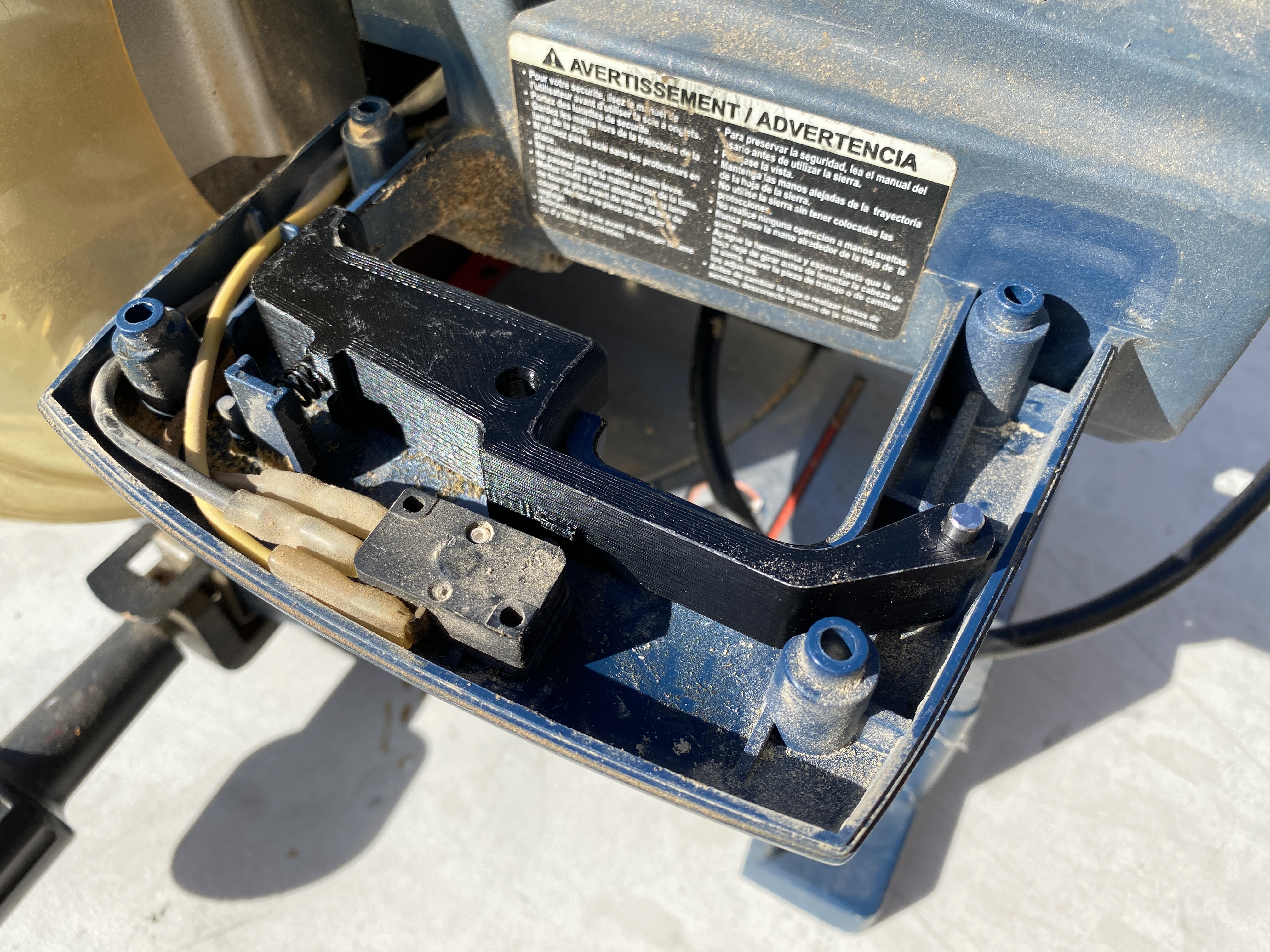

I opted to use a 5mm stainless pin for the pivot, instead of printing the pins as part of the trigger. This allowed the part to sit flat on the bed and I didn't have to worry about the pins snapping off down the road.

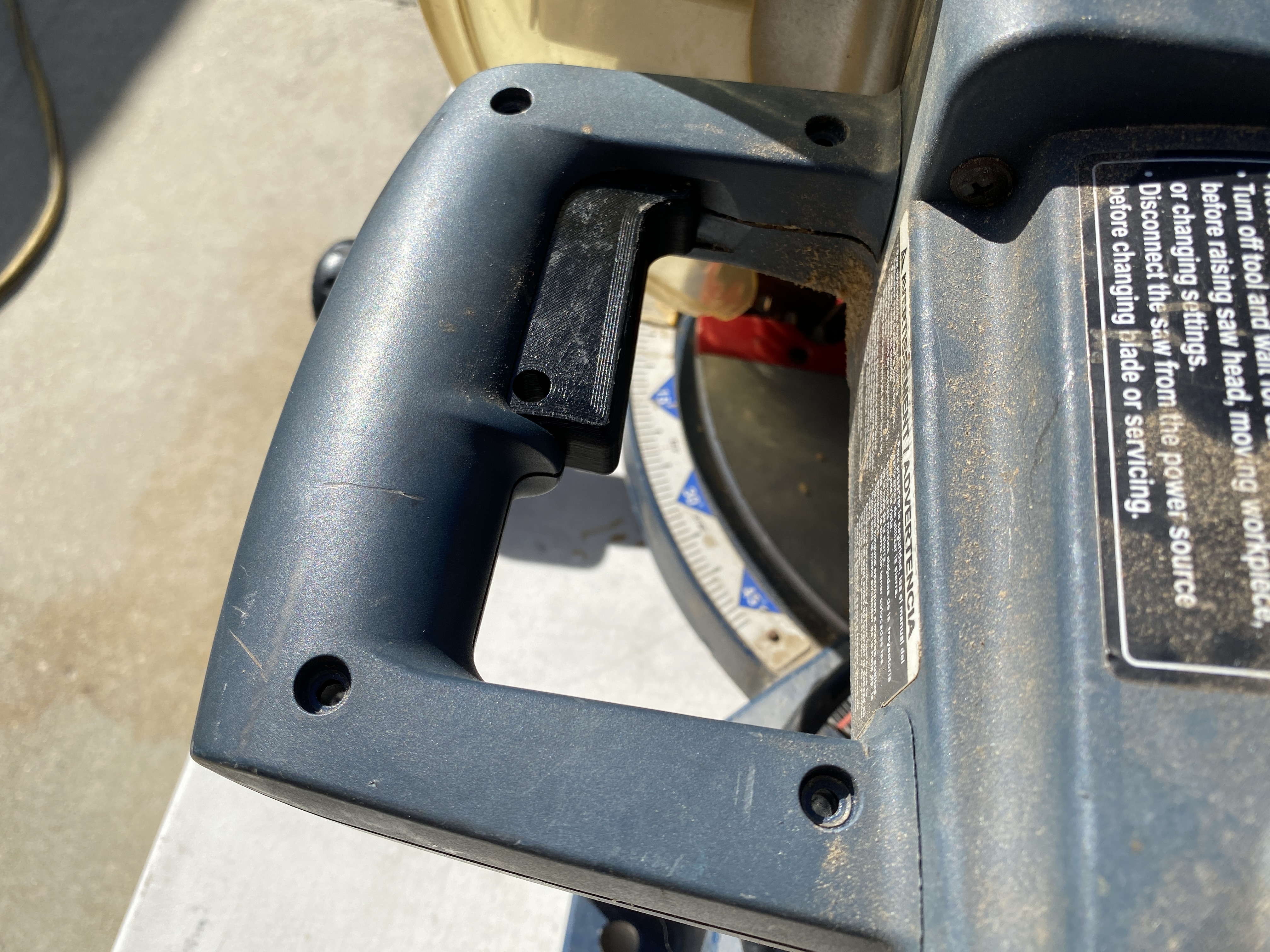

Printed in PLA to test fit, it worked so well on the first print that I'm going to leave it. If it snaps, I'll print a new one in PETG or ABS.
