Mounting Wedges and Pads

Mounting Wedges:

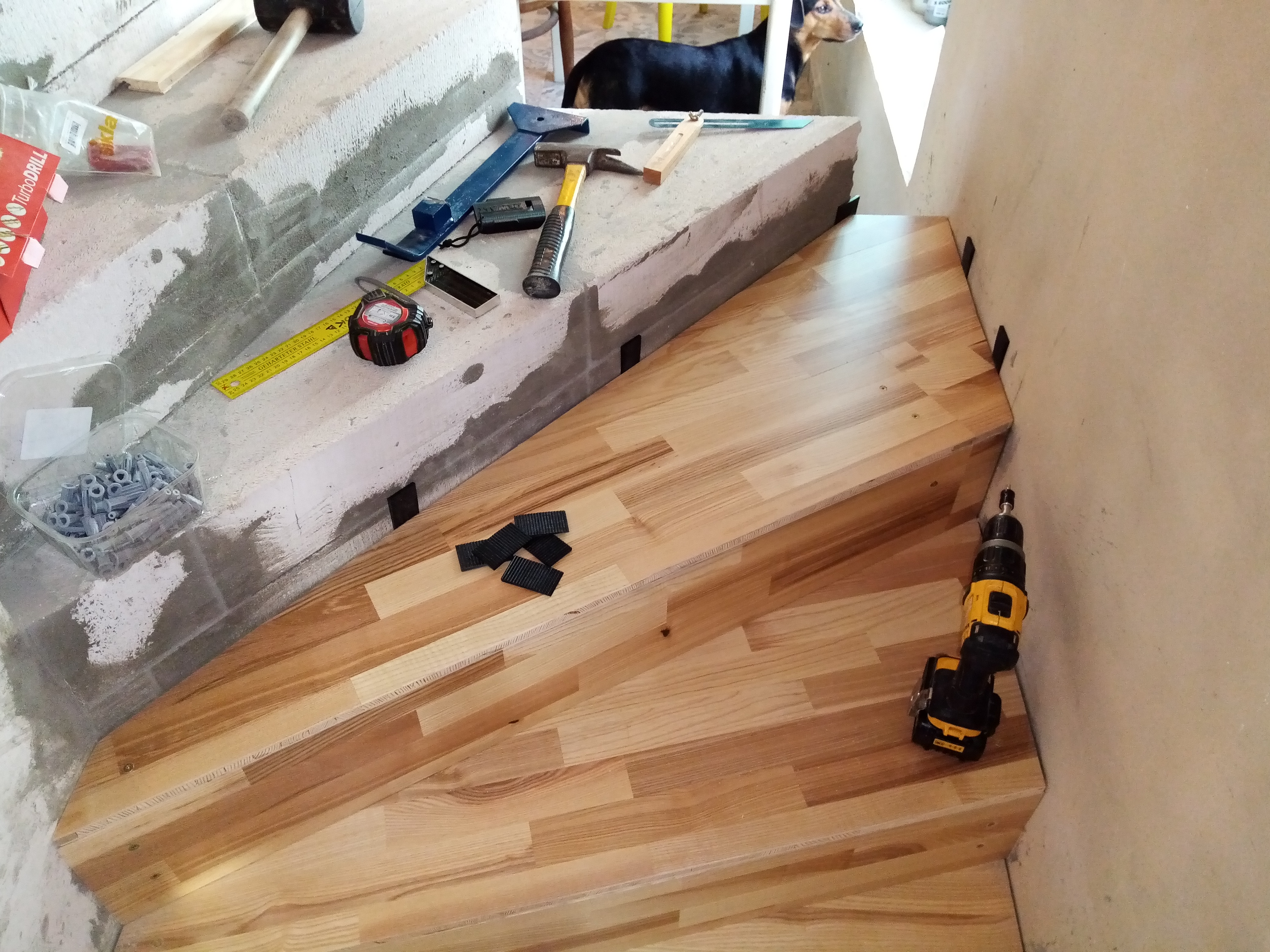

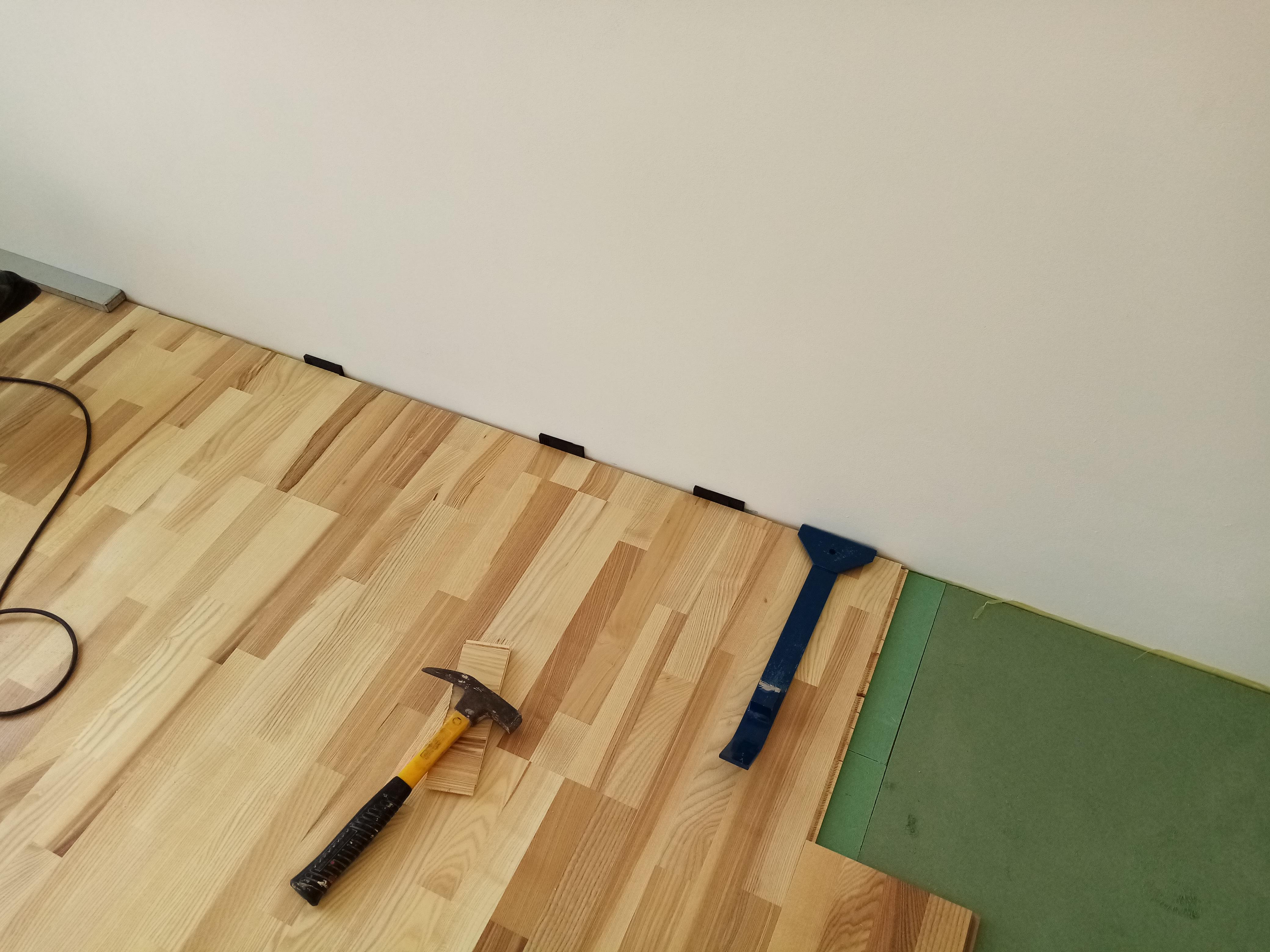

• For work such as laying floors and for other applications…

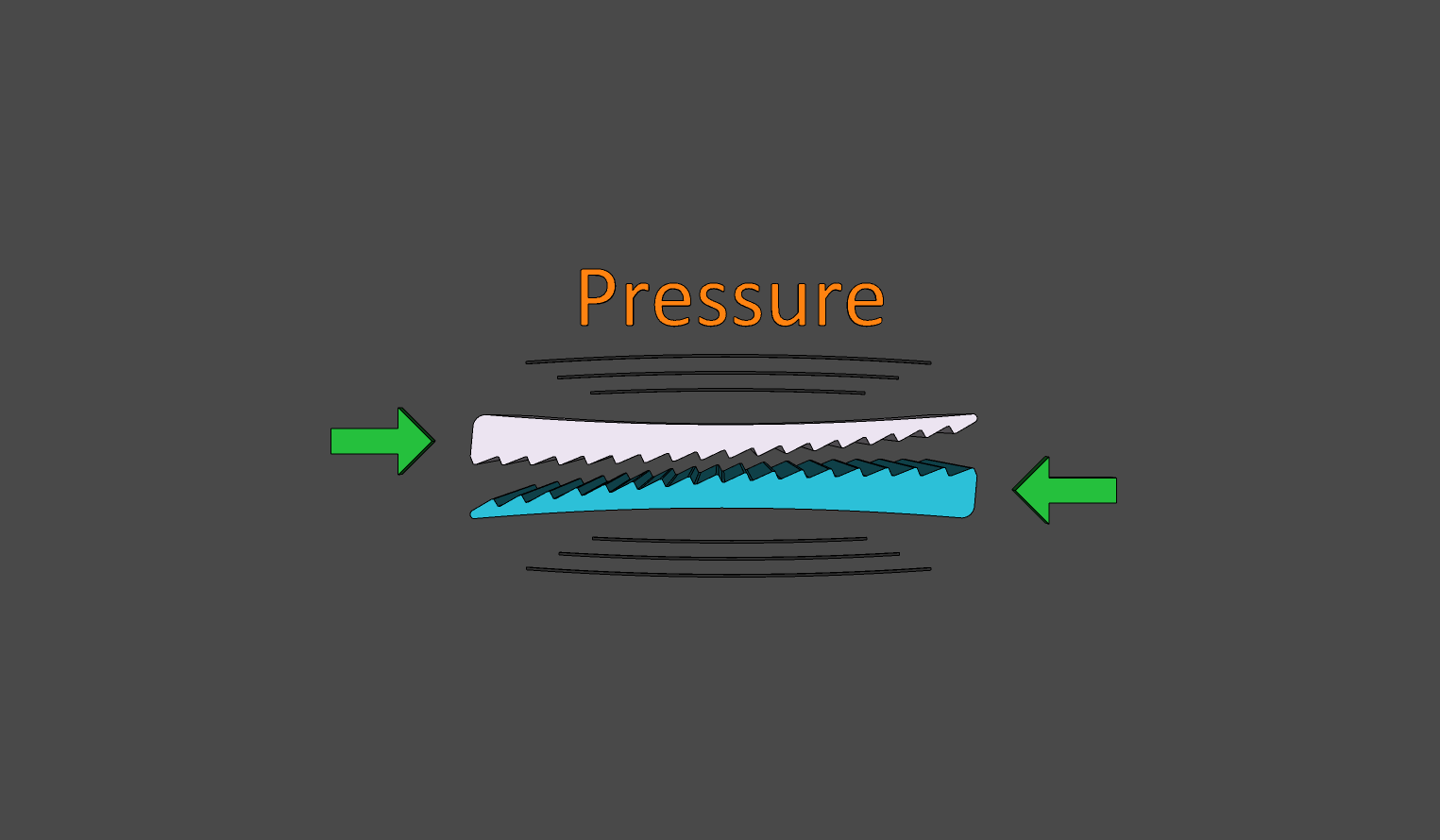

• Self-Locking: 🔒🔑 Works with each other when used in pairs, but the wedge will also work well alone.


•  Bended: ➰ Works as a compression spring and secures the wedge in position (For example if you work near the wedges with a hammer and cause vibrations, the straight ones will immediately loosen without pressure).


• Dimensions: 📐Width: 35 mm, Lenth: 59 mm, Height: 6 mm
  Maximum spread in a pair: 10mm

Print Settings: 🖨⚙

• Filament material: PLA, PETG

• Layer height: 0.3

• Infill: 30%

• Print speed: Up to 30mm/s (Keep low, for good printing of small teeth)

• Print Orientation: As it is in STL files

• Supports: NO

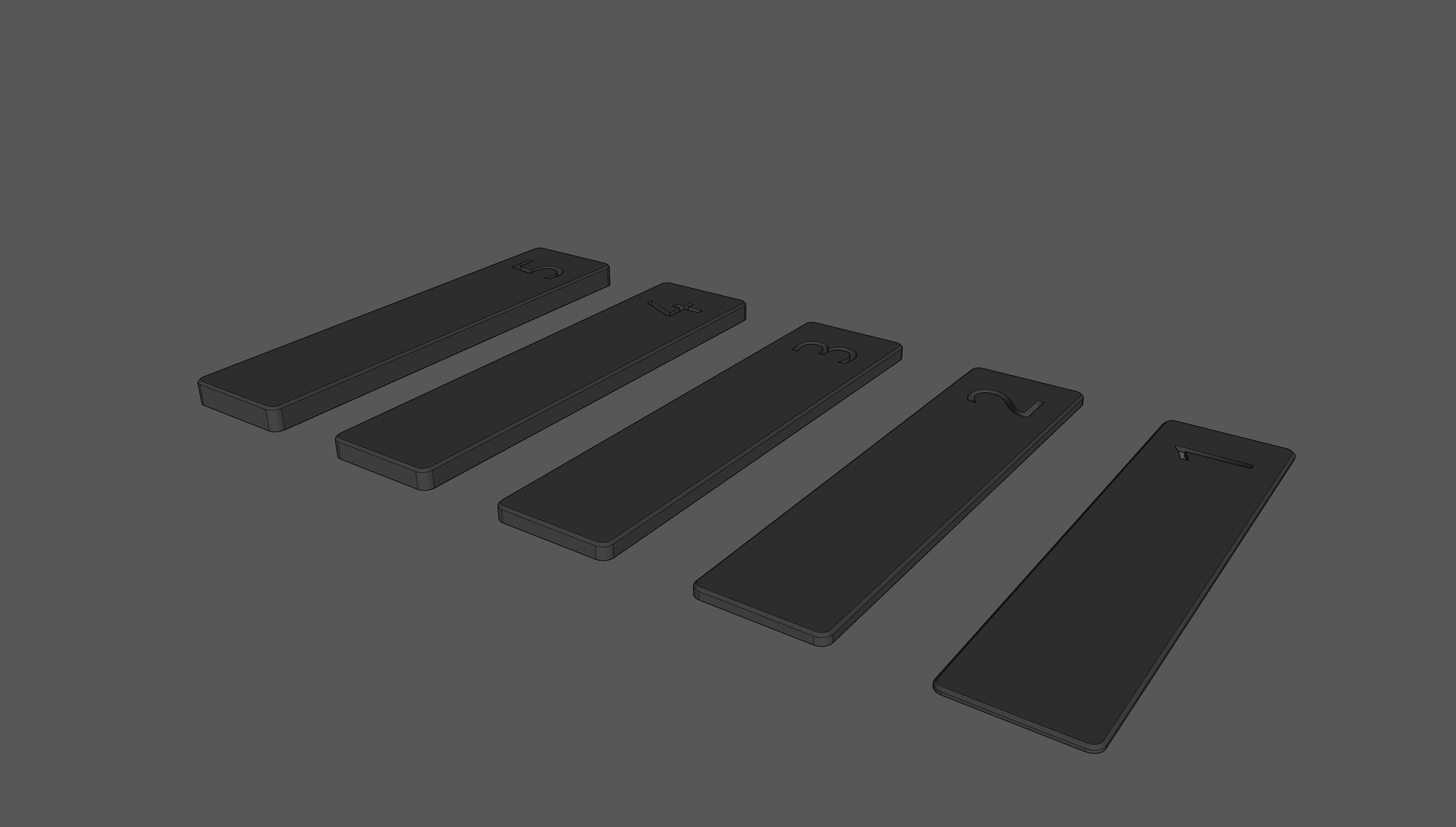

Mounting Pads:

• Height of pads: 1, 2, 3, 4 and 5 mm

• For precise height, print pads with layer height: 0.25 or 0.2 mm (for layers counting)
