ThirdReality Button Case
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution — Share Alike
Please comment, rate, and post a make!

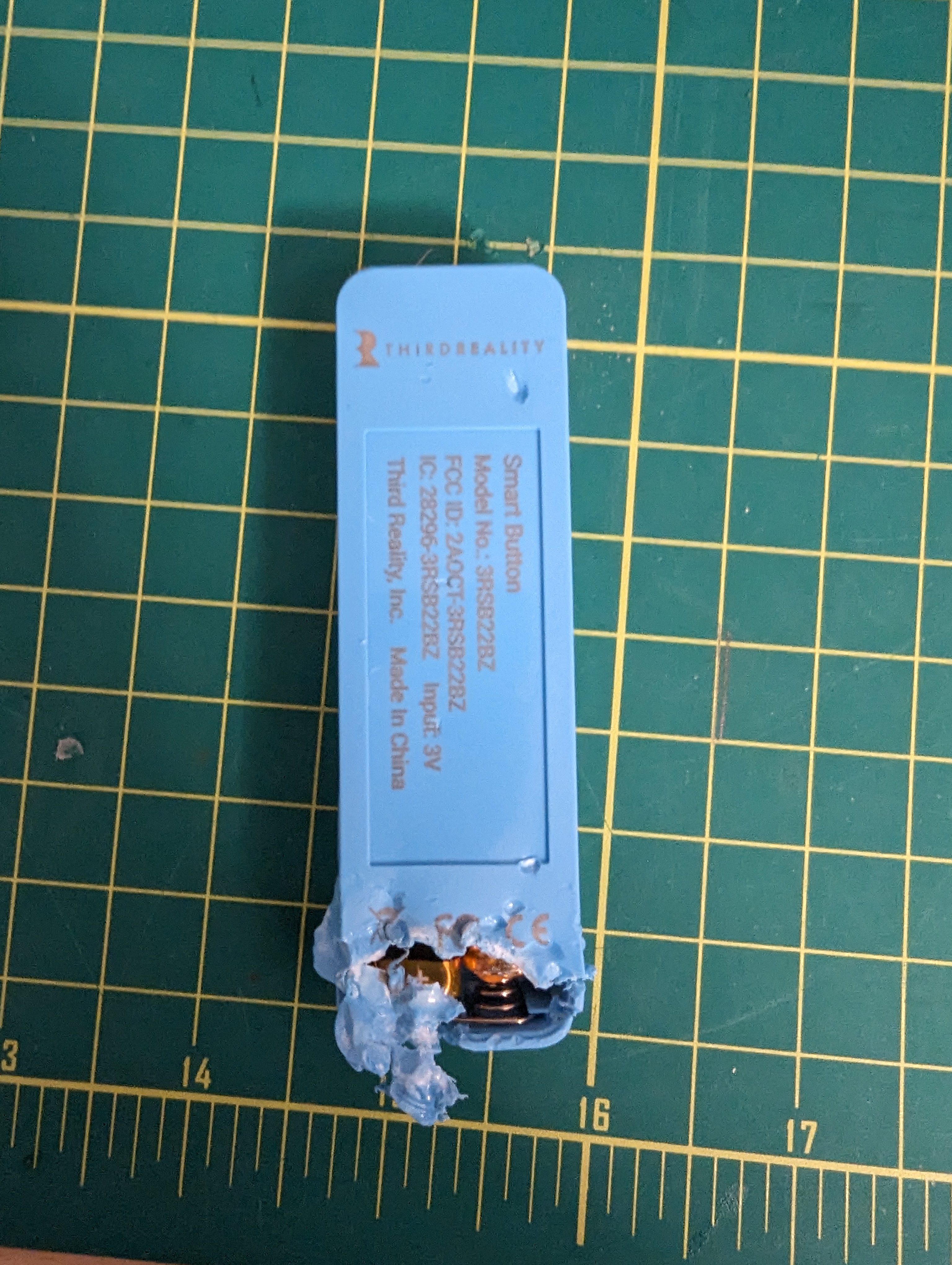

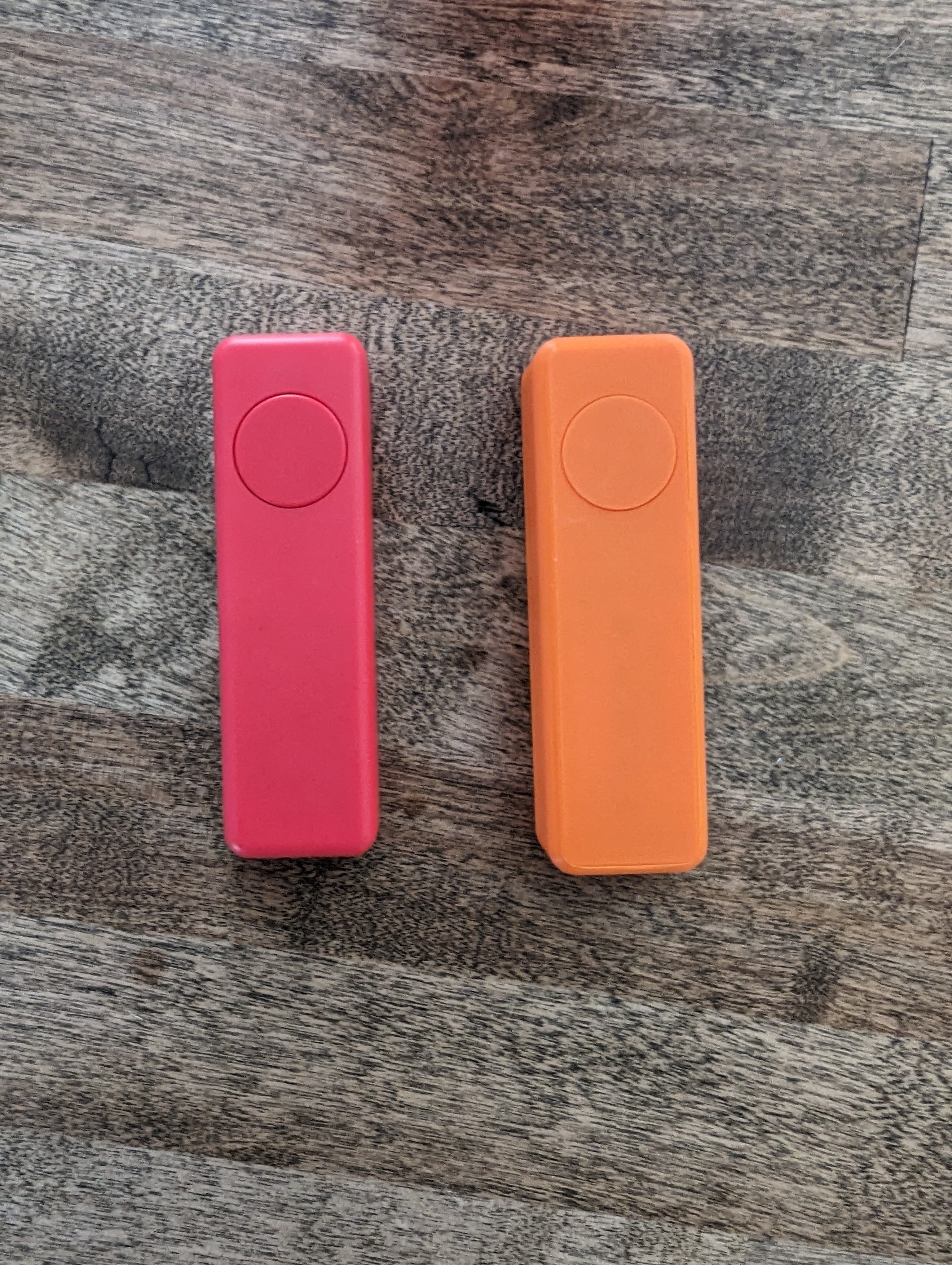

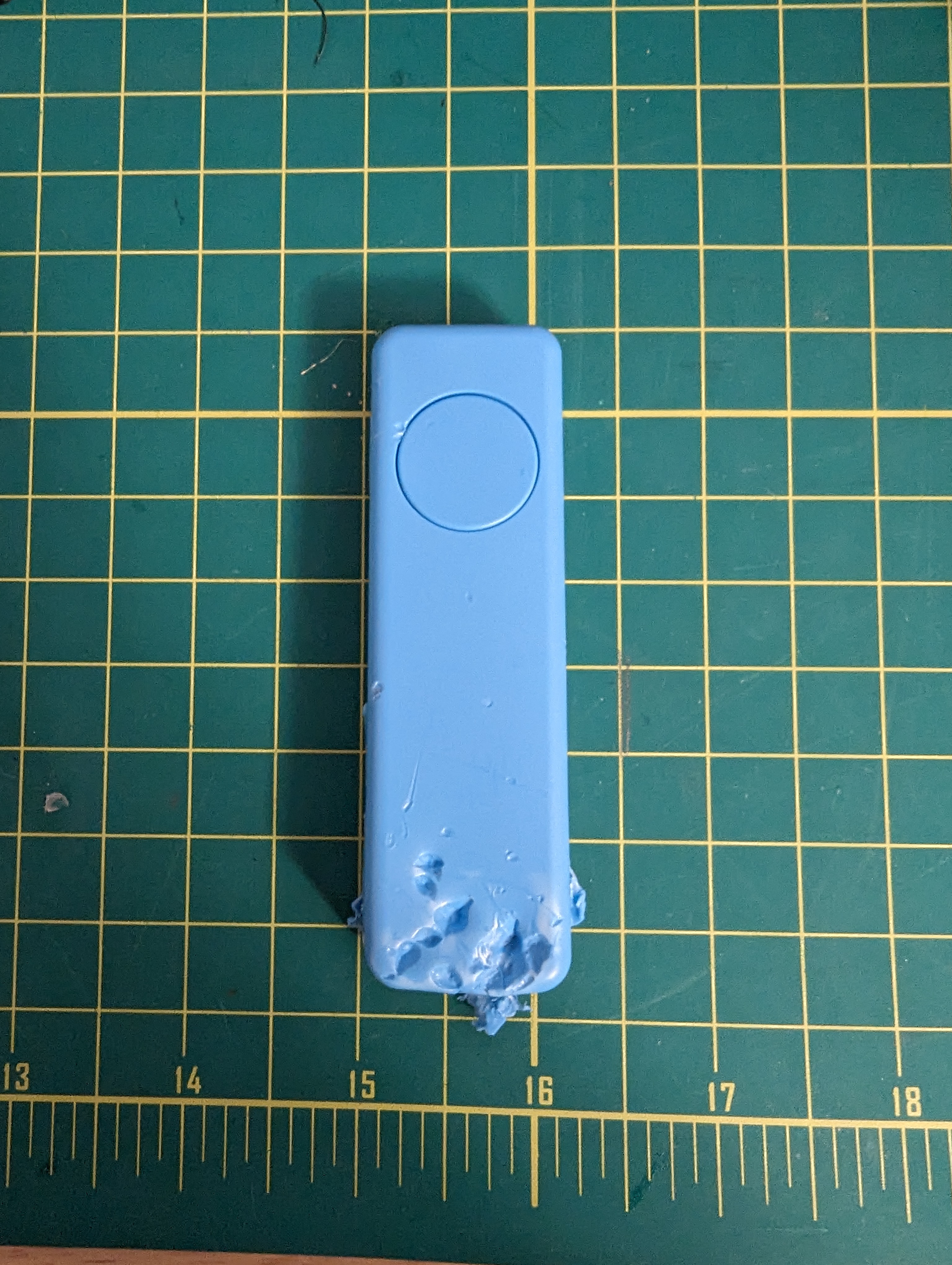

This is a replica case for the ThirdReality smart button. My dog decided to turn mine into a chew toy so I modelled up a new one.
BOM:
Smart button (affiliate link)
Disassembly:
- Pop the back cover off the remote.
- Remove the two screws holding the board in.
- Remove the board by pushing the button while lighting lifting the battery terminals connected to the board.
- Pry the other battery terminals out while pulling up.

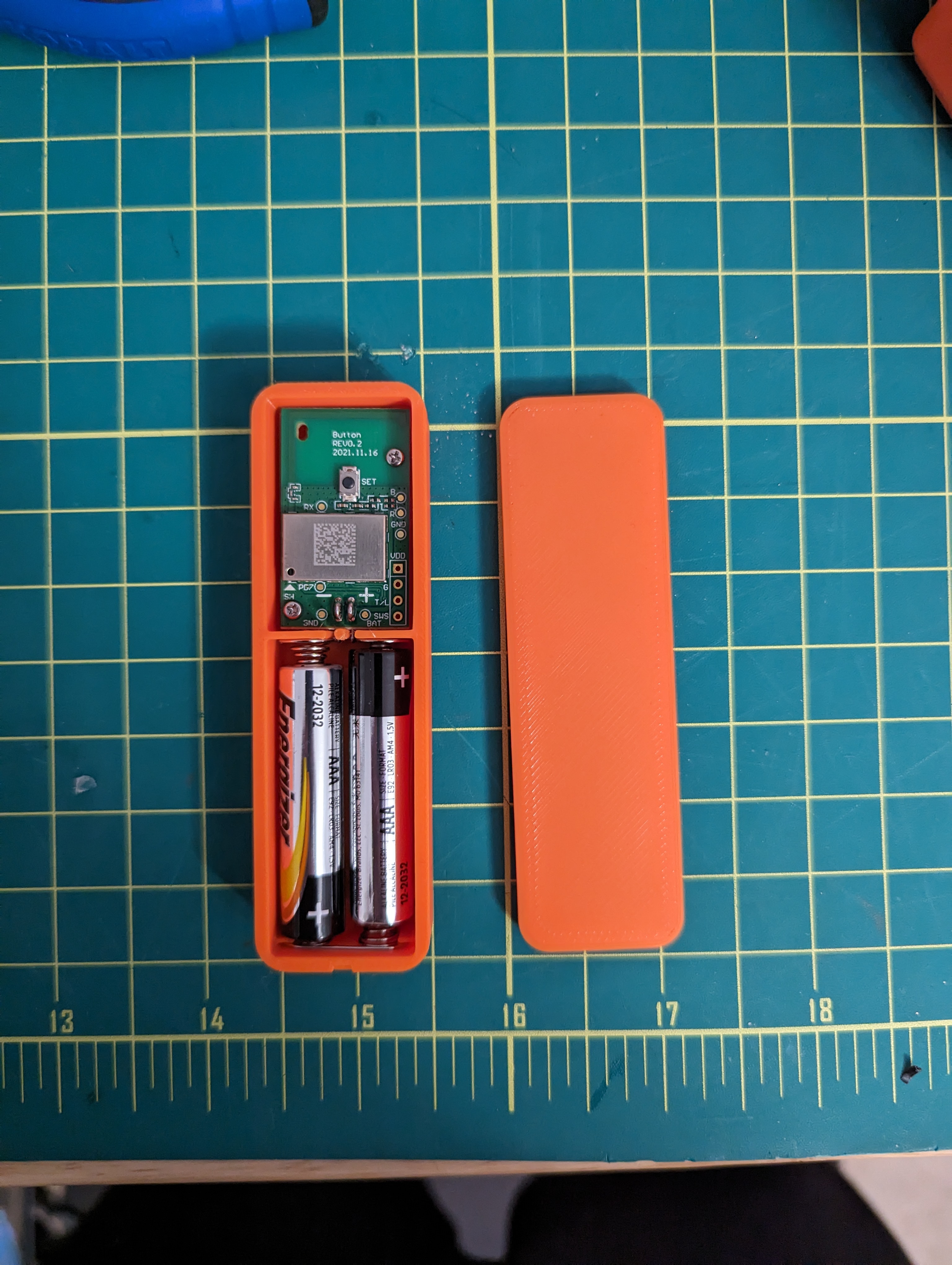

Assembly:
- Put the button in.
- Put the board in with the battery terminals slotting into the little slot.
- Reinstall the two screws to secure the board.
- Install batteries.
- Pop on the cover.
