Howling Wolf Light art

Hi guys,

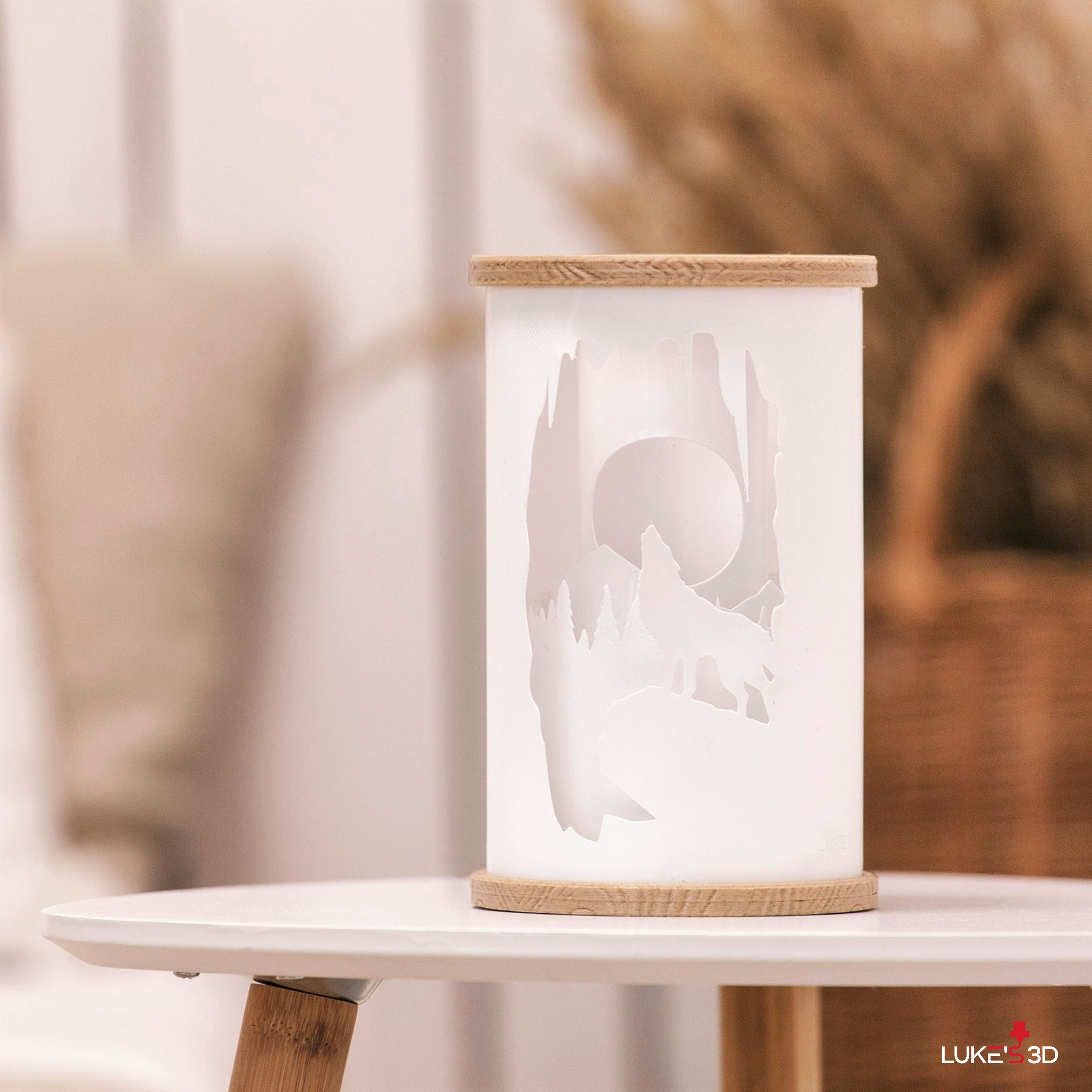

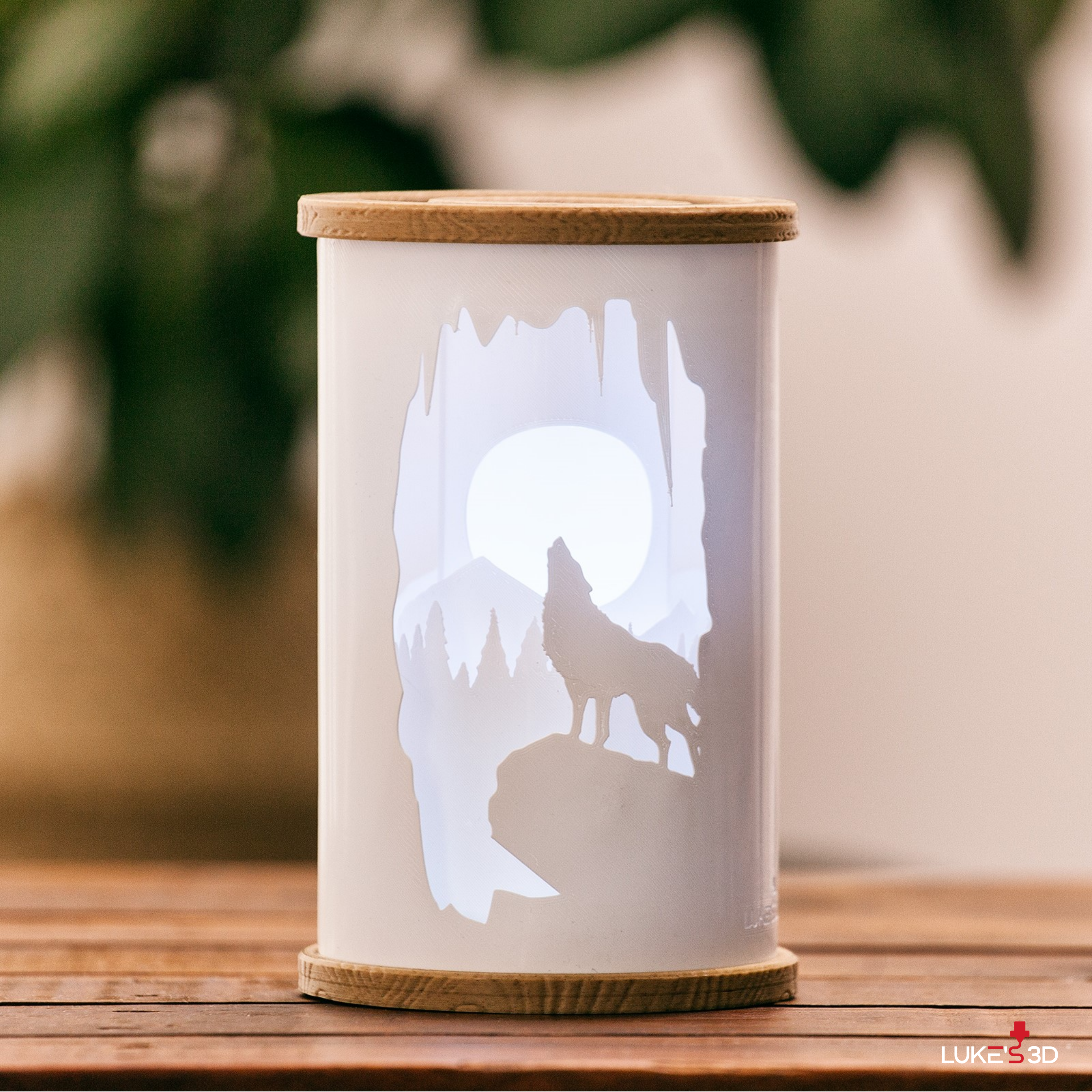

as you might know, I've done som light arts before, firstly Nativity scene light art and then I tried something new with Halloween light art embedded in the shape of grave. This time I tried something new with wolf howling at the moon from cave and bent the layers around circle. Here's what you can expect:

• beautiful gradient colors with 3D depth of field effect
• nice wooden texture
• 4 layers
• layers are printed flat so good first layer is crucial
• no glue necessary
• every layer consists of two parts, these are connected using slide in groove
• I provided little test print to work out which tolerance works best for you
• LED strip is used to light up the lamp, it is inserted from bottom of the stand and wound around 35 mm high center pin so very little LED strip is needed
• 6.5 mm wide groove for cable
• when connected, every layer is then inserted to stand and top circles, these can be glued but don't have to be
• I also provided DXF files so you can cut it out of paper if you will
• printable on Prusa Mini

I recommend using RGB LED strip to get the most beautiful results. The cherry on top would be addressable LED strip.

PRINTING INSTRUCTIONS

To print this firstly print out the tolerance test and based on that choose the folder file where you will find everything else to print.
I printed on glass bed but maybe textured bed surface will be better in hiding tiny gaps which are visible from very close distance when underlit.

Background vector created by inventsolutions - www.freepik.com
