Synology Diskstation removable wall mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution — Noncommercial

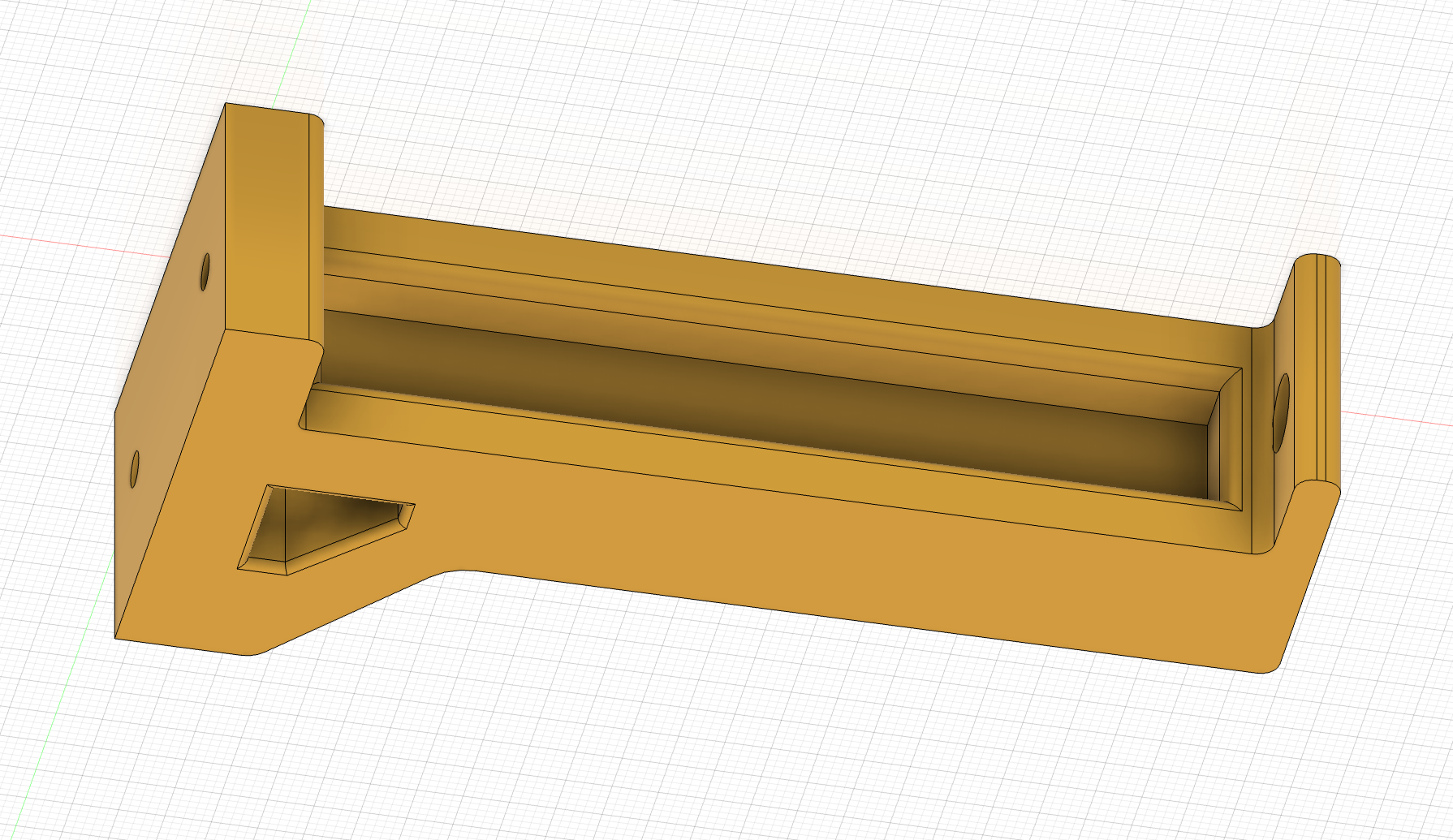

Designed a strong wall mount for Synology Diskstations with two drives. I wanted the Diskstations to be easily removed from the mount, so I added a gap in the wall mount where the feet of the disk station fall into.
The model consists of one part.
Available model versions
- STL files
- STEP files for higher quality prints via Prusa Slicer
- Fusion 360 archive available upon request. Send a DM via the platform.
Required hardware
- Two hex screws, 4,0x40 mm in length + wall plugs.
Printing instructions
- Filament: We got the best results with PETG because of the toughness and higher temperature resistance. We used Prusament Jet Black PETG. https://www.prusa3d.com/product/prusament-petg-jet-black-1kg/
- Quality setting: 0.15mm
- Infill: 20%
- Supports: Small tree supports needed if the print is placed with the base on the print bed.
History
- 18-10-2021 - First public release
Made with love from Amsterdam. Send feedback via the platform's message system or via Discord xalex2. Please like the design if you are using it or treat me with a coffee https://www.buymeacoffee.com/schildwacht
