Parametric Concentric Gear (Customizable)
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Ideas
- Licencja
- Creative Commons — Attribution

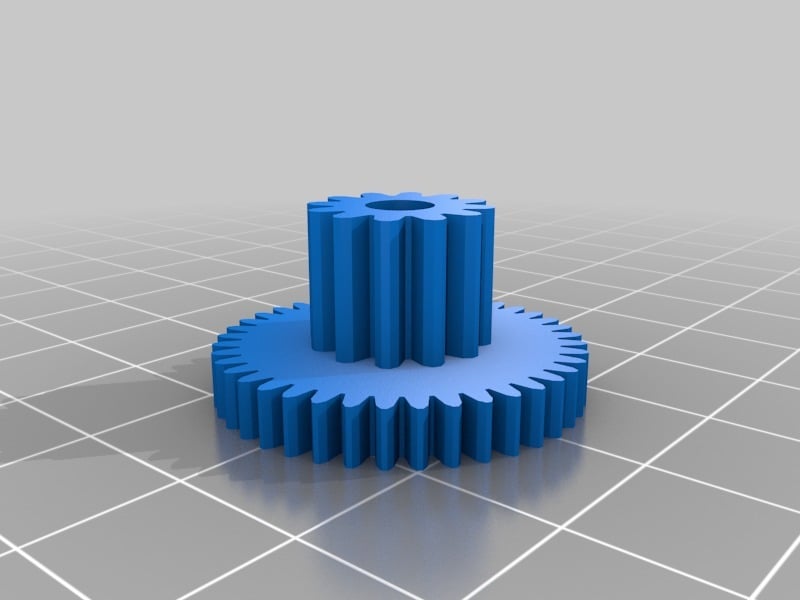

Customized concentric Gear
Parameters for each individual gear:
- Teeth Count
- Teeth Spacing
- Teeth Depth
- Height
Additional features:
- Plastic saving ring is optional and has configurable depth
- Cutted Shaft for better grip
- Modular code, so you can extract the module and use in your project
Despite the parameters been metric you can resize in your slicer to use it as imperial
Technical Details:
- by Teeth Depth I mean: "Whole depth", including the clearance
- by Teeth Spacing I mean: Circular Pitch
- The addendum of the gear is 1/4 of the whole depth
- The 6 turn points are equidistant.
- At half of the depth, the thickness and the clearance are equal, as the clearance was half of the depth
These changes where made to make the gears more easily printable
Category: Parts
