Tornado Foosball Guy

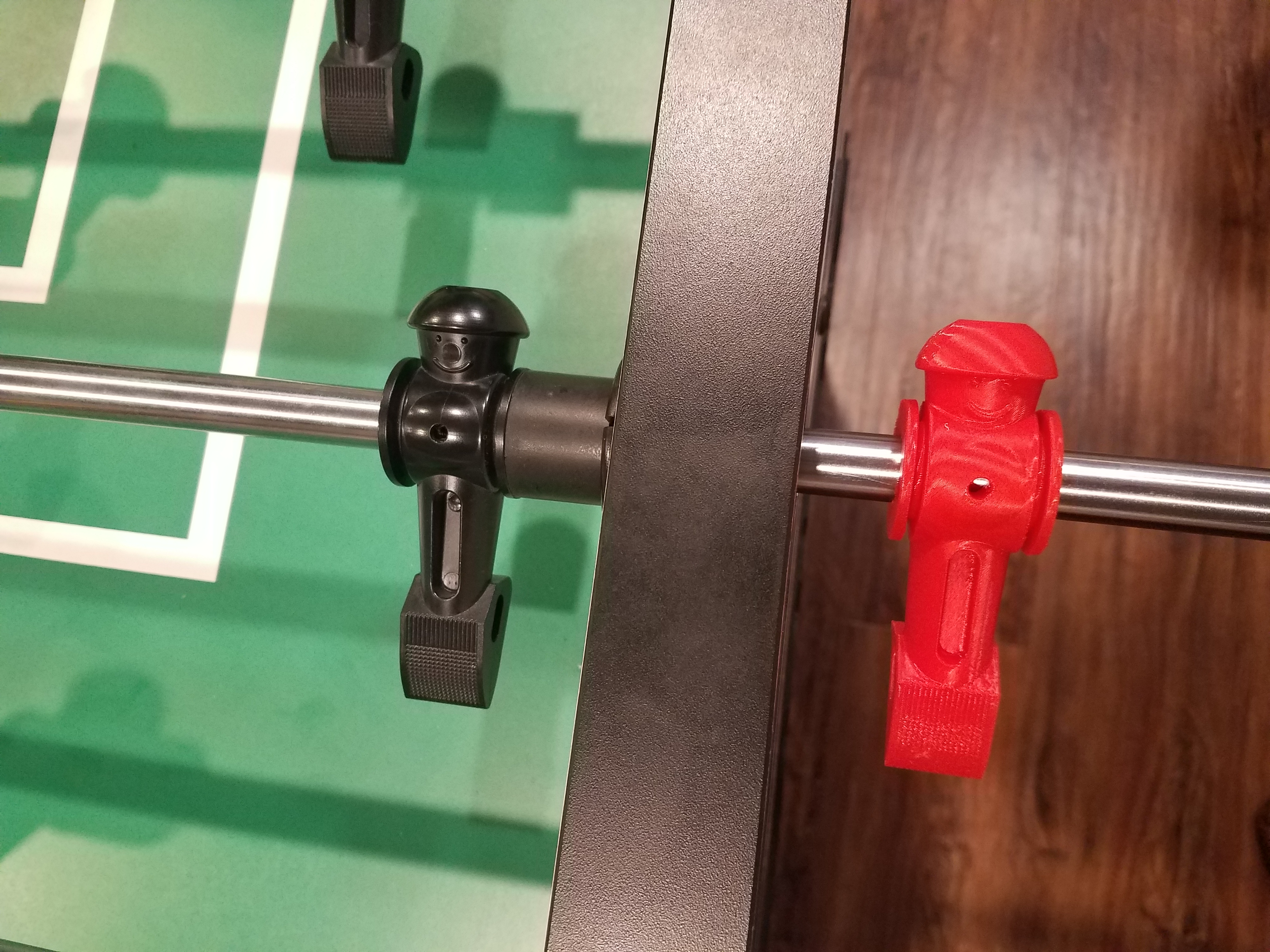

A foosball replacement guy based on Tornado brand foosball tables. If you plan to use this on a foosball table, print with a large percentage infill with a strong material. These guys take a lot of abuse.
Tornado brand foosball rods are slightly smaller diameter rods (15.7mm) than less expensive foosball table models (typically 15.9mm). Tornado tables also have a roll pin to attach the guy to the rod while less expensive tables typically use a bolt and nut. I have added bolt and nut versions with a larger diameter rod hole, if you do not have a Tornado table.

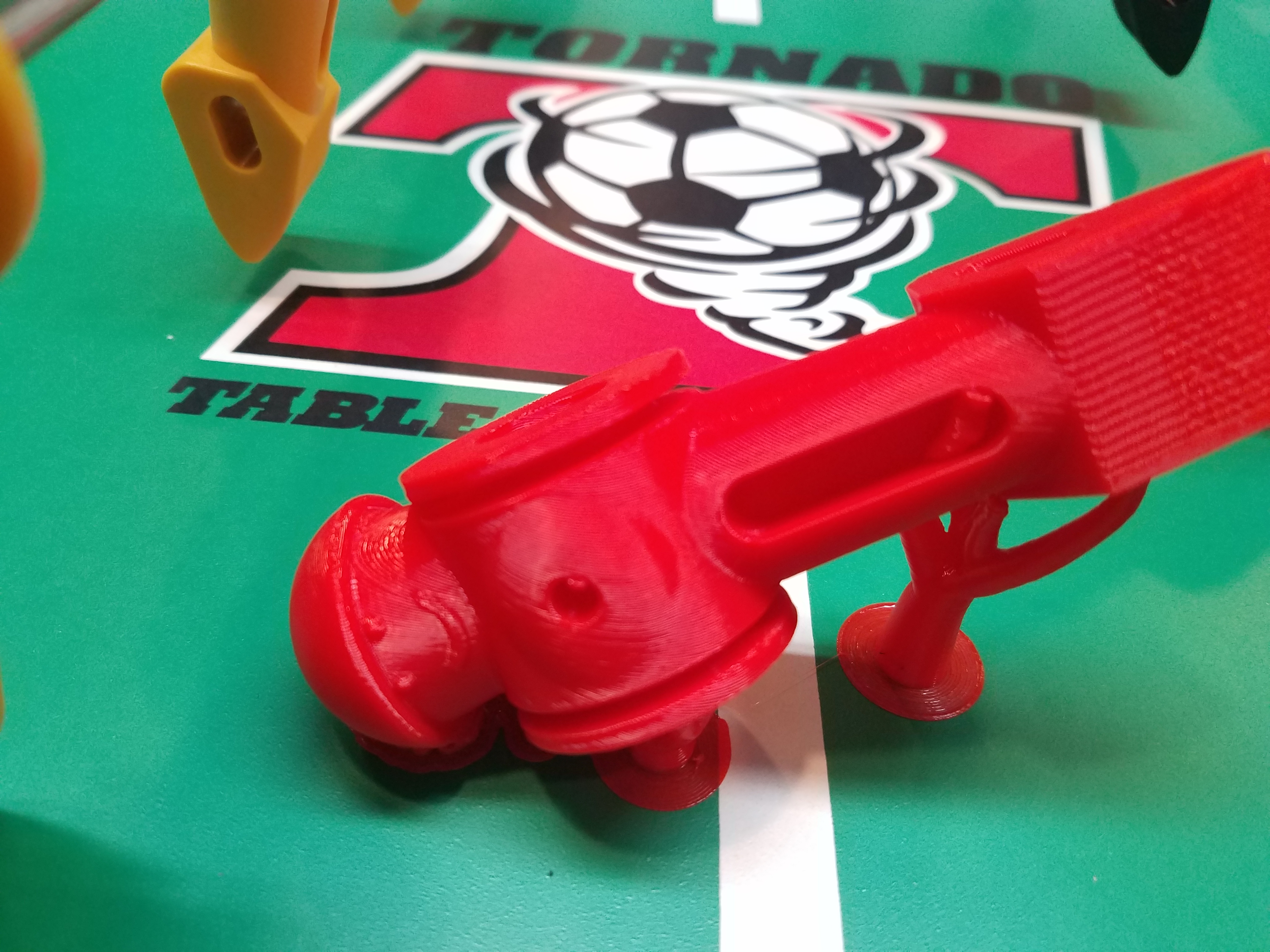

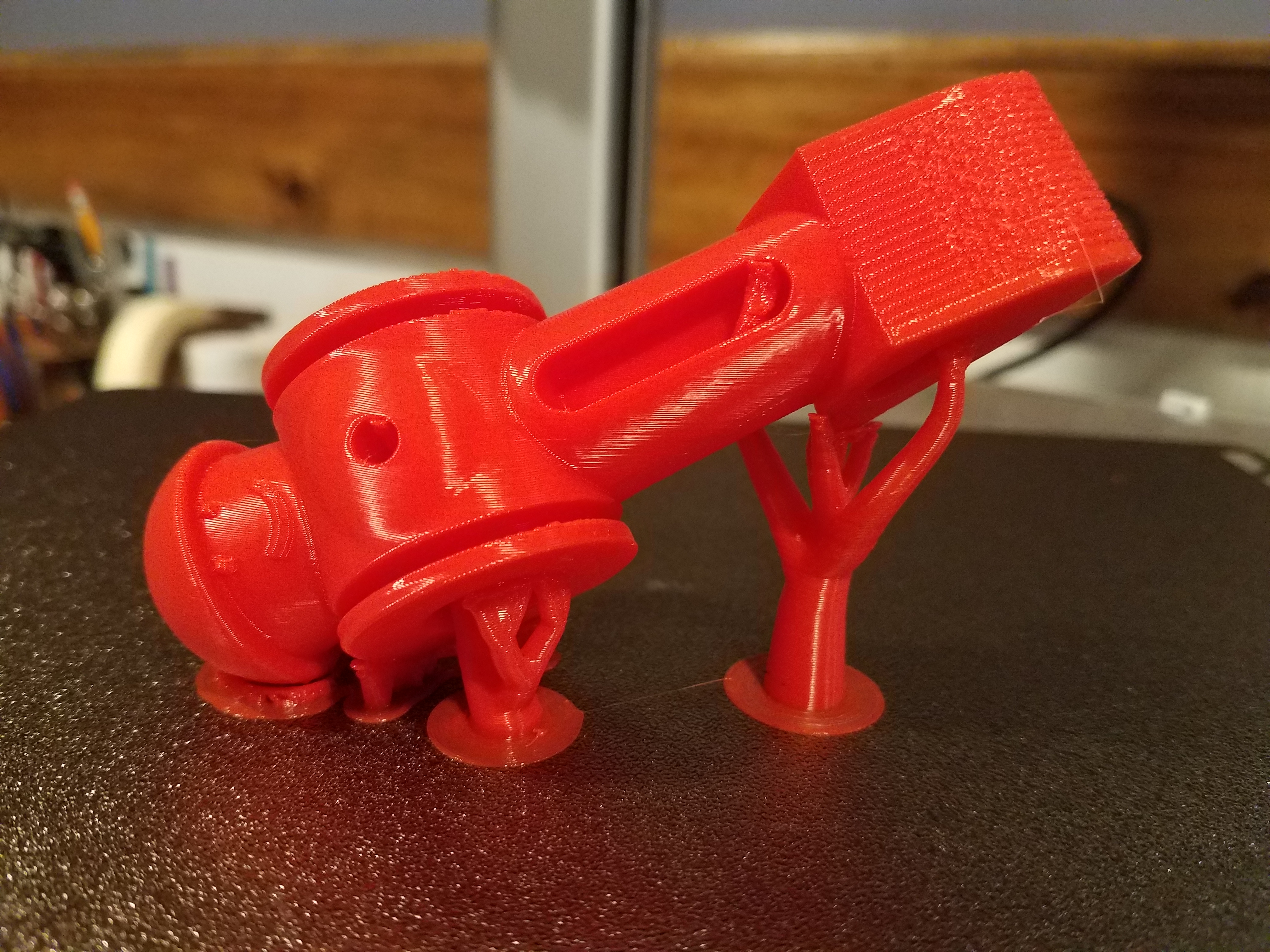

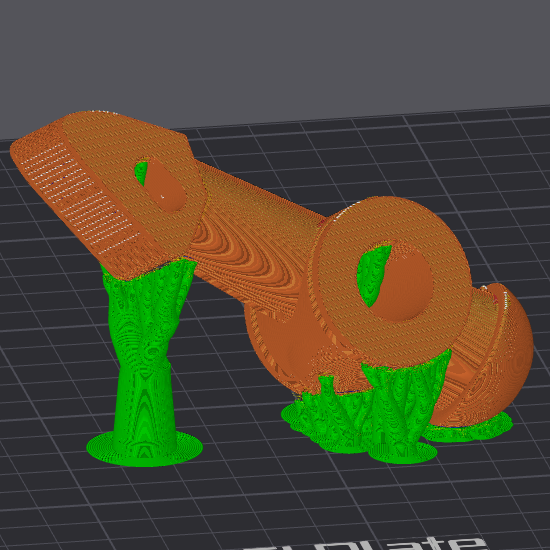

I printed the original version at a compound angle and upside down to reduce tree supports on critical areas like the rod hole. The support tree that enters the rod hole is supporting the roll pin hole. See images.
Good luck - reach out if you have issues or questions.
