Signage Stand
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Kitchen
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
I printed mine at .28mm. I printed with both my .4 and .8 nozzles and they printed about the same grip on paper. the .4 was a bit stronger…I think.

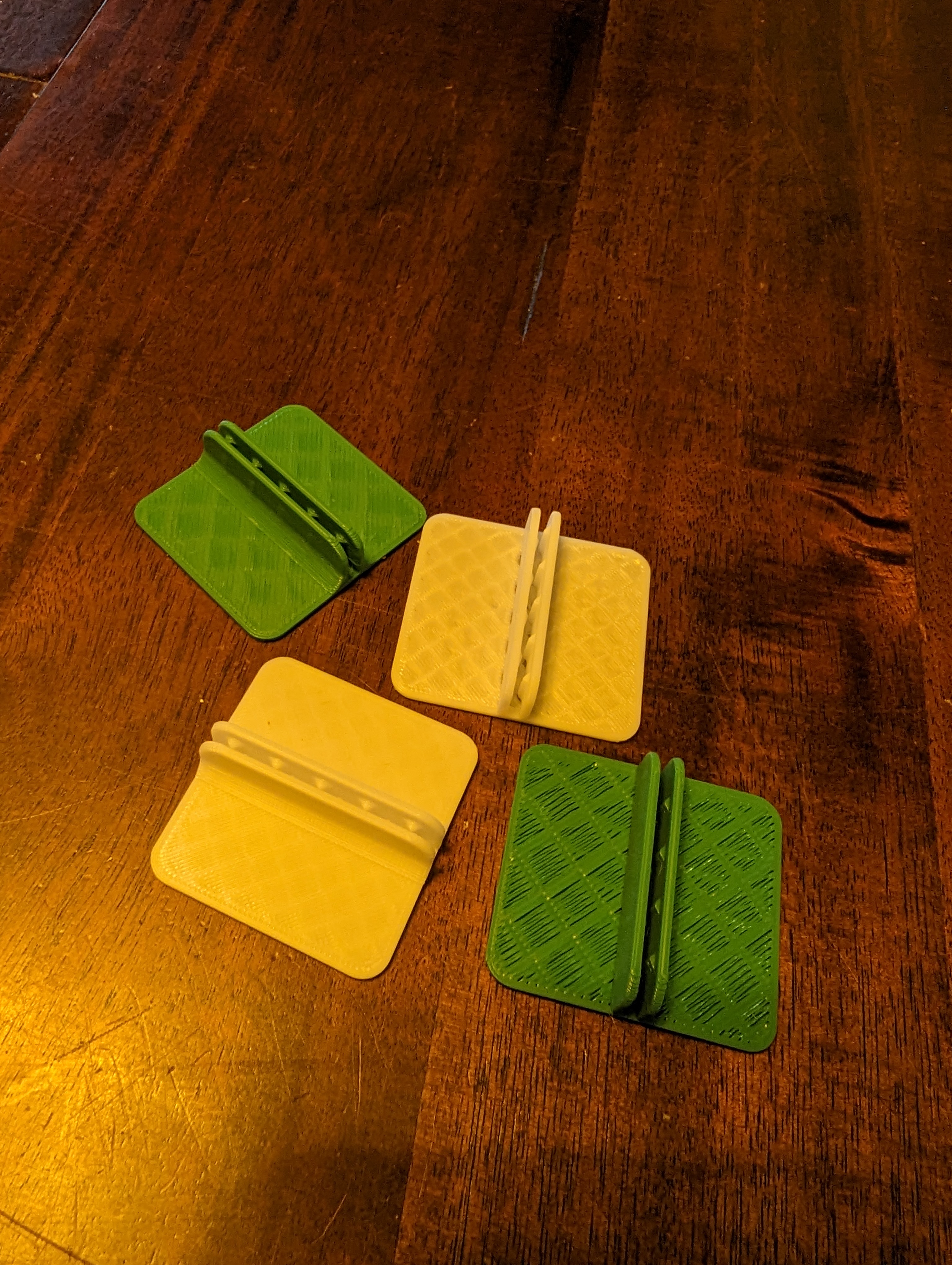

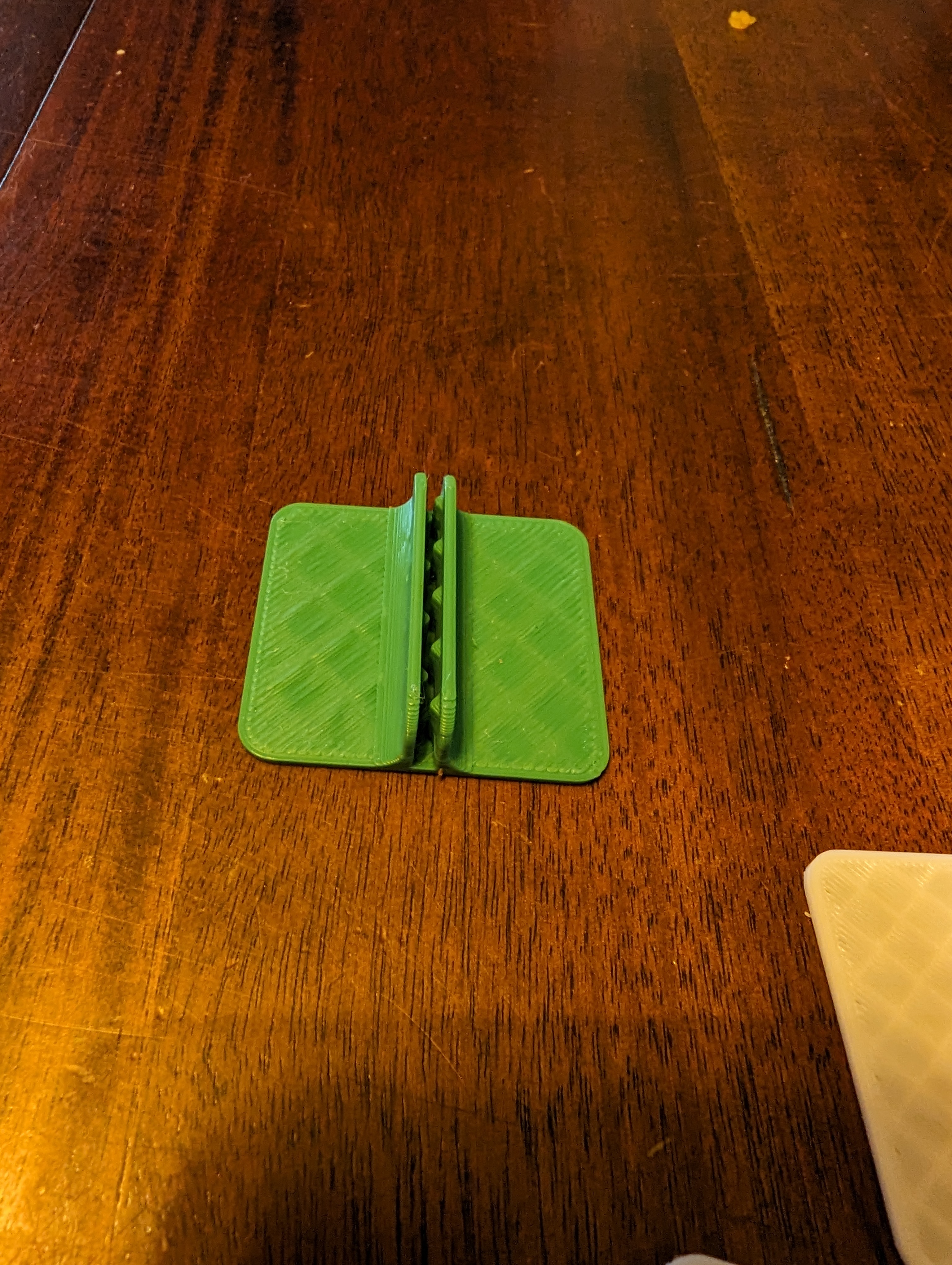

In the photos you can see the 2 new designs (sloped sides and 2 top layers. The right is the old design. No slope and only 1 top layer.
The model has the teeth overlapping. This is because when you slice them you will get a slight gap. If I design it with the gap, it prints much larger. This is due to print resolution.
I included step, f3d, and 3mf files.
.28 mm (on .4 or .8 nozzle)
No supports
No rafts
No brim needed
1 bottom layer
2 top layers
15% infill (grid)
