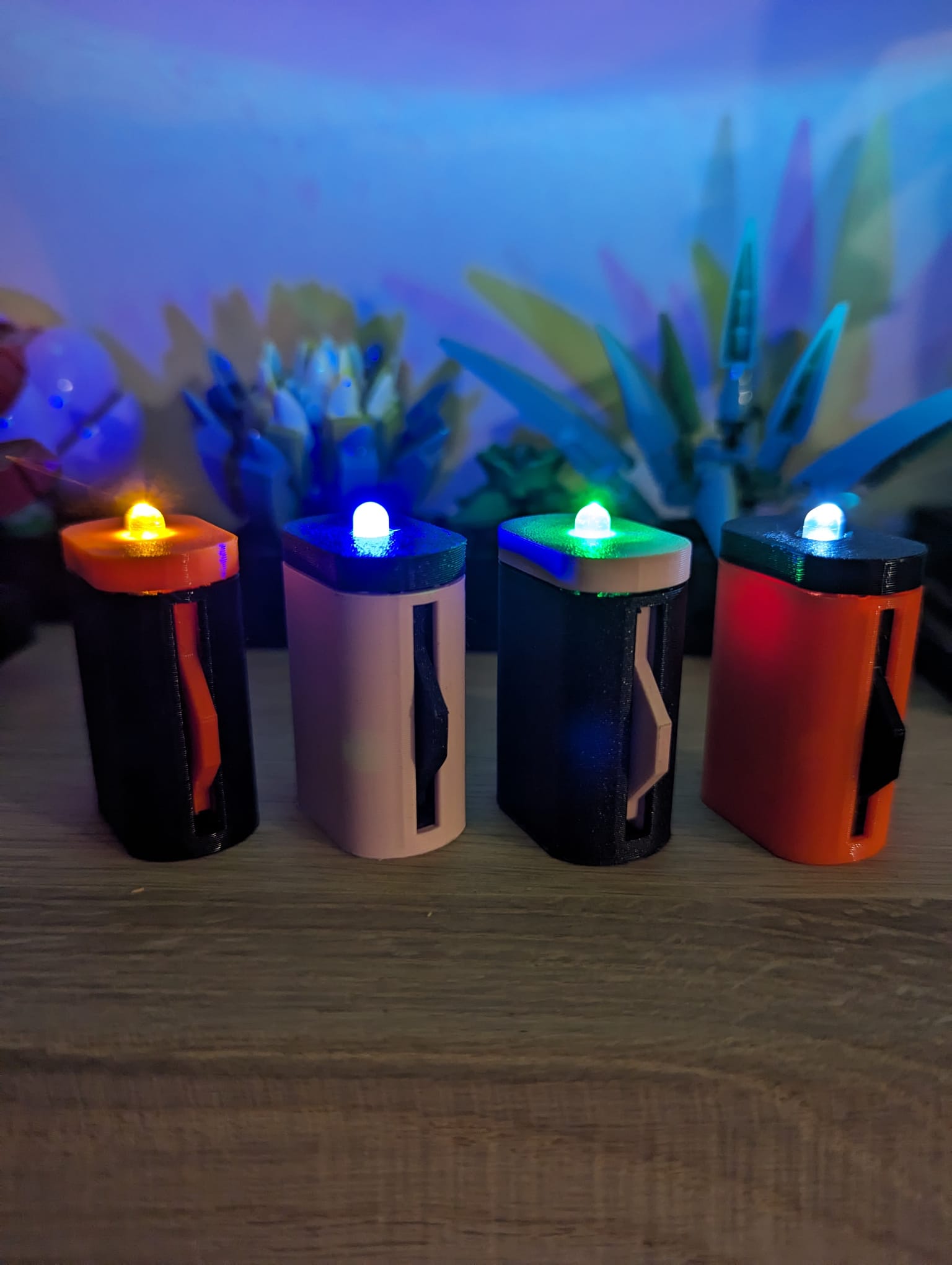

It only takes a CR2032 battery and a LED to build this portable flashlight.
- Ocena
- 5 / 5
- Polubienia
- 26
- Pobrania
- 135
- Wydruki
- 1
- Wyświetlenia
- 859
- Oceny
- 1
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Share Alike
Portable Flashlight
It only takes a CR2032 battery and a LED to build this portable flashlight. The LED is attached to the portable-flashlight-led-clip which makes contact with the battery when the portable-flashlight-slider is moved upwards.
Works fine with both PLA and PETG
Assembly instructions
Make sure to slightly bend the portable-flashlight-led-clip outwards so that it looks just like the following picture:
Once the LED is attached to the clip, the portable-flashlight-battery-holder can be partially inserted into the portable-flashlight-base
The portable-flashlight-slider should now be inserted together with the battery into the battery holder
The battery holder can now be completely inserted into the portable-flashlight-base
The LED can now be inserted into the portable-flashlight-base
The small hole on the portable-flashlight-lid must be facing the slider and must be twisted in order to stay in place
You should now have a working portable flashlight. I would really appreciate to see your print and some constructive feedback.
