NVIDIA Shield TV 2019 Remote Case
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

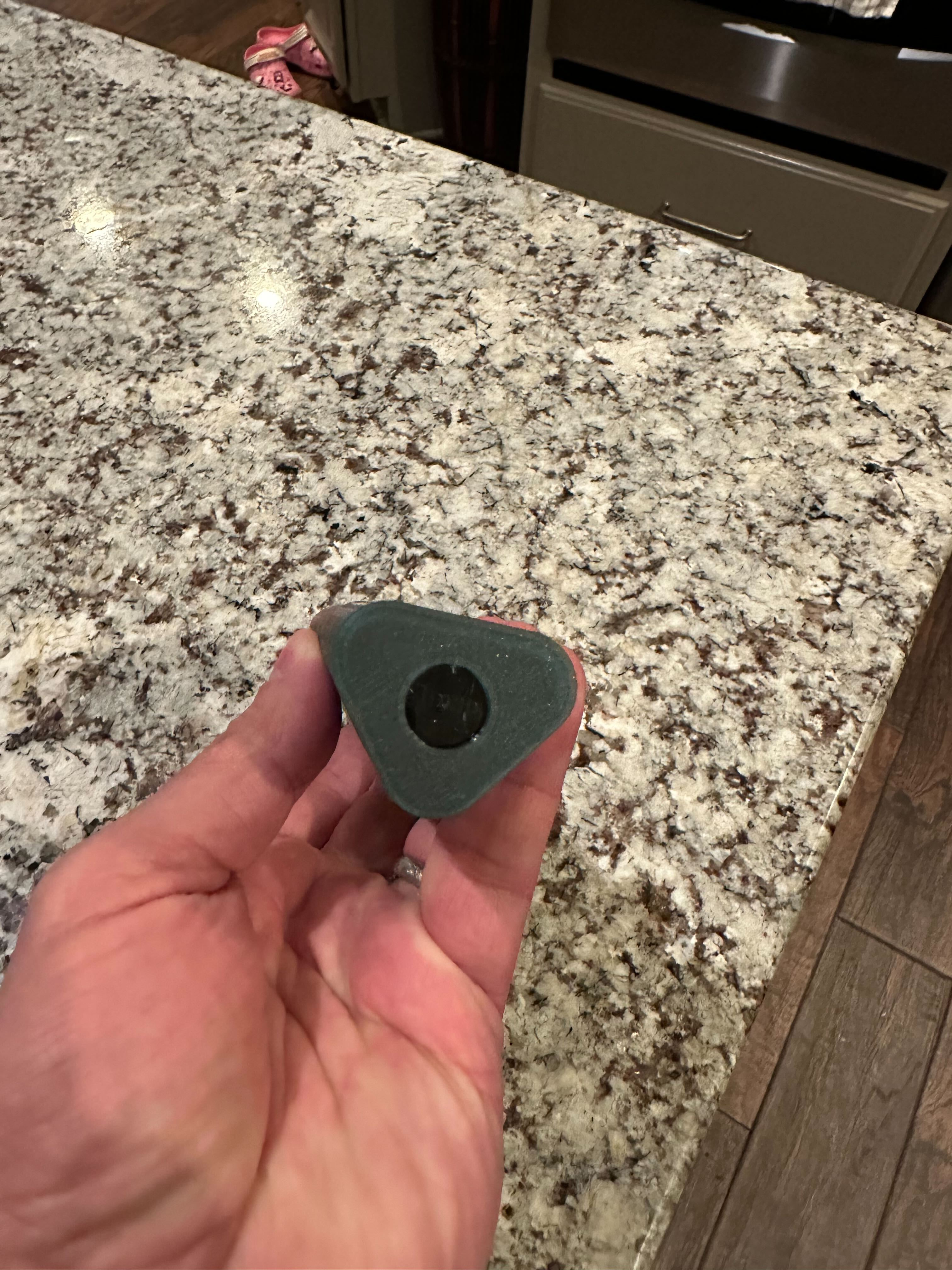

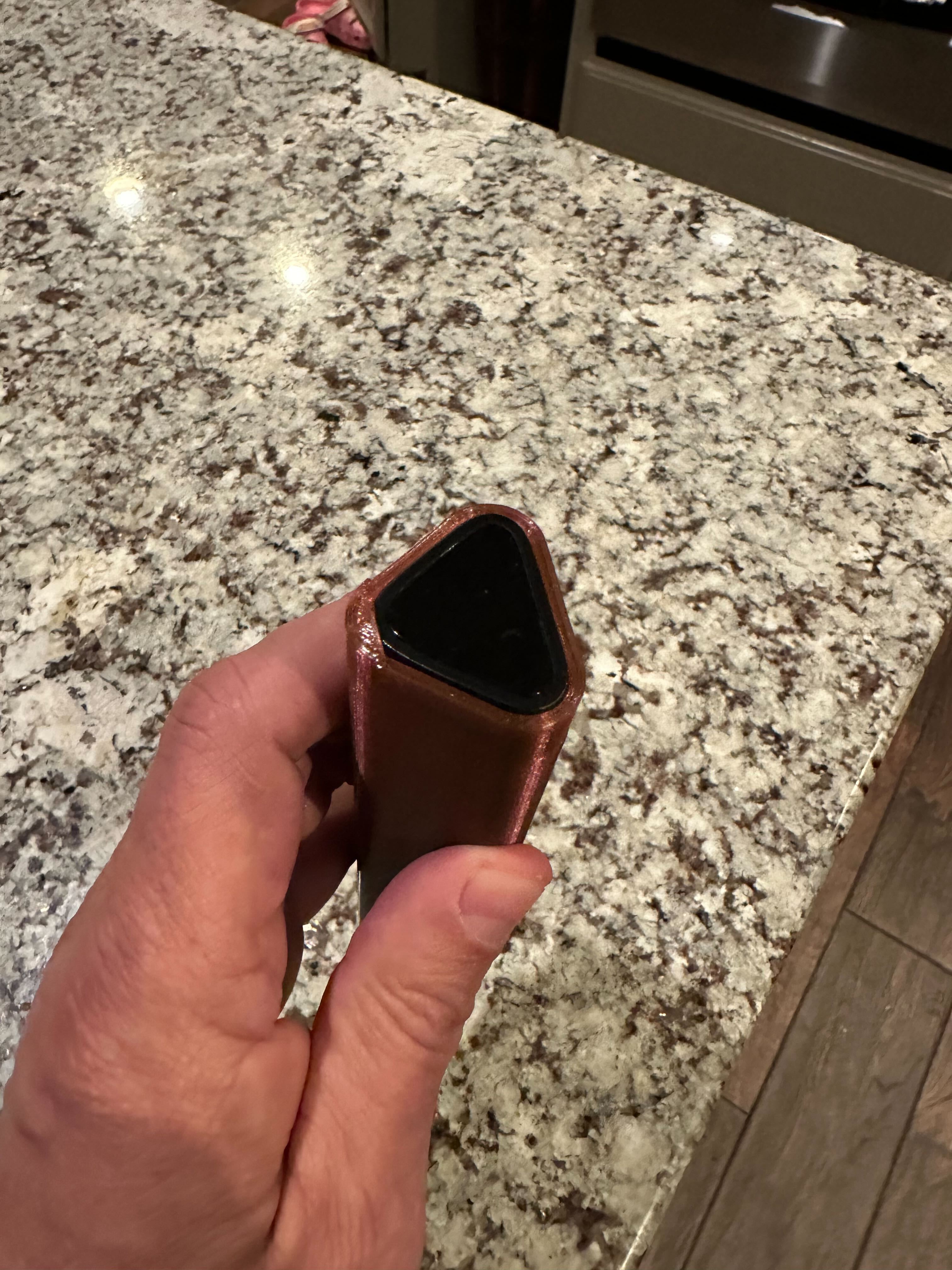

I really liked the model that this was based on, but that one that didn't have a top or bottom way to hold the remote in place. This has both. The bottom gives it full protection while also allowing a small finger or something to push the remote out when you need to replace the battery. The top notch is just enough to hold in place without blocking the IR emitters.

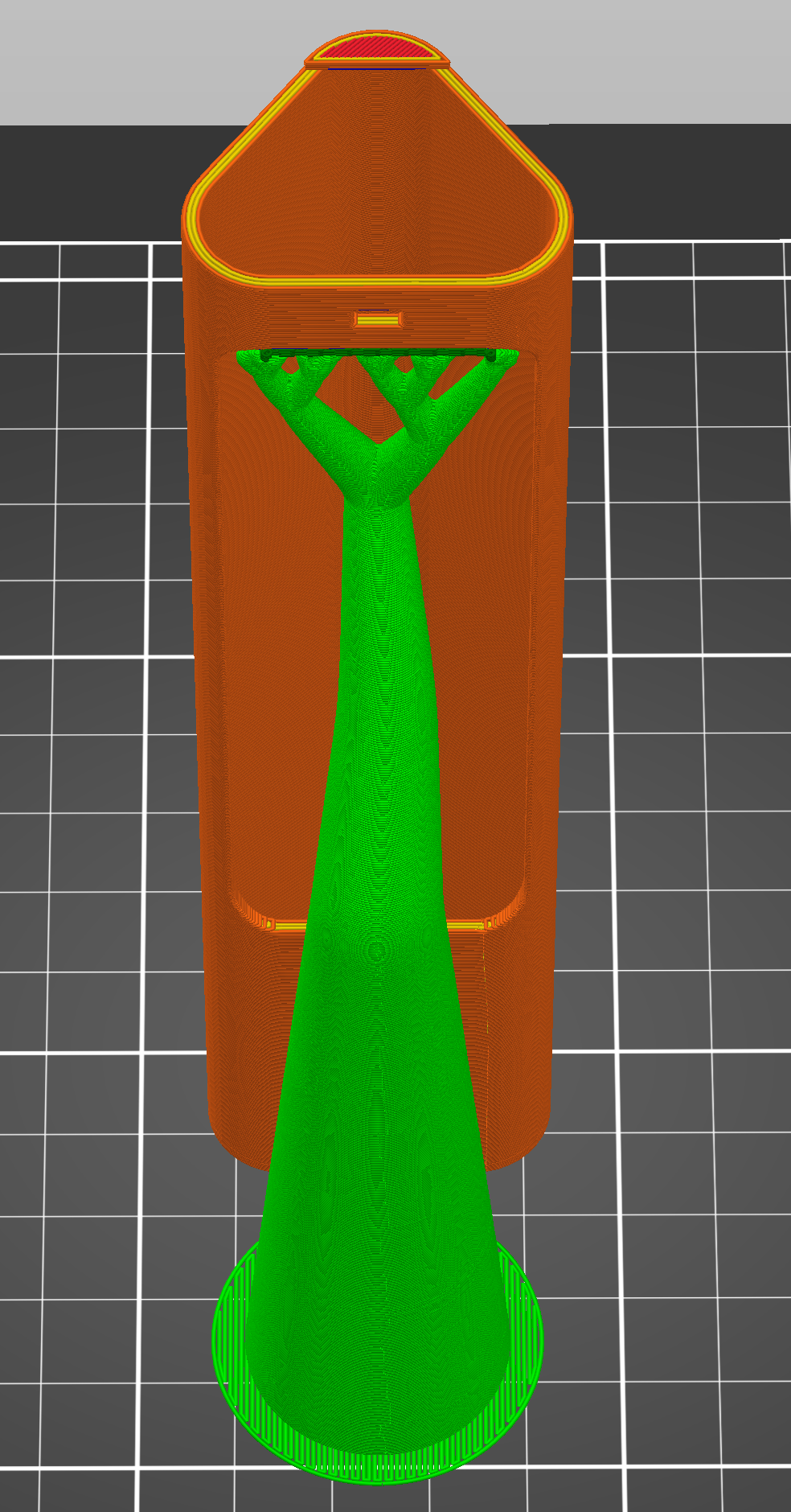

Print in TPU. I used tree supports and with .1 z-distance, an interface pattern distance of .6mm, and 150% xy separation. I also used a blocker to prevent the top LED hole from getting supports. See the picture for what mine looked like after slicing. On the mk4 is sliced to a 2h15m print at 15% infill.
