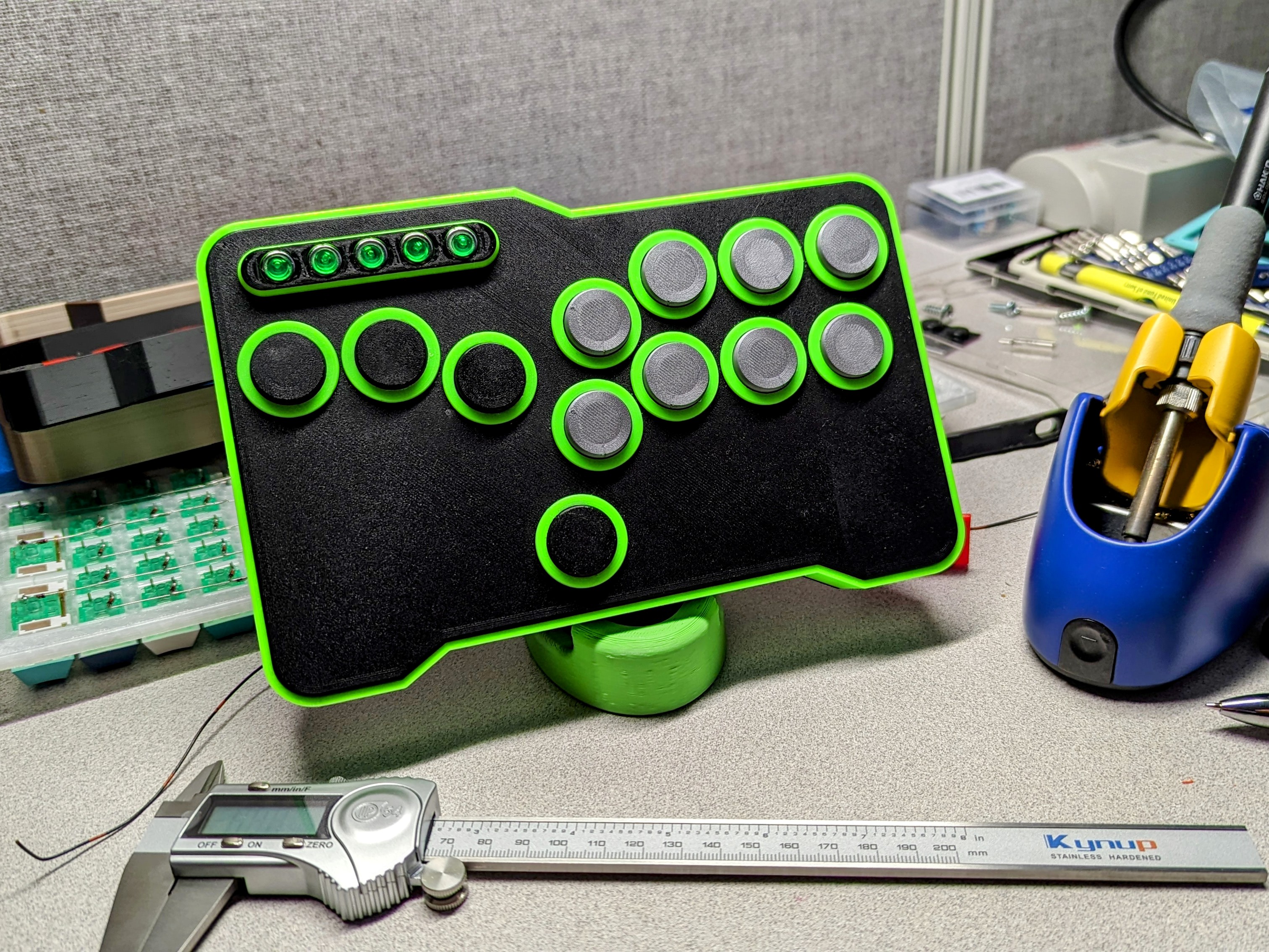

Compact Hitbox Controller REMIX

Please check out the tutorial video for this project:

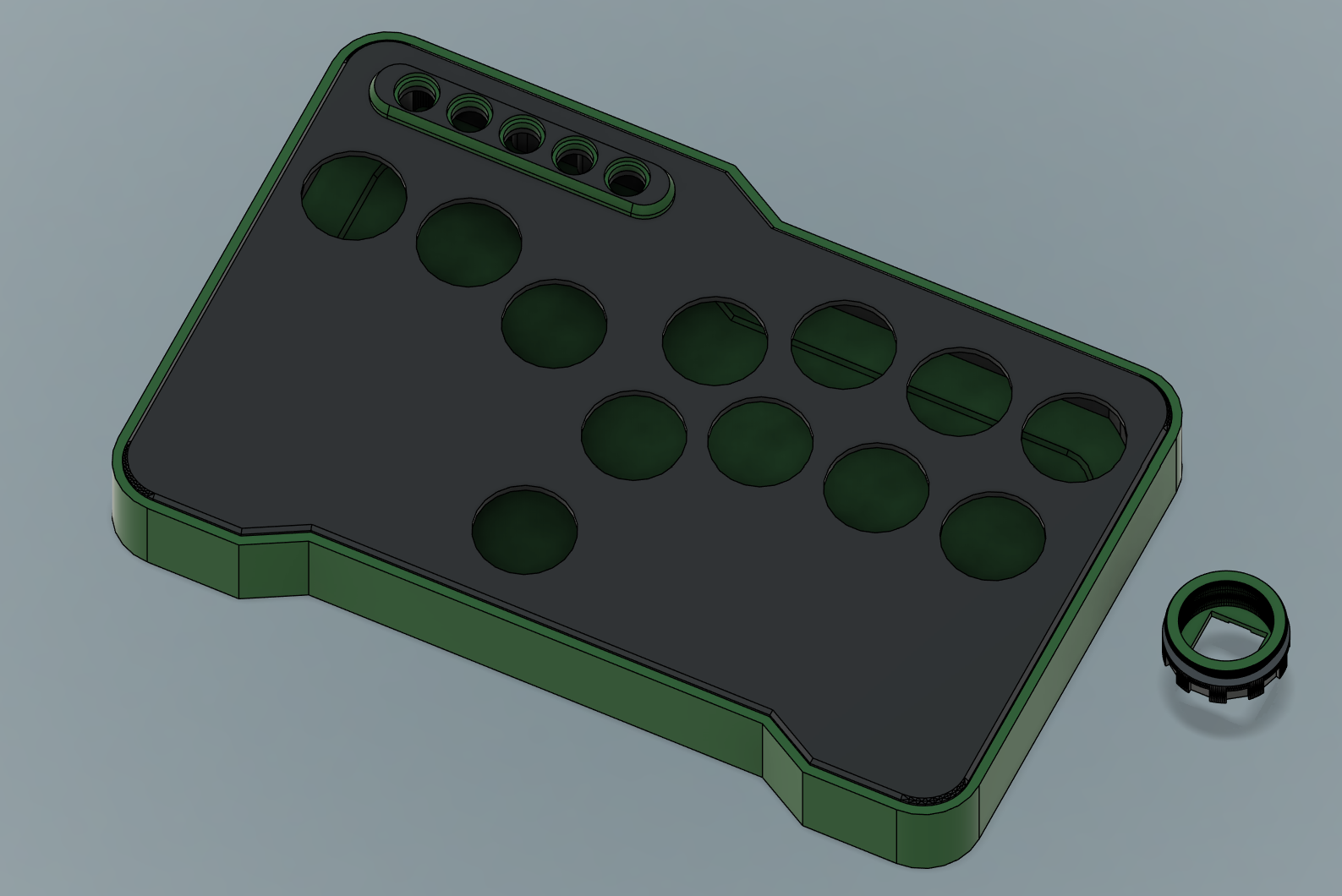

This is a smaller Hitbox controller based on the original design by @MarshallSwann_620220. I love the look of the design created by Marshall Swann but I wanted to modify it to work with the equipment and hardware that I already have. Please see the “Differences of the remix” section for a detailed list of the changes made to this model. This remix can be printed on typical Ender 3 clones with a 220x220 print bed.

Update 9/4/2024: Added alternative layouts that include an UP arcade button. (requested by jackpiegg)

Update 4/11/2024: Added support for 30mm thumb buttons.

You will need:

1 - Raspberry Pi Pico: https://amzn.to/3PYusdB

13 - Mechanical Keyboard Switches: https://amzn.to/49zAAzU

5 - 8mm Momentary Switches: https://amzn.to/43Ymuab

6 - 12mm M3 bolts: https://amzn.to/49w6o8U

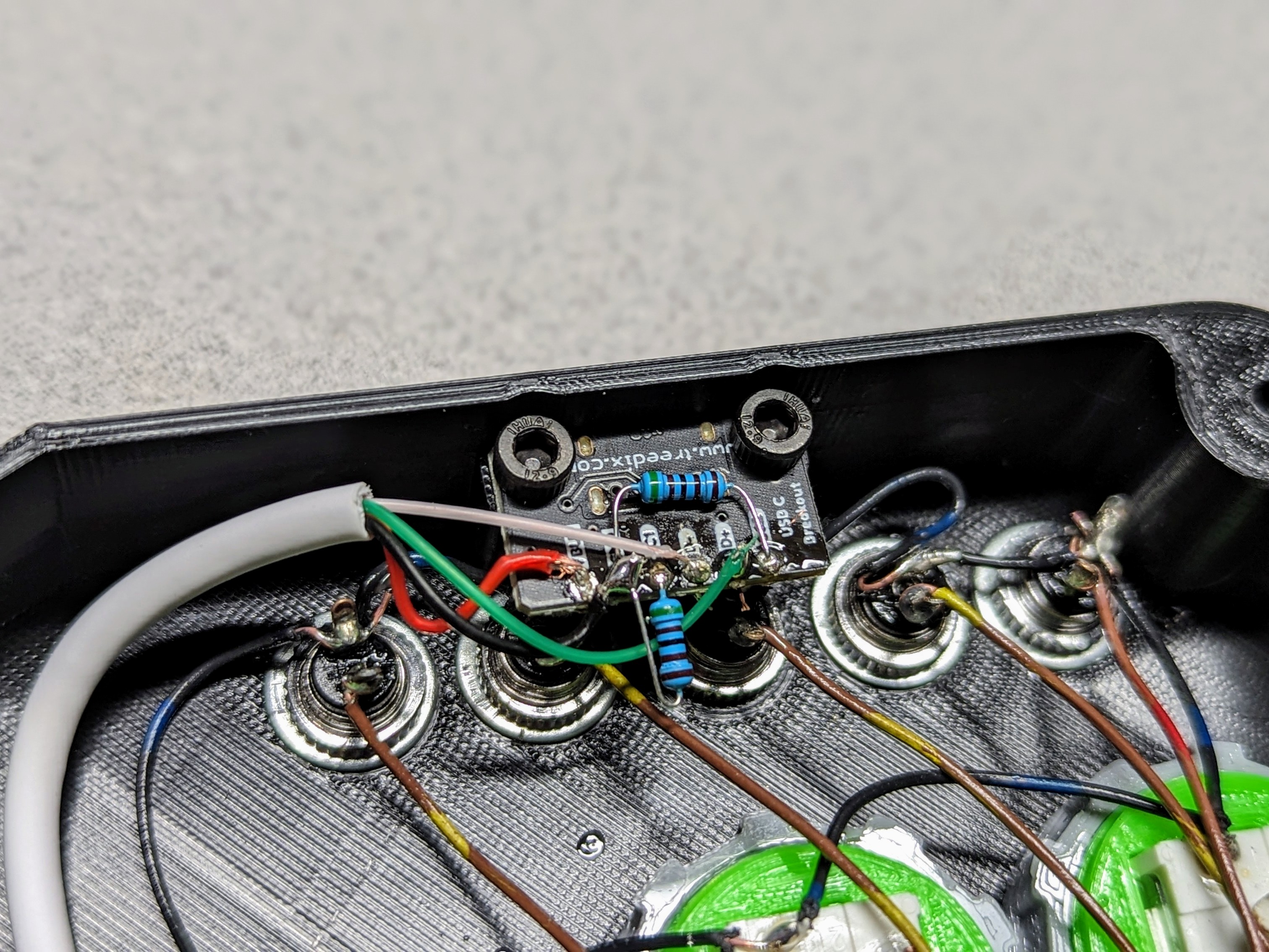

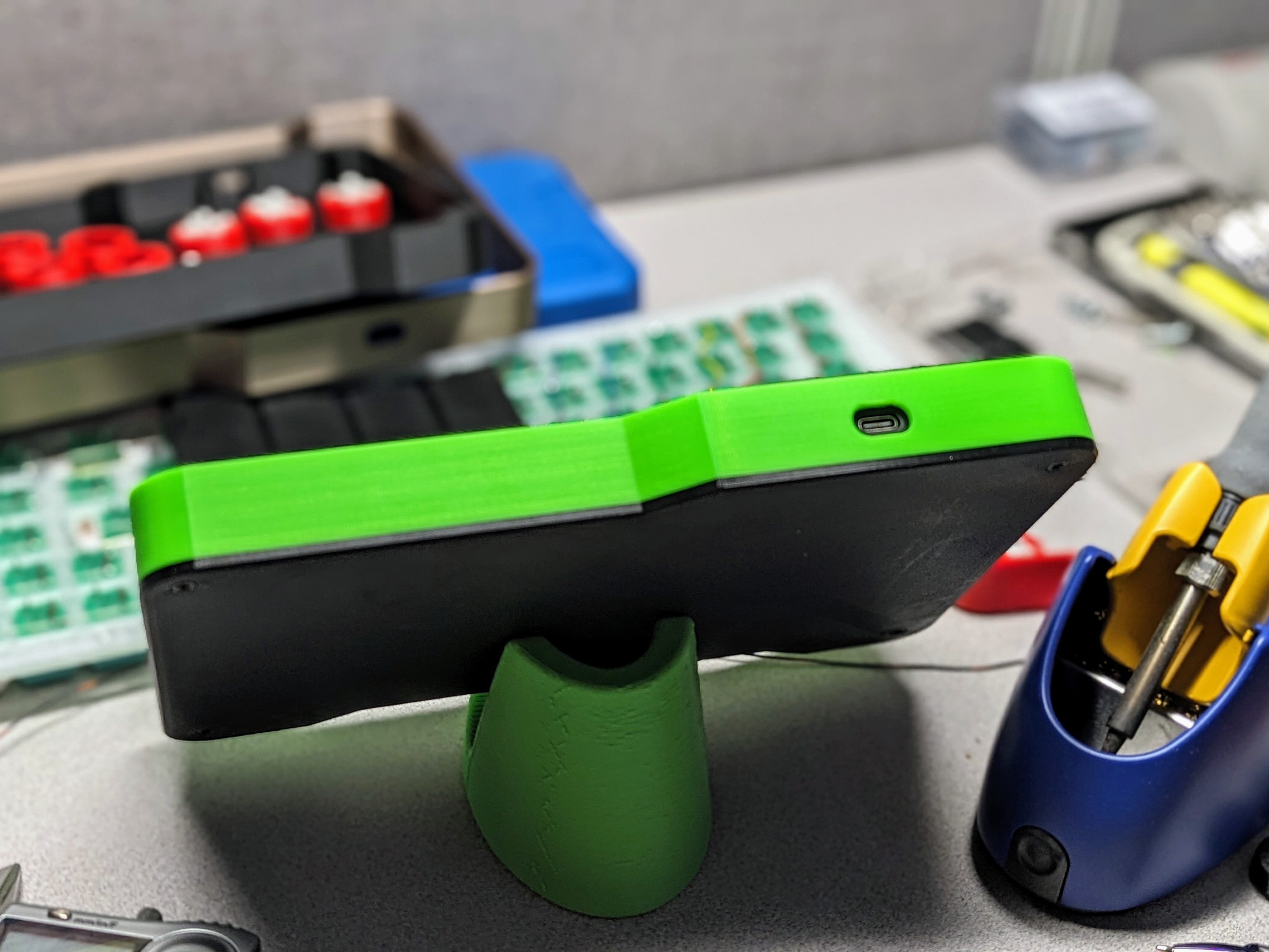

1 - USBC Breakout: https://amzn.to/49v8CW7

Wire - https://amzn.to/3XgZmAR

And maybe some rubber feet for the bottom
