Belt Clamps
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Voron Parts & Upgrades
- Licencja
- Creative Commons — Public Domain

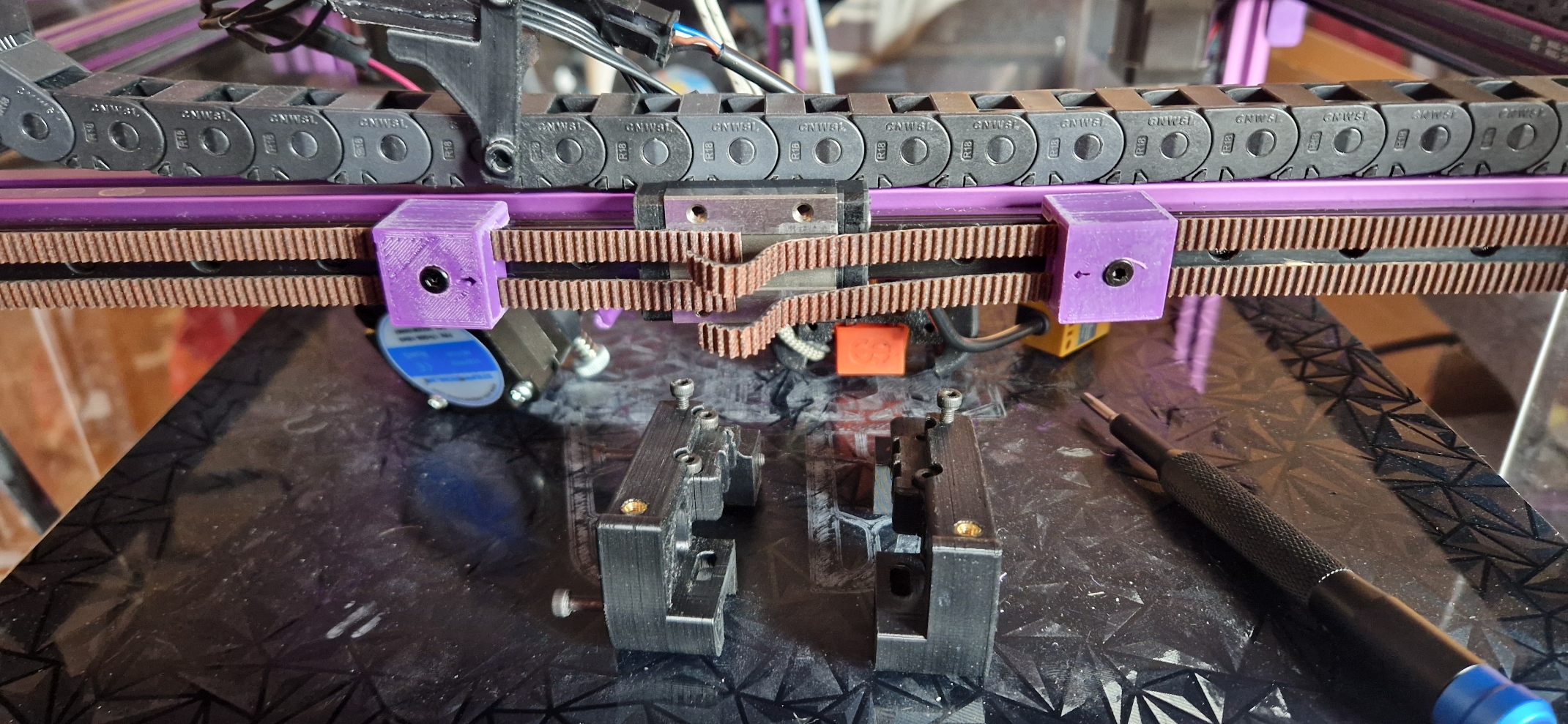

Belt Clamps for dual 6mm belts and MGN12 Rails. e.g. Voron Trident/2.4
These are for a quick alternative way to hold the belts.

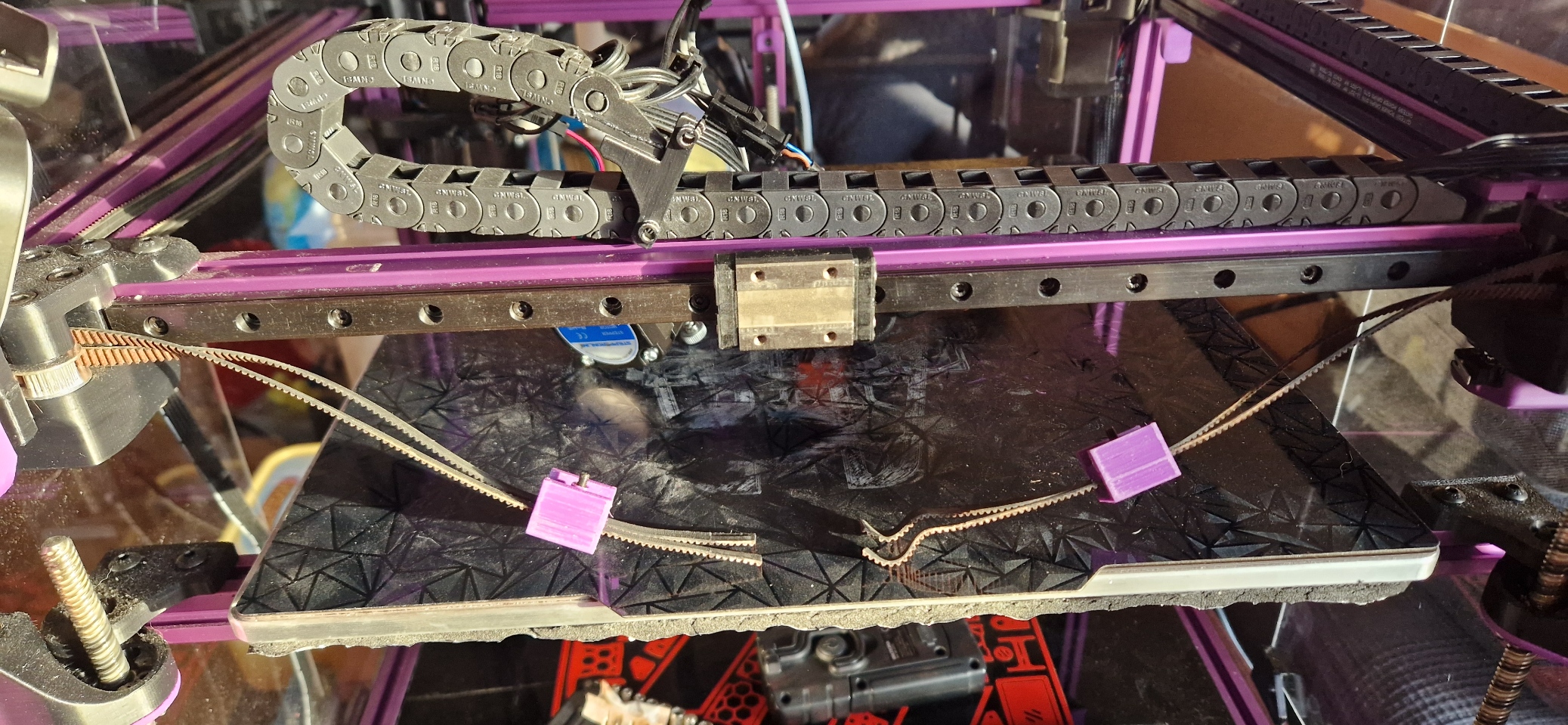

Possible to clamp the belts and let them hang. is you want to do work on the rail, or maybe change the whole X-axis. Keeps the belts at the same lengths, slott them in the holes again, and the belts are in the same position with the same tention.

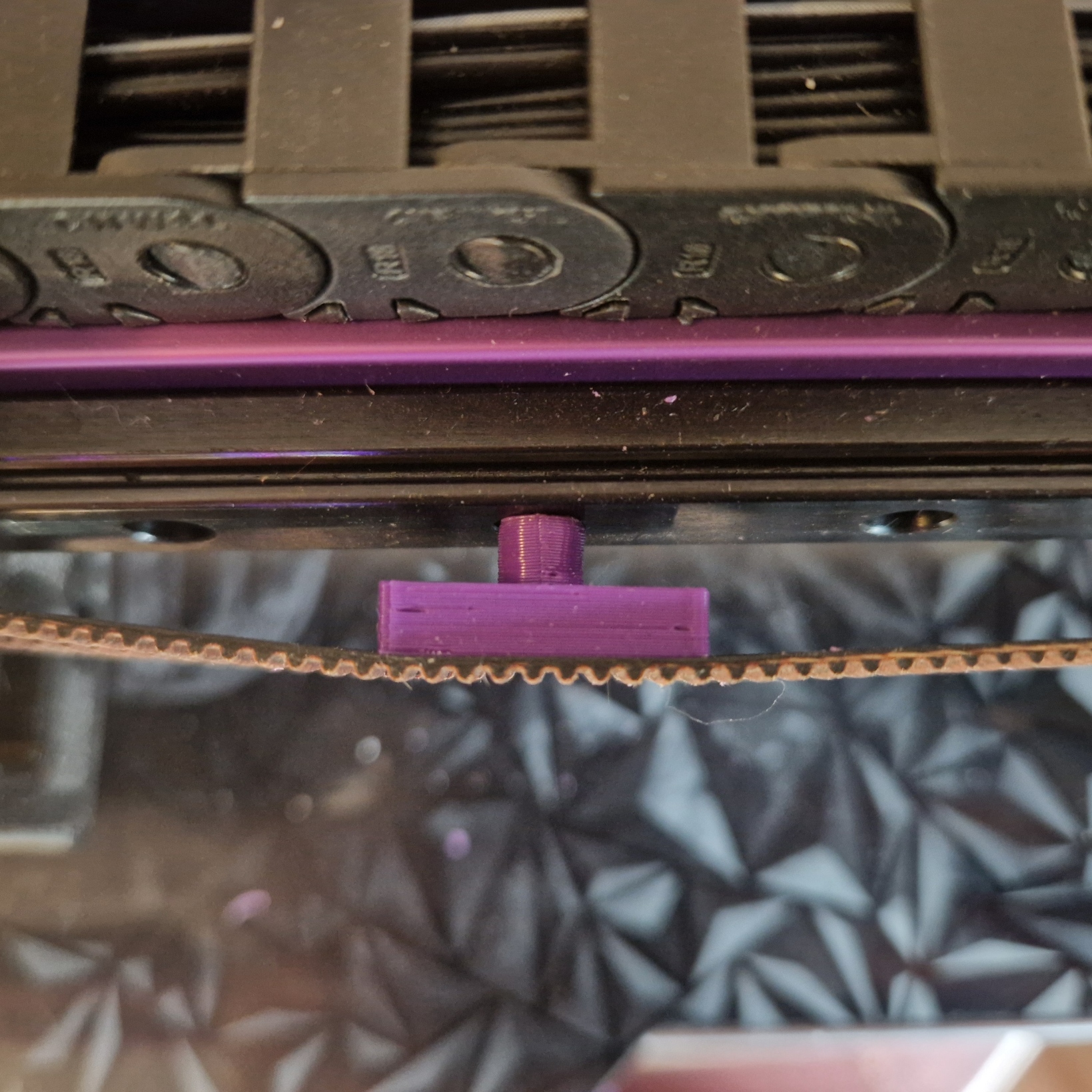

Added en extrude to fit in the empty fastnesless holes if you did't fill every screw hole.
Add a M3xD4xD4 threaded insert for the clamping
Used with M3x15-20mm screws. Best with longer, as I think they “wedge” better behind the rails. Just a theory.
