Skadis Fixture for Trofast Storage Rack

Description:

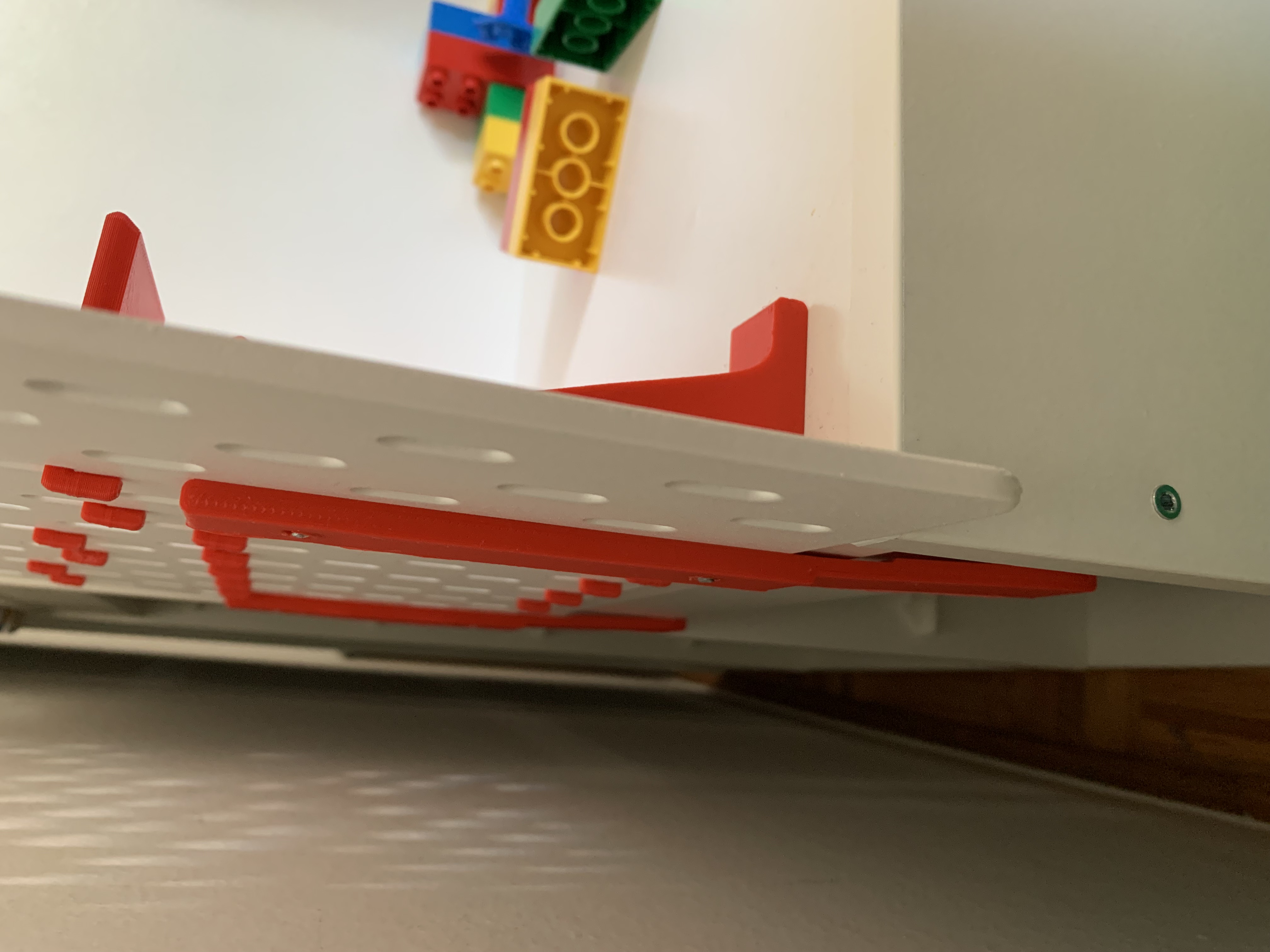

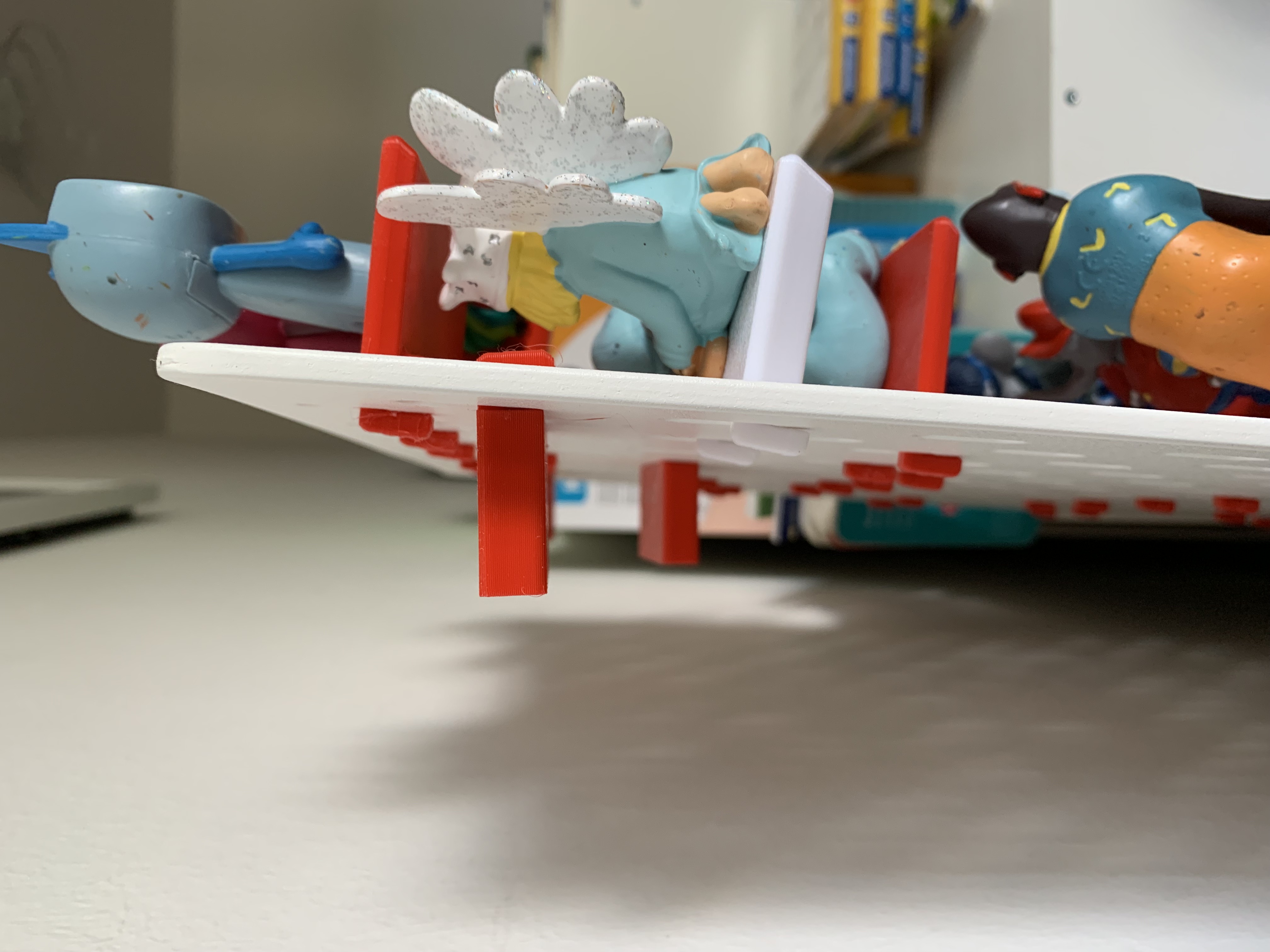

This 3D print model is designed to facilitate the mounting of a Stadis pegboard onto a Torfast storage rack. The fixture consists of three primary components:

1. Bottom Clamps: These two clamps secure the bottom of the pegboard to the storage rack. They ensure a firm grip and stability, preventing any unwanted movement. **Note:** Heat inserts are required for the clamps to provide a strong and durable connection.

2. Spacer Blocks: Two spacer blocks are recommended for positioning at the top of the pegboard. These blocks act as supports, maintaining the pegboard's alignment against the wall. They provide additional stability and ensure the pegboard remains perpendicular to the floor.

The combination of the bottom clamps and the spacer blocks provides a robust and reliable solution for integrating a Stadis pegboard with a Torfast storage system, optimizing storage and organization in your workspace.

Printing Recommendations:

- Material: PLA or PETG for durability and strength.
- Infill: 20-30% for adequate support.
- Layer Height: 0.2 mm for a good balance between print quality and speed.
- Supports: Recommended for the clamps to ensure proper adhesion and structural integrity.

Additional Requirements:

- Heat Inserts: Ensure you have the appropriate heat inserts for the bottom clamps to enhance their durability and load-bearing capacity.

Assembly Instructions:

1. Print two bottom clamps and two spacer blocks.
2. Insert heat inserts into the designated holes in the bottom clamps using a soldering iron or a heat press.
3. Attach the clamps to the bottom of the pegboard.
4. Position the spacer blocks at the top of the pegboard.
5. Secure the entire assembly to the Torfast storage rack.
6. Ensure the pegboard is flush against the wall, supported by the spacer blocks.

With this fixture, you can efficiently organize tools and accessories using the pegboard system, enhancing the functionality of your Torfast storage rack.
