Micron+ - Top Hat - Insert Panels

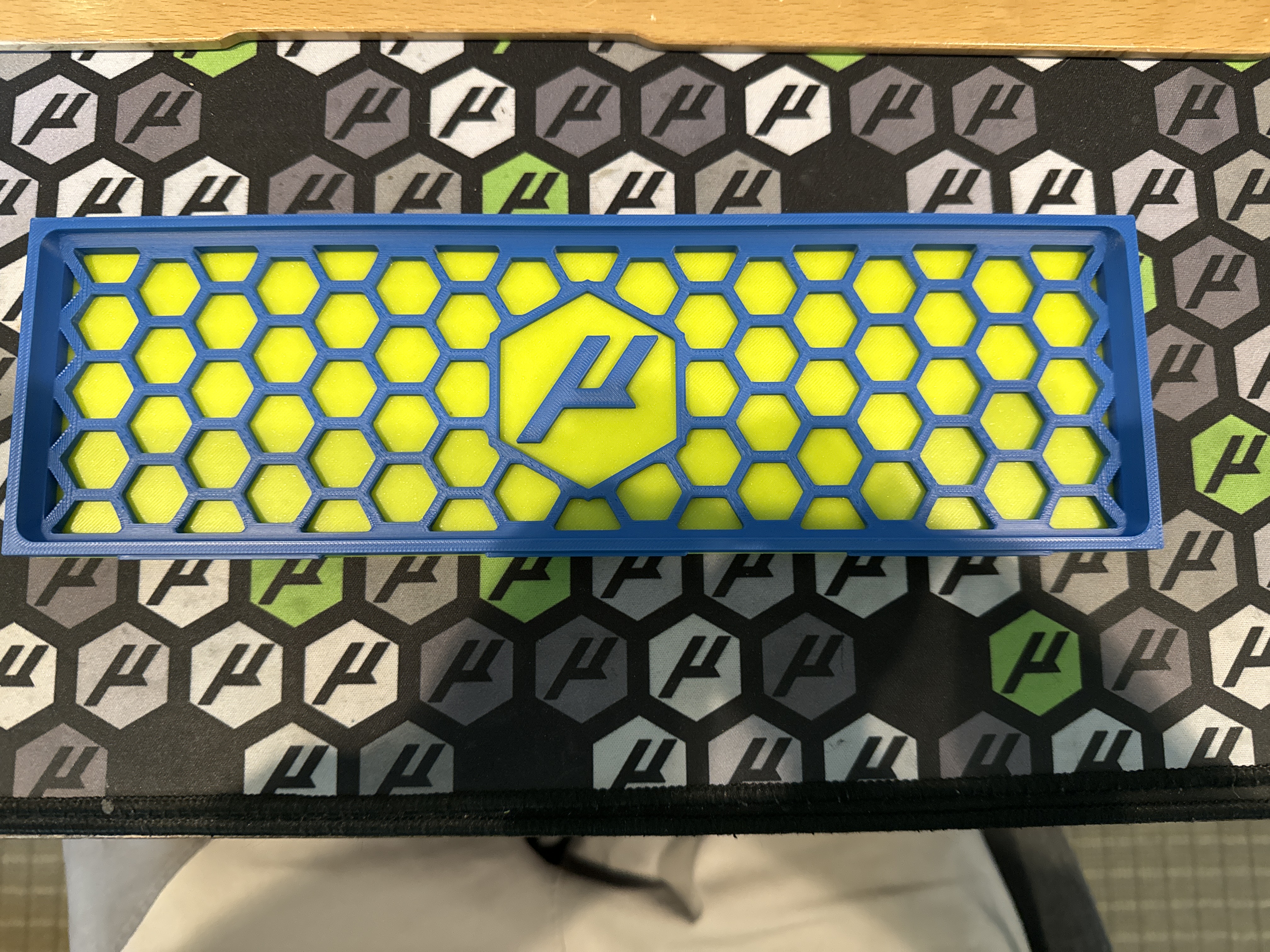

Created these insert panels with hex pattern and micron logo because I didn't feel like buying acrylic panels for my top. I think these looks better than acrylic, lets see how they perform thermally though. I also lined the inside of these with an aluminized fabric (link below) to help keep the heat in.

Each Panel is 280mm x 85mm x 15mm. Print (4) of the “Micron Top Hat Panel" if you dont need the magnets up front for the door.

Otherwise print (3) of the main and (1) of the “Front” version as well as the other STLs for the door-side parts.

Panels slide right in-between the top hat extrusions and are held in place by locating tabs, no extra hardware needed.

https://www.amazon.com/dp/B091FL31NH?ref=cm_sw_r_mwn_dp_0B6JDPKQXF2RJKMM0VNM&ref_=cm_sw_r_mwn_dp_0B6JDPKQXF2RJKMM0VNM&social_share=cm_sw_r_mwn_dp_0B6JDPKQXF2RJKMM0VNM&language=en-US

Edit (03/26/26): My apologies, I just realized I never added the base case files or STEP files for anyone looking to make edits, revisions, etc... Well its been added now. Enjoy!

Thank you to anyone and everyone showing any interest in, viewing and sharing my models with others. It is greatly appreciated! Stay safe, live well and have fun!
