MPLAB-SNAP (MicroChip PG164100)
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution

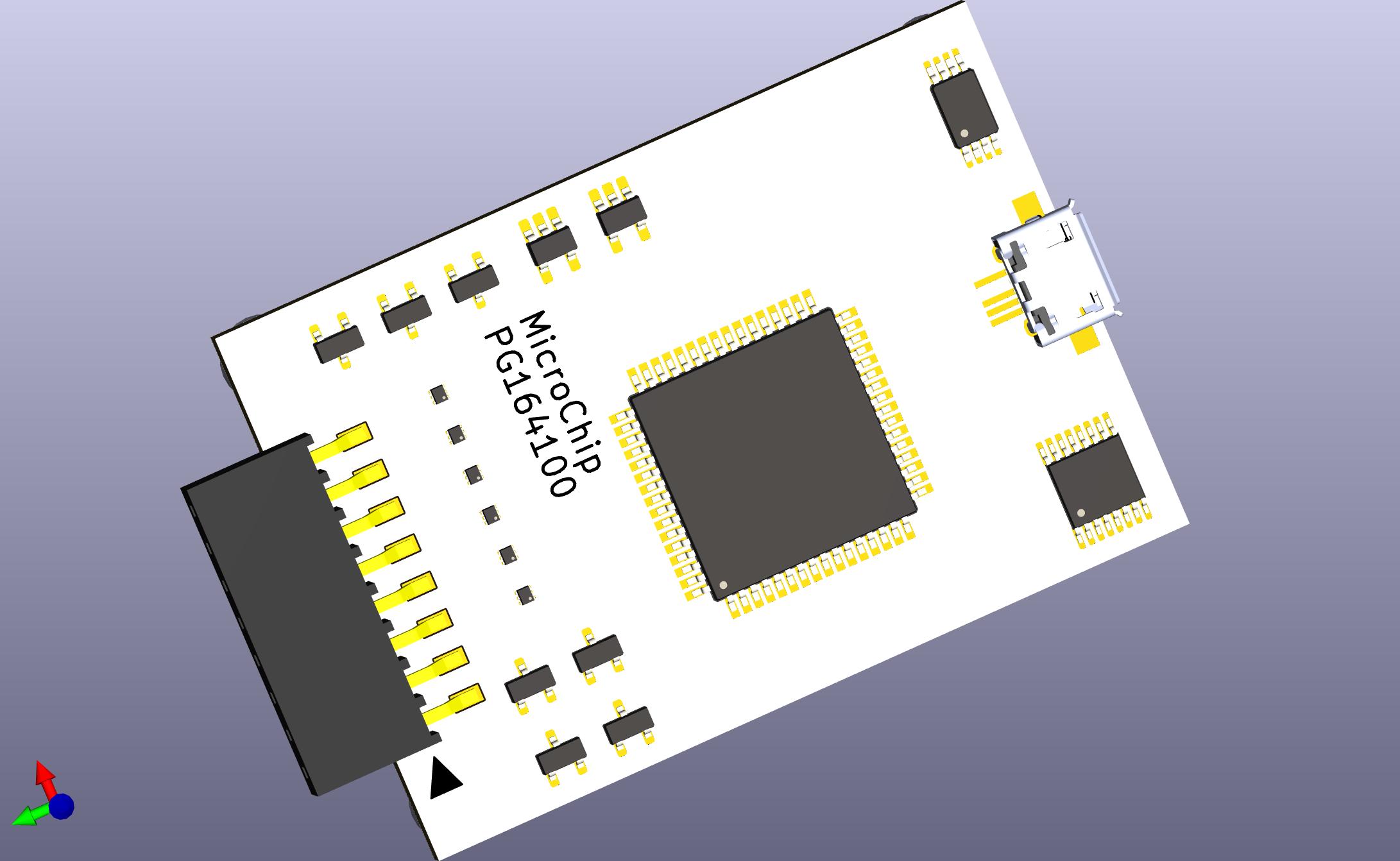

This is a low quality model of the MPLAB-SNAP (MicroChip PG164100) debugger. I made it because I 3D print “debugging platforms” for my projects which hold my boards, cables, debuggers, etc.. MPLAB-SNAP is a little weird because of the female connector so I like to connect it directly to a header on the project board but I want to protect it from moving around. It is not intended to be printed but to be used in order to size/position the MPLAB-SNAP in a 3D printed project. I made it with Kicad because that was easiest. Note that the schematic and PCB are just a means to an end.
