baseboard elements ikea TORV

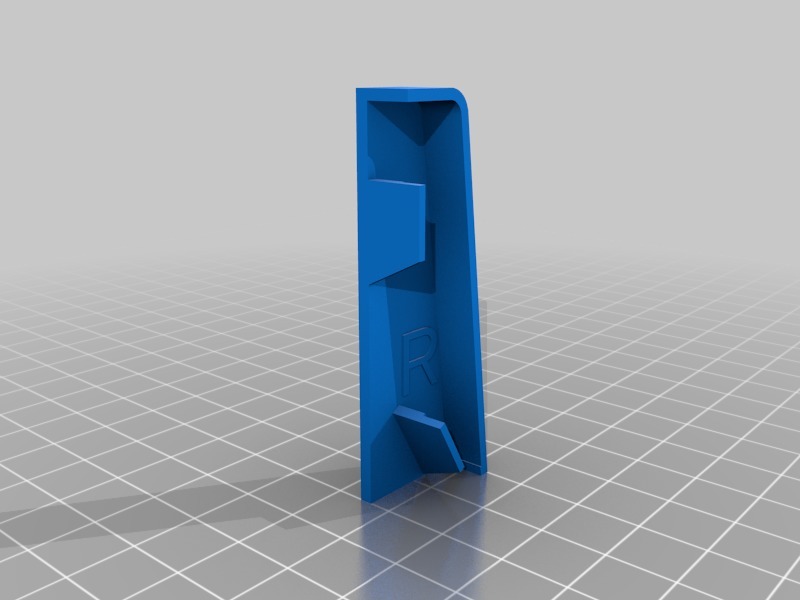

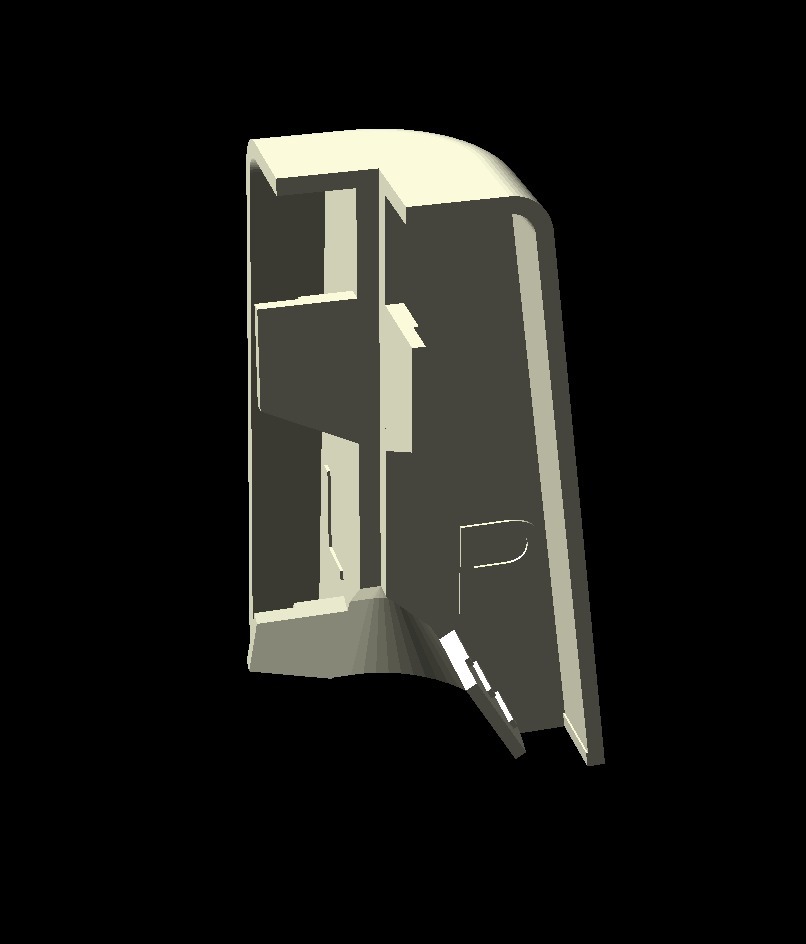

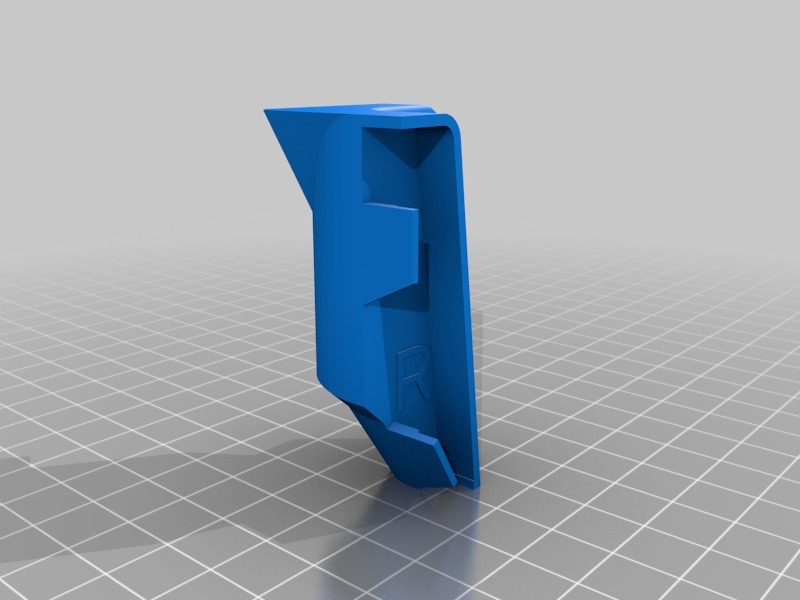

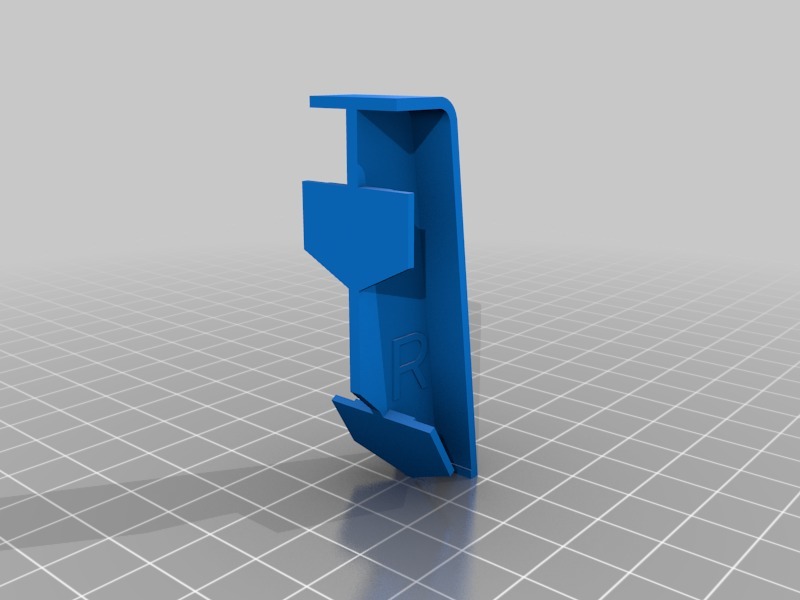

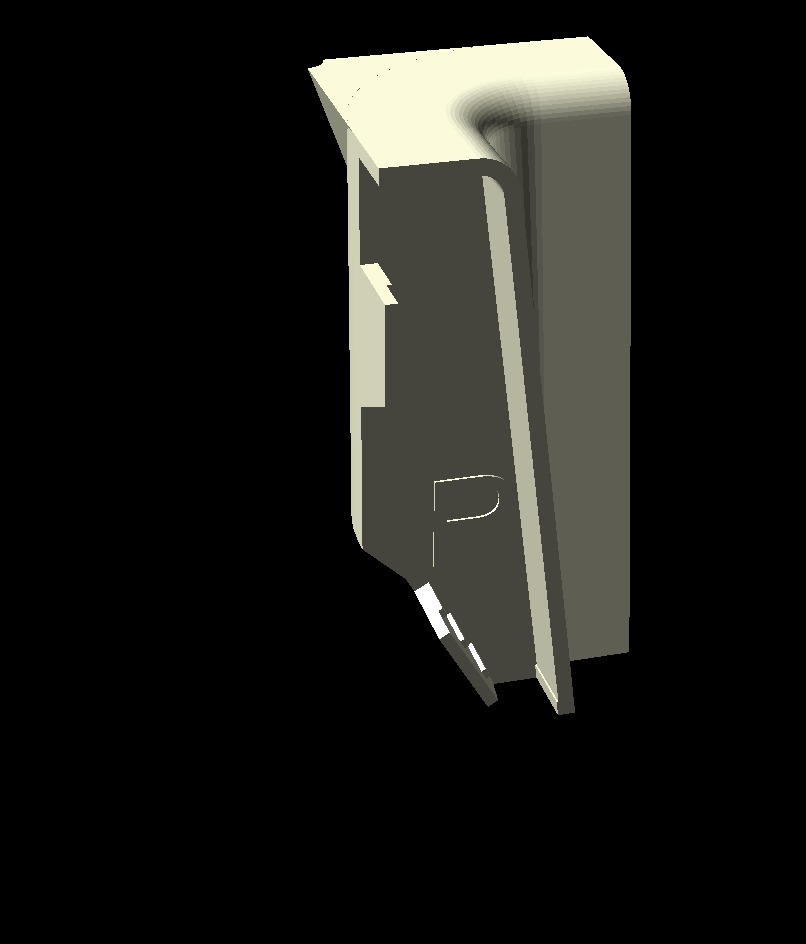

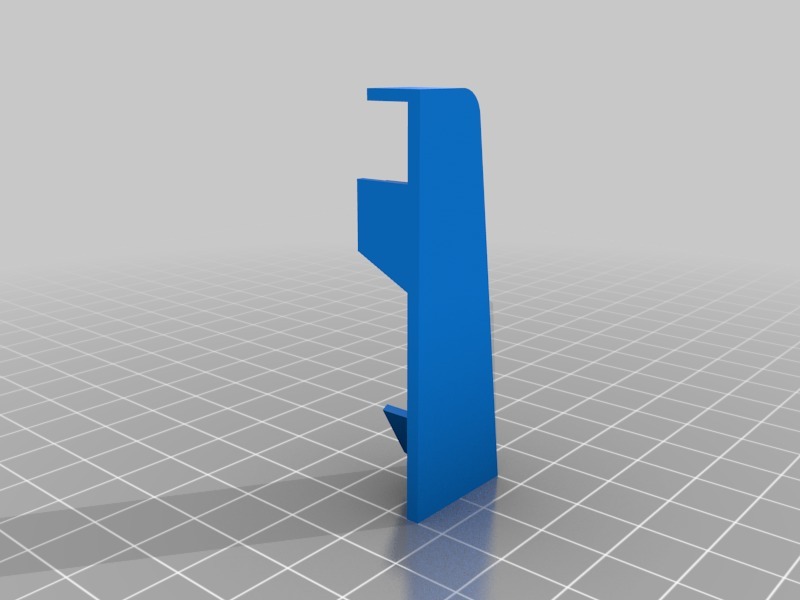

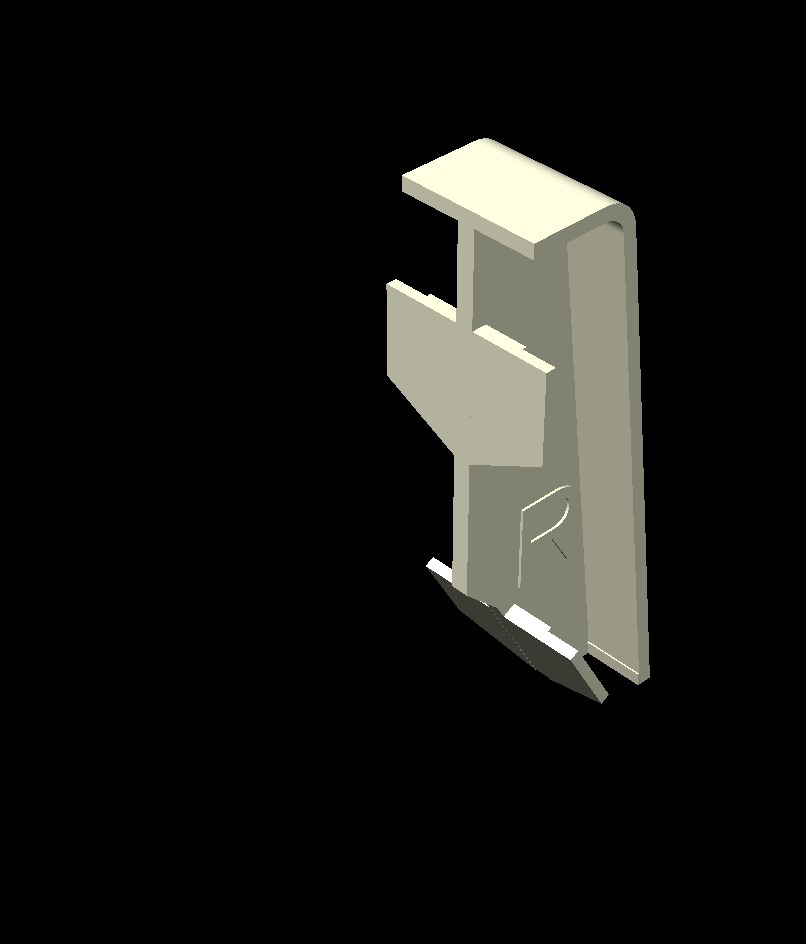

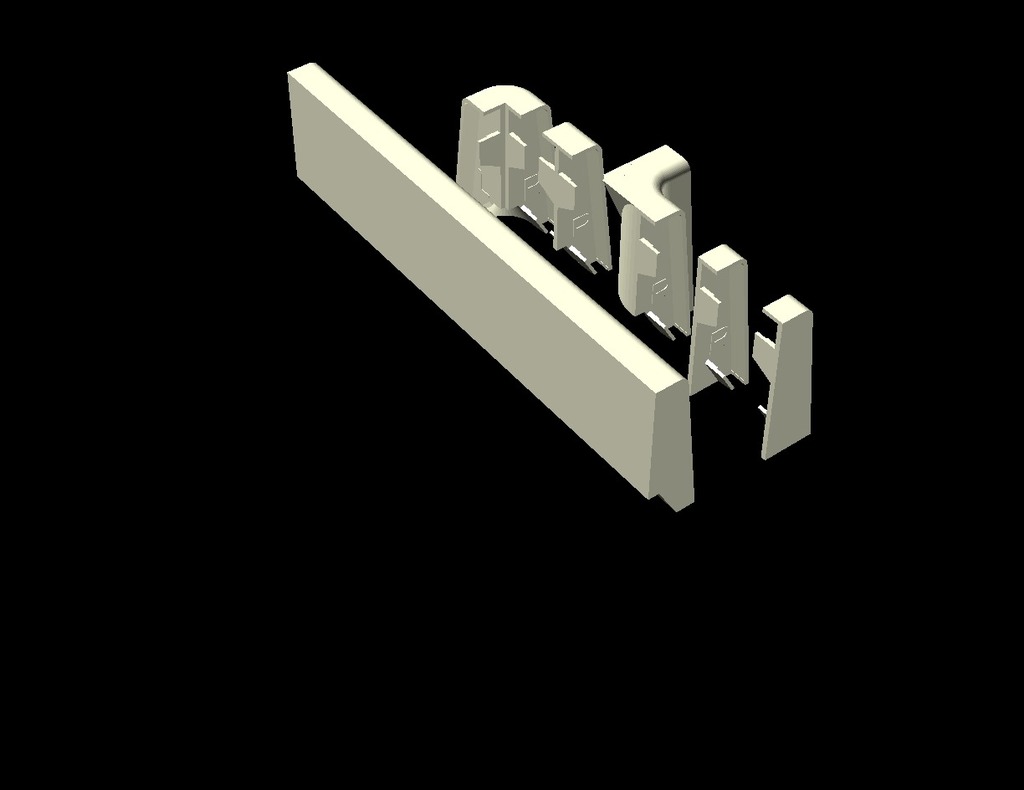

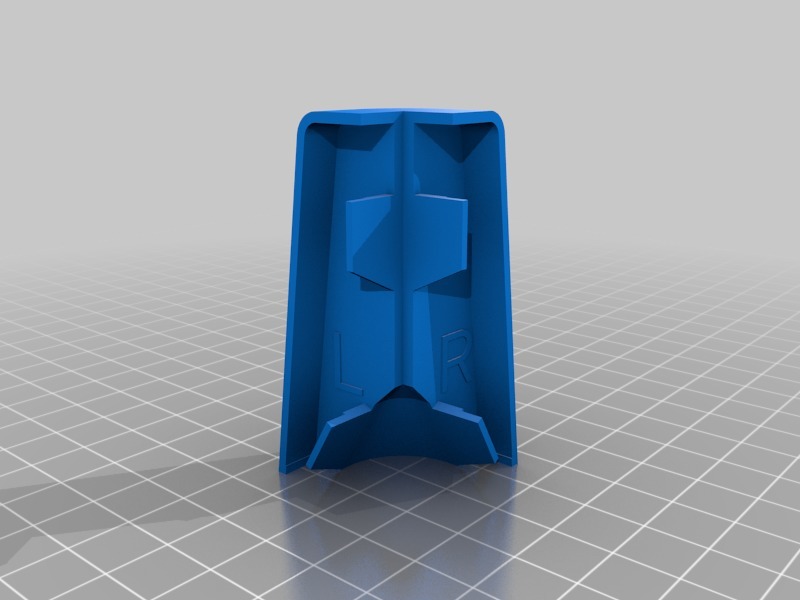

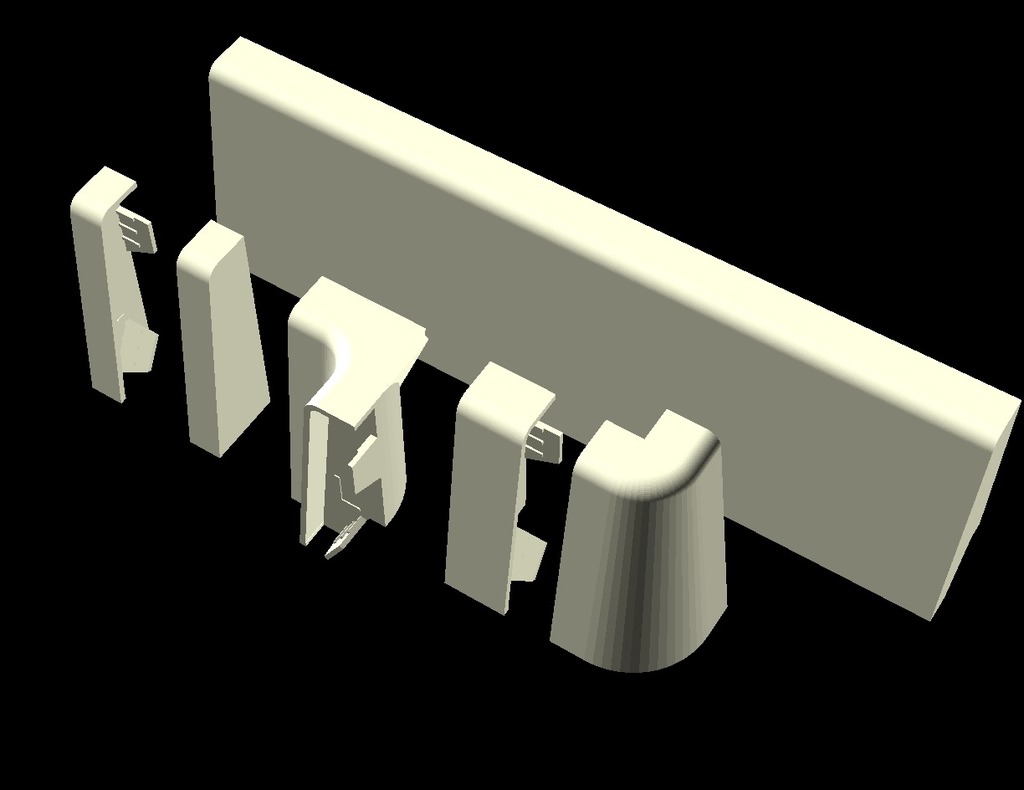

I have a lot of baseboards from the IKEA, model TORV. Of course you miss the corners en end stops, so i tried to design them in openScad.

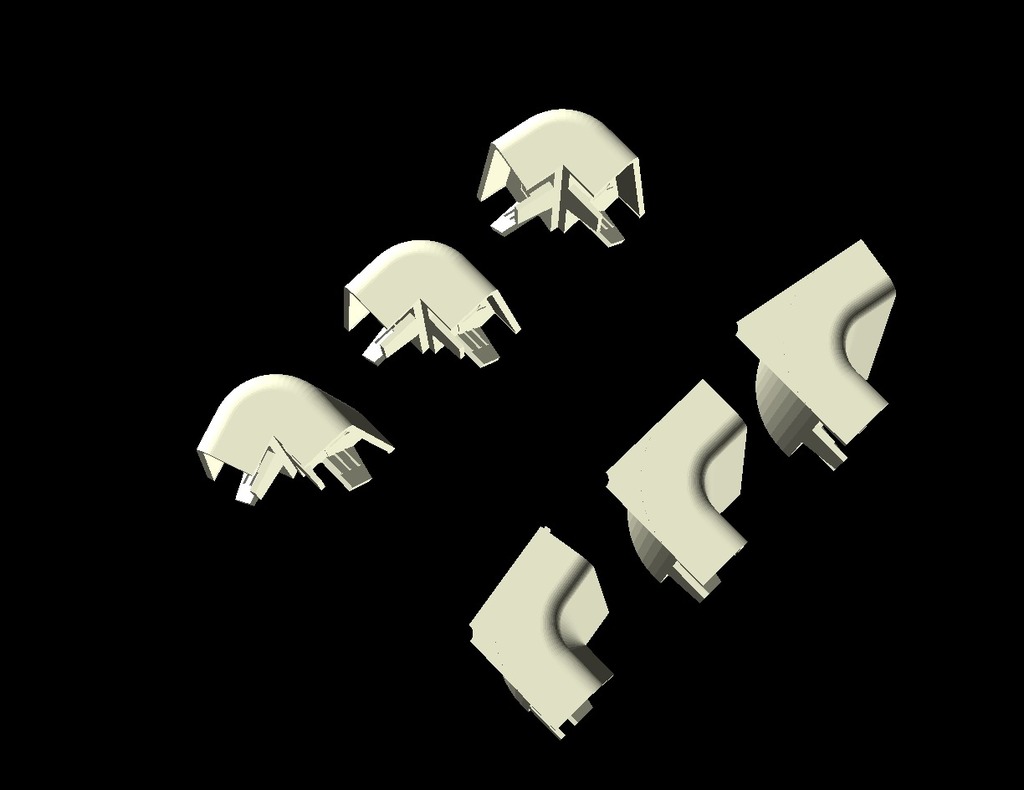

The advantage is that the corners do not have to be 90 degrees. If you use the openScad files you can make the corners any angle you want.

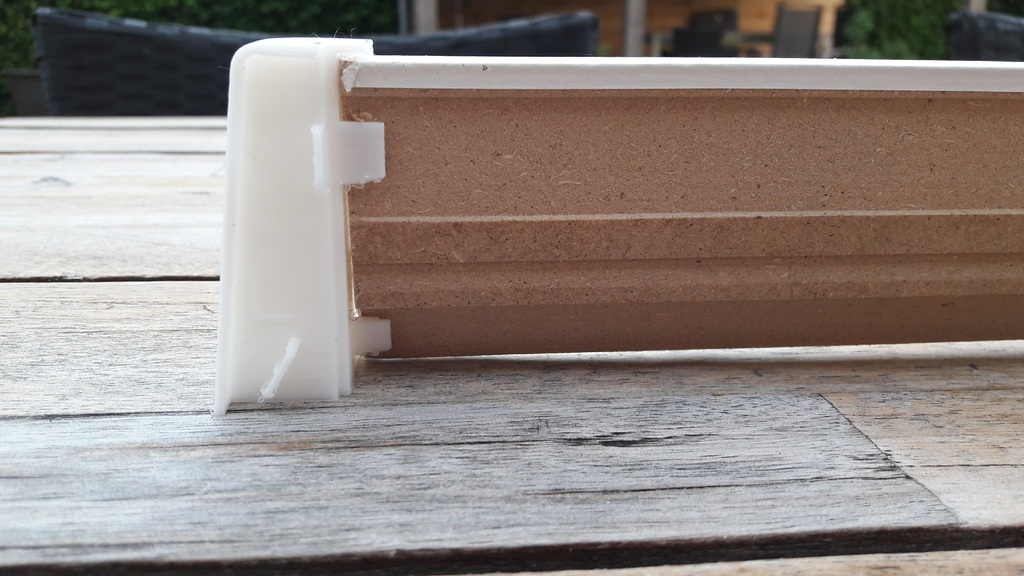

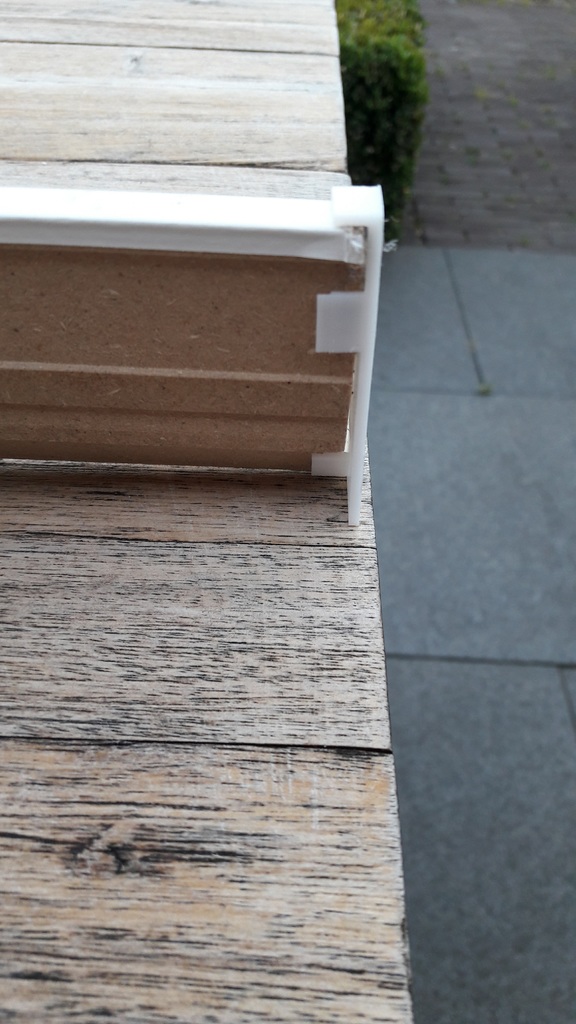

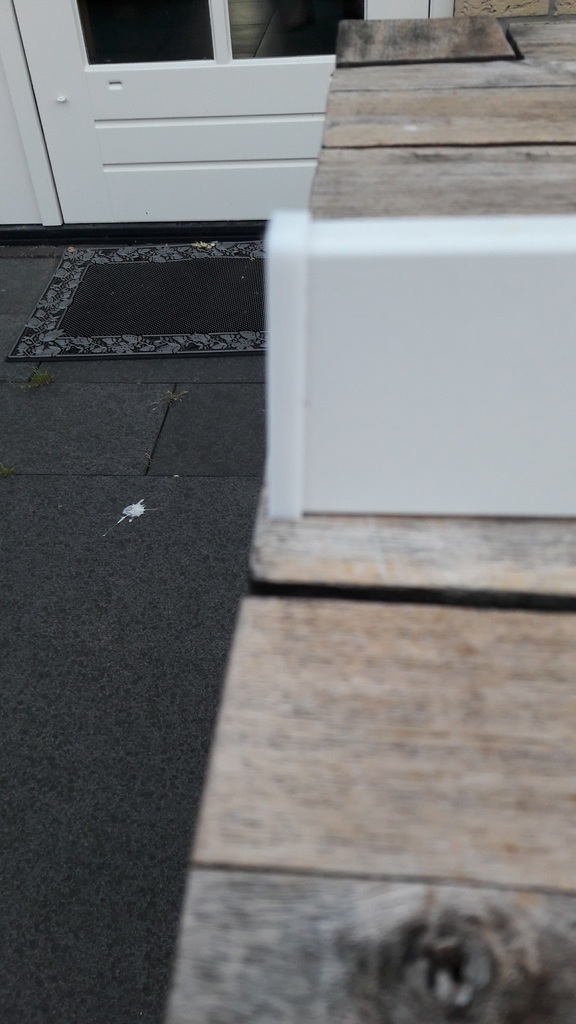

I printed a couple and is works fine. Now I am busy to make a part that can be put around a door post.

Update 2017-06-07 The cutout for wires better printable. You can print all the parts without support standing up. No problems with overhang.
update 2017 06 11. Small error in scad file, 1 point under the baseline, so the parts will not stick to the bed. Fixed it.

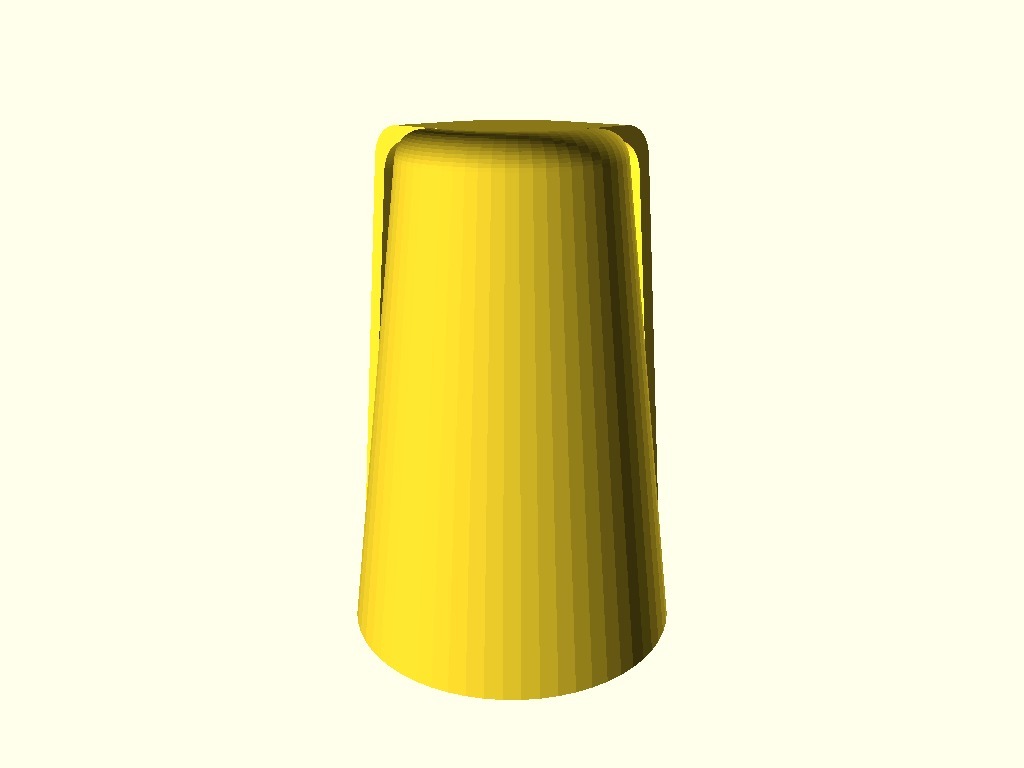

BE AWARE I use the rotate_extrude with an angle. You need Using the parameter angle OpenSCAD versions 2016.xx or higher to use this feature. This is why i did not make a customizes. .

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

Yes

Supports:

Resolution:

0.15 mm

Infill:

Notes:

rafts are dependent on the element you print

i tried to design the parts so you do not need support.

Category: Household
