Angled Filament Feedthrough Remix
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution
This was the original description ronsprenkels had for his model:

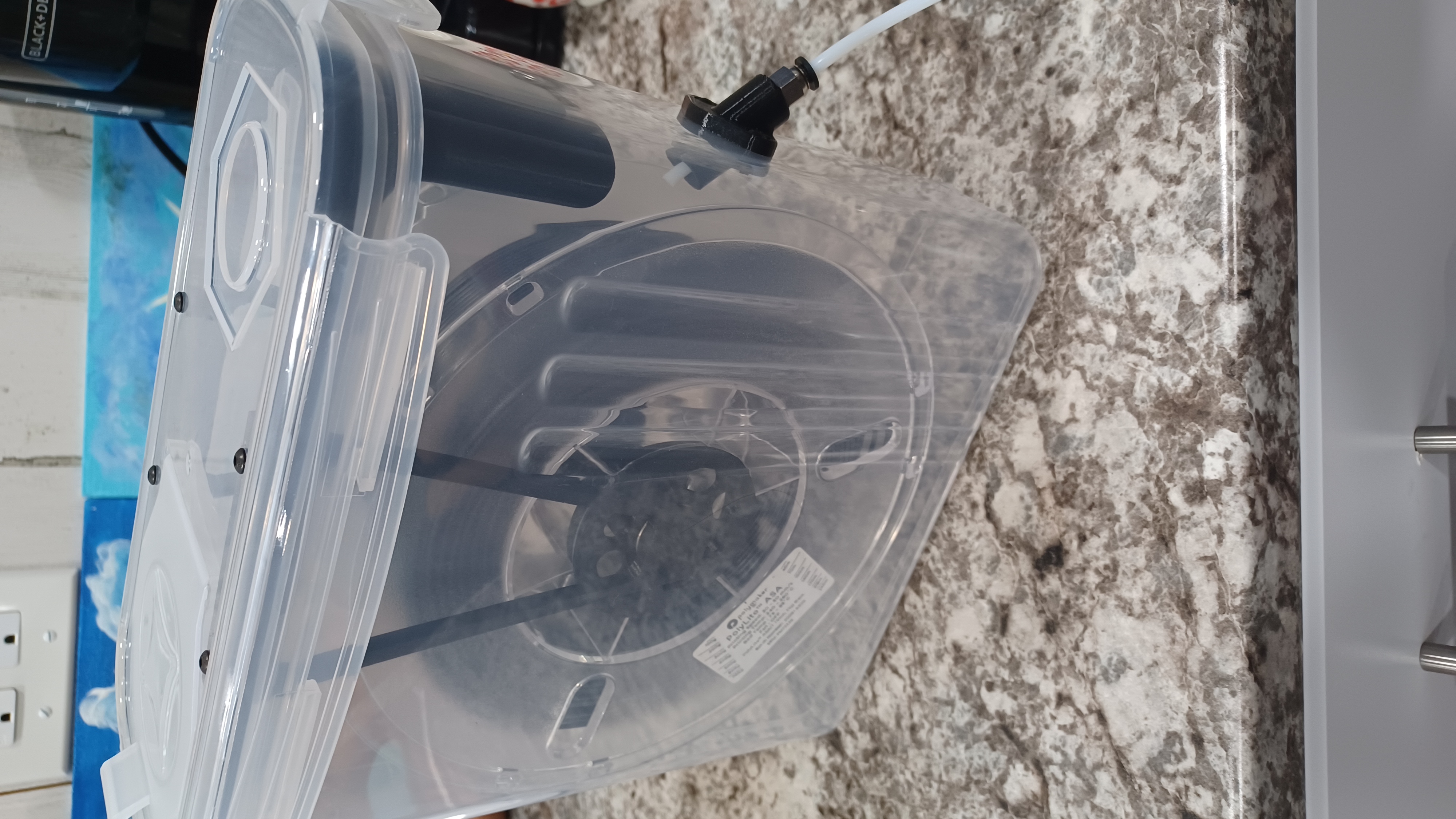

My take on a angled filament feedthrough for my filament drybox. I printed a few others that are available here, none were completely to my liking. So I took the opportunity to practice my fusion 360 skills a bit more.
- It takes a bowden connector with M10 thread (1mm apart). Thread length: 6 mm.
- It uses two M3 bolts / nuts; the bolt heads are tapered ones -> fit flush with the surface
- The fusion 360 source file is included -> adapt to your liking, e.g. for different style or dimension bolts etc.
