This is a configurable thumbnut design. The default parameters are set up for a square M3 nut. This can be configured to fit any size of square nut. When you're slicing the stl, make sure to set it up to pause at the end of the very last…
Replacement side thumbnut for the Sony VCT-1170RM tripod head, used to lock the LANC handle in position. This part is designed with: an embedded M8 hex nut for strong, reliable clamping a tapered ergonomic shape for better grip and feel…
A thumbnut for M5 nuts. I desegned it in order to be used for broken magic arm. The magic arm is used in cinematography for mounting camera, light and sound gear to complicated positions. It is common for the fixing nut to brake. This is…

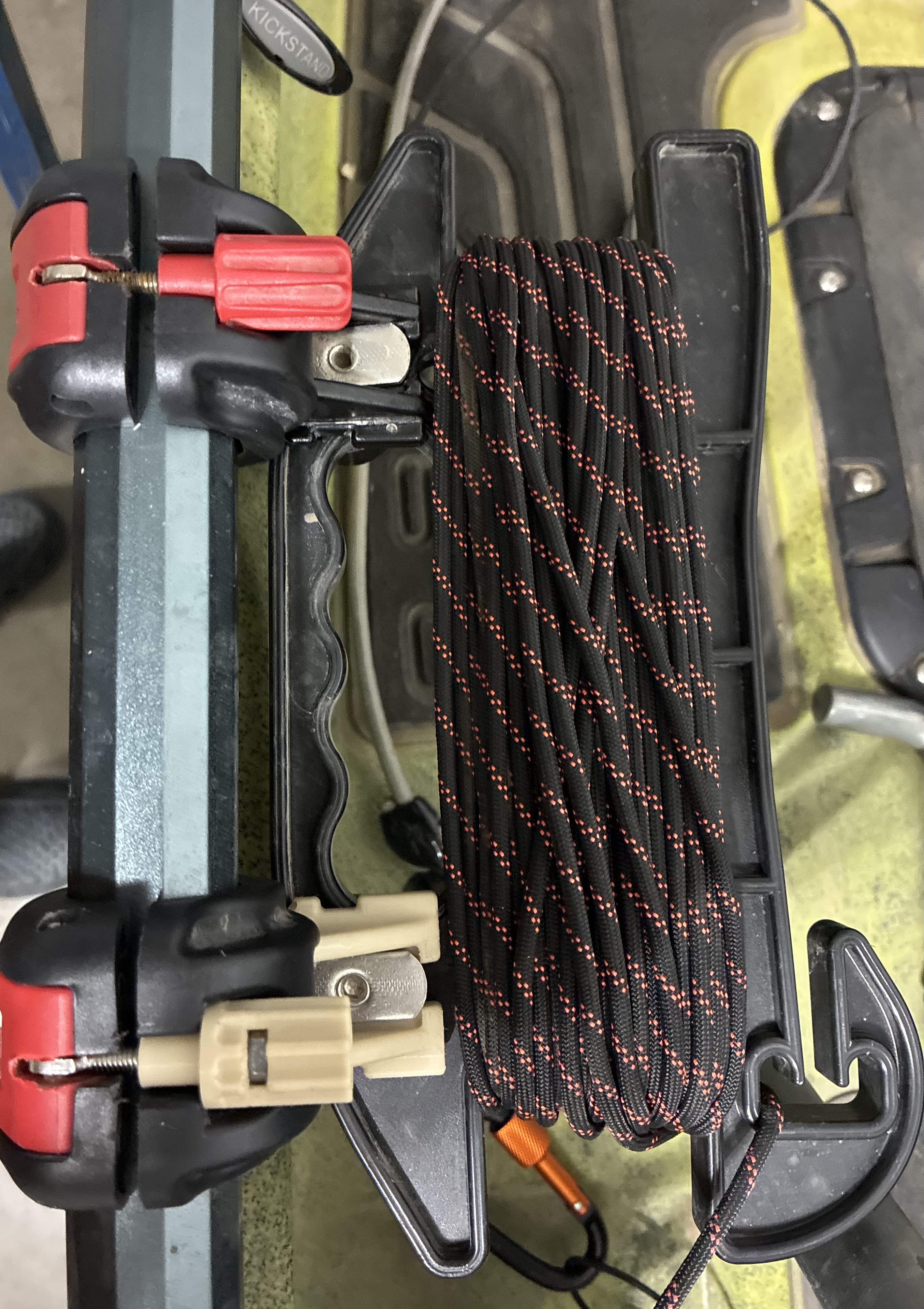

Decided to repurpose one of my spare h-rail mounts to secure my anchor spool. Its designed to mimic this generic YakAttack adapter I had lying around. Also had to print a thumbnut since the original was missing, the printed one requires a…
A M5 thumbwheel for magic Arm. The original thumbnut came broken so I designed and printed another one. Category: 3D Printer Accessories

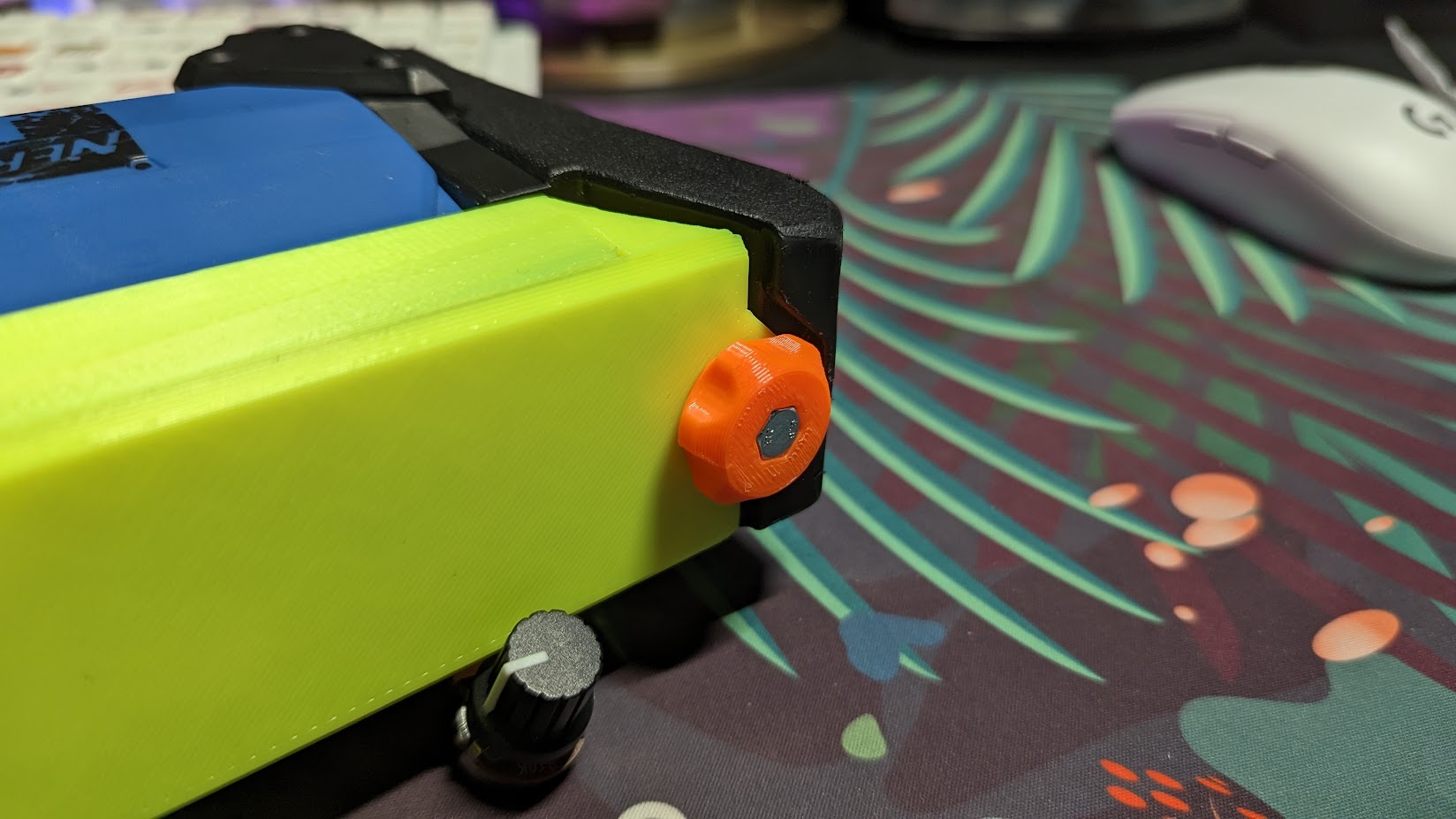

Used my neat rotary encoder wheel design to make a thumbnut for a recent project. Designed around an M4 bolt with a 7mm hex head. May be a tight fit depending on tolerances, I used a soldering iron to seat mine like a heatset. Step file…
Print witout support Pause the print at 6.8mm height Insert the nut and continue printing

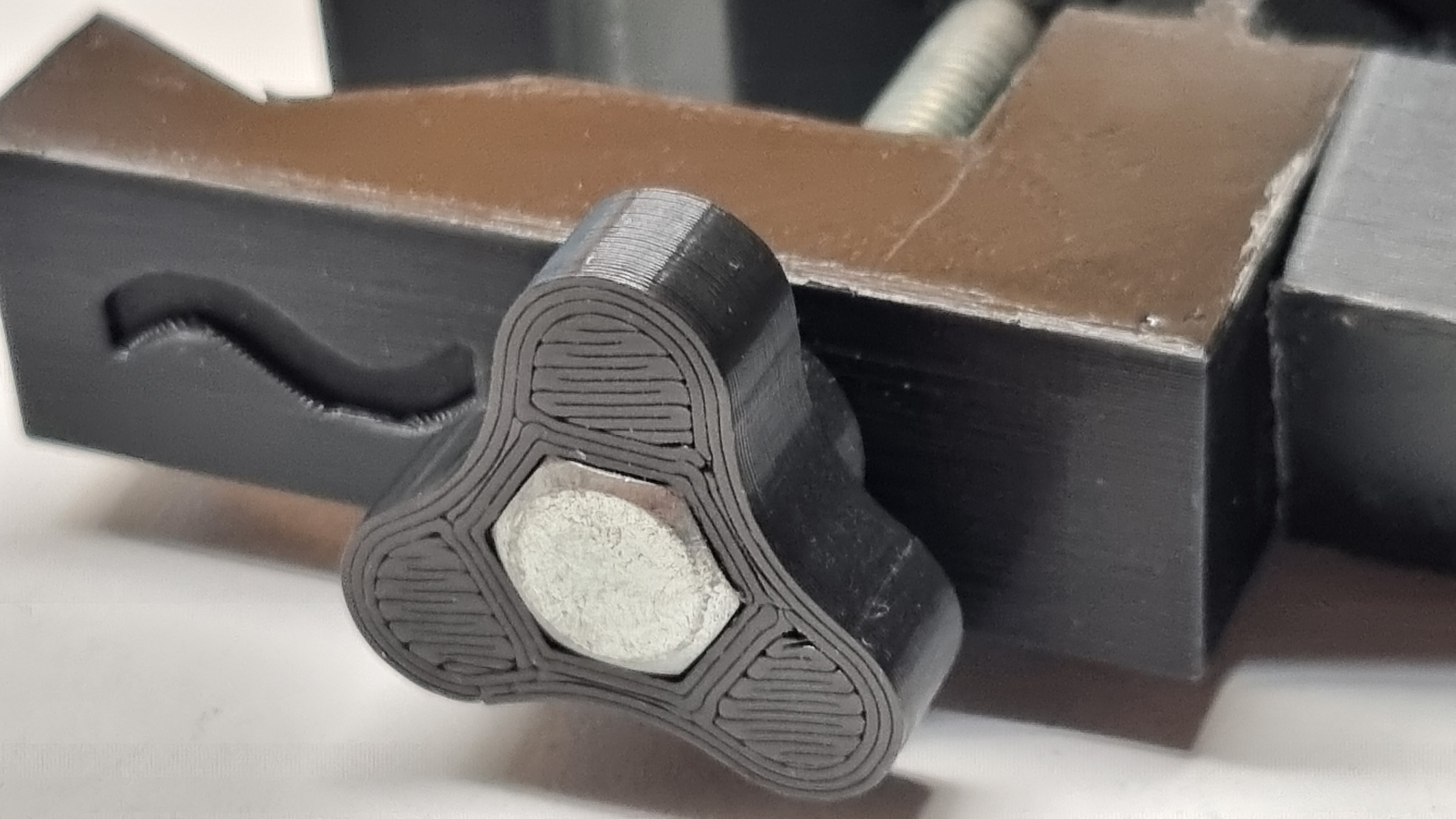

A simple but efficent thumbnut/thumbscrew for M6 nuts and bolts that have a standard 10mm hexagon. I printed in PLA at 0.2 mm layer height, with 5 perimeters, 5 top and bottom layers, 30% infill.

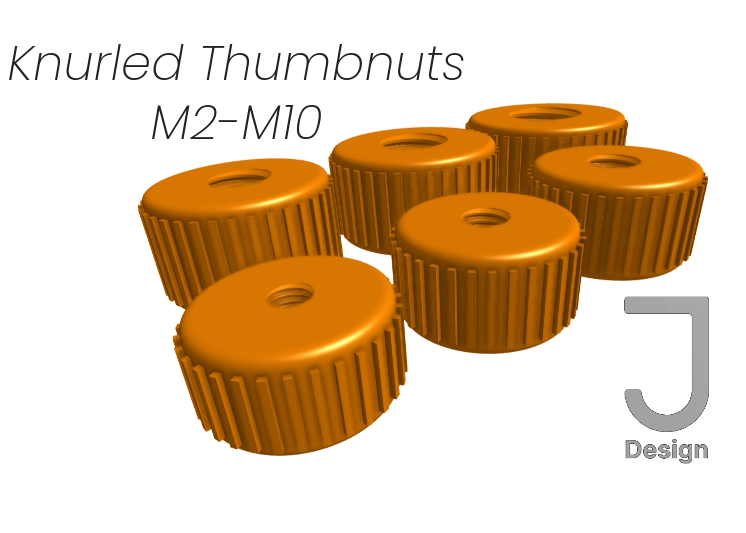

Different sizes of thumbnuts, as replacements or for your new projects. Need a size not listed here? Just write me a message and I will add it. How to print: To get the best possible result that does not require reworking, the layer…

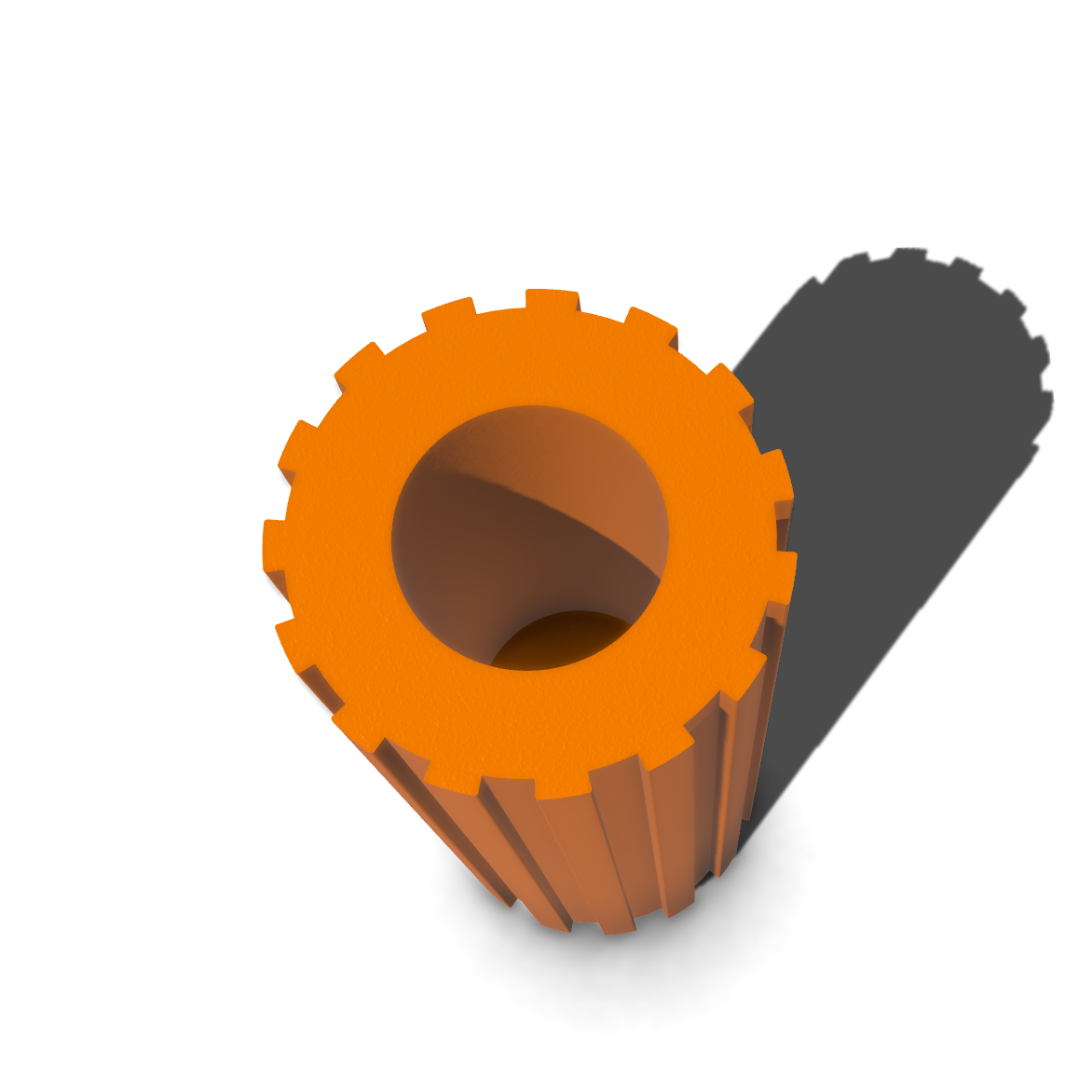

Put an M3 threaded insert into it and then you can use it as a nut to put somewhere to screw/unscrew easily by hand. It has a total length of 20 mm. You can also unscrew it using a PH2 bit at the end, in case you screwed it on too tightly…
Put an M5 threaded insert into it and then you can use it as a nut to put somewhere to screw/unscrew easily by hand. It has a total length of 19 mm. You can also unscrew it using a PH2 bit at the end, in case you screwed it on too tightly…

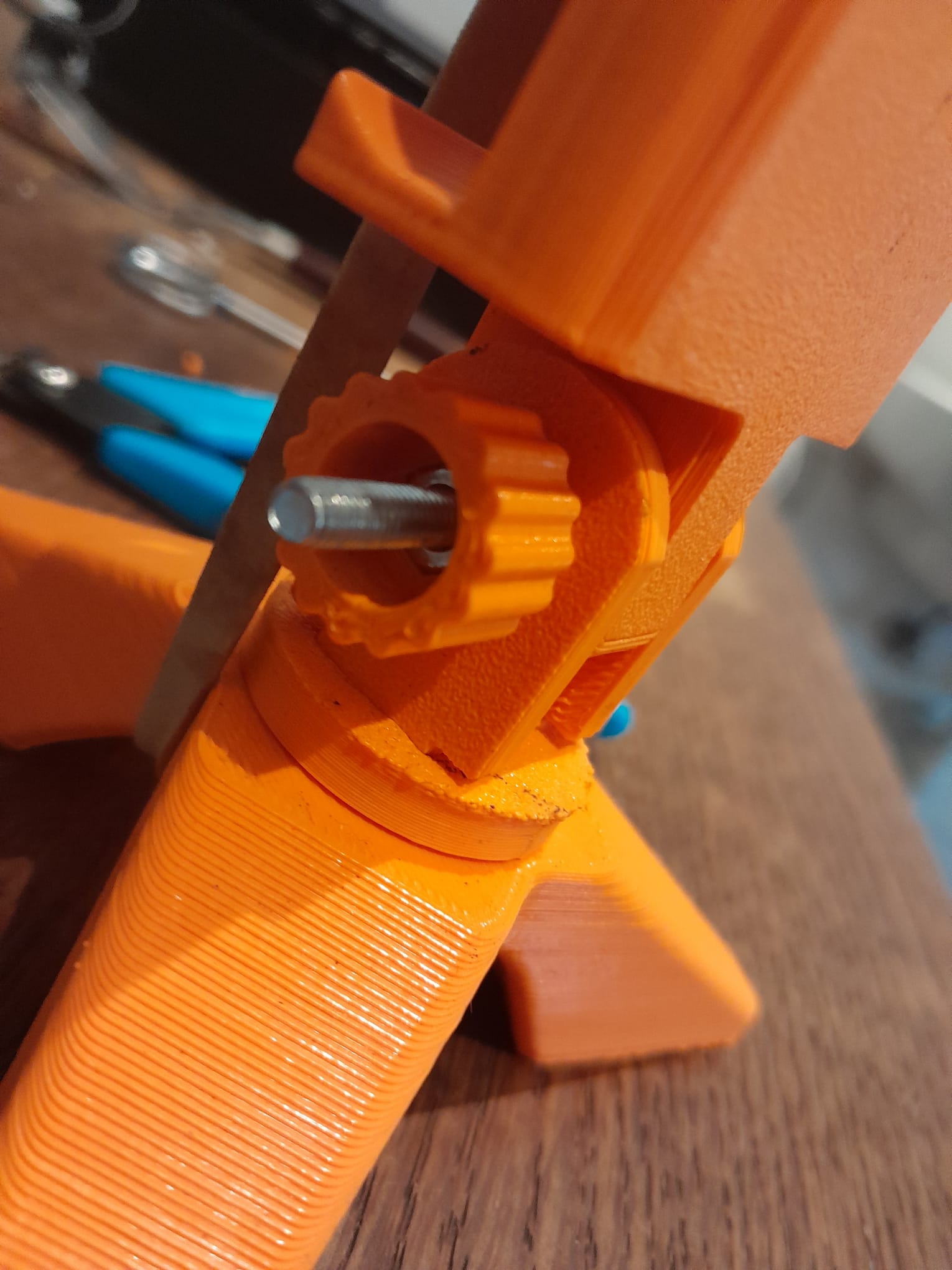

M4 thumbnut for Phone holder by Motion Just drill out all the holes with a 4mm bit, and your m4 nut will fit in this one

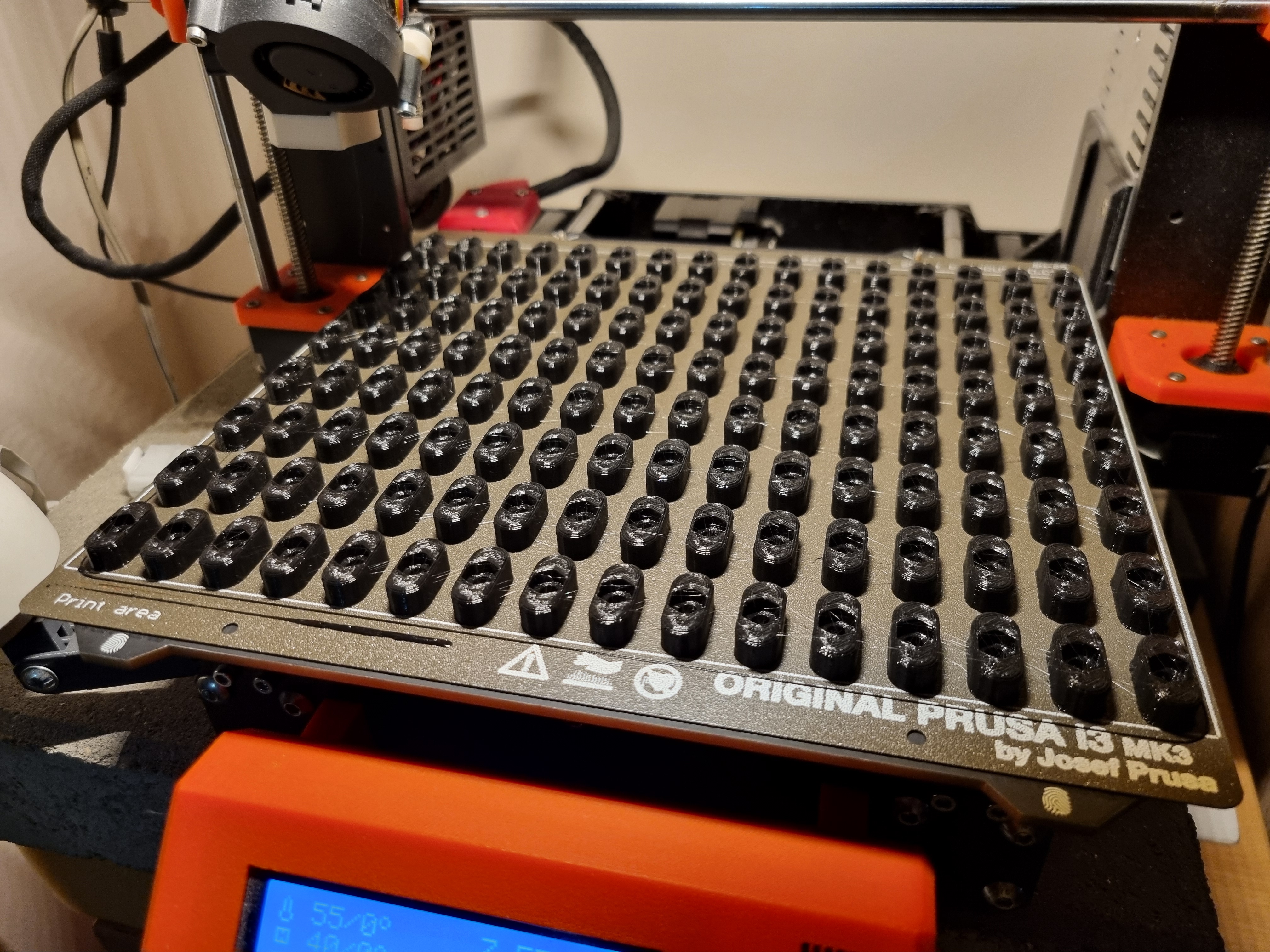

A very small size thumbnut for M4 screws. Uses only a few grams of filament for a very good and sturdy thumbnut. Printed in PLA I still couldn't break it.

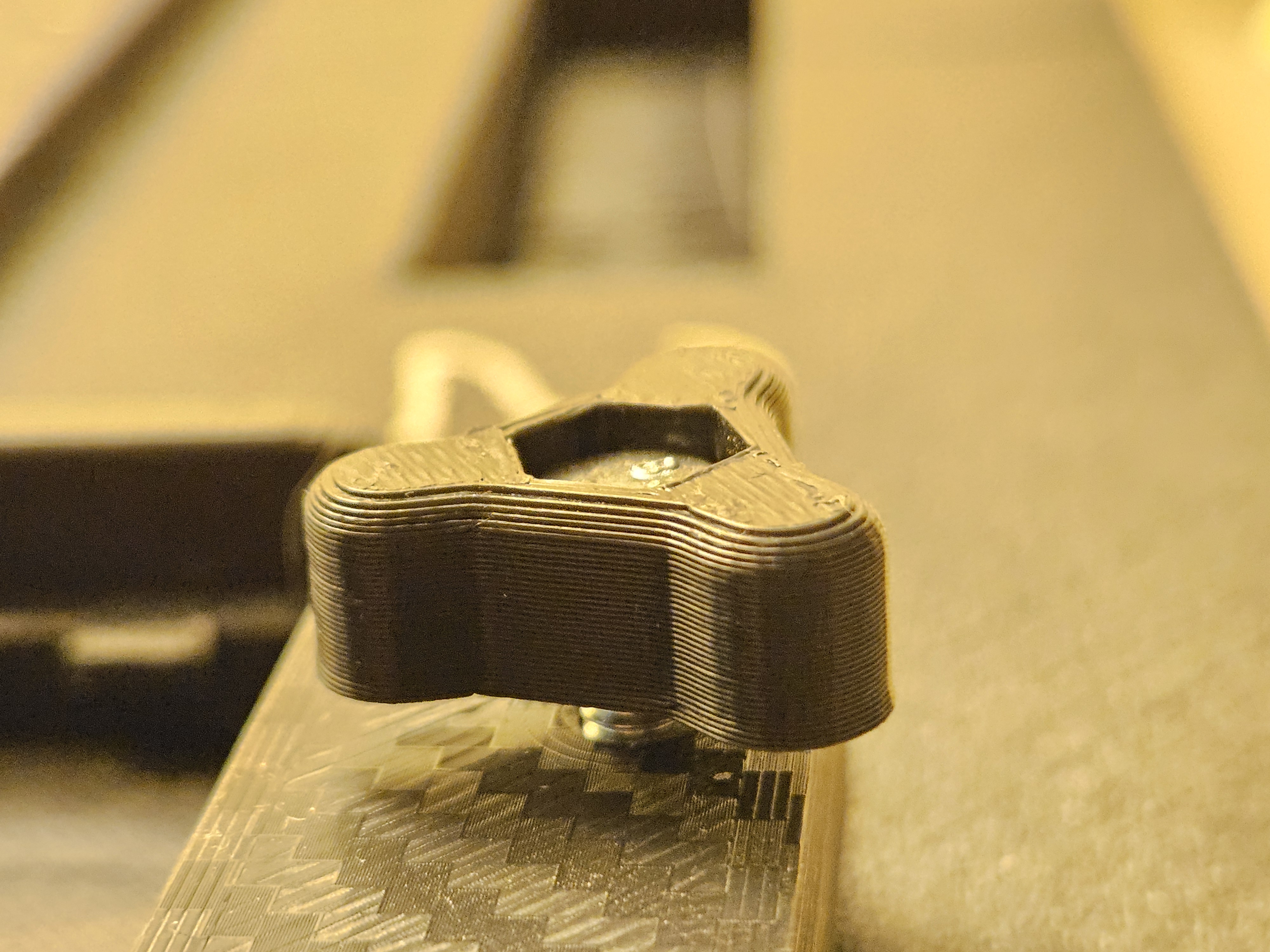

A simple, economic and ergonomic thumbnut designed for M4 screws or nuts. Happy printing!
