Tune Bridging speed test 100mm
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
modify bridging speed by-object to test what bridging speed is best for you
- Rating
- 5 / 5
- Likes
- 10
- Downloads
- 103
- Makes
- 0
- Views
- 383
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Test Models
- License
- Creative Commons — Public Domain
You may want to rotate the print 45 degrees on your build plate so that the part cooling is not biased
I recommend using 125% bridging flow, and disabling thick bridges

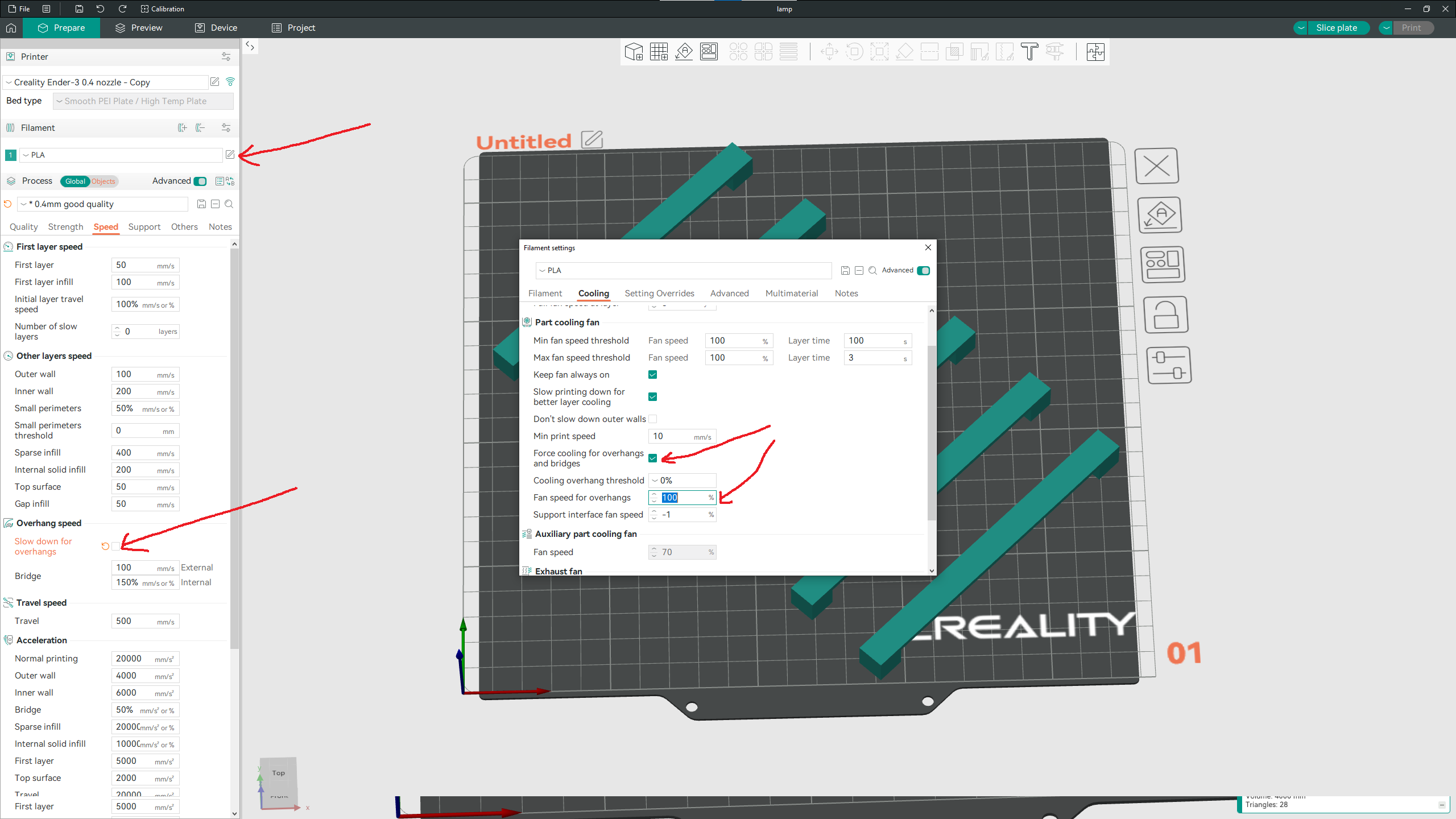

- disable slow down for overhangs in global settings
- turn on forced cooling for overhangs and bridges and set it to 100%

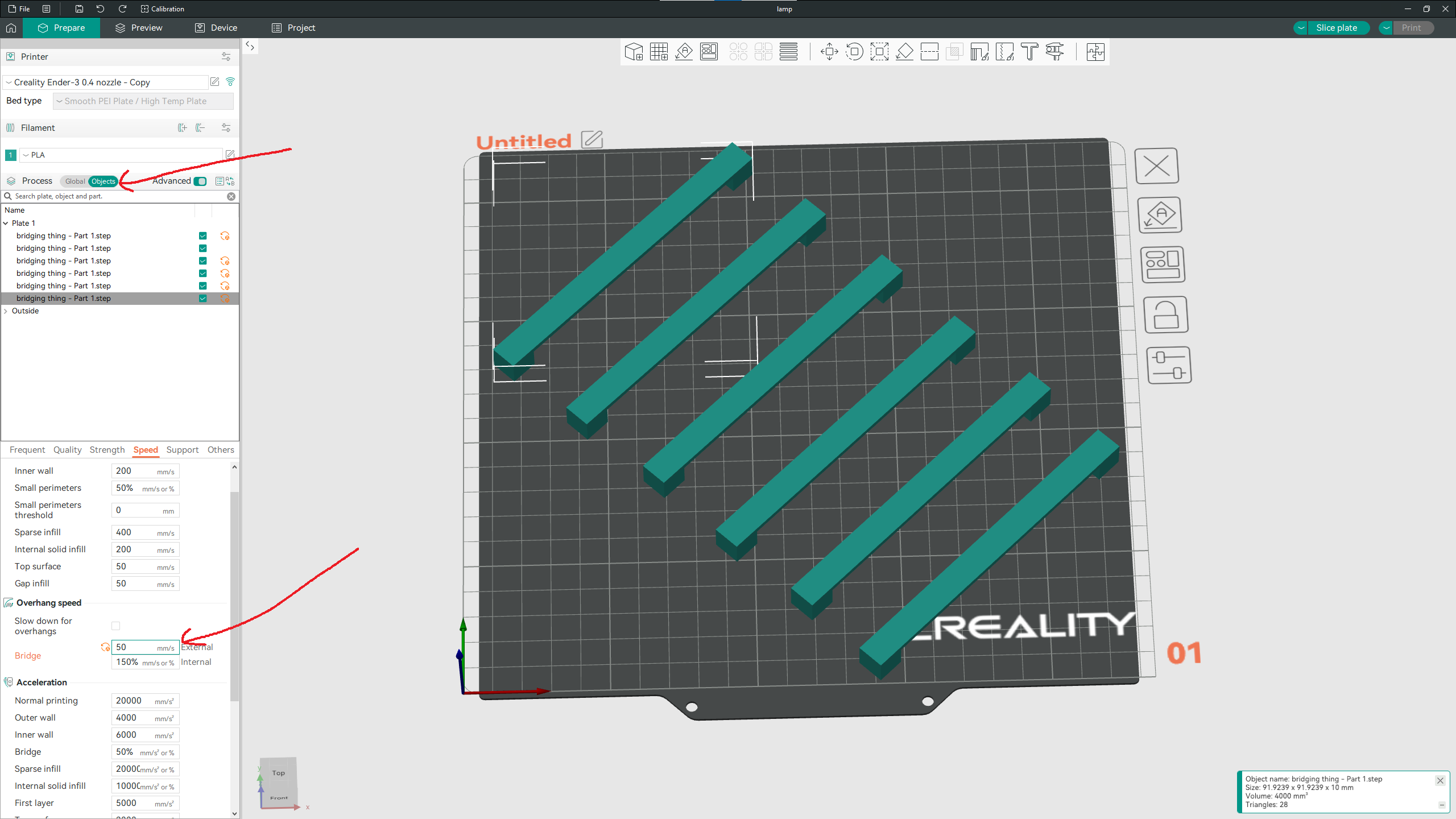

- modify the bridging speed setting per-test to find out which is the best for you
- verify that it is working in the speed setting of gcode-preview
- choose which overhang speed works best for you :)
Lower temperatures will result in better bridging, but it will also reduce layer adhesion, so you can also play with that too
