Door Catcher, Variable Length
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution — Noncommercial

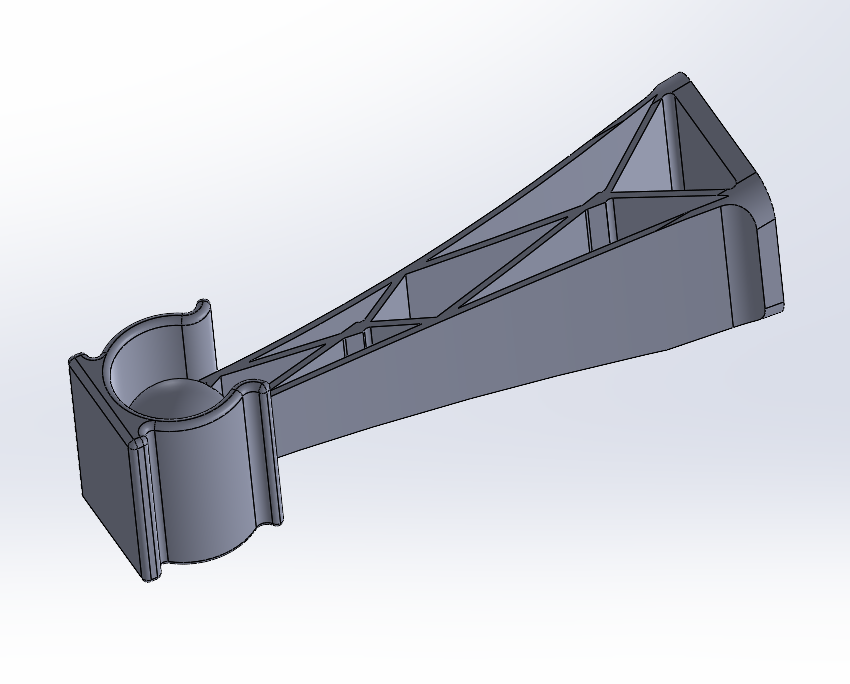

Choose from 10 different versions of this door catcher.

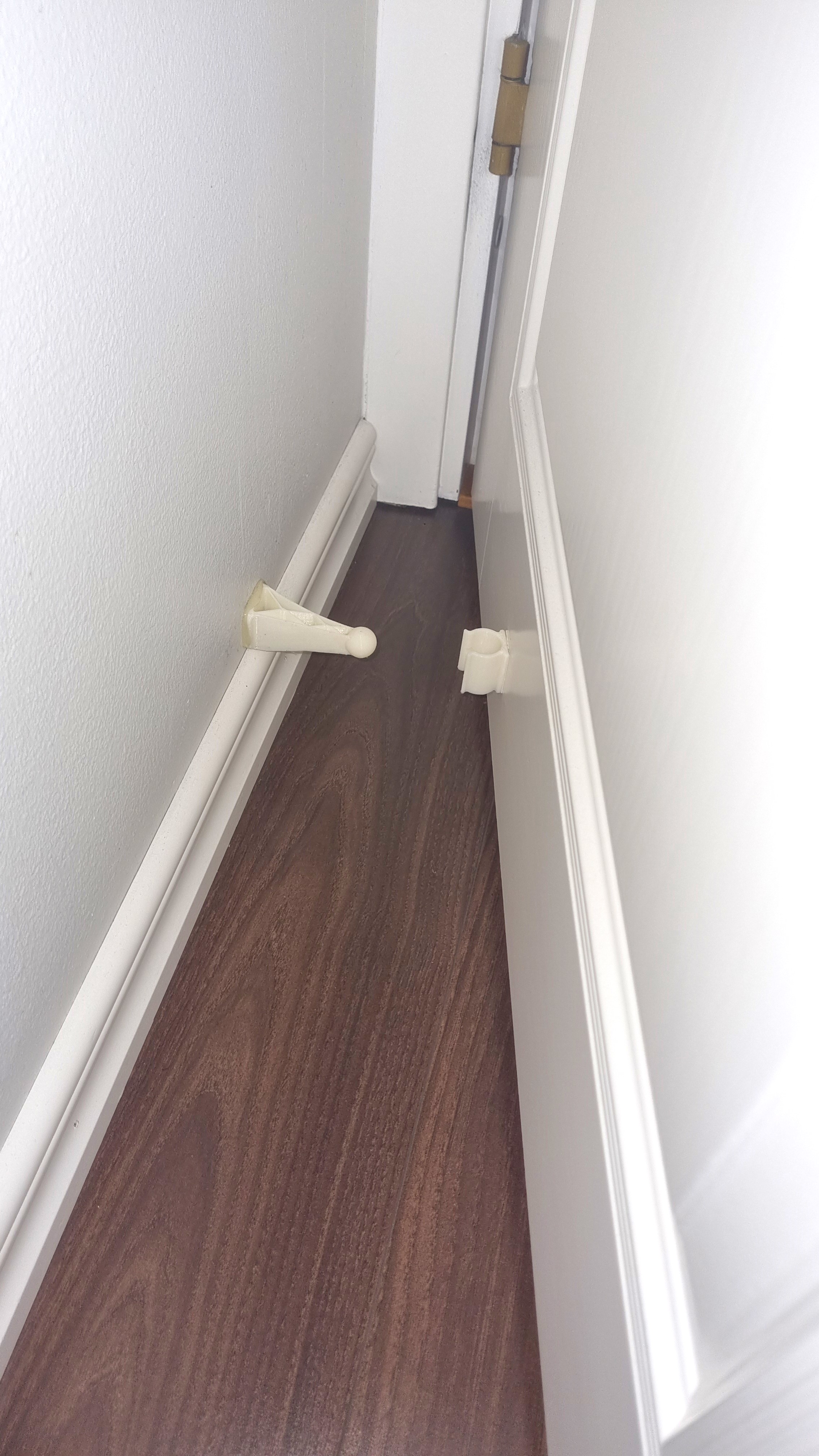

The example in the image is the 80 mm version and it has worked well for years.

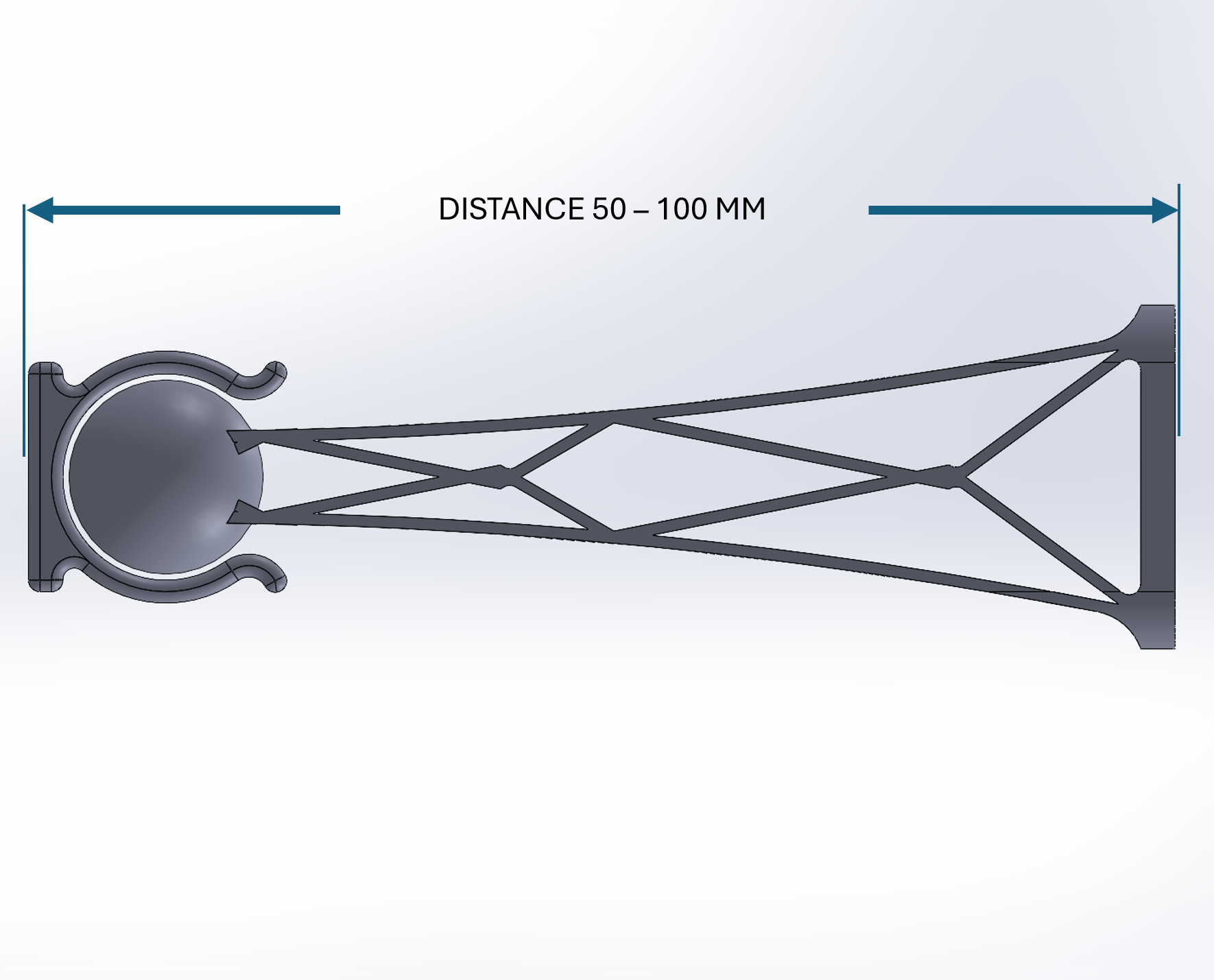

The available distances range from 50 mm to 100 mm (representing the gap between the door and the wall).
Suggested Print Settings:
- Material: PC Blend or PETG (or other material that stand some load/stress over time
- Infill: 25%
- Printing Orientation:
- Print the Door Catcher on its side, with the flat side down
- For optimal strength, print the Door Attachment standing on its side with a brim. Alternatively, it can be printed flat-side down if desired.
- Supports:
- Not required
Assembly Instructions
Mount with double-sided tape, glue gun or whatever is suitable on your door/wall.
