A simple thumbstick topper system to allow you to add different extensions to controllers. Each base has two halves, which slide on the thumbstick and are held together by the topper as it is screwed on top. Tested and designed for the following controllers:
- Xbox One (and probably Xbox Series X/S)
- Xbox Adaptive Joystick

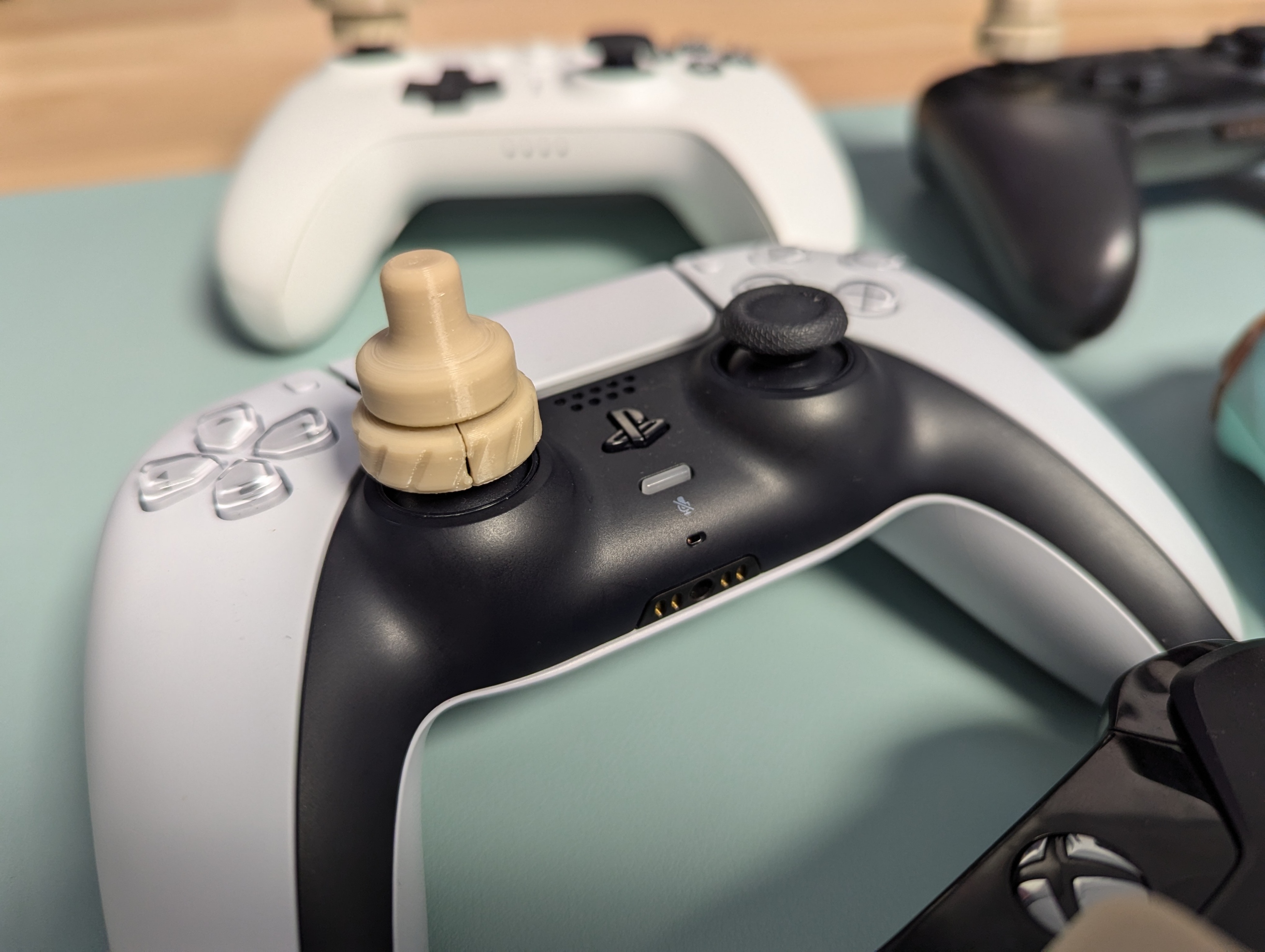

- PlayStation 5 Dual Sense

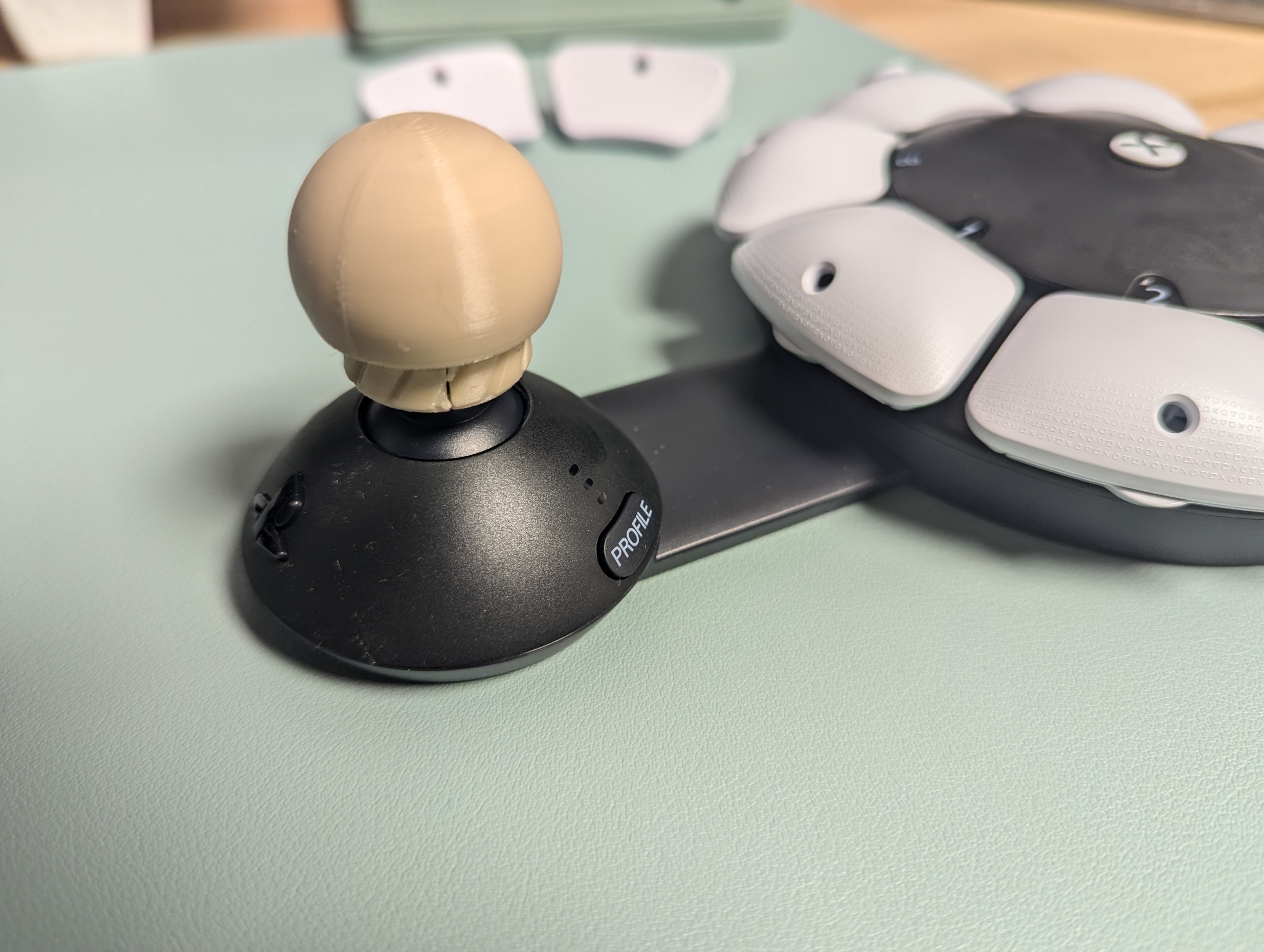

- PlayStation 5 Access Controller (with the small stick)

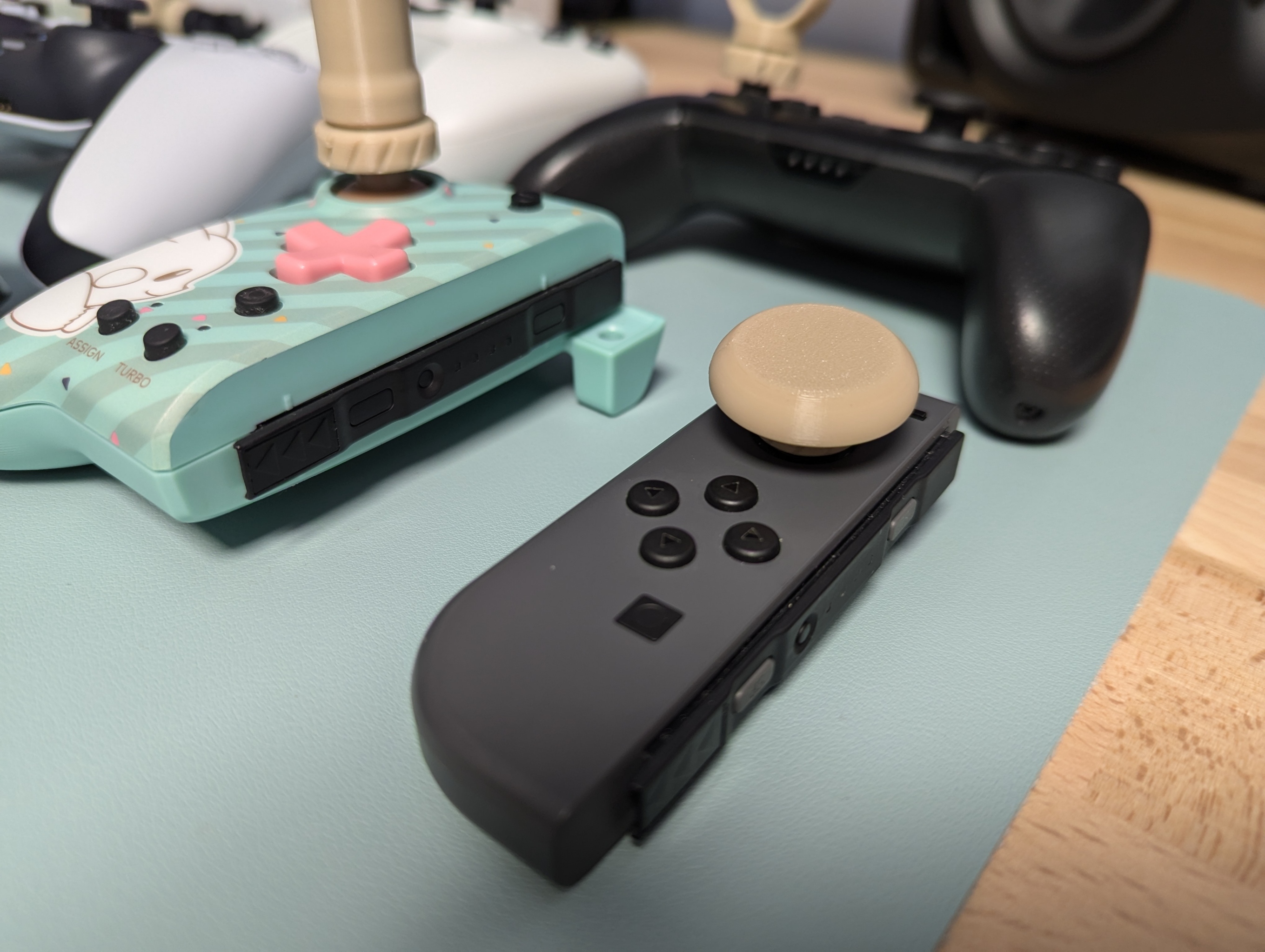

- Nintendo Joycon

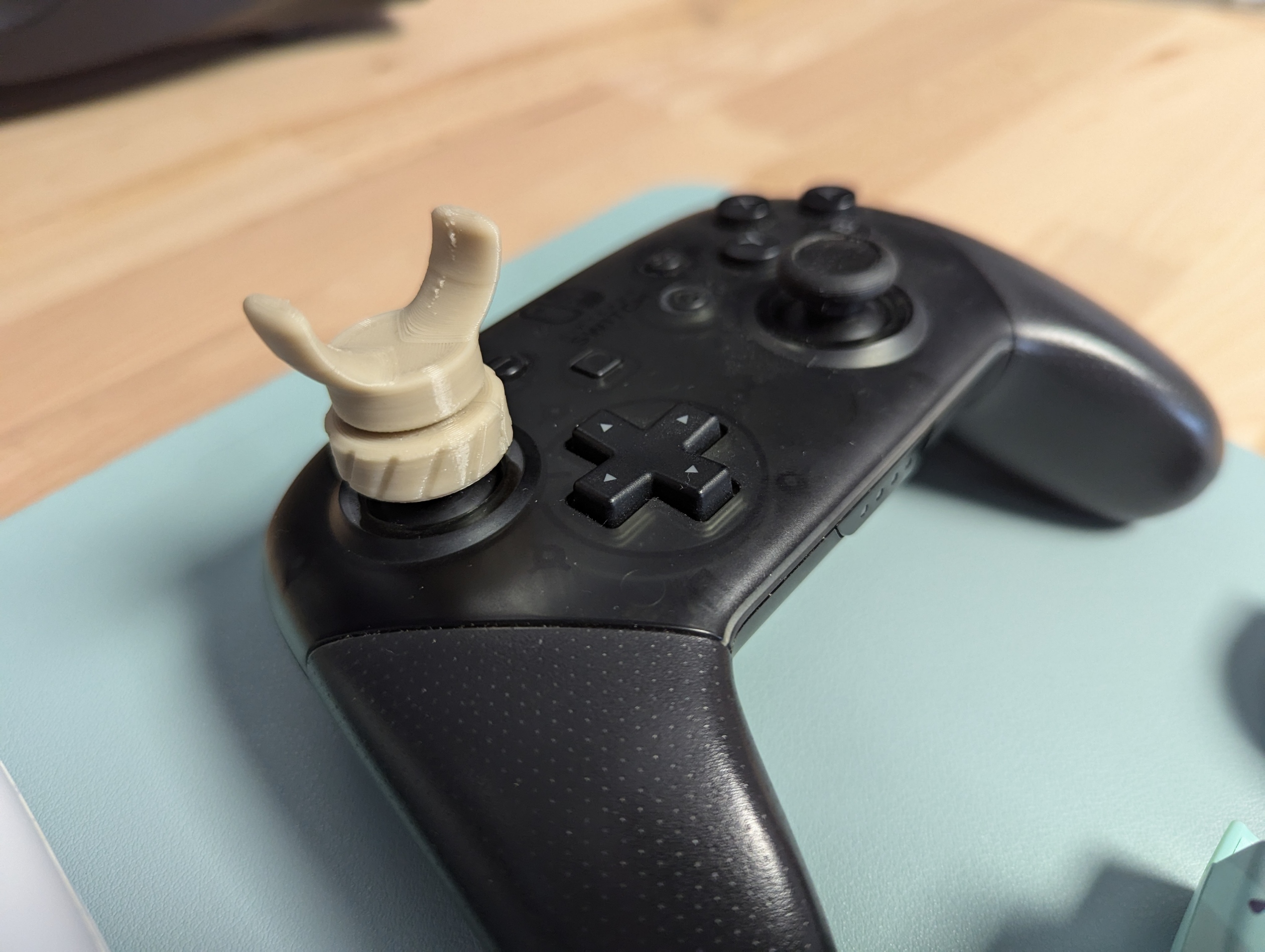

- Nintendo Switch Pro
- Hori Split Pad Pro
- 8bitdo Ultimate
For additional grip, the bases have a profile along the exterior. Small keys make sure the bases are lined up correctly. The thread on the bases is tapered slightly to make it easier to screw the toppers on.
To go with the bases, I created a number of different topper designs:
- Big dome
- Small stick

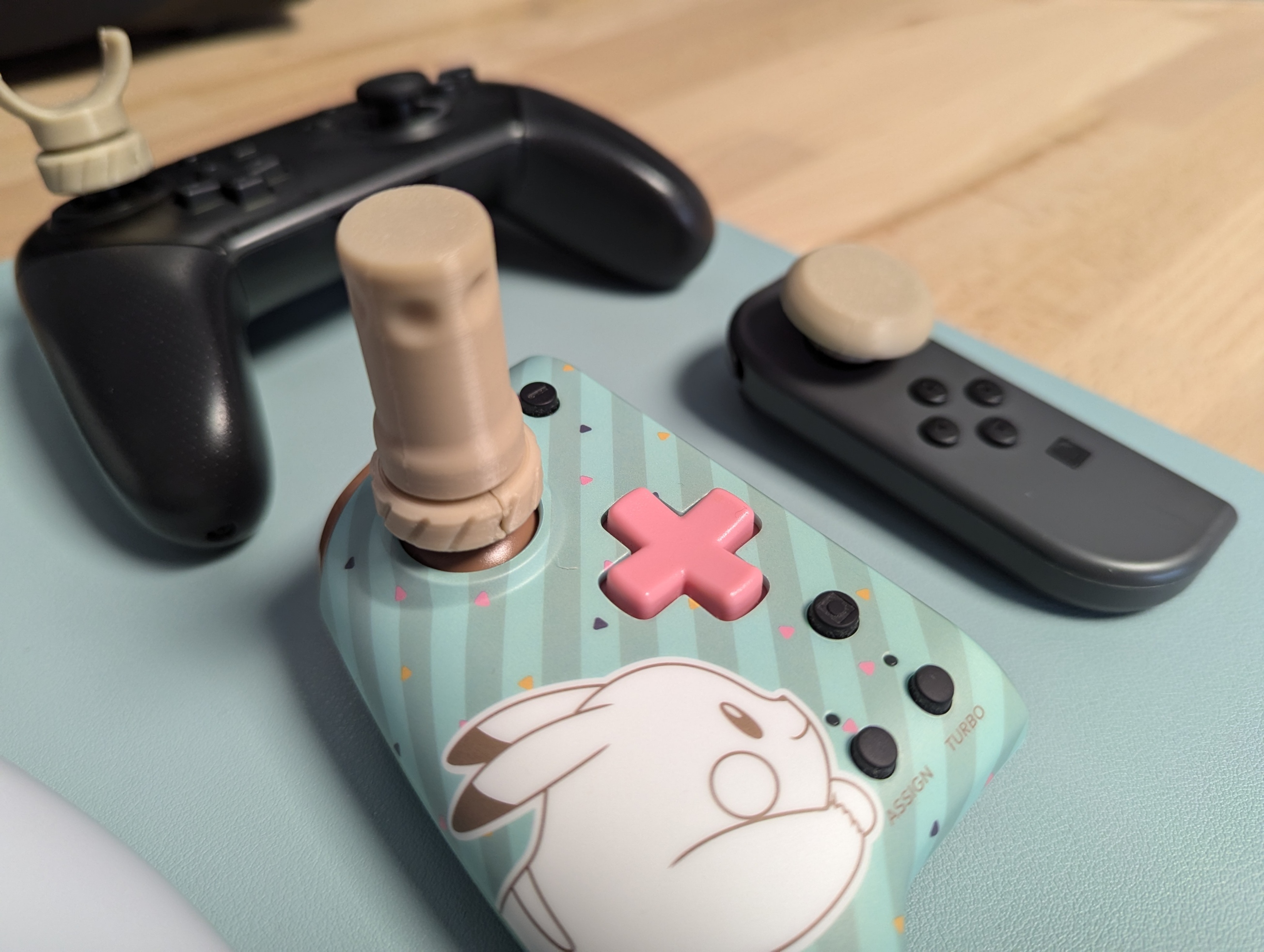

- Large stick
- Ball
- Low bar
- Cradle
A blank cap is also included which can be used to base other toppers on.
Printing at a layer height of 0.15 mm gave me good results, and I only needed supports on some models (such as toppers I printed with the thread down).
