I had some small bits of pipe available (20mm diam) and decided to design a pallet rack for my RC Hobby Model Trucks
- Rating
- 0 / 5
- Likes
- 4
- Downloads
- 28
- Makes
- 0
- Views
- 156
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- RC & Robotics
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
The design was inspired by ONEBITPIXEL (https://cults3d.com/en/users/onebitpixel) and the barrel pallet rack.
This design is principally in line with a standard Euro Pallet size but reduced in width to suit the bits of pipe I have available (length wise) The design was created with Autodesk Fusion.
There are 3 variants

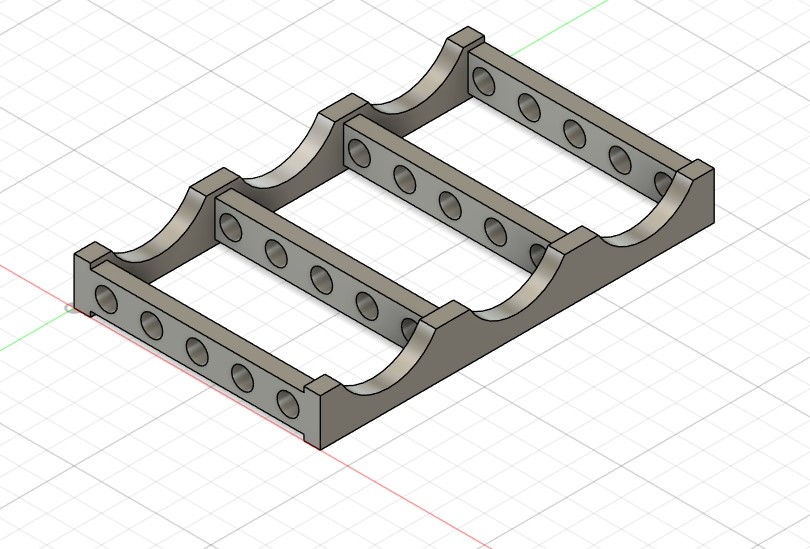

A flat bottom rack, 72 x 45 x9mm

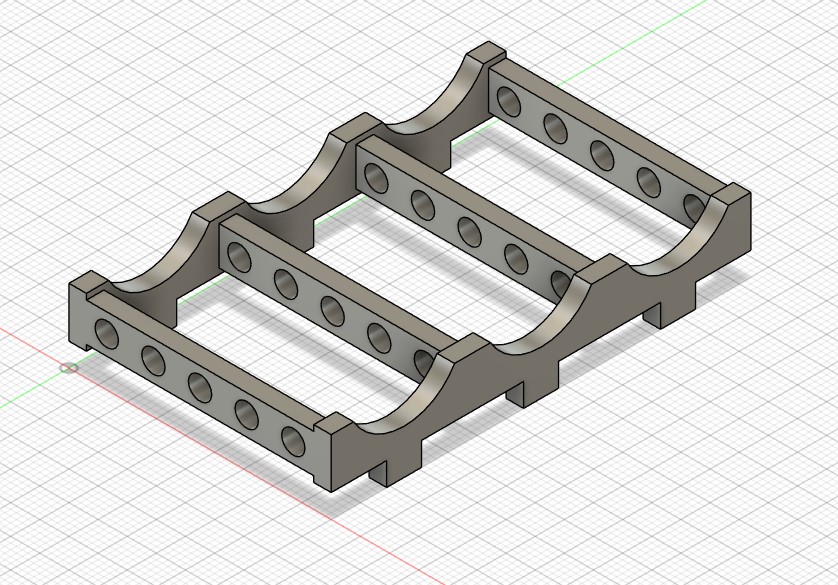

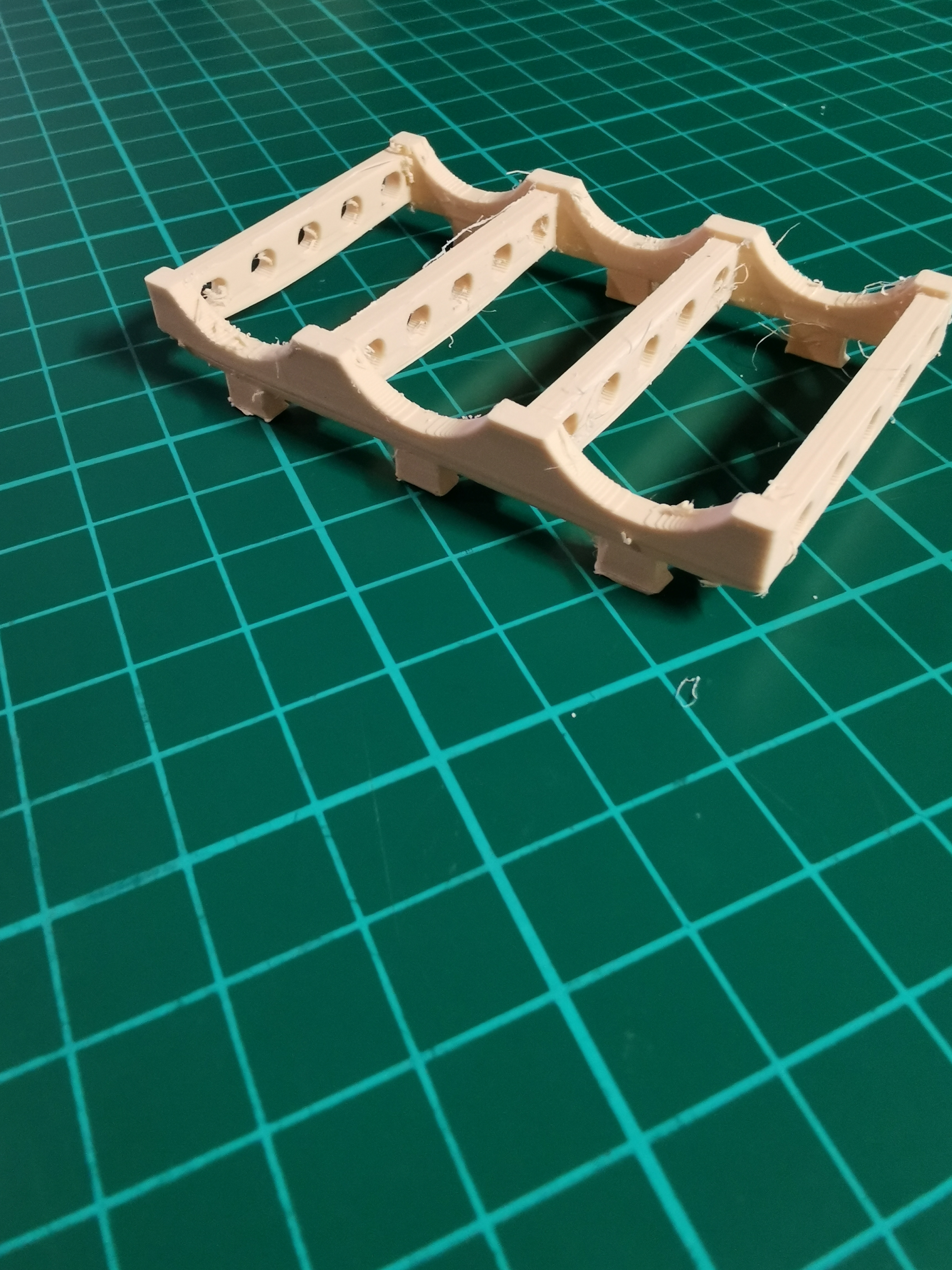

A bottom rack with feet, suitable for a fork lift 72 x 45 x 13mm

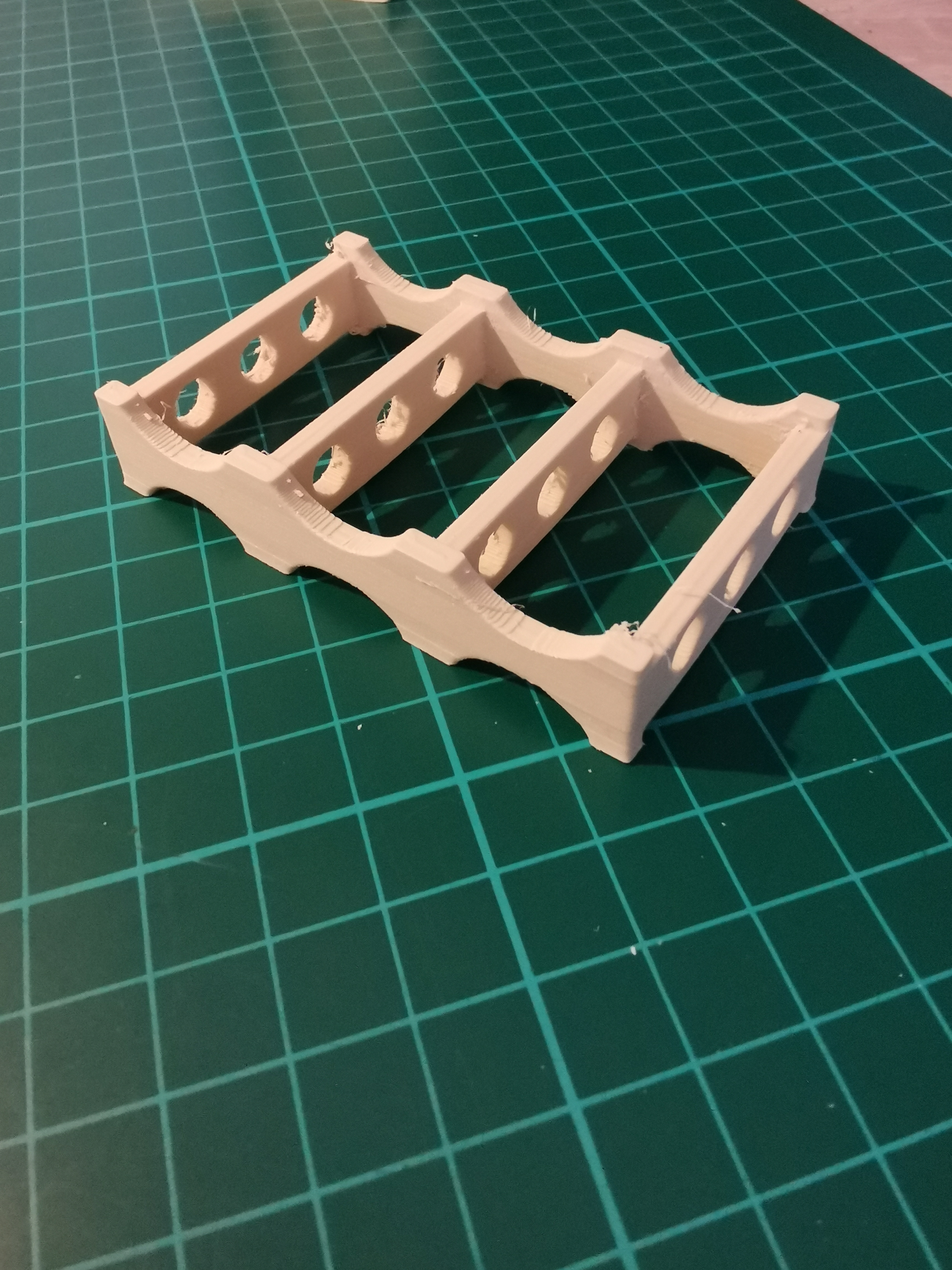

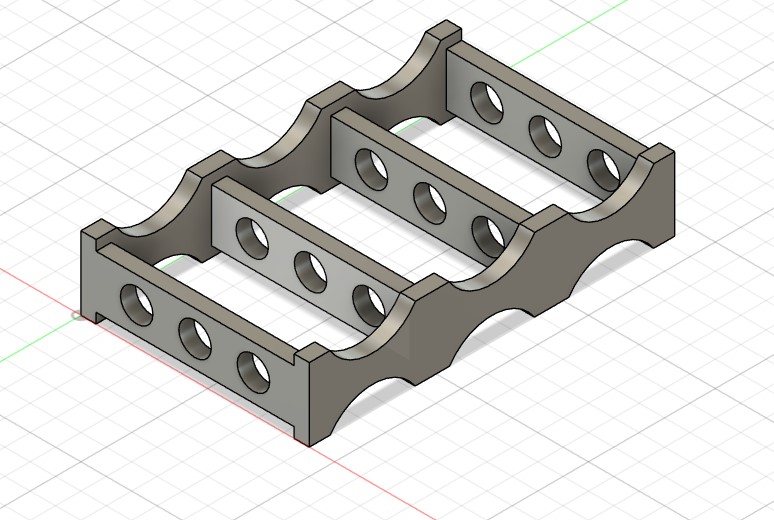

An intermediate rack for vertical stacking of the pipes. 72 x 45 x 15mm

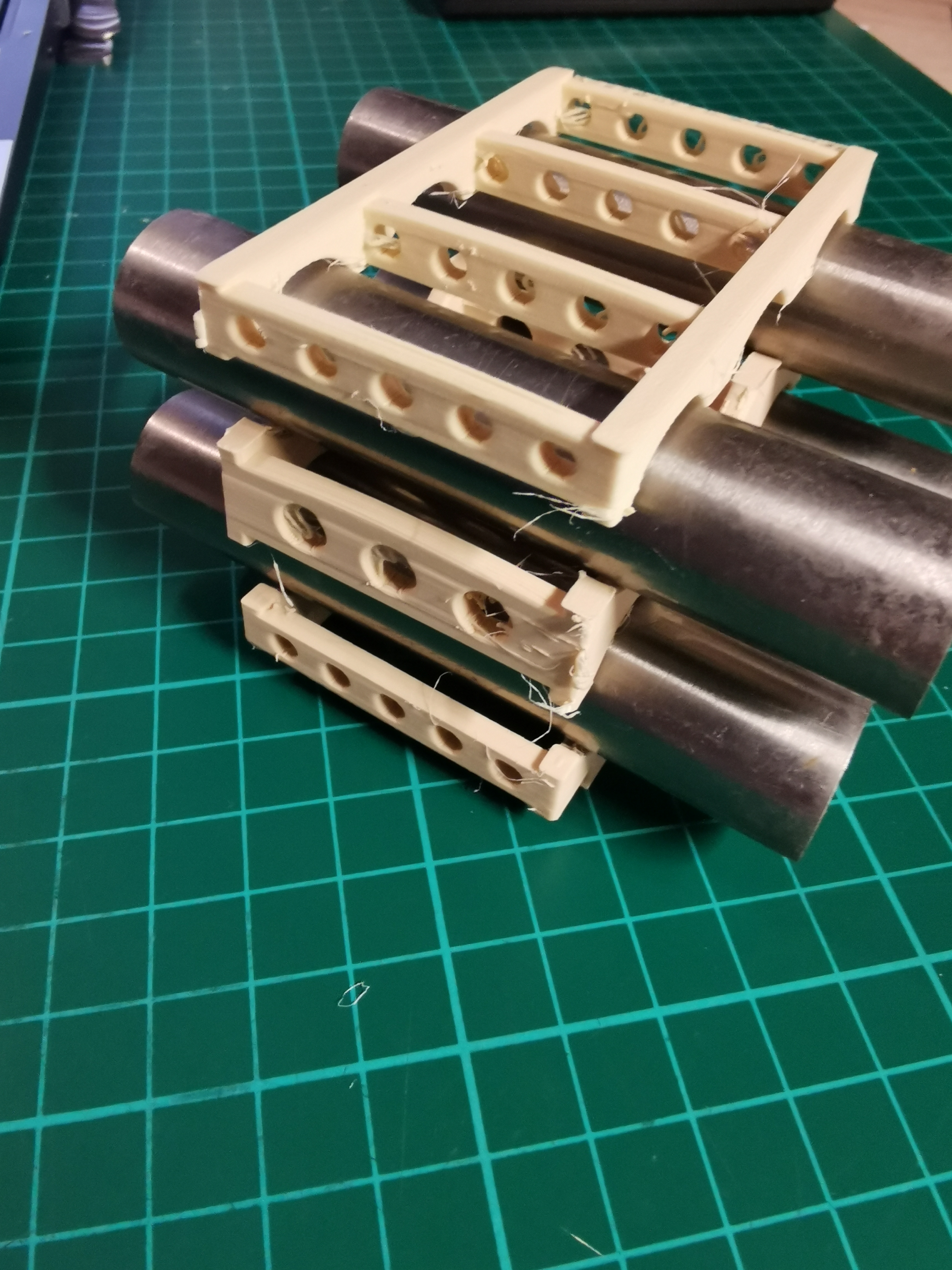

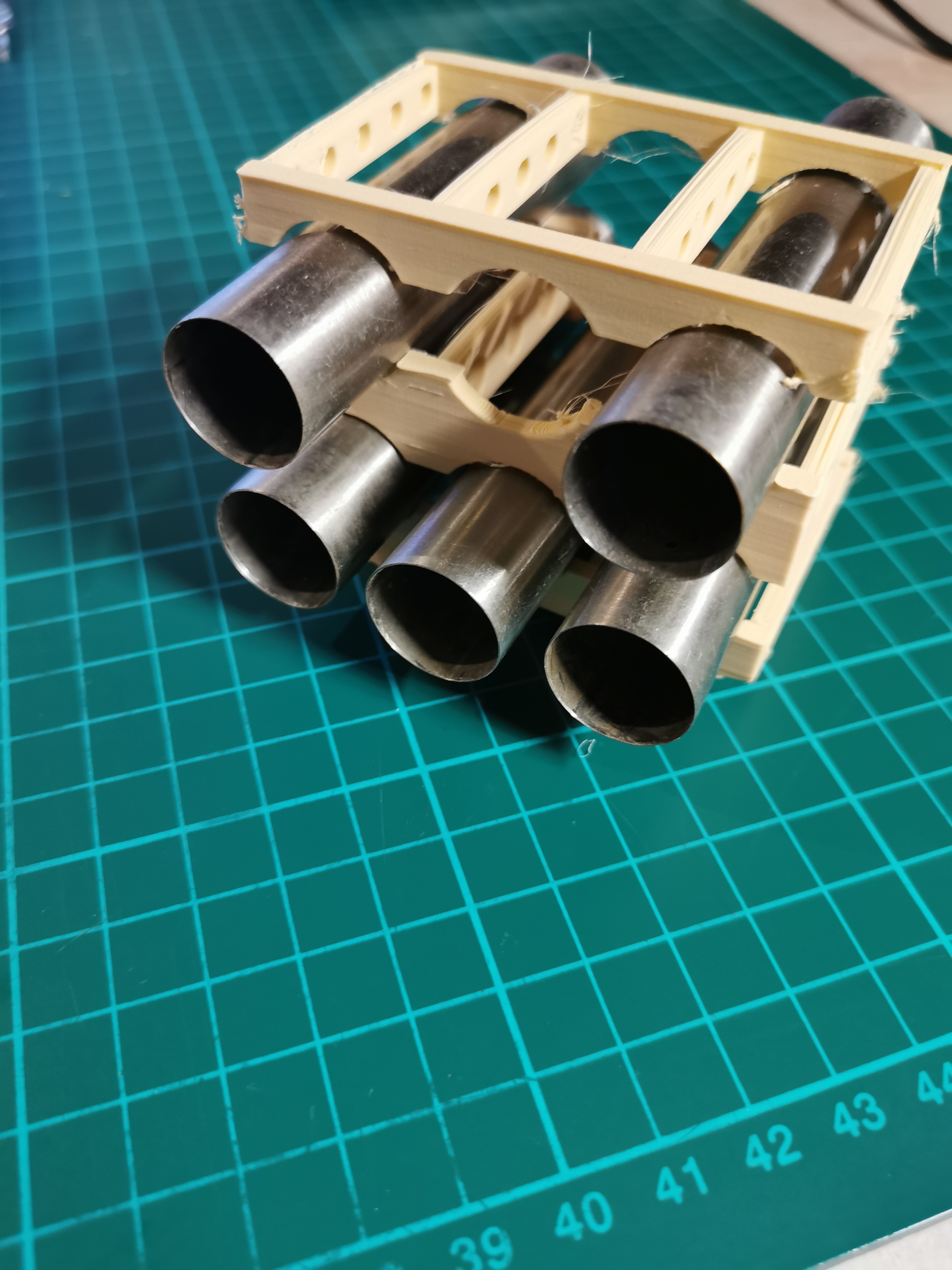

When loaded the racks could be held together with suitable straps of wrapping.
I printed using a wood filament to attempt to look like "real" timber pallets, sort of ok, dependent on the filament I guess.
3D printing settings
Printed on an Ender 3 S1 Pro using E-Sun Wood filament, using generic PLA settings, nozz 200C, bed 60C
