Customizable Truss Brackets

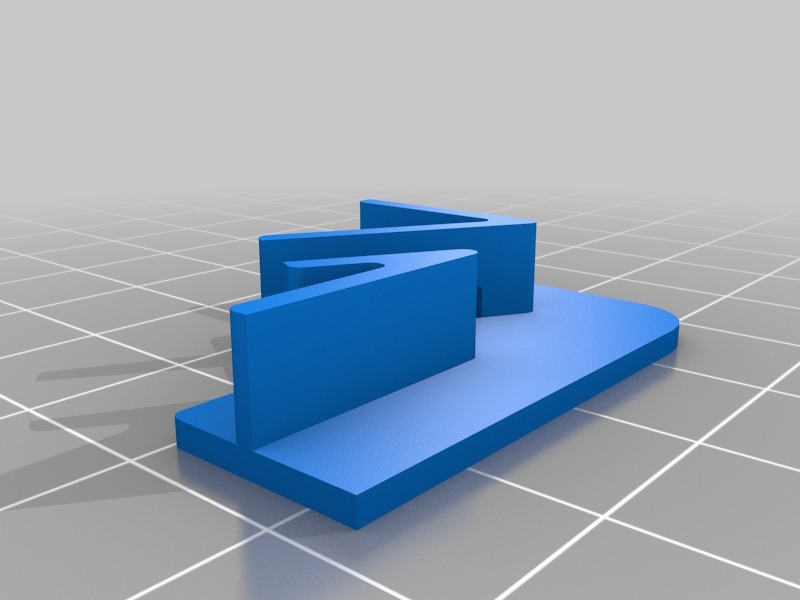

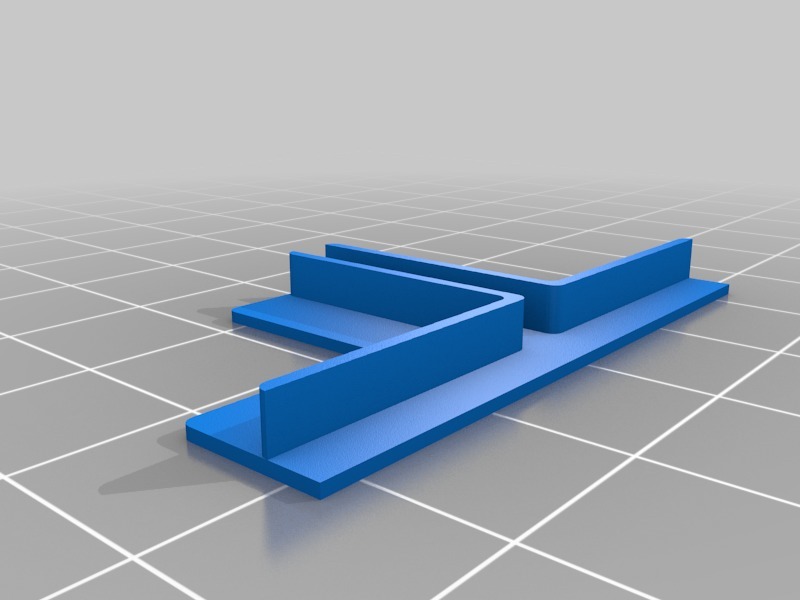

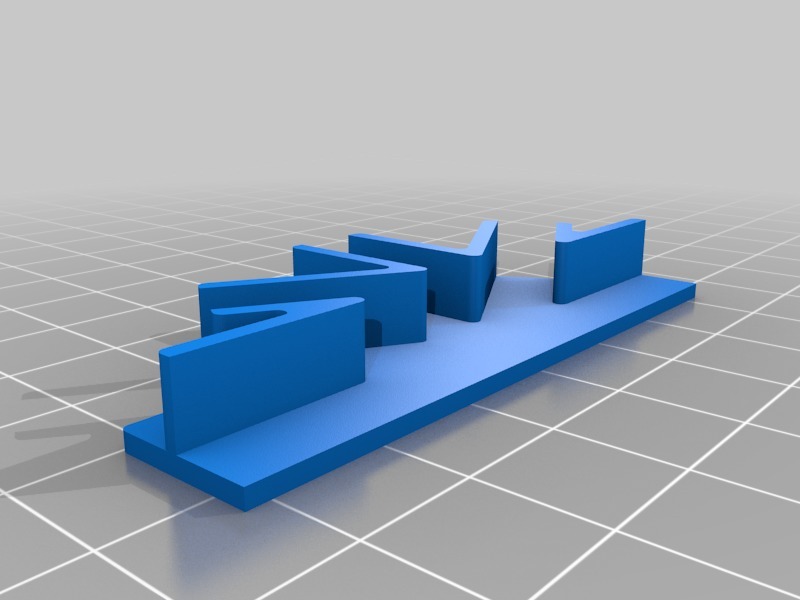

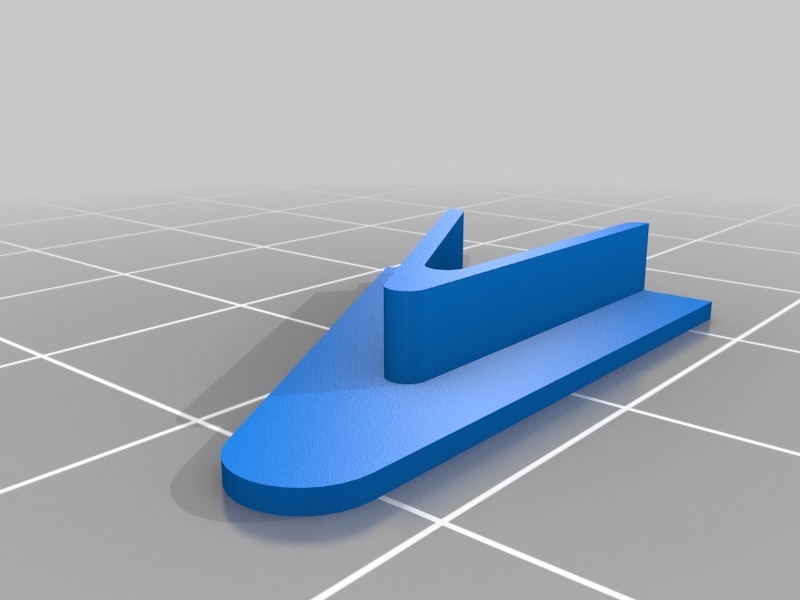

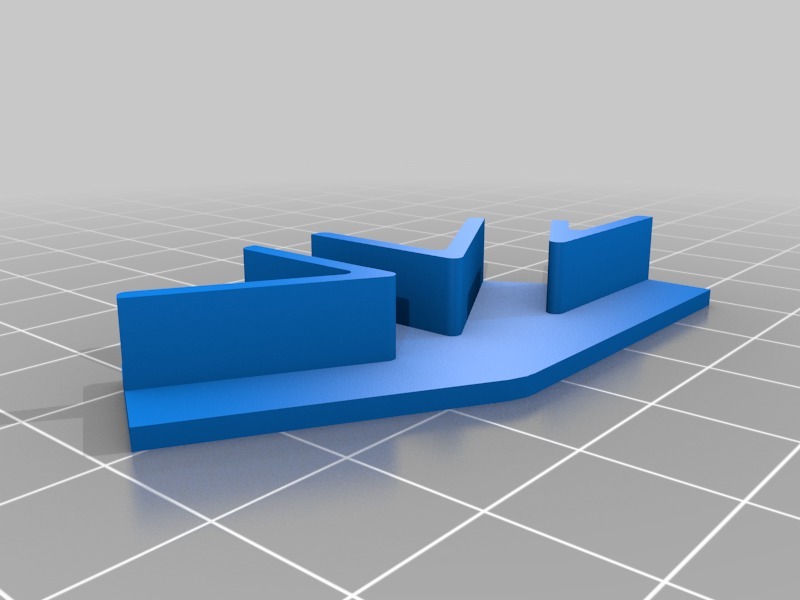

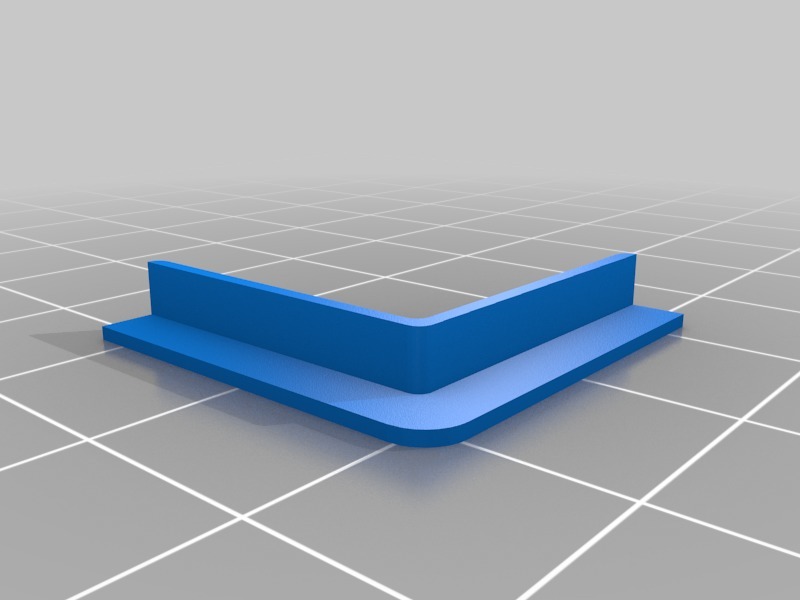

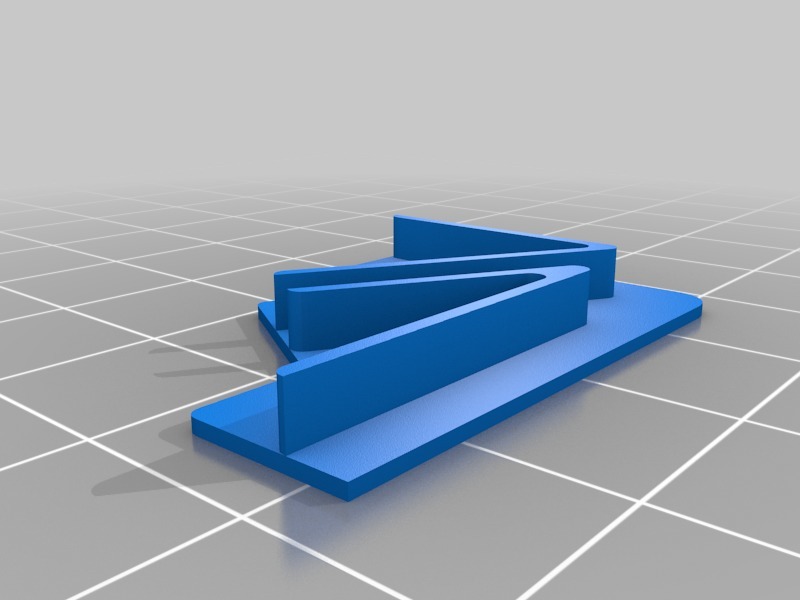

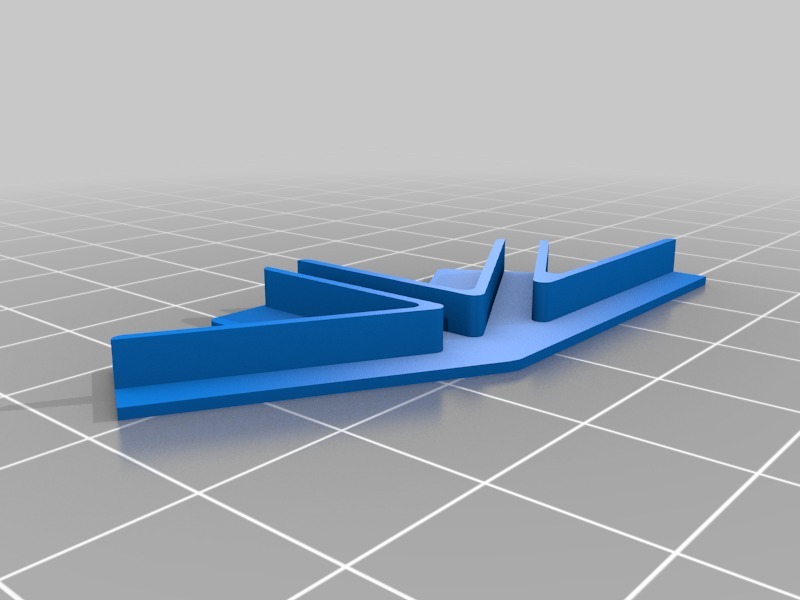

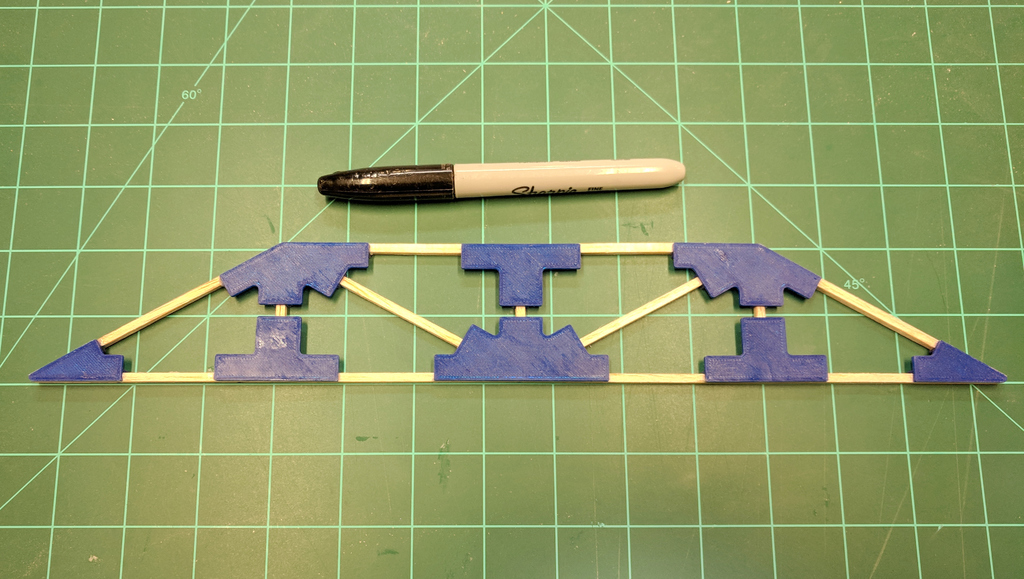

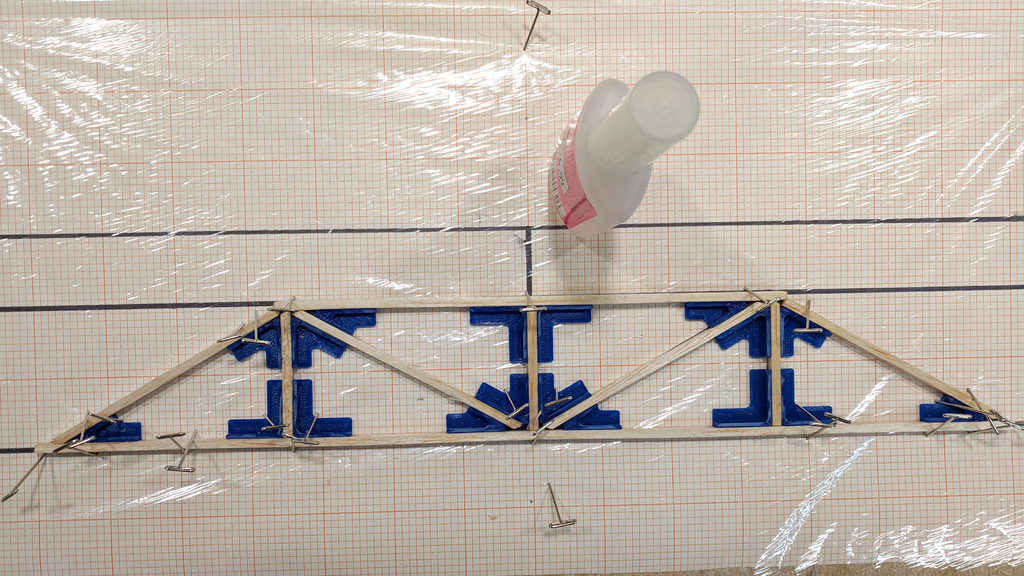

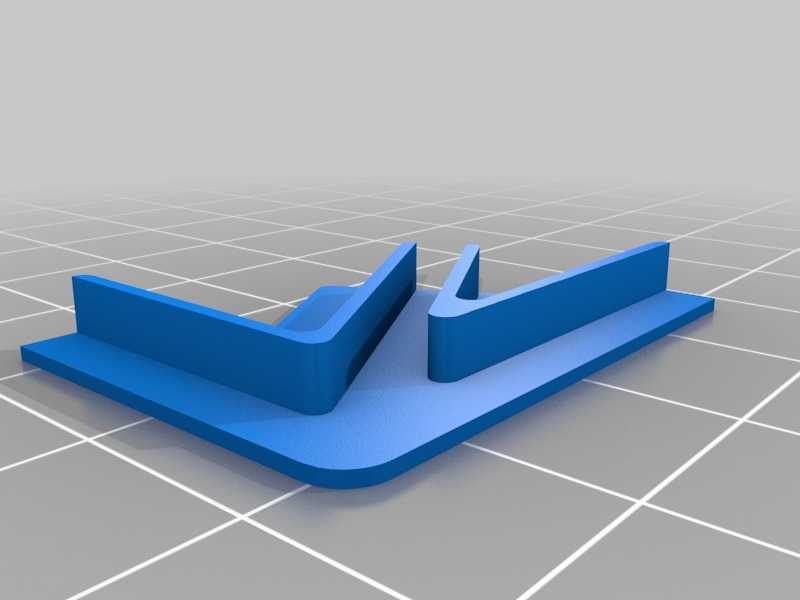

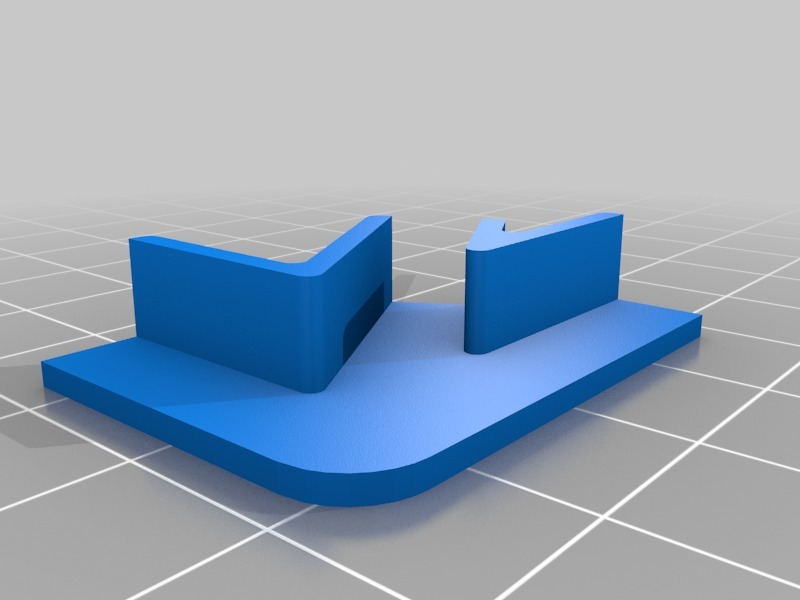

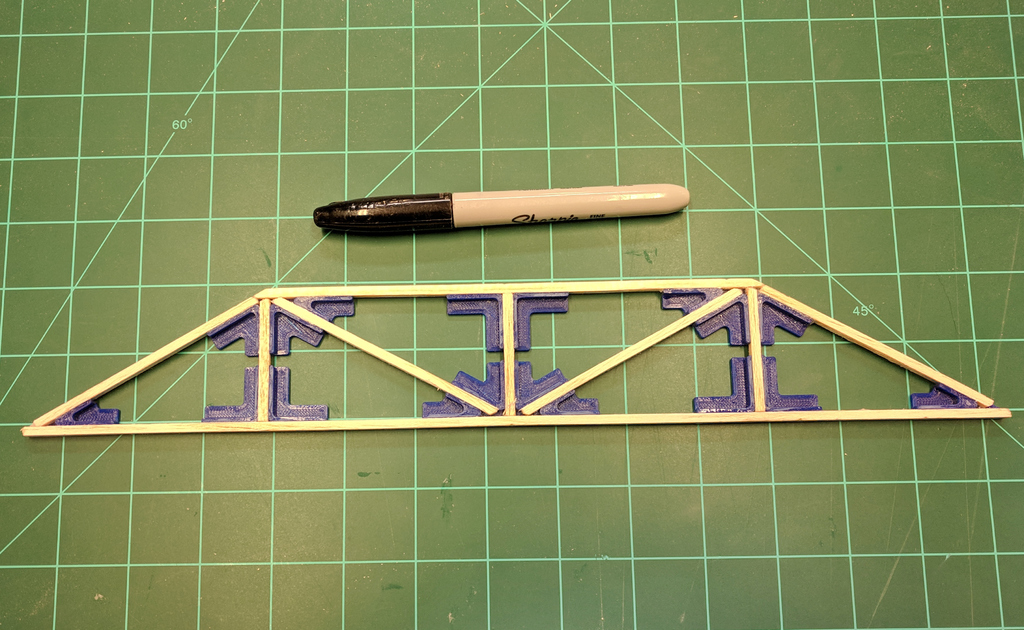

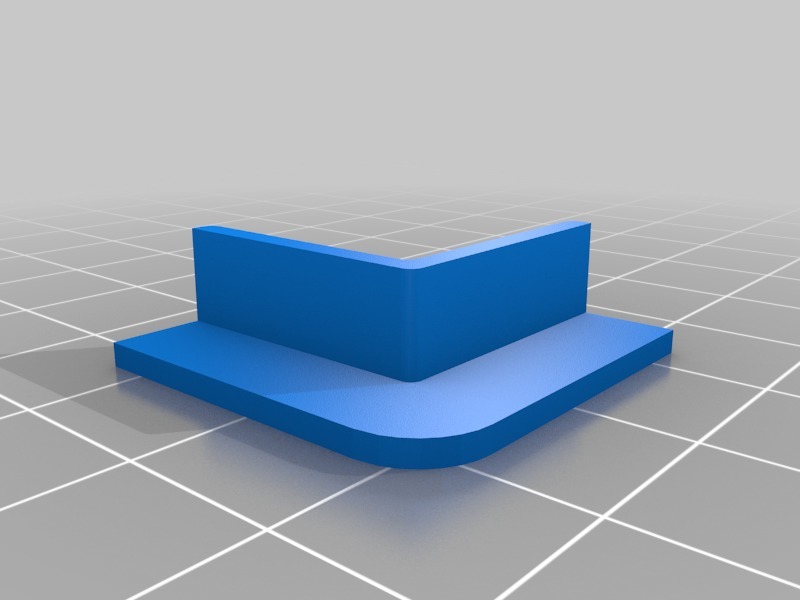

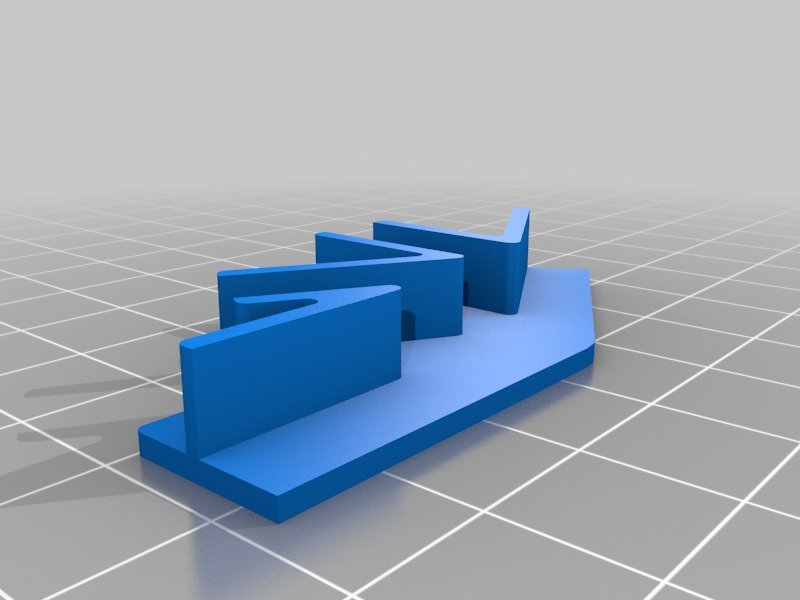

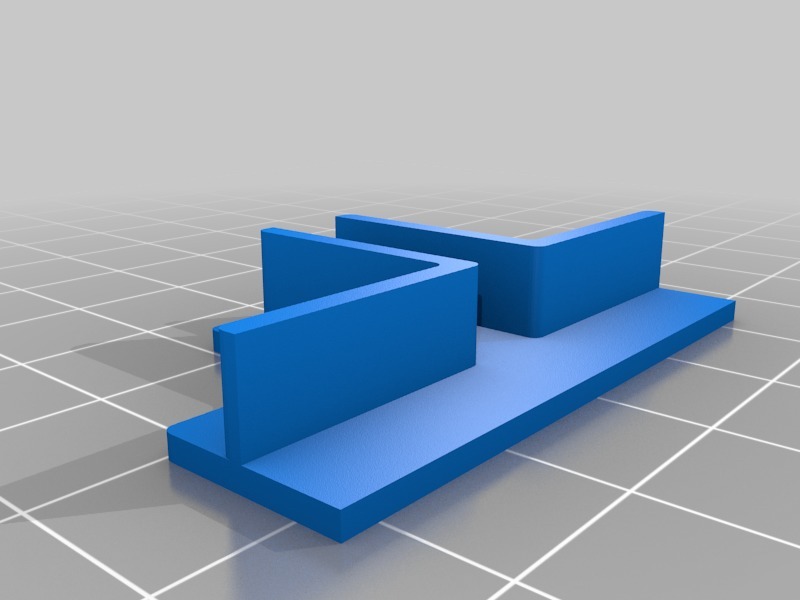

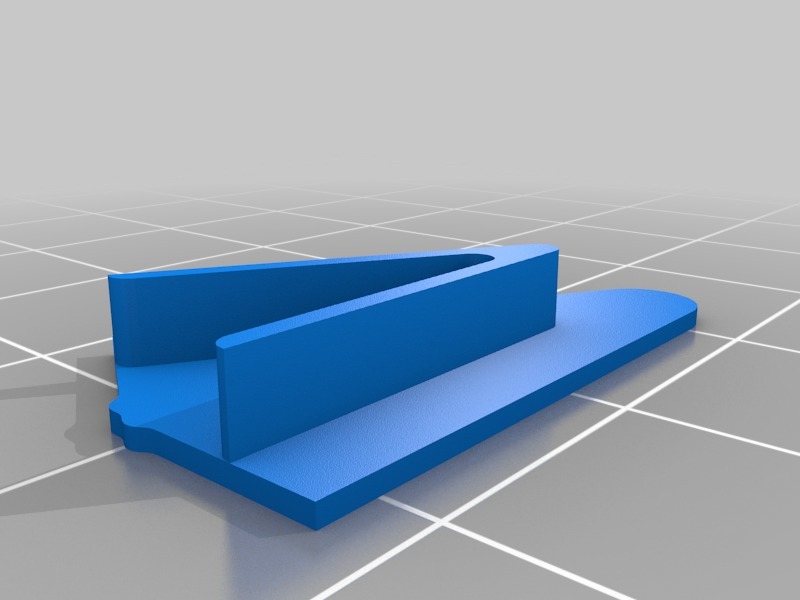

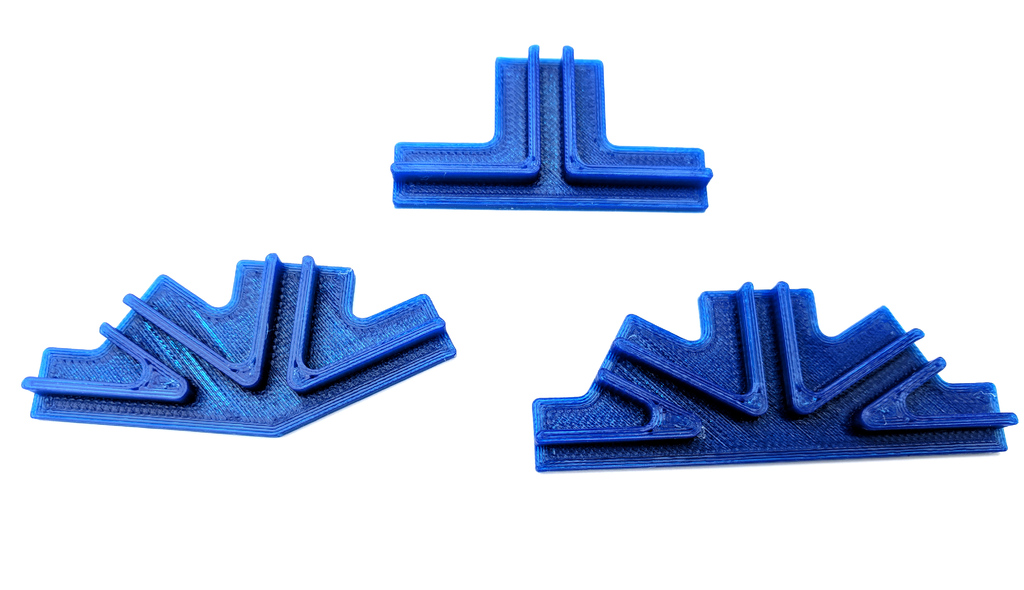

Create brackets for square or rectangular beam trusses. The bracket design allows for plenty of glue surface and support. Use OpenSCAD for customization or use the included STLs. Versions are included for both metric and imperial units. Prints flat and allows for quick assembly of trusses without requiring an accurate miter joint at the ends of the beams (see photos). STLs included for both 1/8" and 1/4" beam trusses. Prototype truss was assembled using 1/8" balsa and CA glue.
Parameters include:
- Beam width, height, and angle
- Number of intersecting beams (up to 8)
- Flange and surround length, width, and thickness
- Web overhang offset
- Fillet radius
Print Settings
Printer: Prusa Mk2
Rafts: No
Supports: No
Resolution: 0.2
Infill: 100%
Filament: Matterhackers PLA Blue
