Maple Leaf Embossed Vase
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Home Decor
- License
- Creative Commons — Attribution — Share Alike

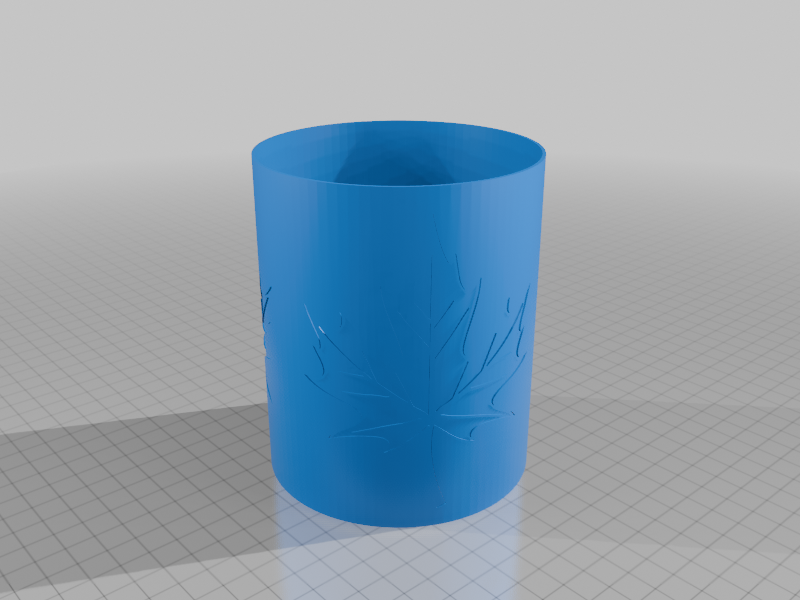

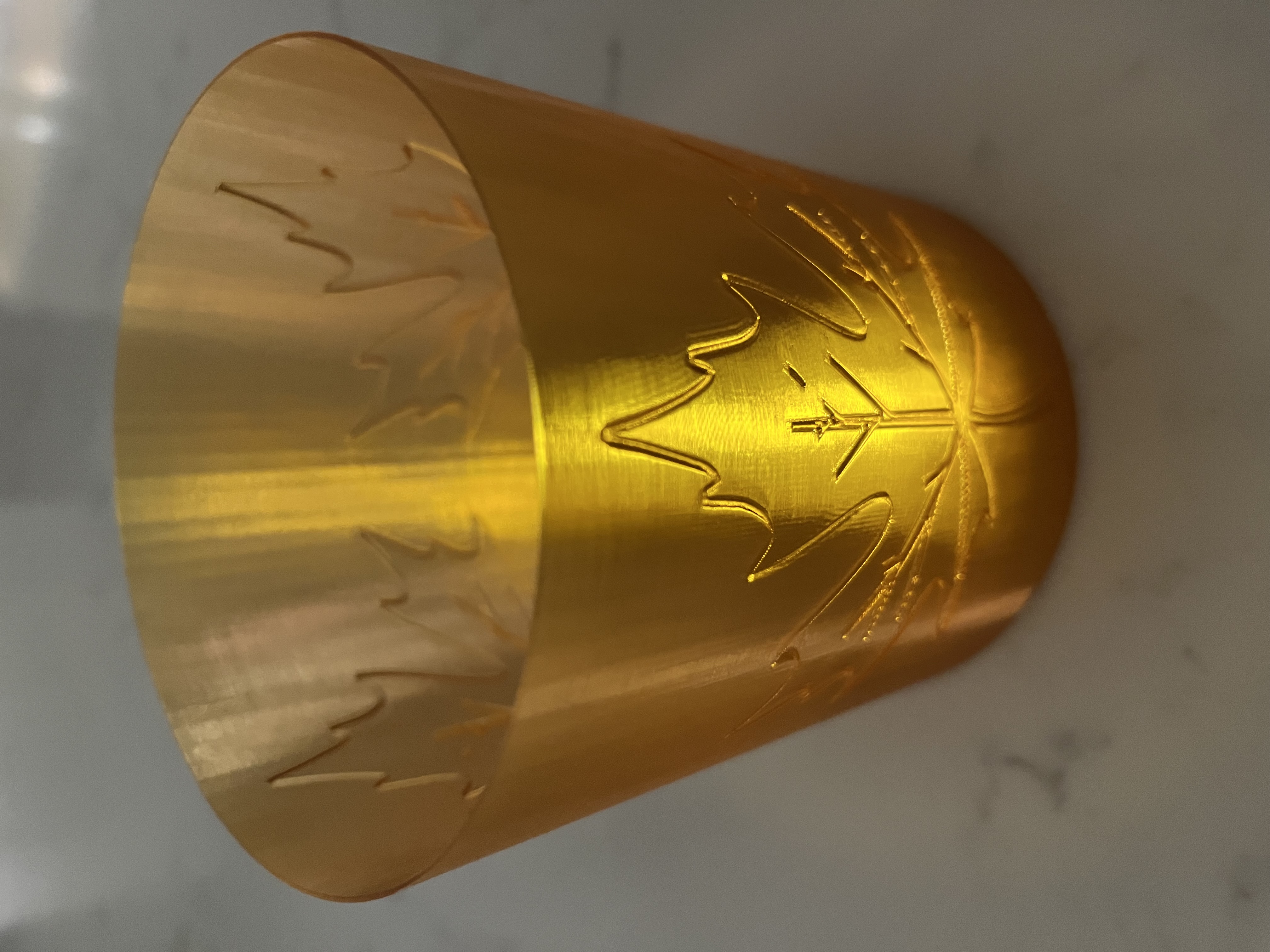

A simple vase with an embossed maple leaf design. Use it as an illuminated fall decoration by adding a tea light, or as a simple miscellaneous container. Saved over 4 hours of print time by slicing in Spiral Vase Mode
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK4
No
Supports:
No
0.2mm
Infill:
N/A
Notes:
Other Slicer settings:
Spiral Vase Mode
My print time in vase mode 2:17 vs 6:40 in non-vase mode
Optional if a thicker wall is preferred:
Extrusion Width-->Perimeters 0.8mm
Extrusion Width-->External Perimeters 0.8mm
Created in Fusion from a simple shelled cylinder using the Emboss function. A generic maple leaf image was converted into an SVG file and inserted into the drawing, scaled, embossed, and a circular pattern applied to duplicate the image around the vase.
Sliced the model using Spiral Vase mode, and adjusted the perimeter extrusion width to force a thicker wall profile (see Print Settings).
