ESRack - Module - NiPoGi AM02 Pro

I really liked the original ESRack system design created by @EvilProphet.

I create my own support for NiPoGi AM02 Pro from the Blank Module and share it here

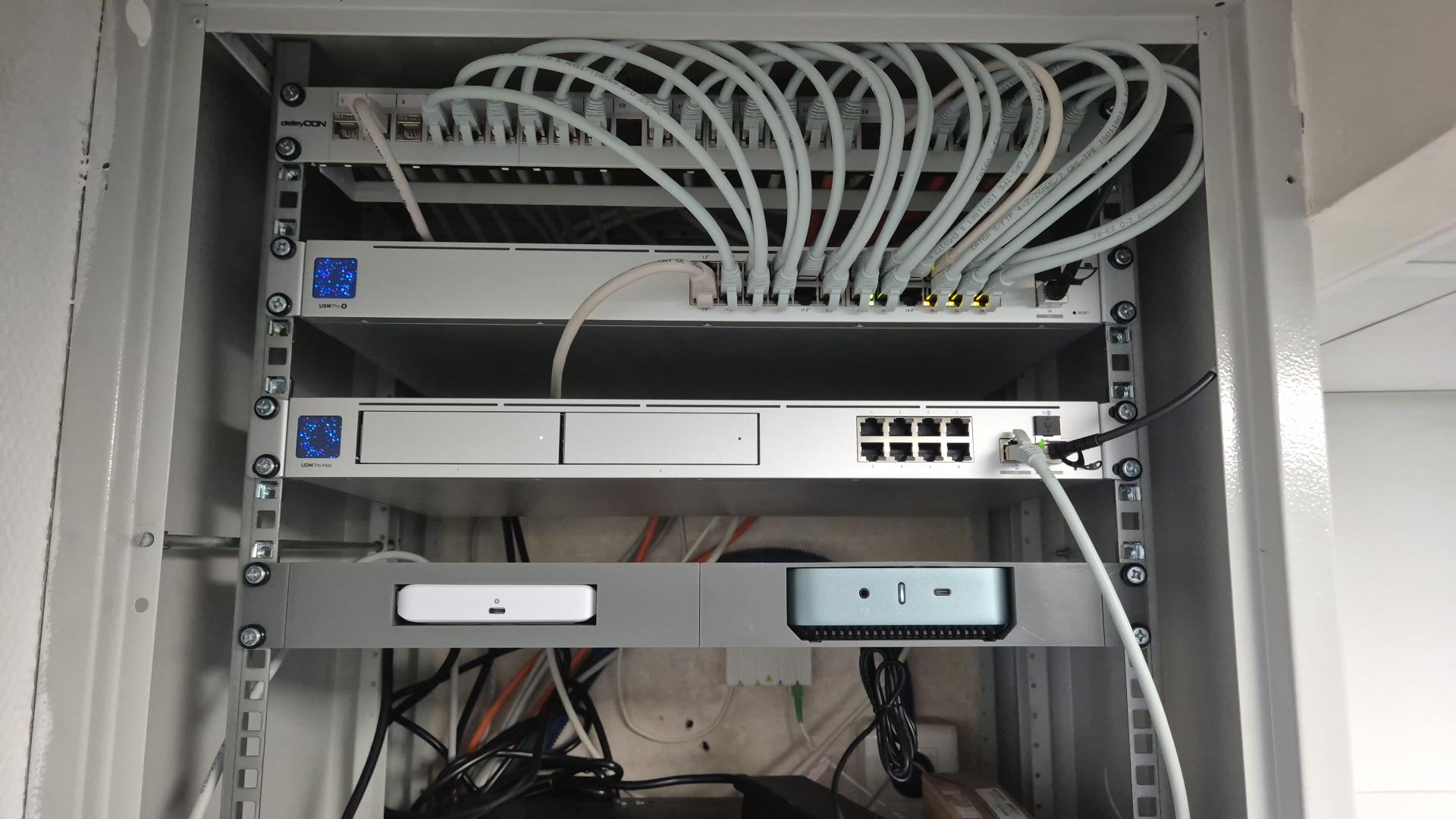

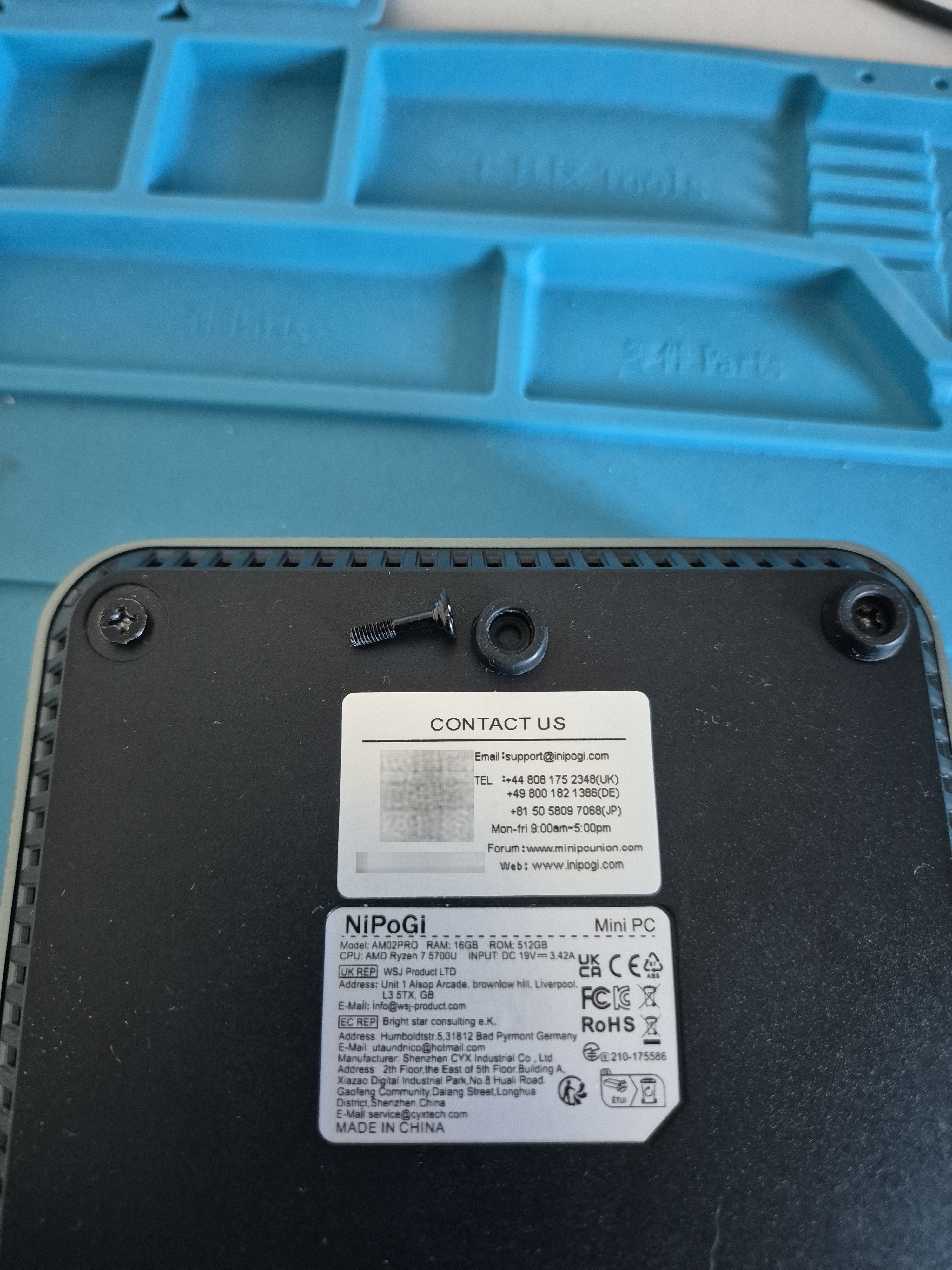

You need to remove the 4 gum footer and readd screw

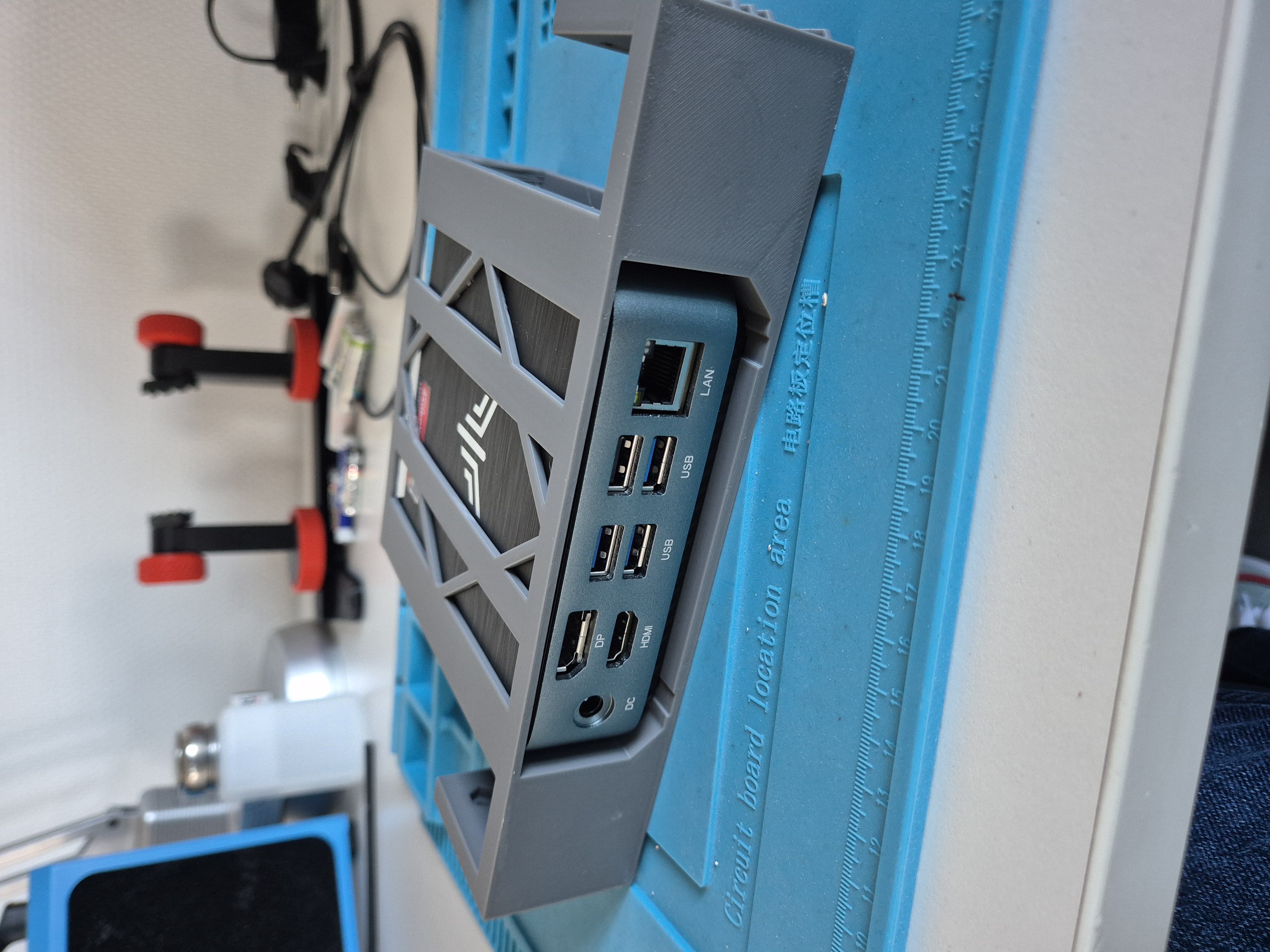

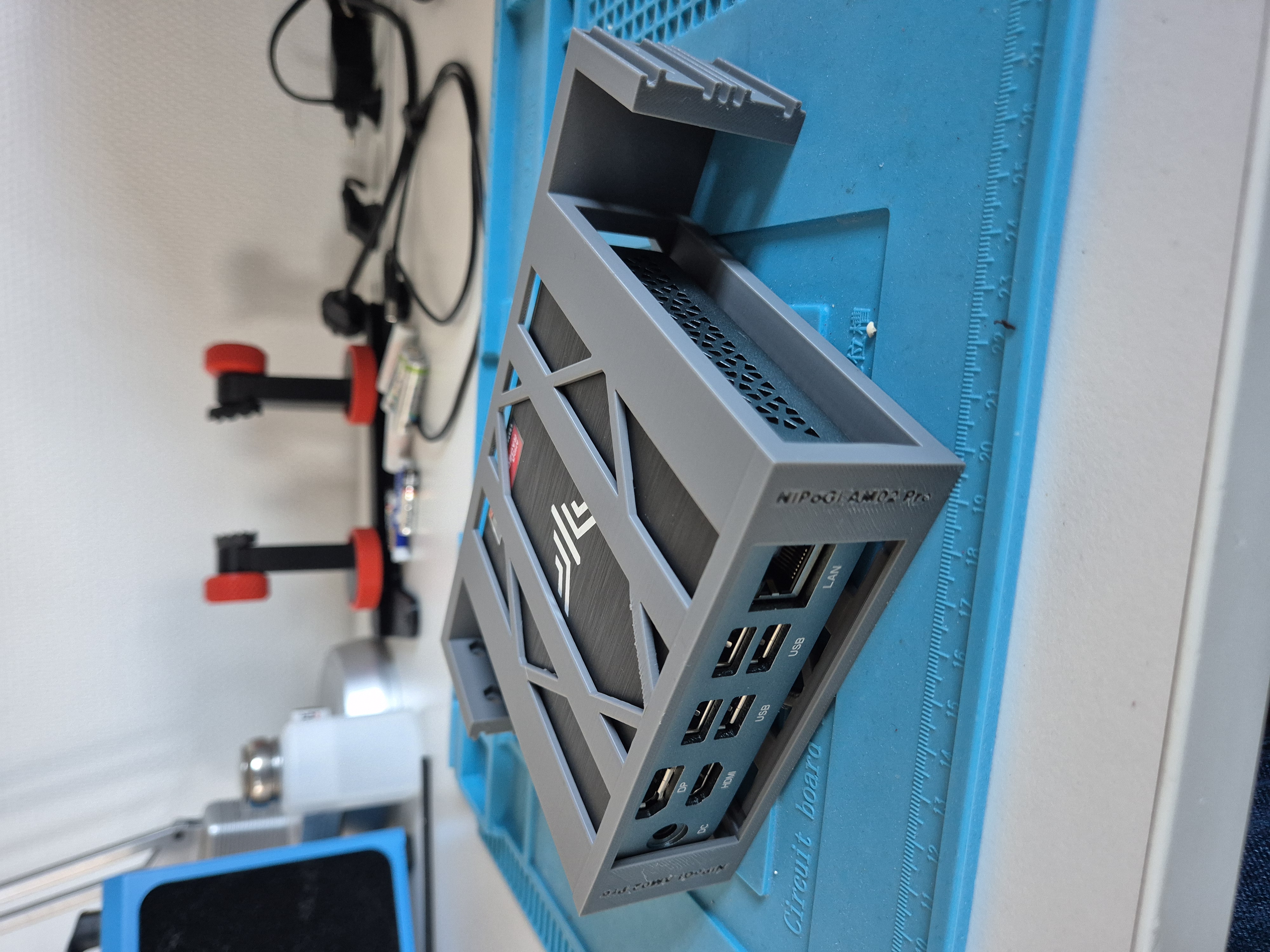

You can put the NiPoGi AM02 on 2 side (power button on front or on back)

The ESRack system includes components:

• Mounting Brackets - used to install unit in the rack, avilable in 3 sizes:
  • Short
  • Medium
  • Long
• Device Modules - each module can handle a single device

Possible Configurations:
- [Mounting Bracket Short] + [Module] + [Module] + [Mounting Bracket Short]
- [Mounting Bracket Medium] + [Module] + [Mounting Bracket Medium]
- [Mounting Bracket Short] + [Module] + [Mounting Bracket Long]
- [Mounting Bracket Long] + [Module] + [Mounting Bracket Short]
- [Mounting Bracket Long] + [Mounting Bracket Long] (Blank Front Plate)

All modules were designed with very little clearance so installation of some devices may need to be pushed in by force.
Before you start printing the system, print the Connecting Block to check that you will be able to connect the modules.

I apologise that there are no detailed photos of the components after printing, but before assembly. It's because I decide to publish this project after fully assembling the racks.

All parts of by the original creator @EvilProphet ESRack system can be found here.

Assembling

To connect the each individual modules together, you need:
- 4x M4 nuts (DIN934M4)
- 4x M4x12 allen screws (DIN912M4x12-8.8)

Use standard rack screws and nuts for rack mounting.
