Rotary Tool Clamp
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Public Domain

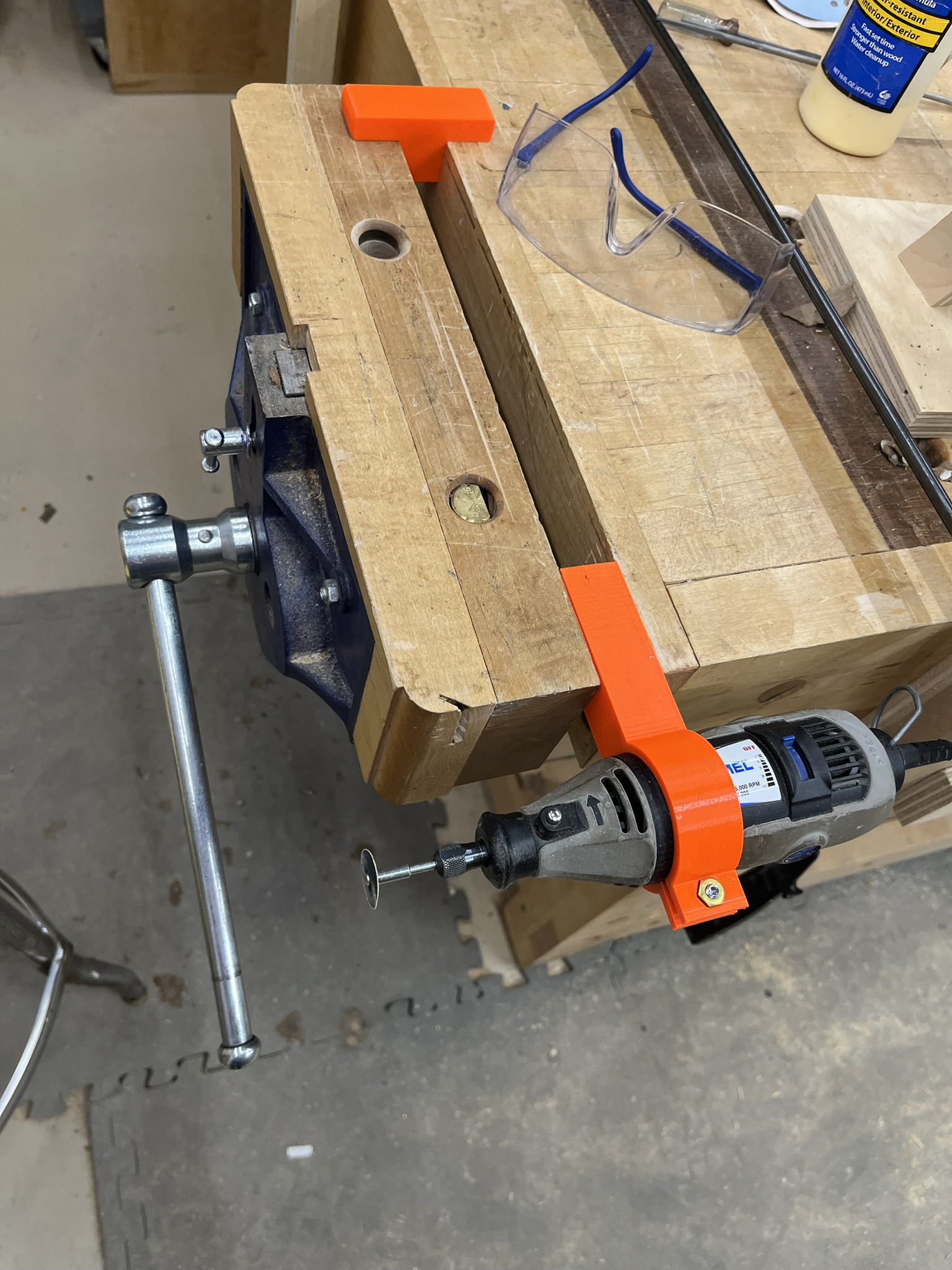

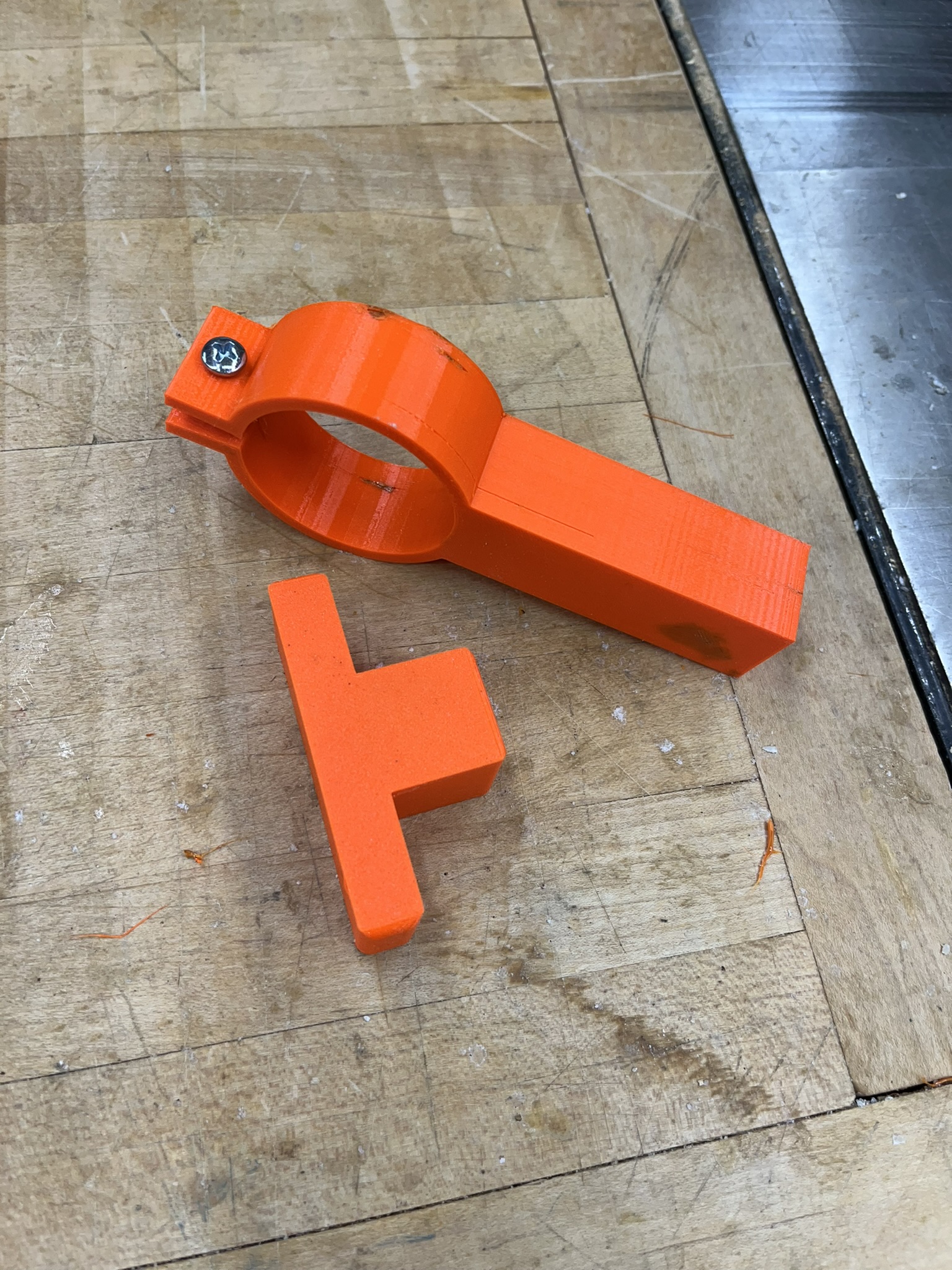

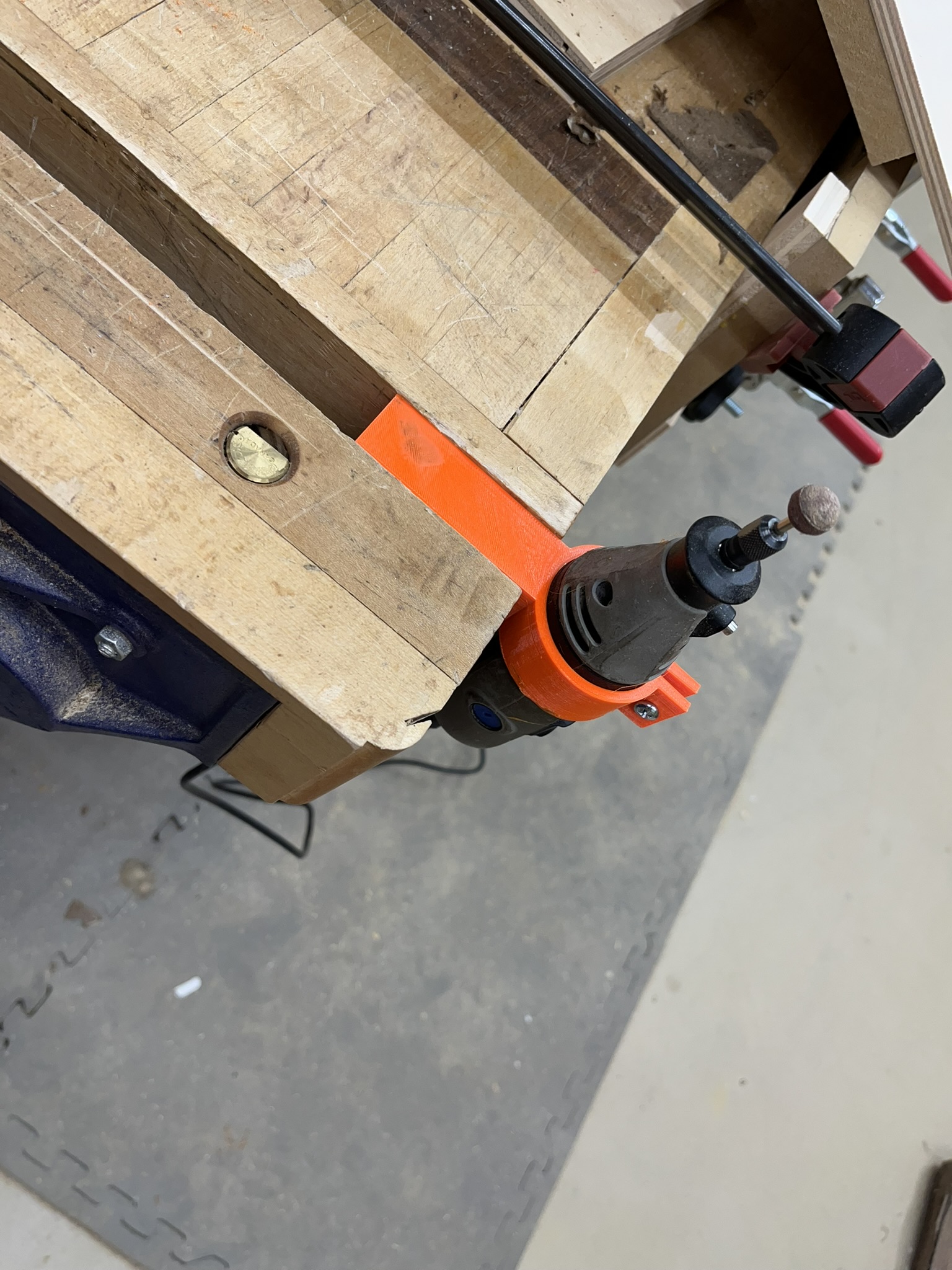

This is a simple tool clamp that allows the rotary tool to be mounted in a vise for hands-free operation. There is also an 25mm square accessory block which can be used on the opposite end of a wood vise to prevent racking if desired (see photo). The clamp is tightened with a 3/16" bolt. It was a quick solution to a need. The tool is a Dremel Multi-Pro model 395.
The gcode provided for the clamp is set for an 80% infill at the clamp end and part of the 25mm square shaft. The remainder of the shaft is a 15% infill. The print is pteg, 0.2mm layer height, and 0.4mm nozzle.
