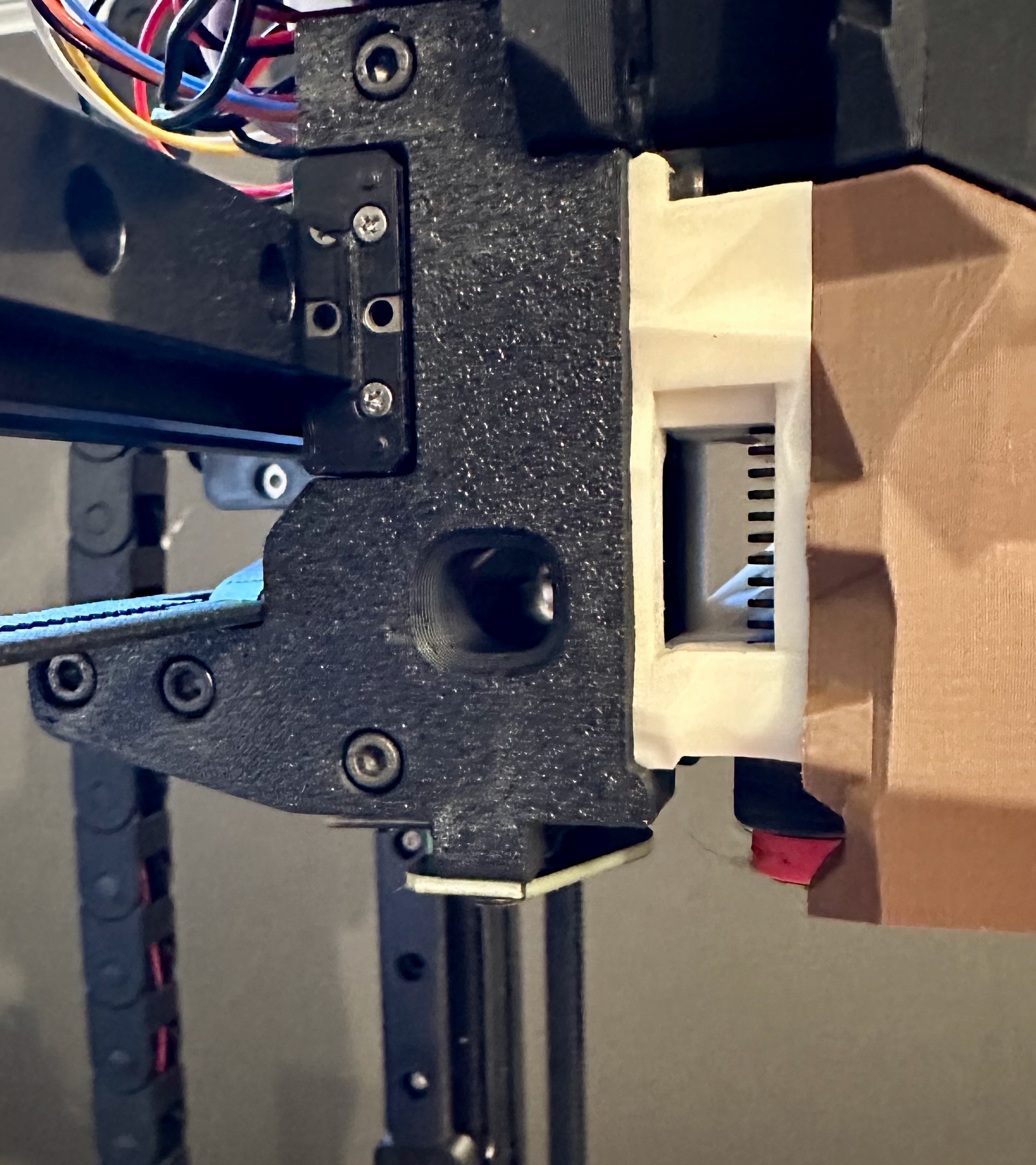

A mount for the cartographer probe on the switchwire/enderwire. It's a remix of the x carriage and the belt grippers to provide clearance for the probe and wires.
Mount requires two more heatset inserts into the bottom of the carriage and has clearance to run the wires up via the same channels as the x endstop and normal probe mounts. Uses a “normal” cartographer probe style. All parts are printed with standard voron settings with the carriage printed in the same orientation and the new belt grippers printed belt side down. Mount should be about 2.7mm above the nozzle as designed around a revo hotend.
0 offset in X, 24.75mm offset calculated for Y in CAD.
