DMX-Breakout-Box
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Open Community License v1

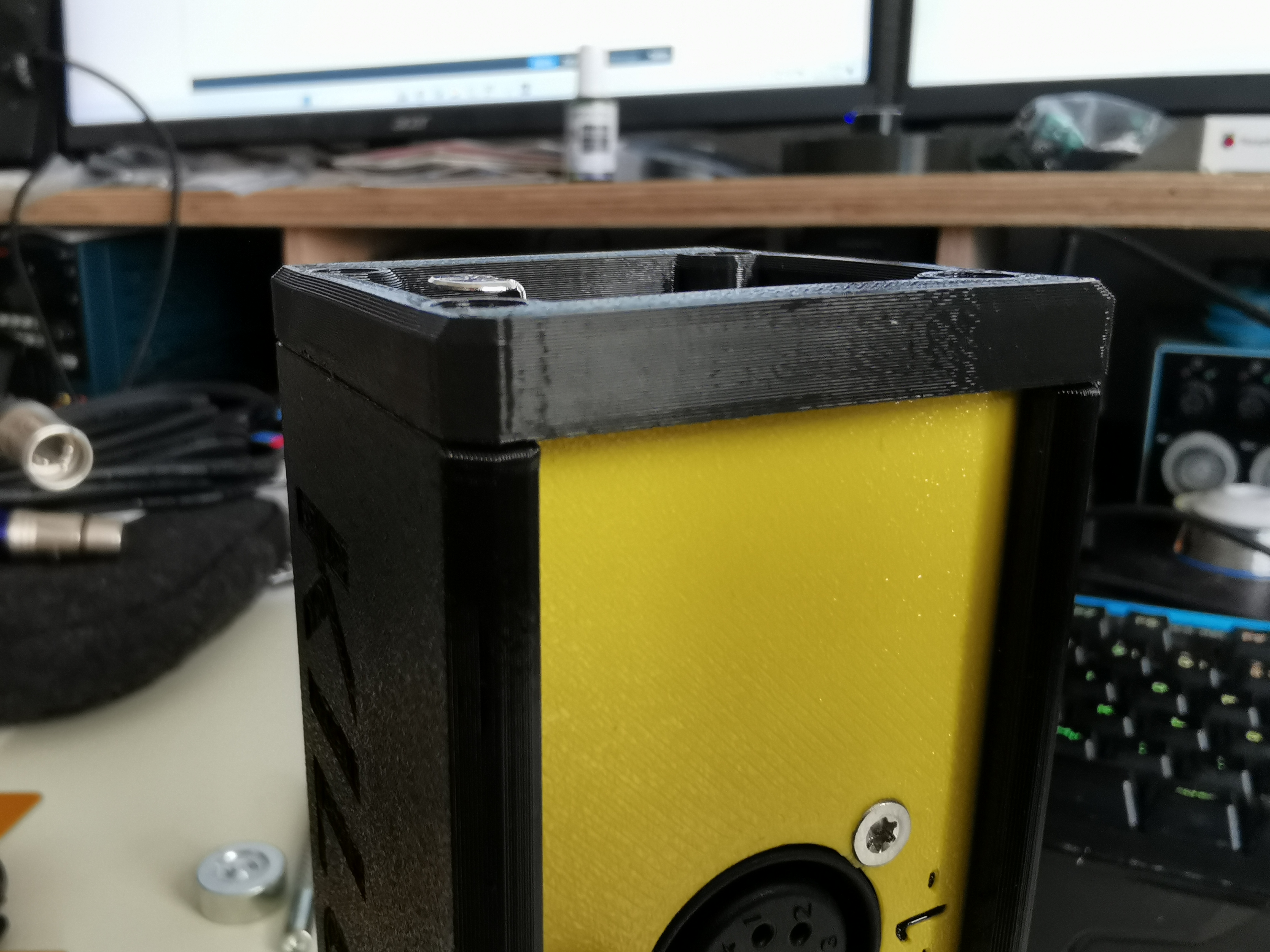

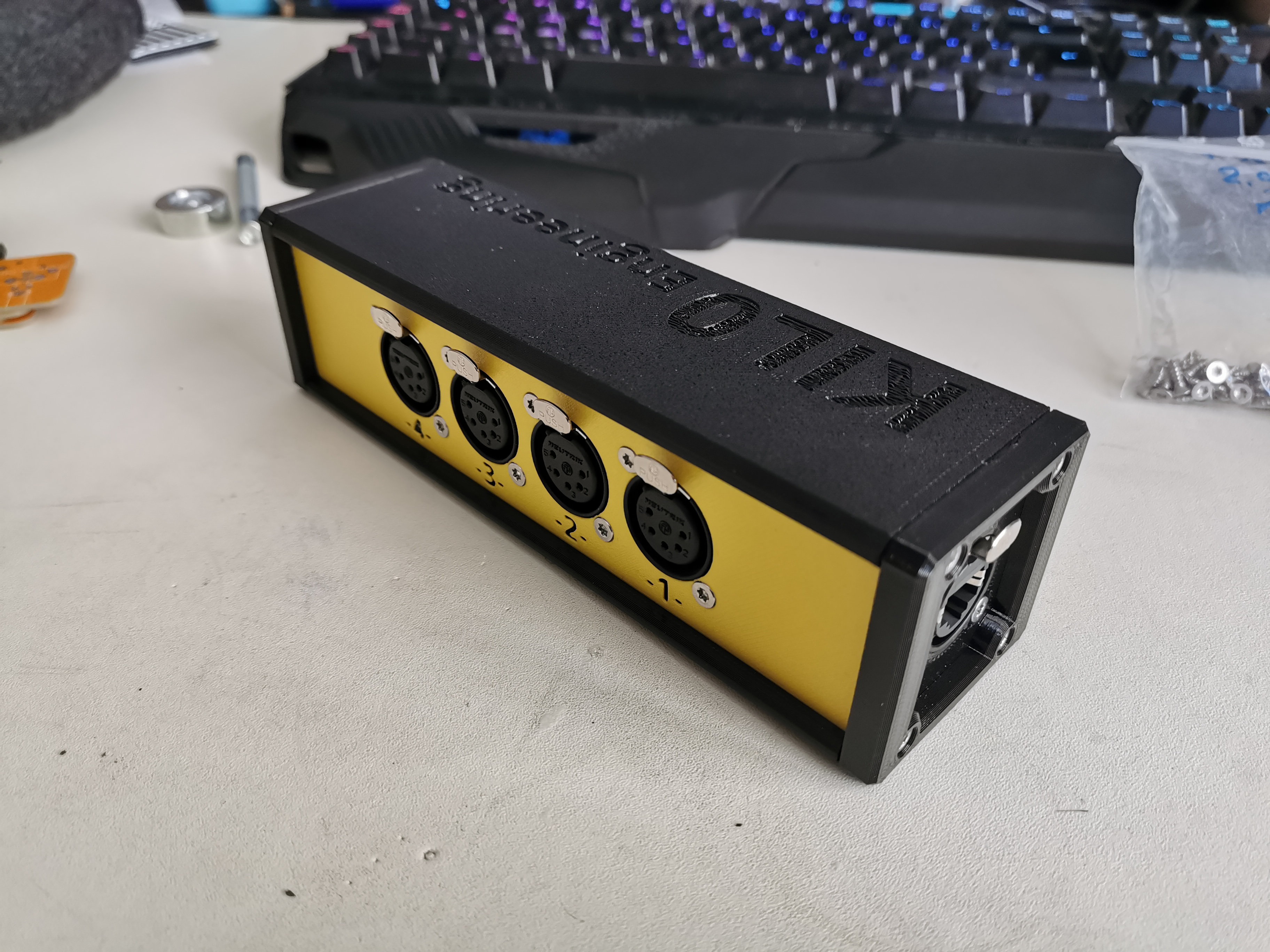

Breakout box for four DMX signal lanes from Cat-cable. This box is specifically designed for DMX (no shielding, only outputs) with 3 pin and 5 pin per signal lane.
All locking hinges are flat to housing outlines.
For assembly you need 8 cylinder head screws M3, length does not really matter.
For mounting the 50mm pipe adapter 4x M3x16-20mm cylinder head screws are used. With the pipe adapter the breakout box can be mounted to 50mm pipe with two 4,8mm zip ties.

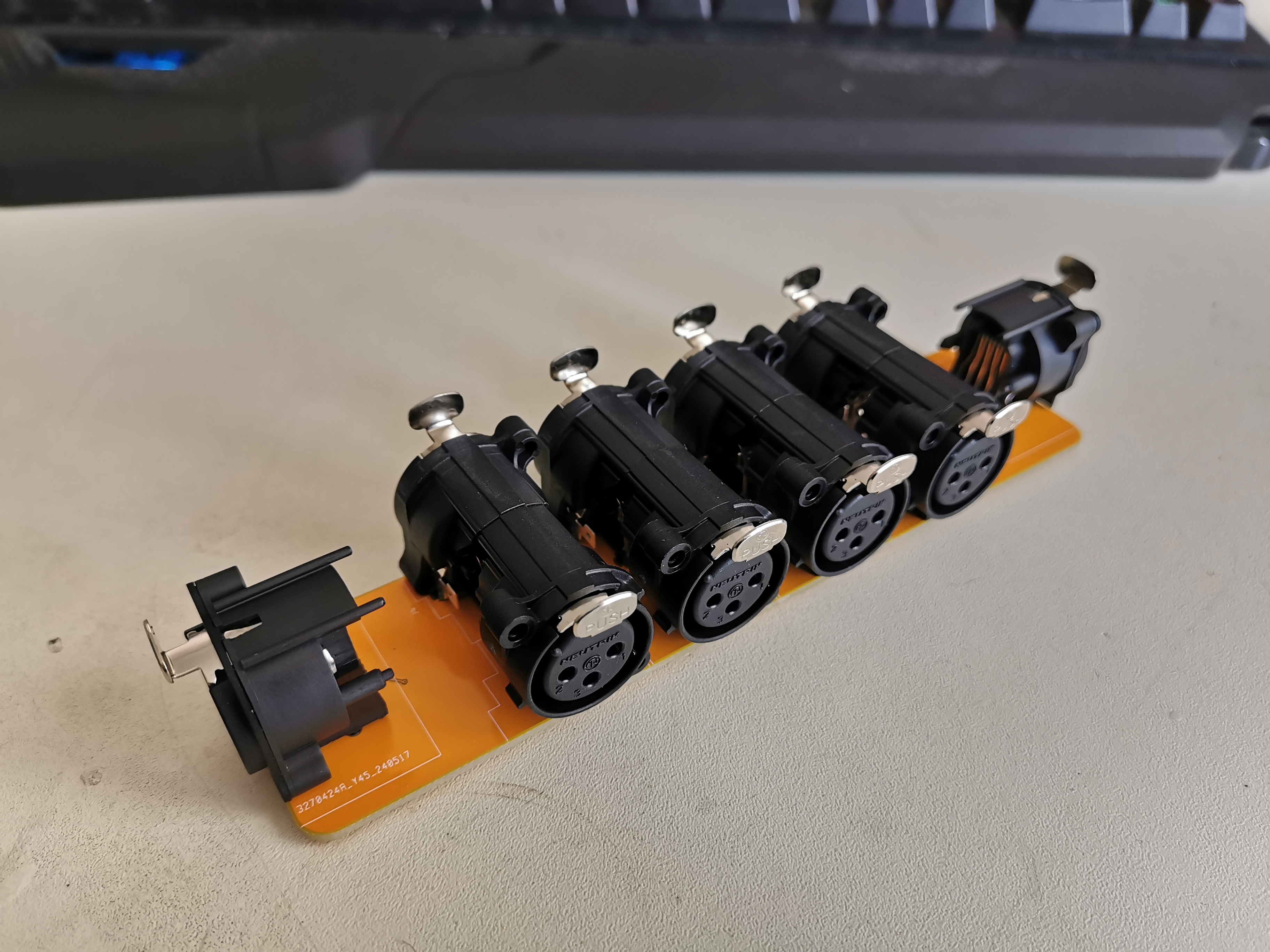

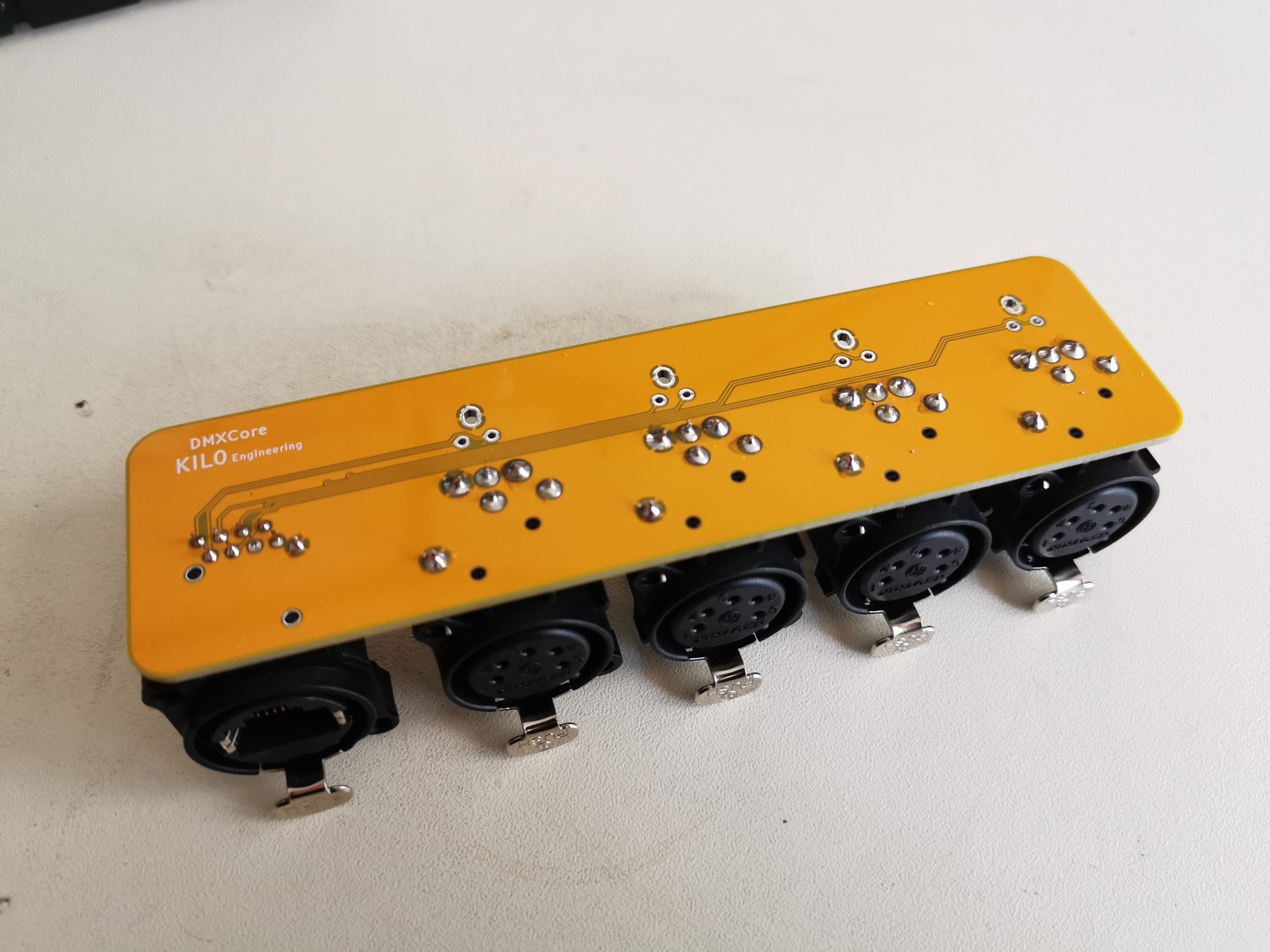

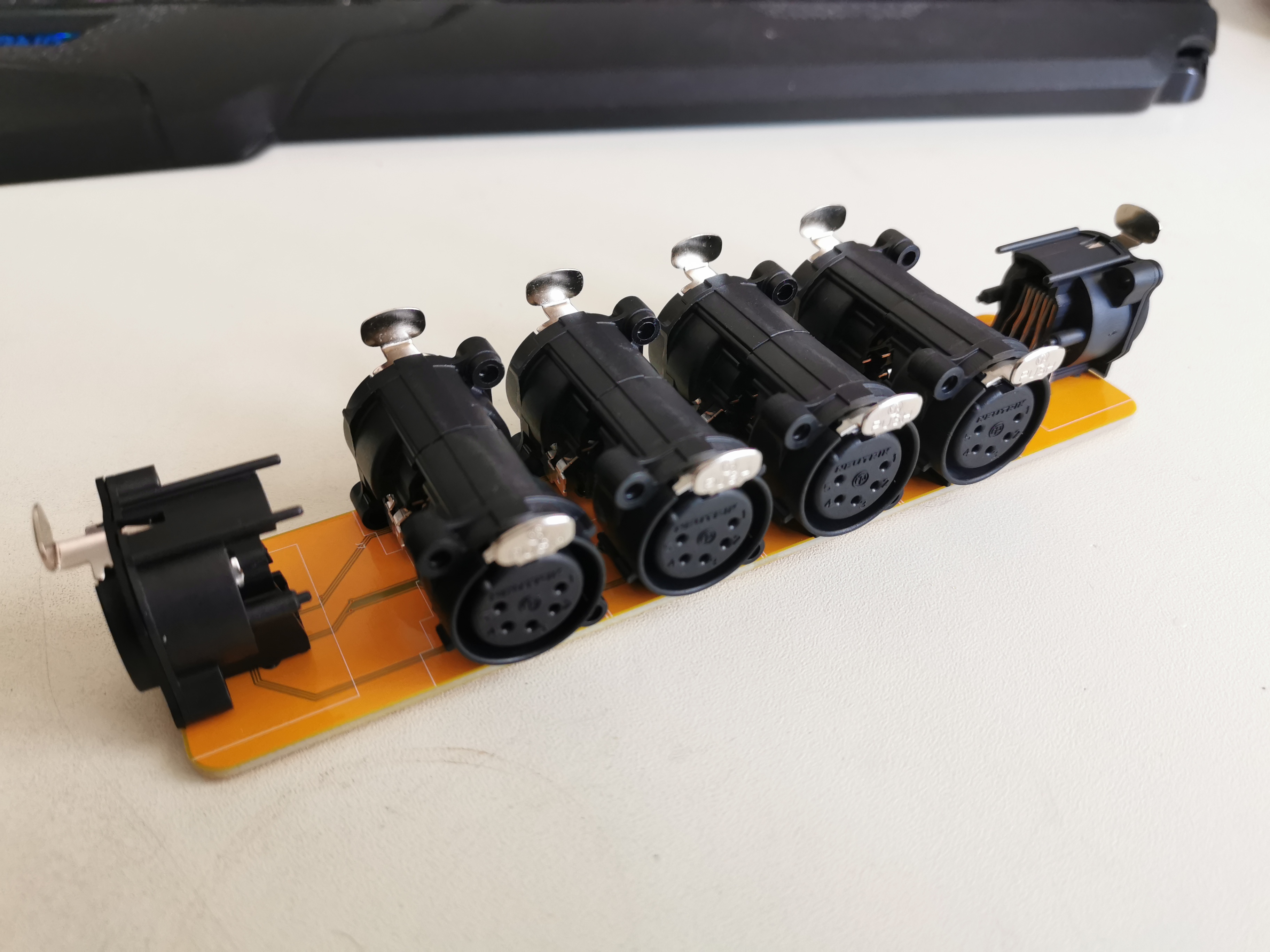

KiCad project and gerber files are attached.
