Large Concave Spool Roller
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

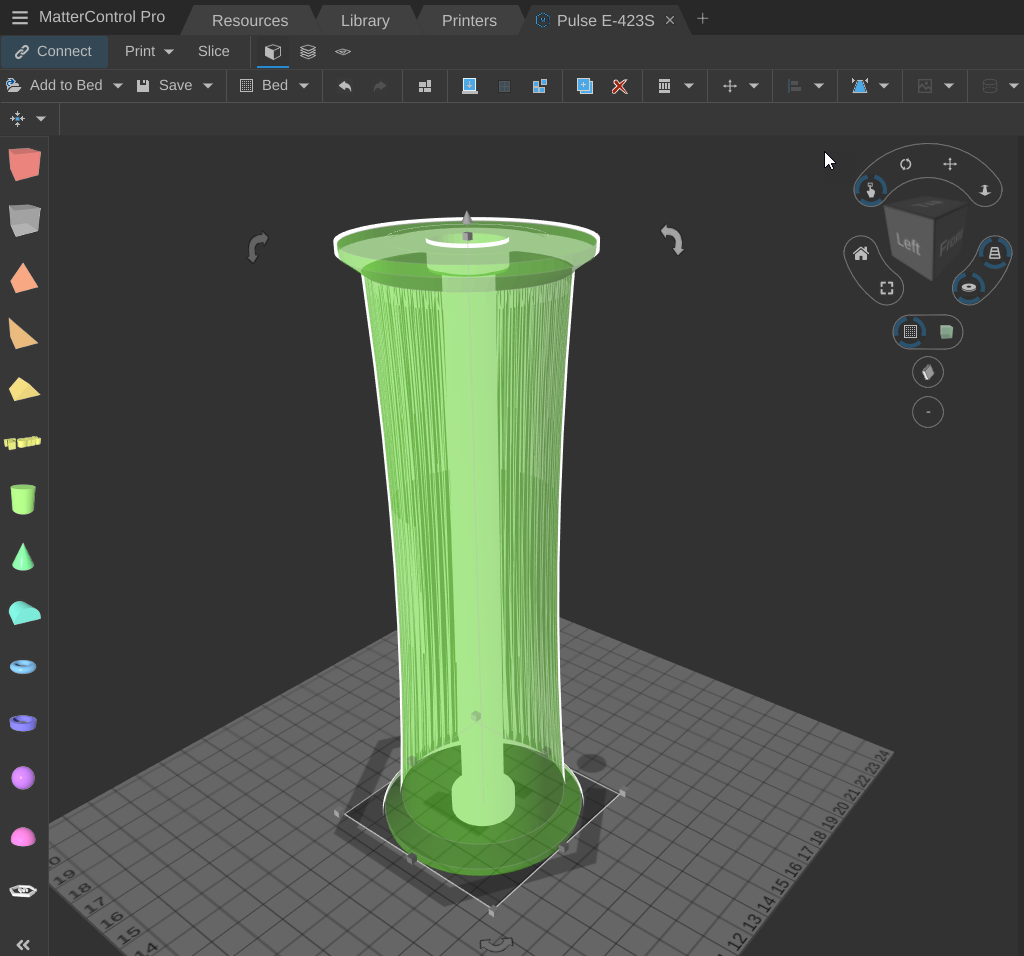

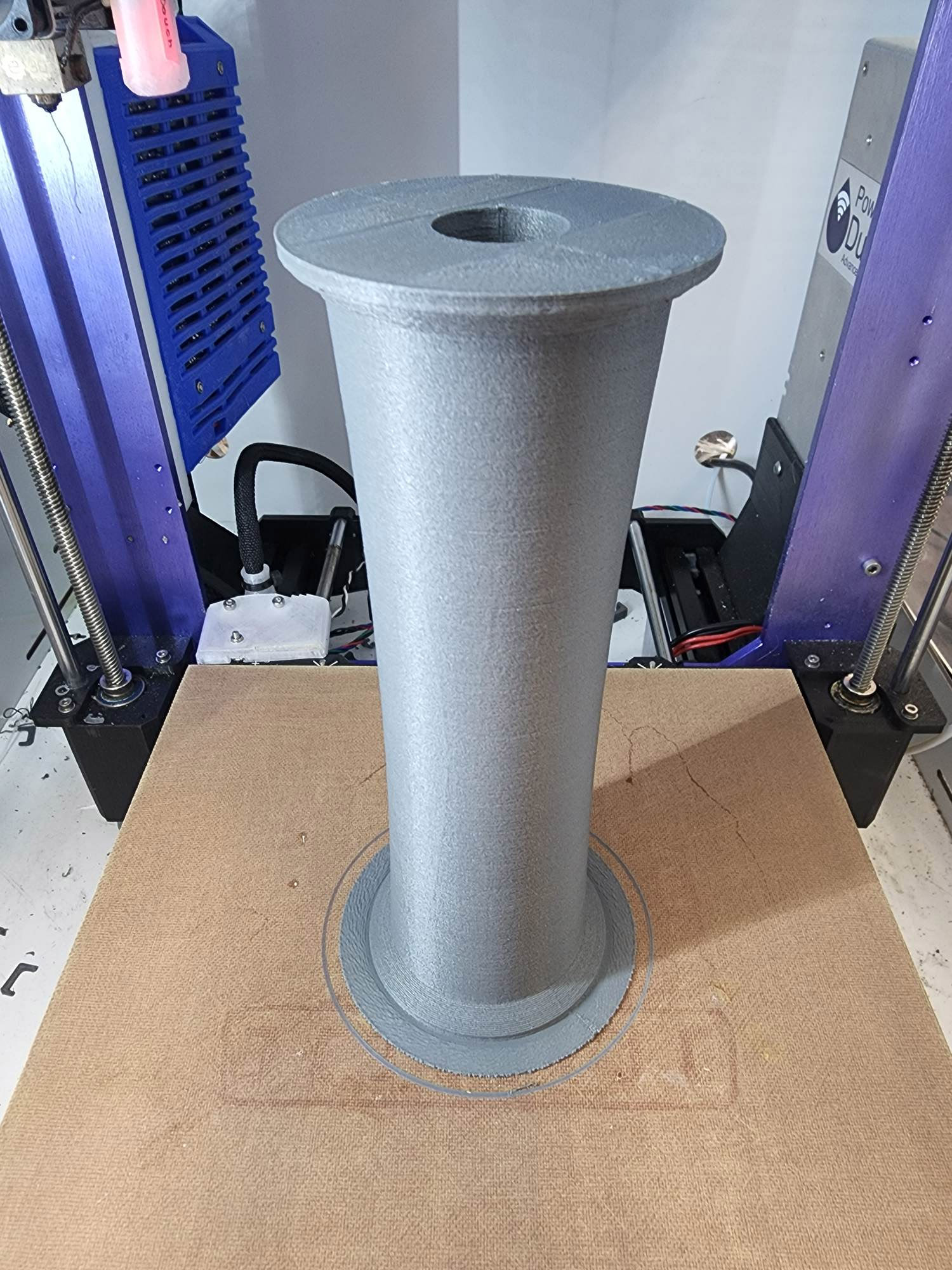

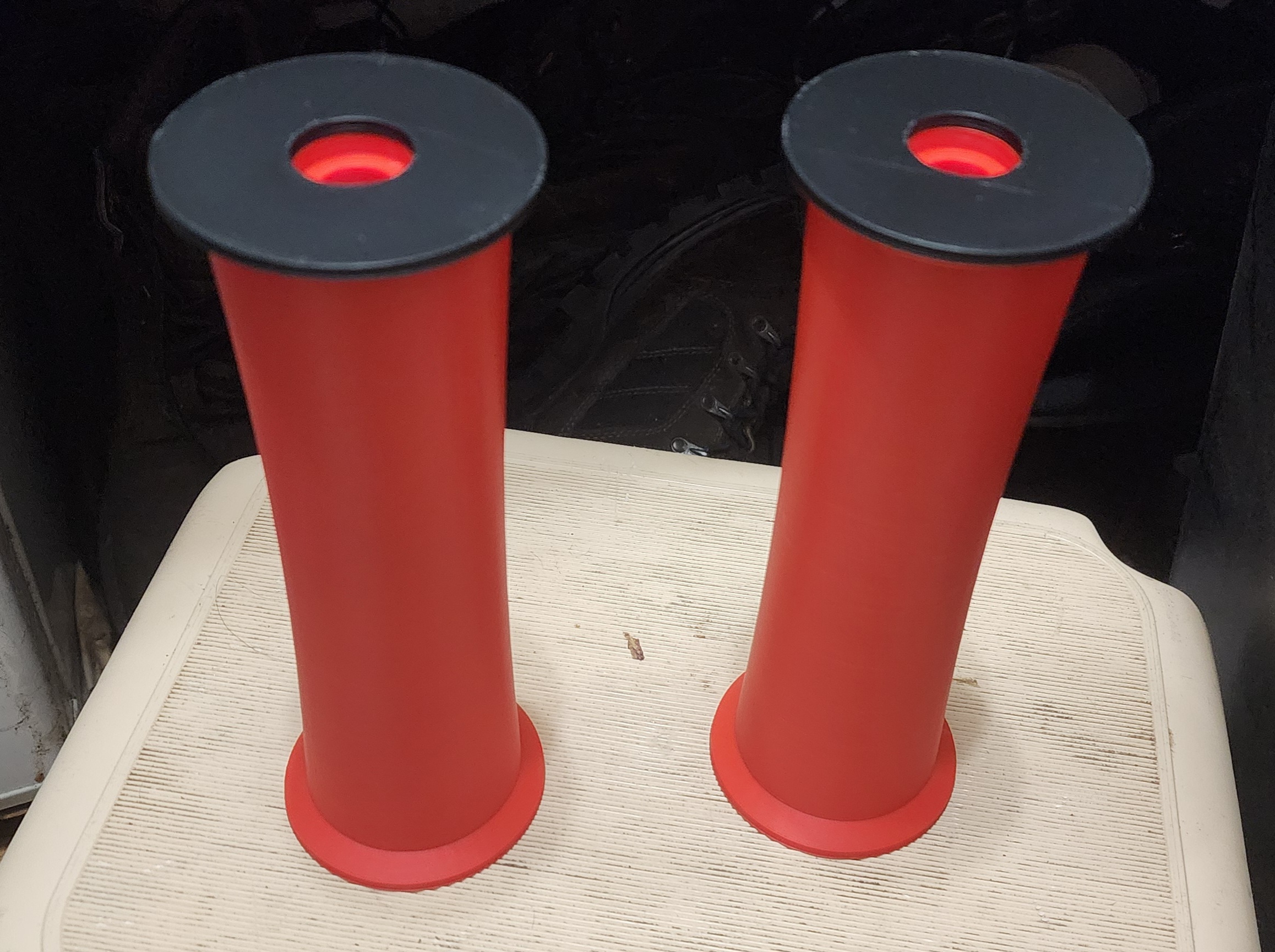

Large concave filament spool roller, 205mm long. Designed to reduce pull force from large diameter spools up to 5Kg. Spool stays self centered from concave shape of the roller.
Please leave me a “Like”, thank you!
Print pla, petg, abs, Nylon etc.
25% infill Tri-Hexaganol, cubic, etc.

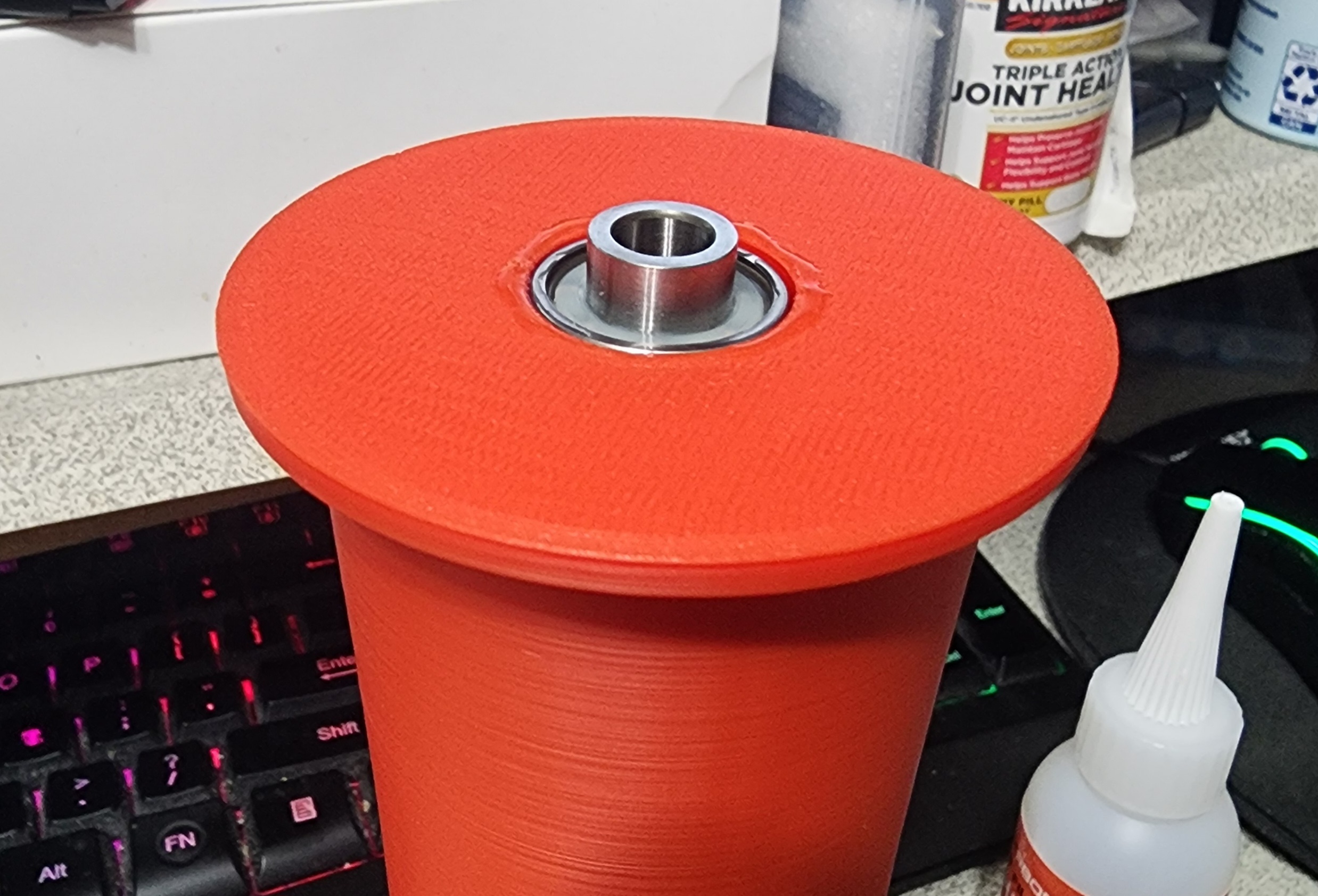

Each roller uses two 608 flanged bearings
Use 8mm hardened shafts for axle
8mm shaft clamps
