Bedside Table Clips
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Bedroom
- License
- Creative Commons — Public Domain

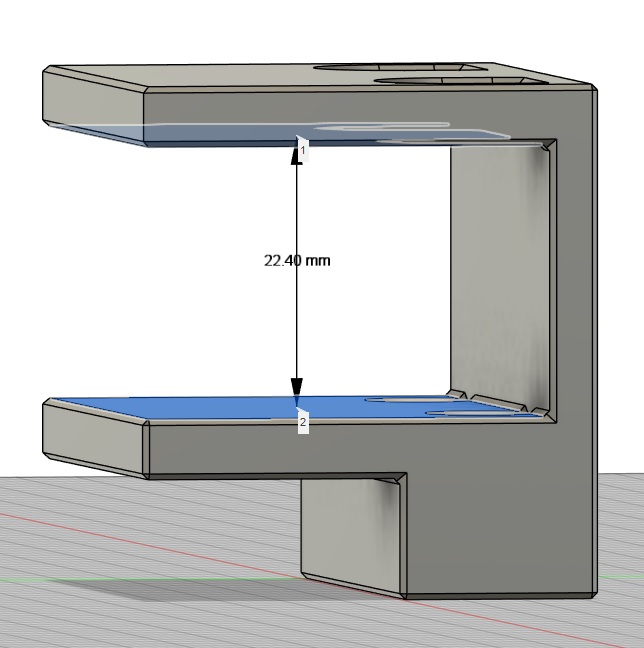

The clip design works for bedside of 22.4 mm of thickness.
You will need:
- wooden scrap board (for the table top)
- 2x printed clip
- 2x 8 mm peg

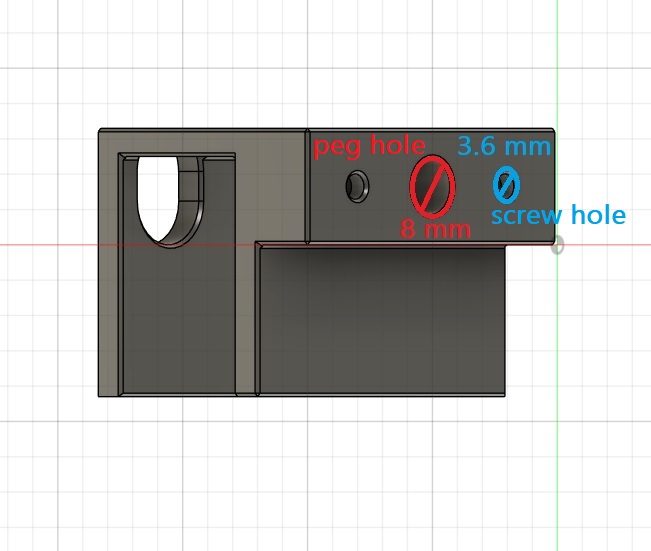

- 4x screw with up to 3.5 mm diameter

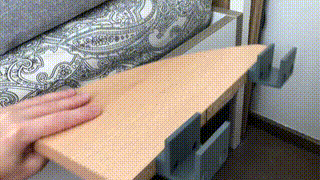

Drill two 8 mm holes to your board where the pegs will go. Insert the pegs (glue if desirable). Slip the clips on the pegs. For both clips, place the screws into the screw holes through the wide opening in the back of the clip. Screw tighlty. Slip the completed nightstand on the side of the bed.
