K1/K1C 270 Hinge Adapter and Bed Plate Holder Combo (Experimental, K1 Classic)

Disclosure: Although the license for the 270 hinge adapter is restricted I have received permission from @Diablo_1609422 to remix it, which is located here K1C Adapters for use with V2 and V3 270 degree hinges. The license is why it can't be linked in the original model used section. Only the bed plate holder of this remix is under a CC share-alike license; the hinge or any other parts of it cannot be remixed.

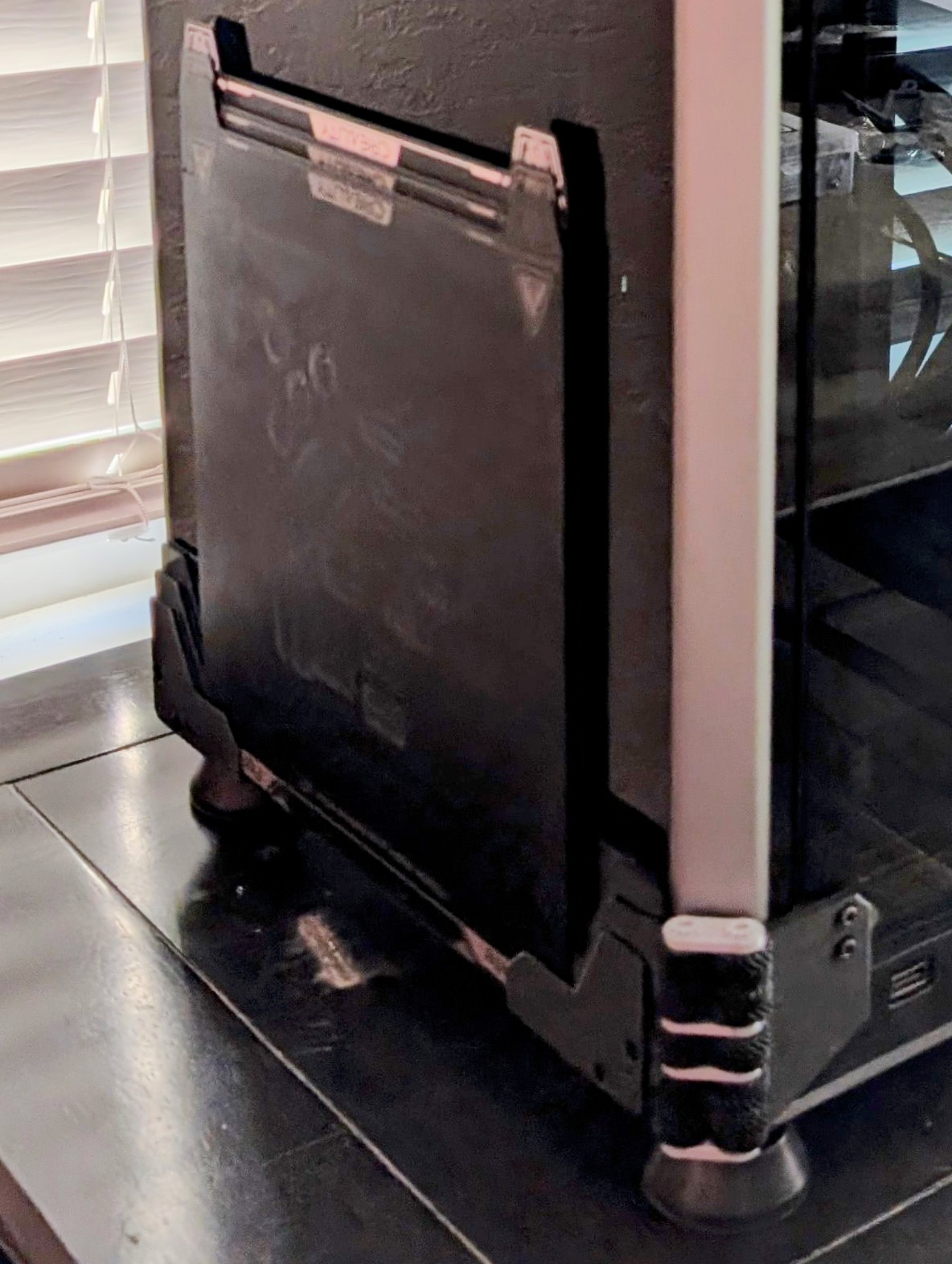

With this model you can have your hinge and plate it too. This remix works in tandem with Diablo's V3 270 hinge set and Eric's bed plate holder. This model is only one piece (or two) of many that you need to download. The left bed plate holder is linked in the original model used section, and the other hinge adapter plate is linked above in the disclosure.

Once you've downloaded and printed this hinge adapter, head to the other makers' pages to get the rest of the pieces. Follow their instructions carefully because there are a lot of pieces to make it all come together. This was modeled with my K1C so if your side panel corner screws are roughly 20mm apart (including newer K1 frames), this is the version for you.

For all you K1 classic owners (I'll dub it as such since it's the original variant) with the corner screws about 60mm apart, I dropped in some models in the Experimental folder that may be compatible with your printer. Because these allow for some adjustment, they do not have the dimples that seat them into place like the K1C pieces.

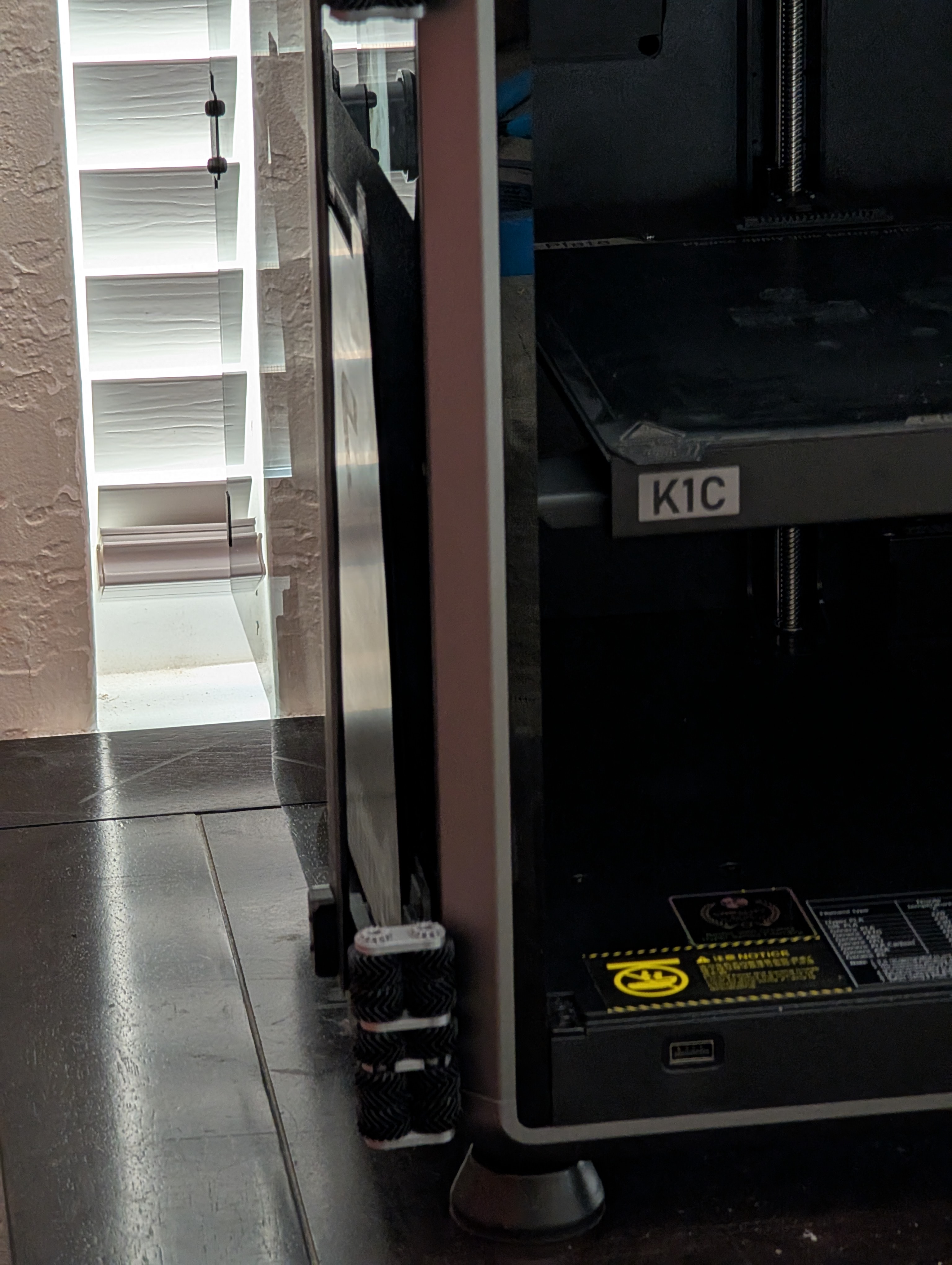

This mod does not interfere with the hinge nor door when it is fully open. You might not even notice that it's there

Requisites

• Left corner bed plate holder from Eric
• Matching upper 270 hinge adapter from Diablo
• The rest of the hinge pieces as documented on Diablo's model pages. The ones I used are linked below
  • 270 degree hinges (V3) magnetic faceplates upgrade
  • Upgraded pins option V2 & V3 270 Degree Geared Hinges
• V3 HEX Magnetic cover plate set for V3 270 degree hinge (optional, and many other designs can be found on Diablo's 3D Models tab)

BOM

• 4x M3x8 screws for the bed plate holder/lower hinge adapter
• The rest of the required hardware is dependent on which hinge options you choose
