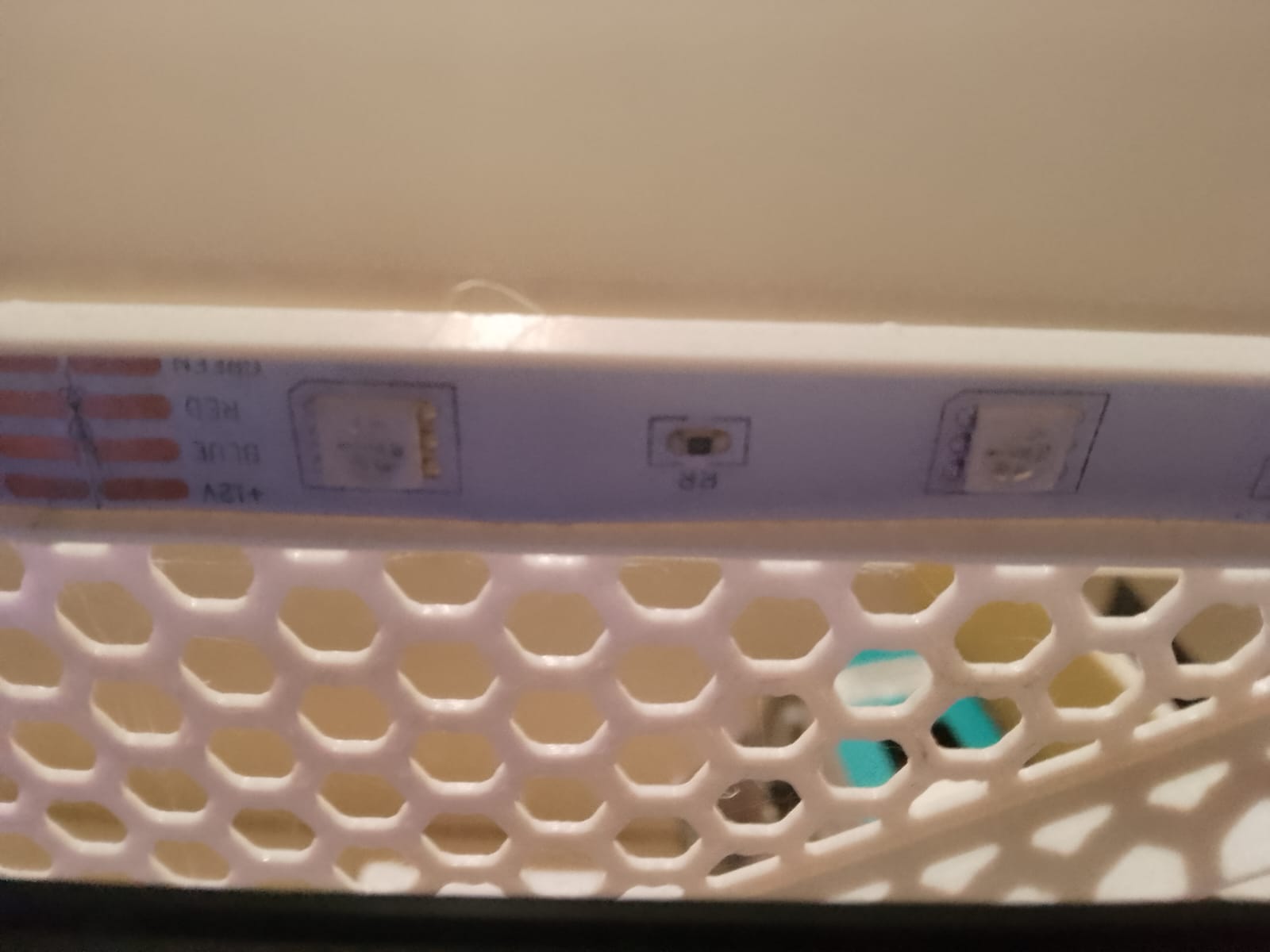

this model is used to fit a led strip in front of your screen to light your desk, it is made for a vesa 100 mm screen mount (you don't need an arm as long as the monitor has screw holes)

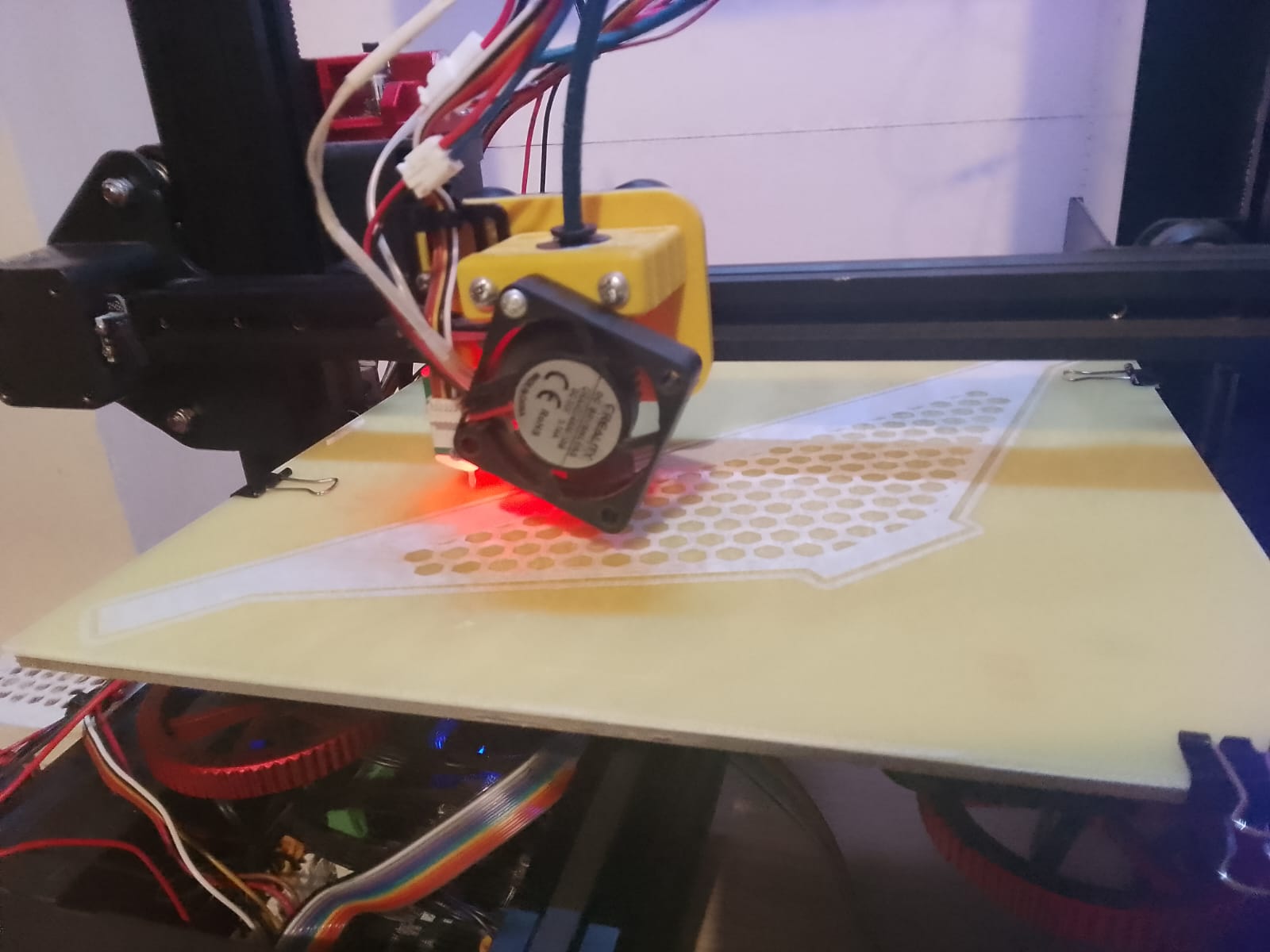

this is designed around a ender3 capabilities so should be easy to print, with a .2 mm clearance between the 2 3d printed parts and the light bar and LED strip everything is held by a press fit, although i have included screw holes for more precise printers that my need it.
v1 fits 2 segments (100 mm each)
v2 fits 3 segments
v2short fits 3 but is 10mm shorter to fit a ender 3 bed vertically
my monitor is a Acer EK241Y
i included some test prints if you don't have the confidence to print it one-shot

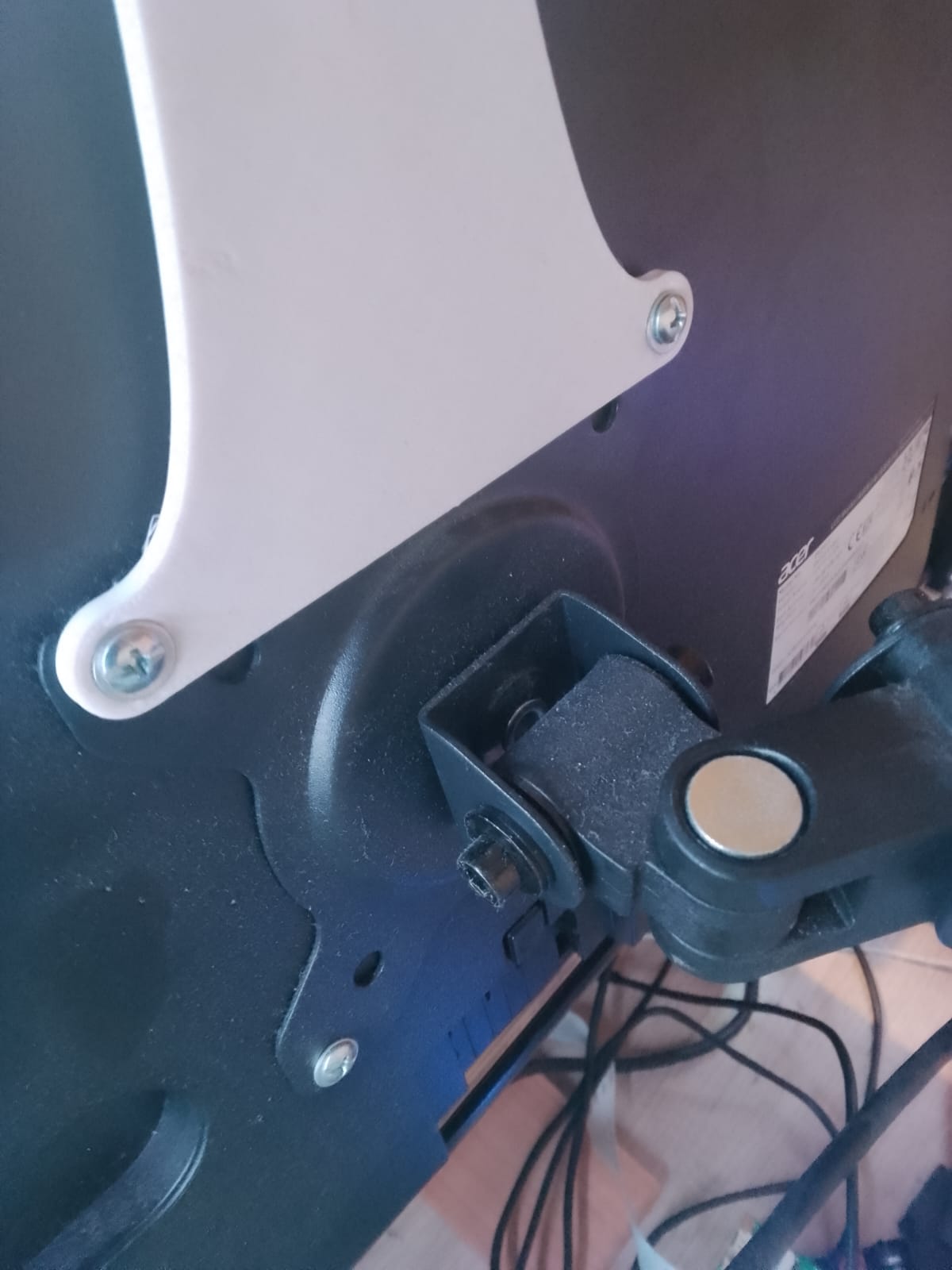

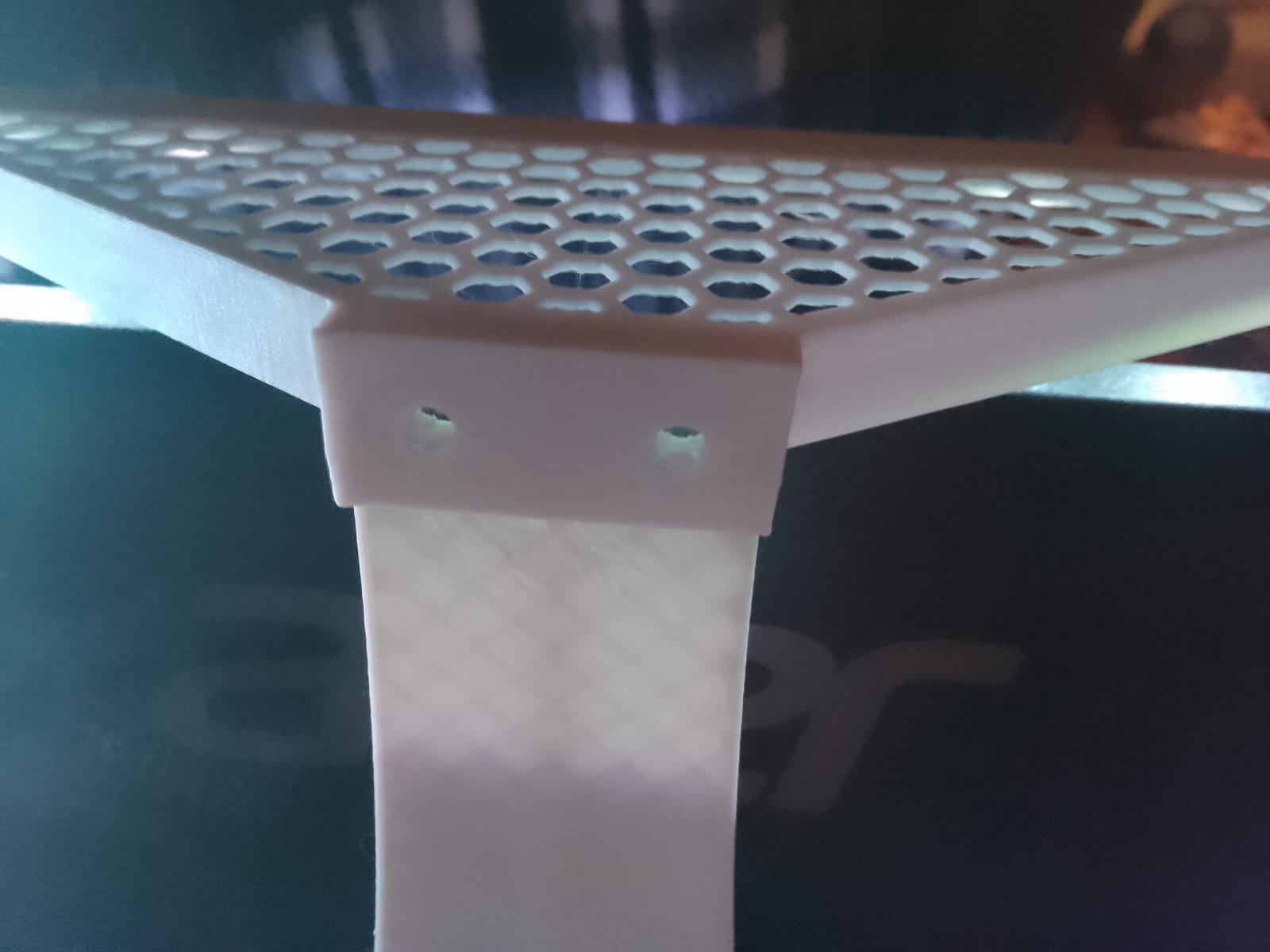

assembly like in the pictures
any critique is welcome, if you enjoyed the design don't forget to post a make and like it
