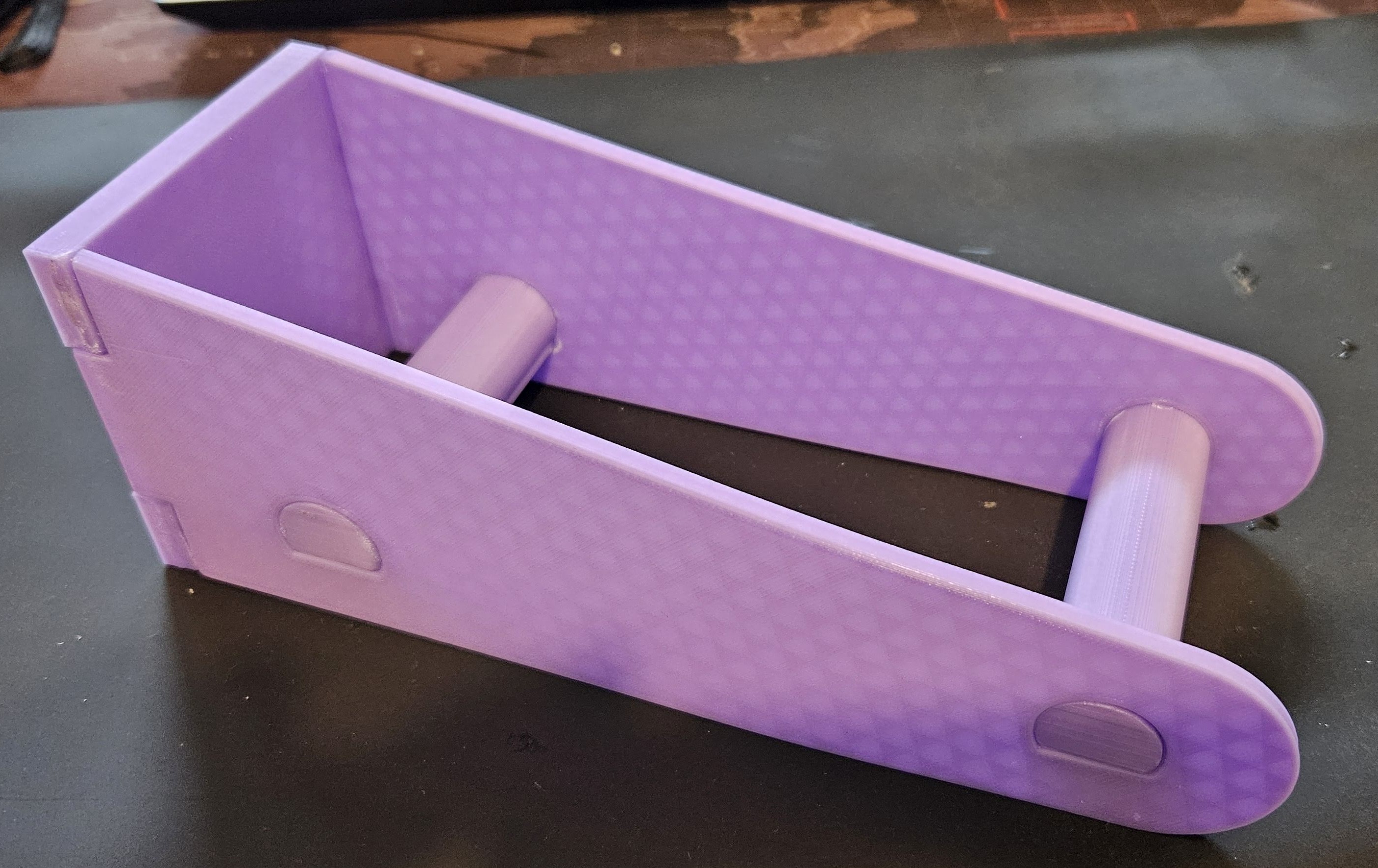

Simple Spool holder for Multiboard with Multiconnect

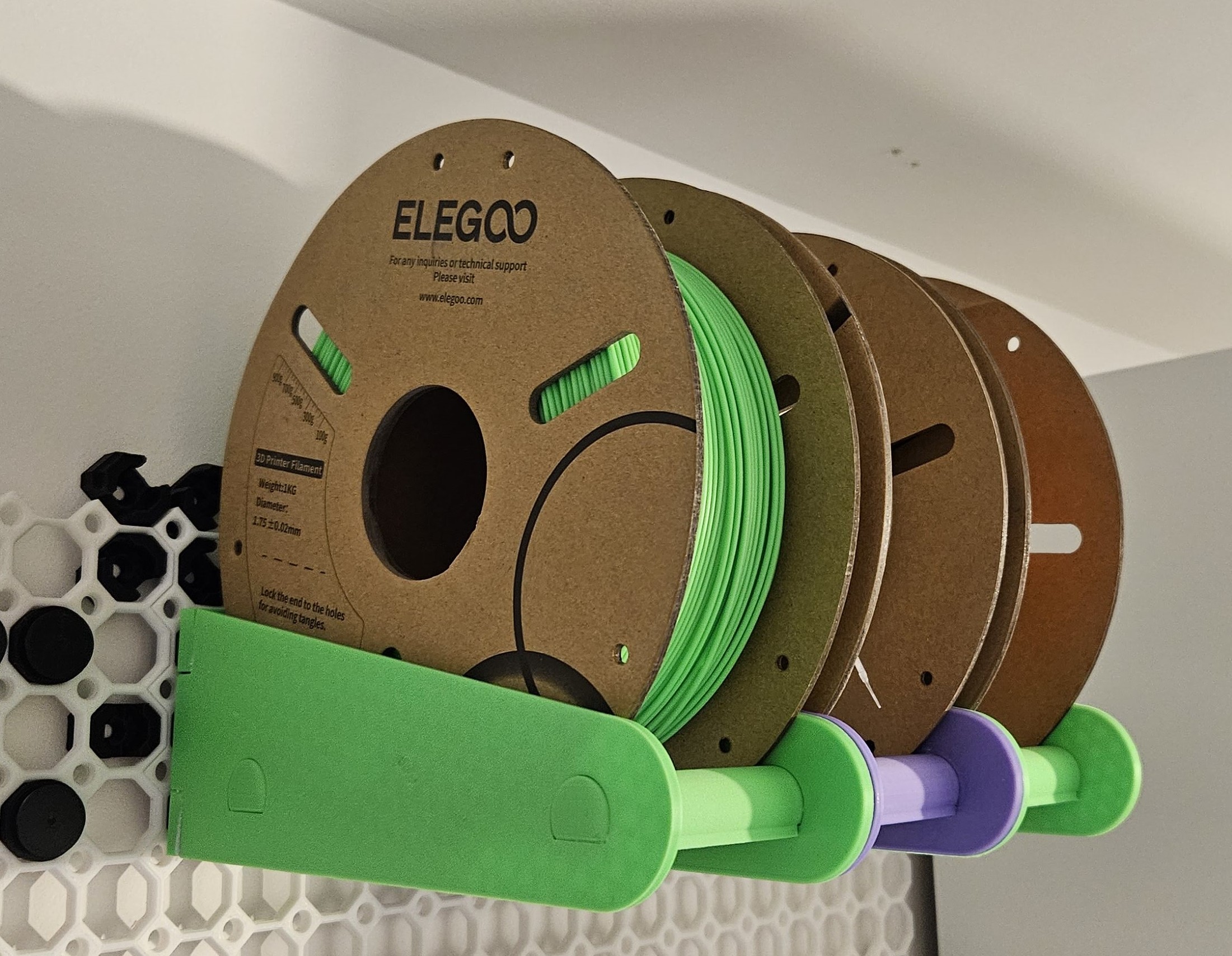

Hold a single spool of 1Kg using a 3x3 space of the Multiboard.
It was modeled based on the Elegoo Cardboard spools so hold chunky and skinnier ones.
A small amount of support is needed and glue as well.
It can be placed one beside the other or in isolation and it's recommended to use 4 connectors for each holder.
The Holder was all made by me, using the multiconnect files to connect with the Multiboard, as I think is a neet option it be simple removable/replaceble if needed.
Link for the onshape document:
https://cad.onshape.com/documents/5ae6cf6b7733e0f5645c4740/w/0133258d535ddc9480346f74/e/e82a2e54a540e3b94c369f17
Tested configuration:
- 0.2mm layer height
- 20% infill
- 3 Walls
- 4 Top Layers
- 3 Bottom Layers
