Updated to ver. 1.1:
- the locking bulge on the holder part is a little bit increased for better in place lid holding.
- both part sliced with 0.2mm (instead of 0.15 mm), to get print time a little bit down.

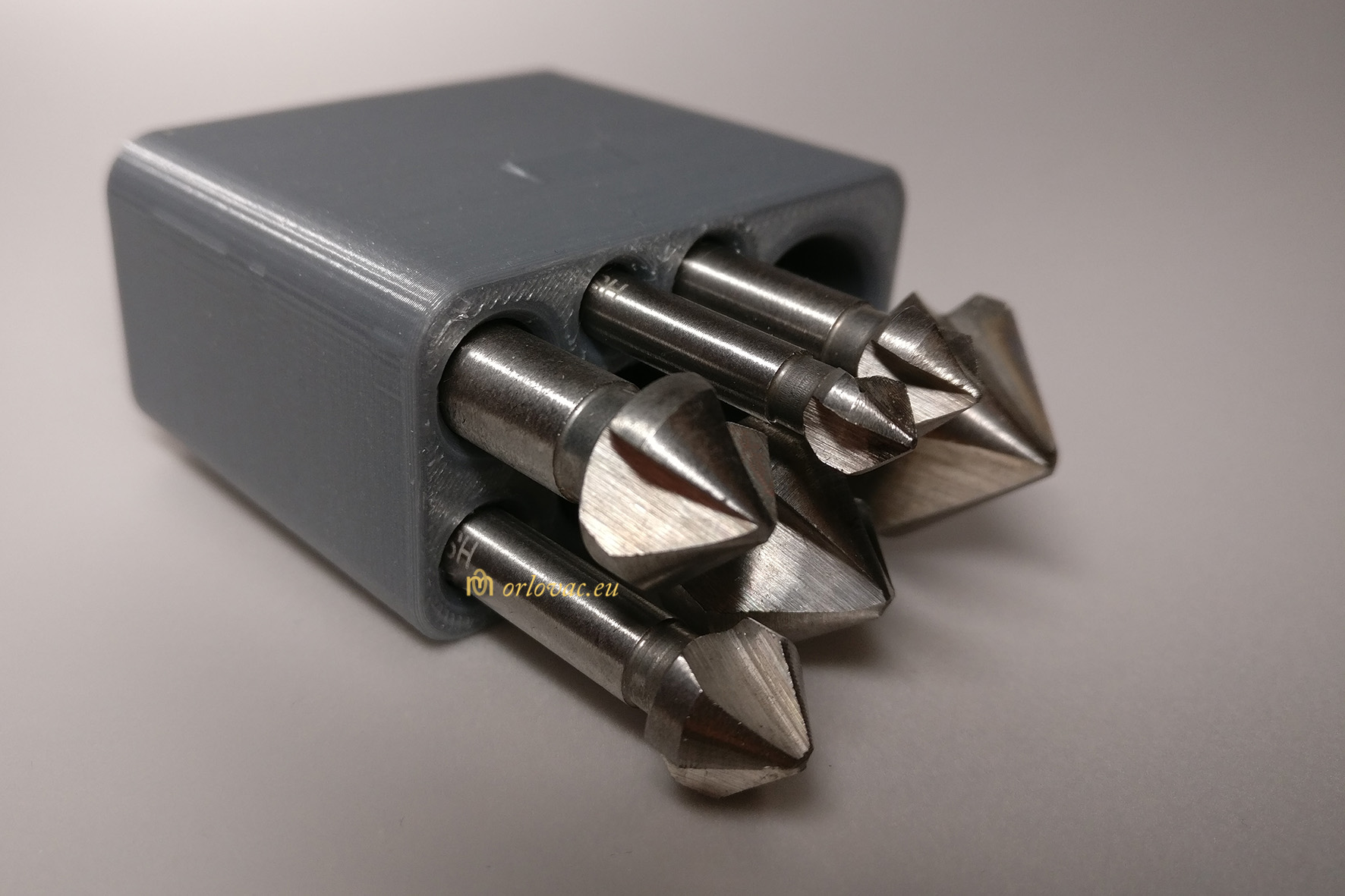

A have purchased a chamfering tool kit on Aliexpress (named: 3 Flute HSS Hard Metals Countersink Drill Bit Set…) and need to keep and store it safetly. If the tools are not kept properly, the edges may get dull and it is harder to find just a bit you need to use for the moment.

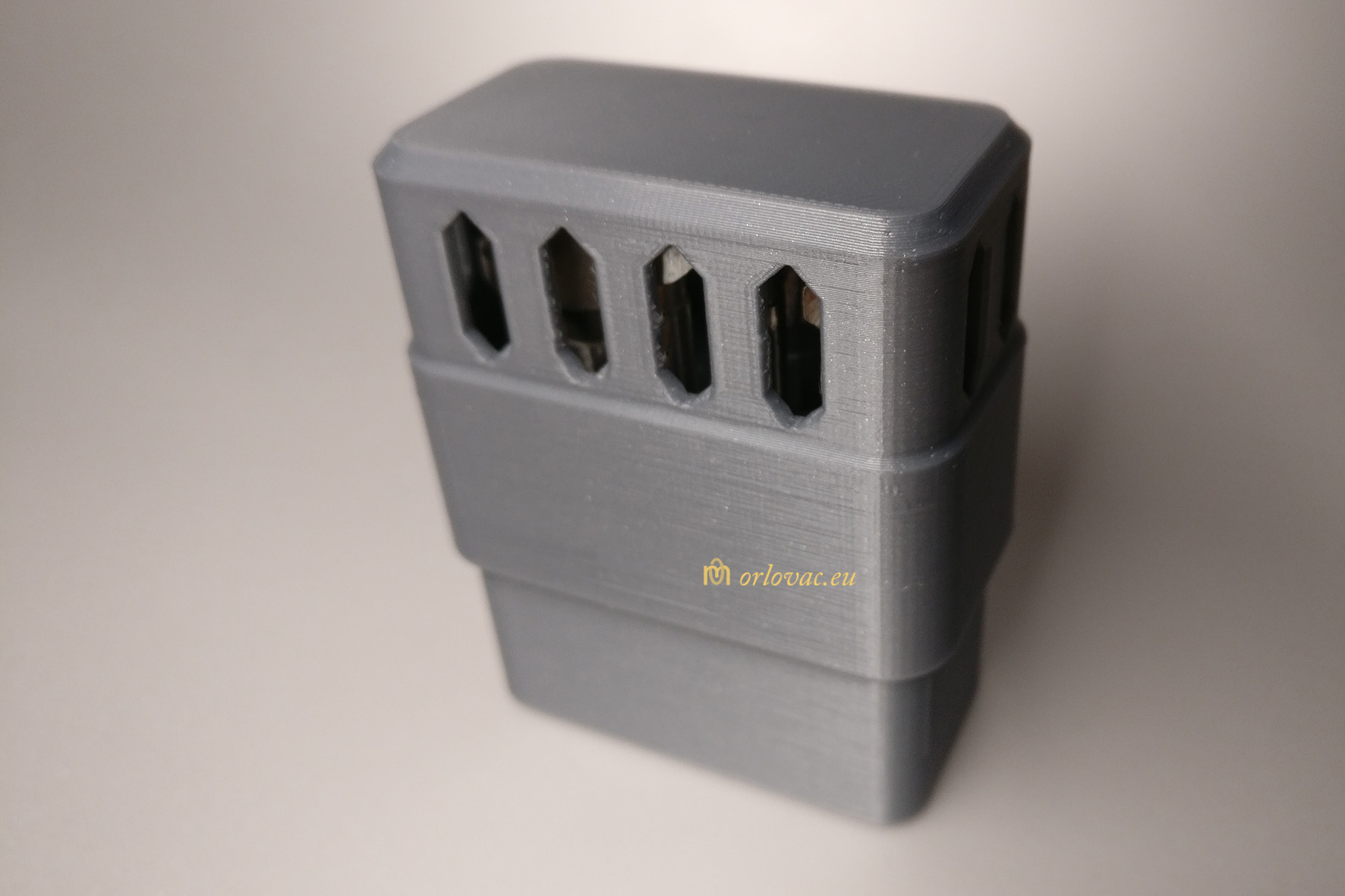

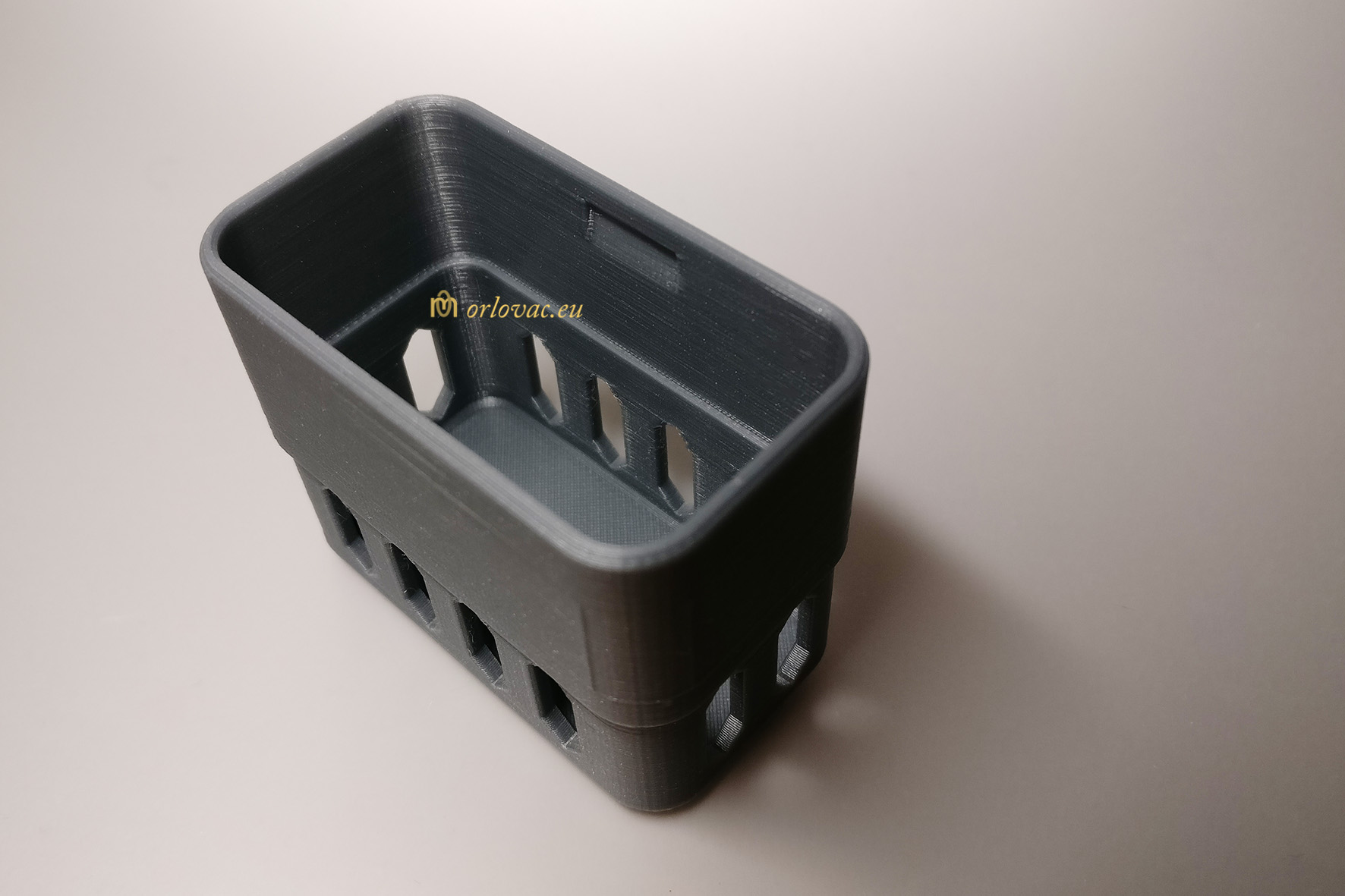

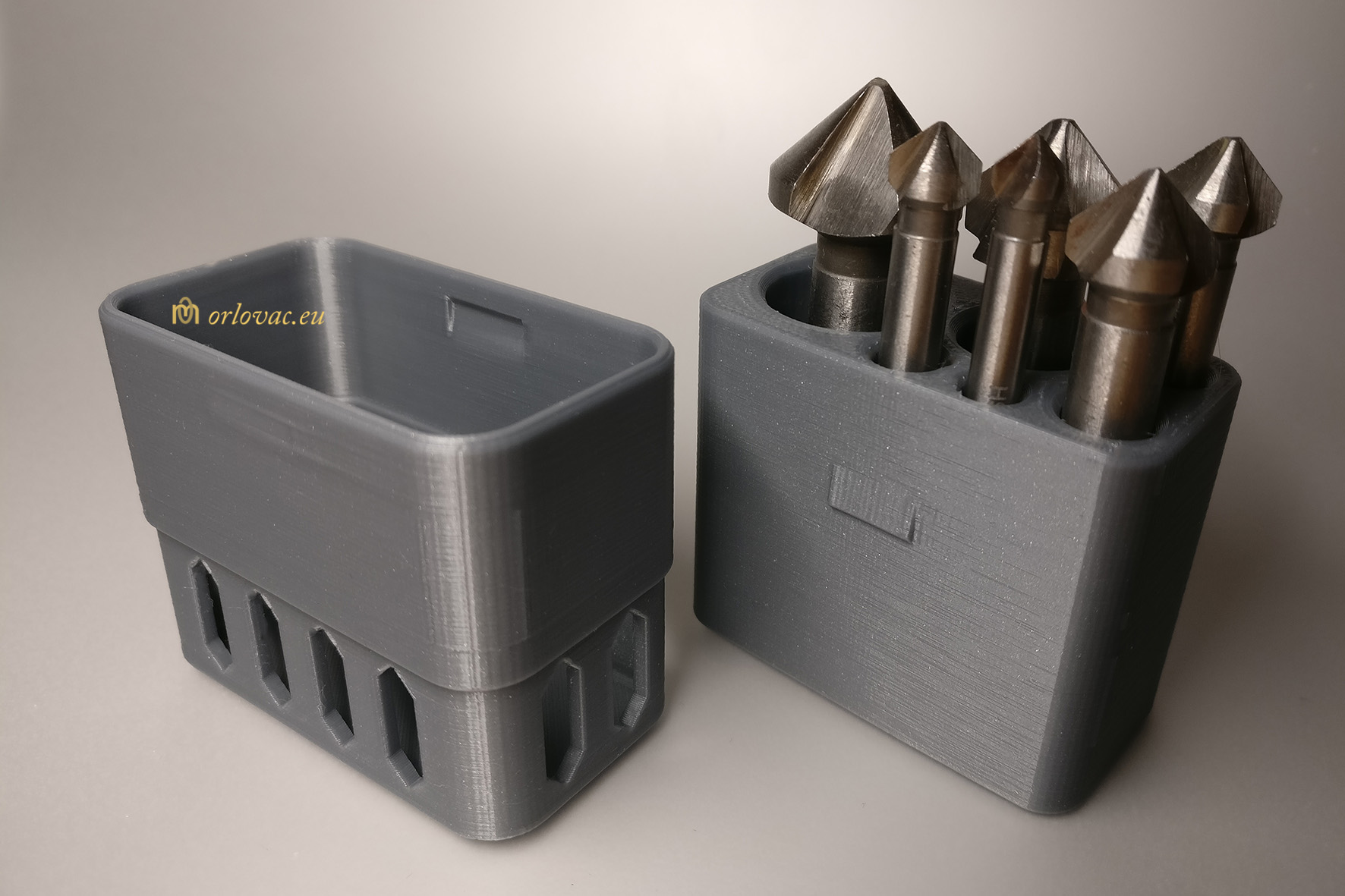

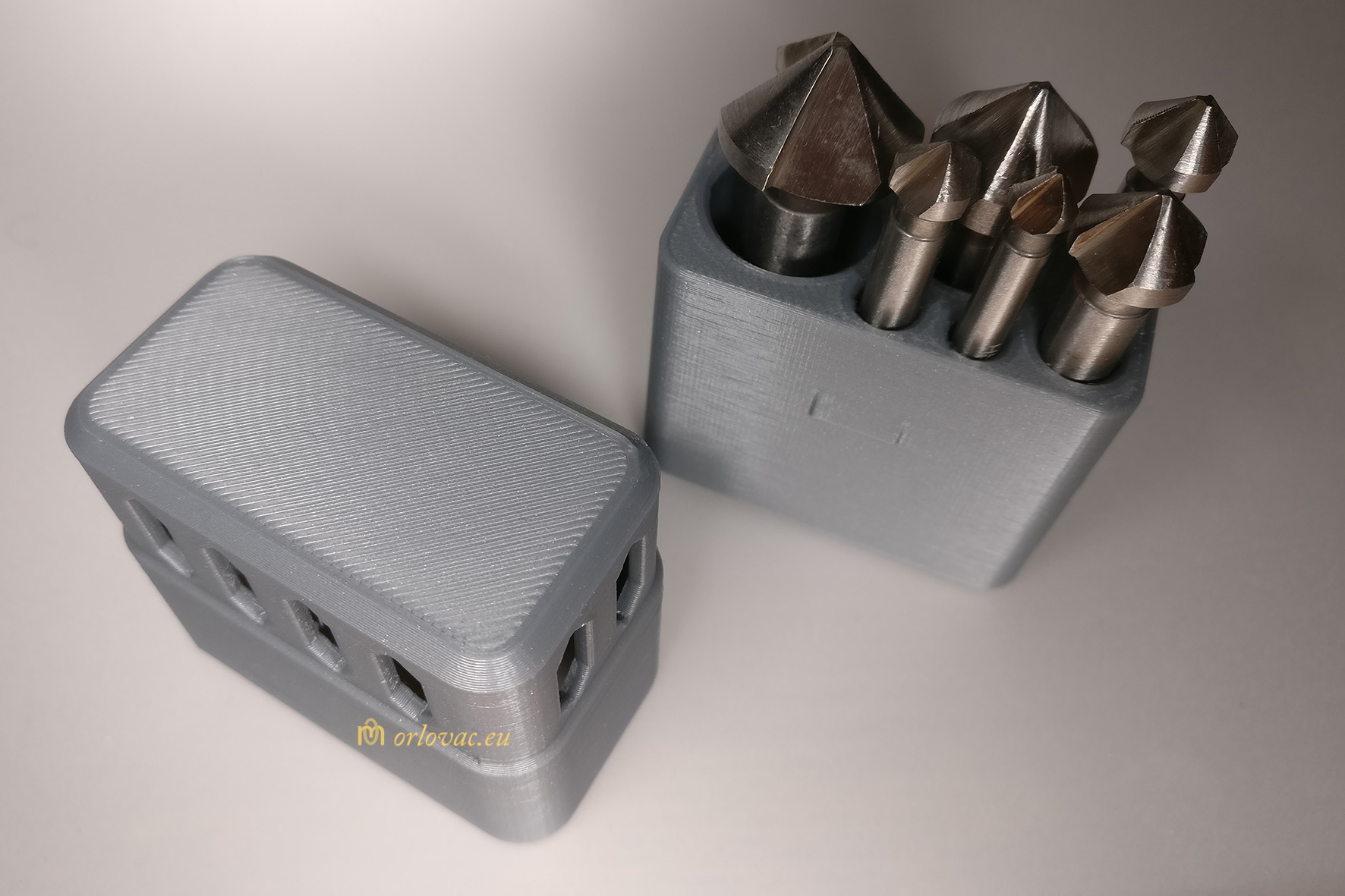

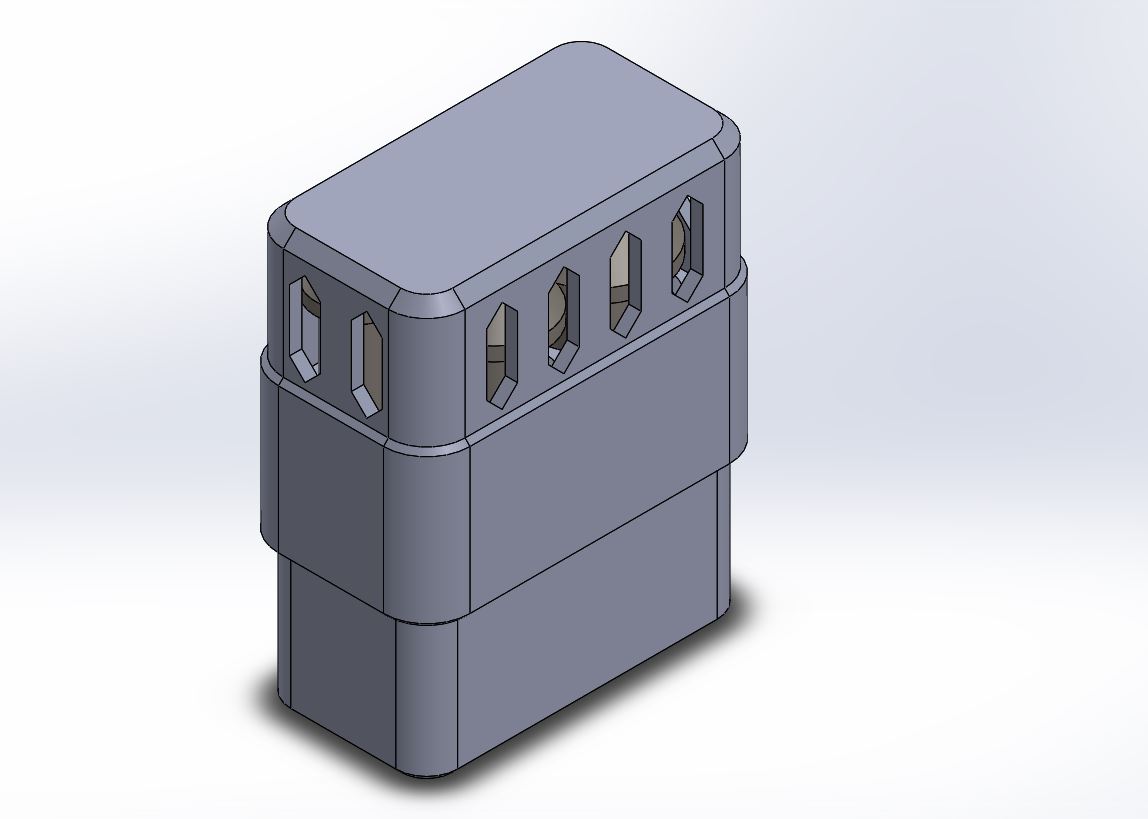

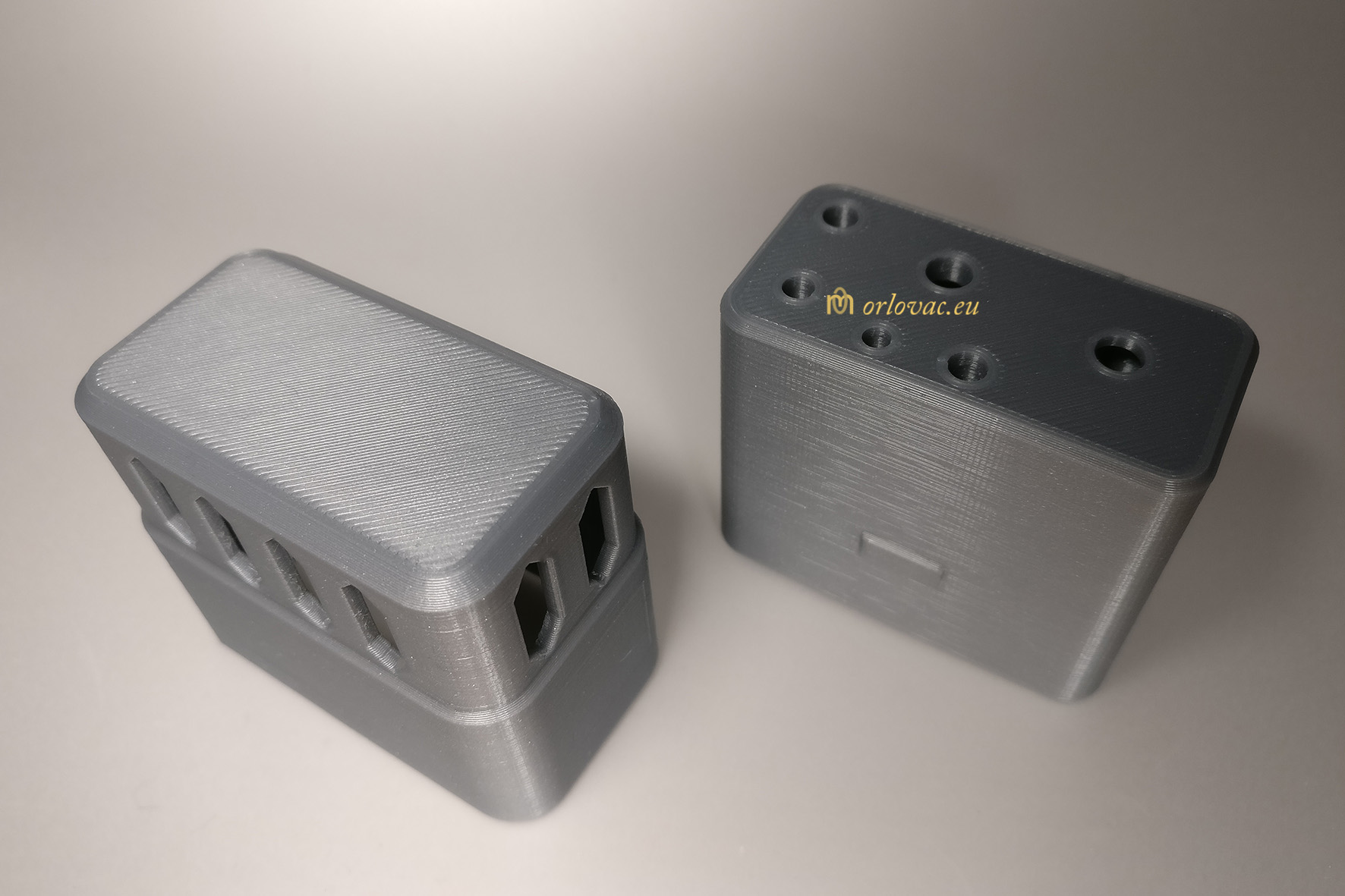

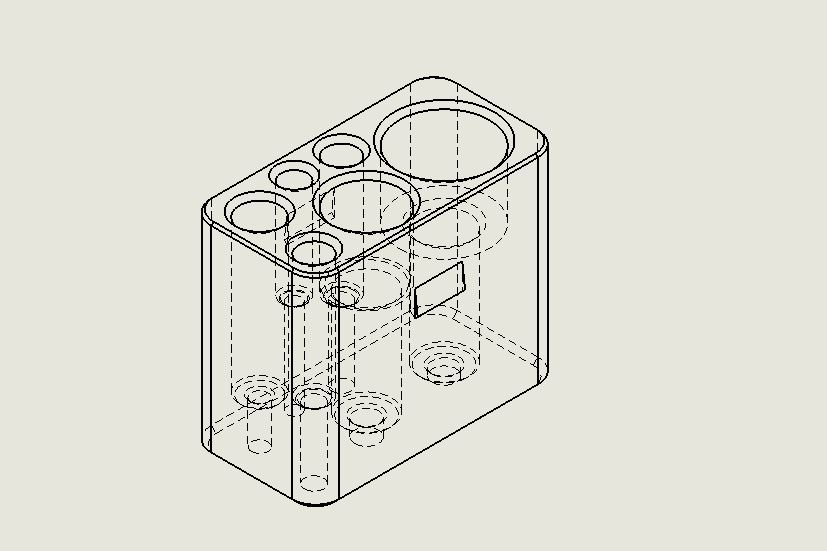

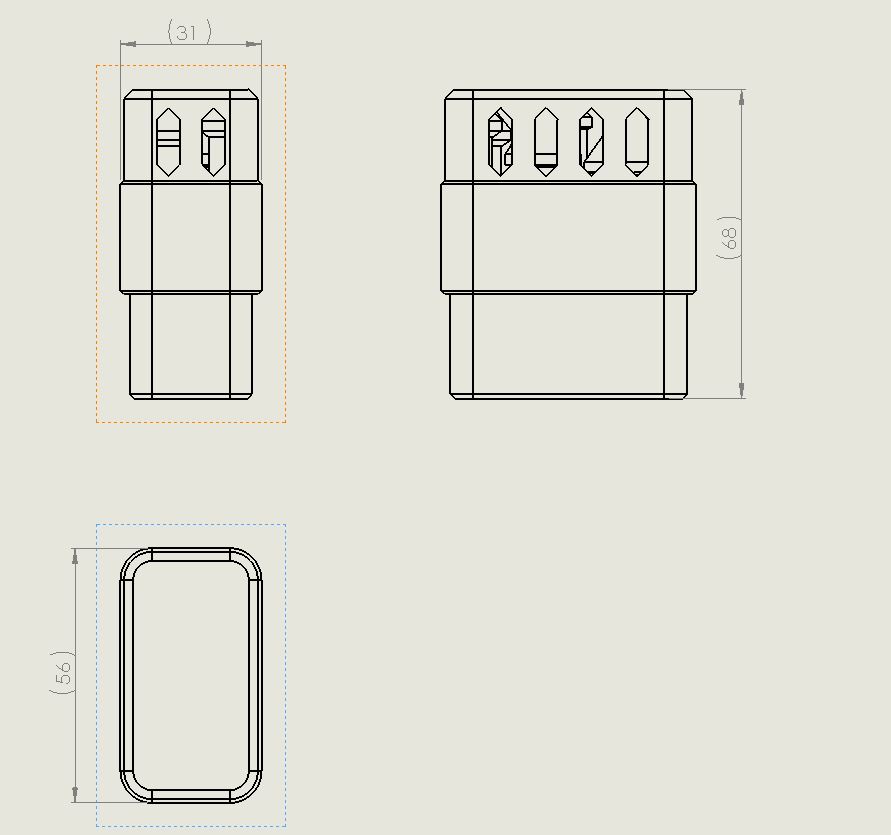

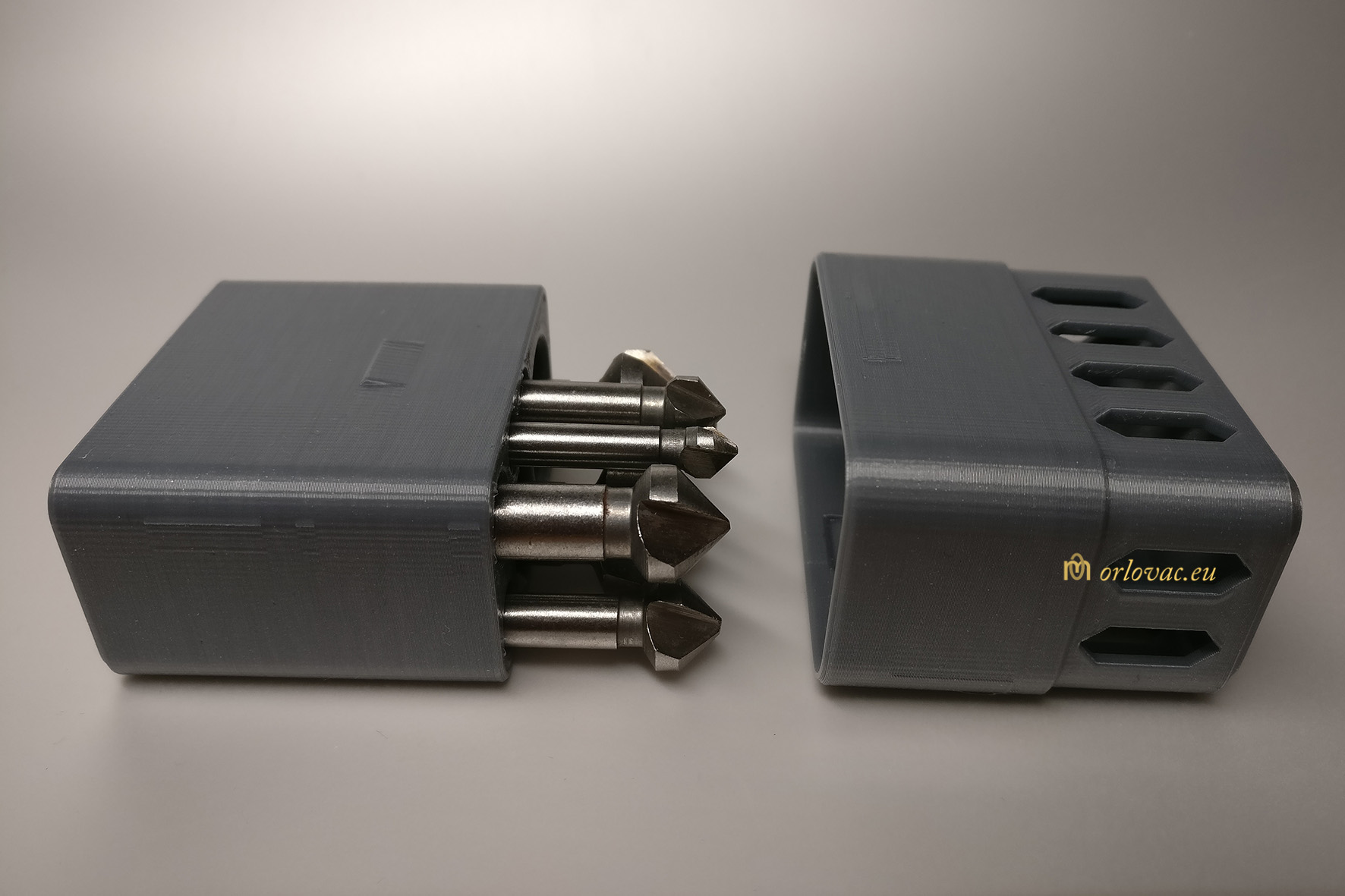

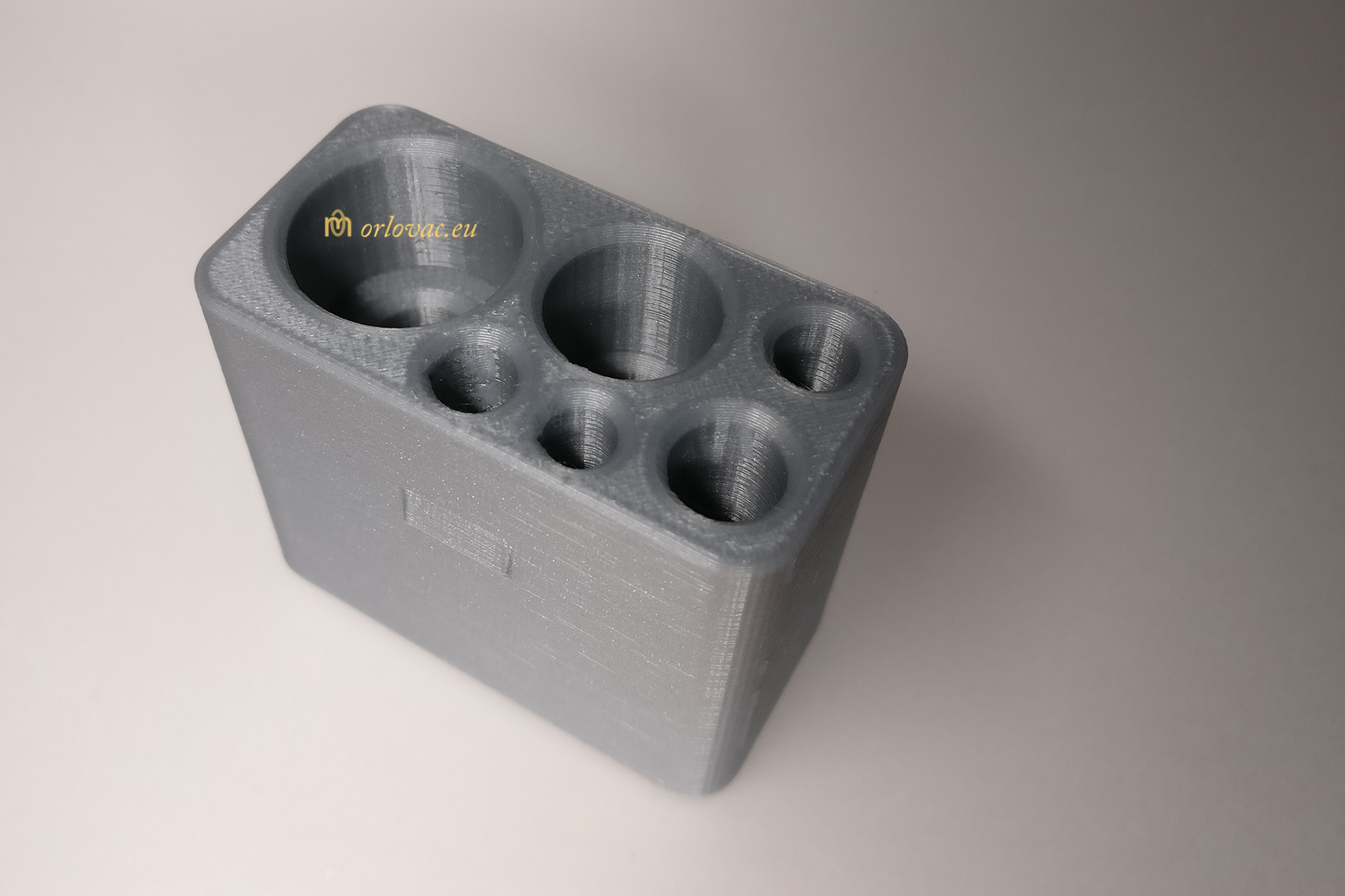

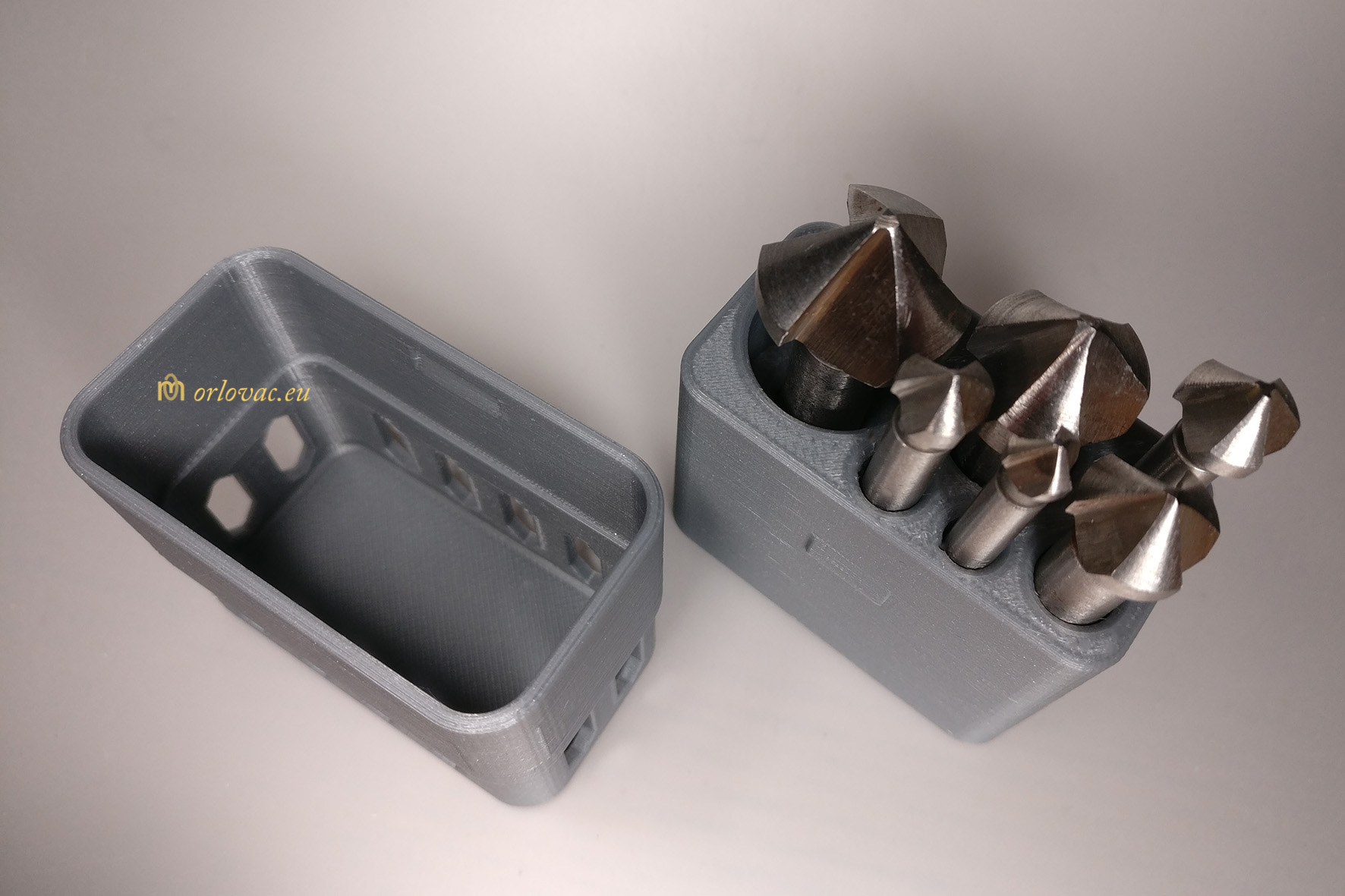

The print details are: tool holder and the lid.

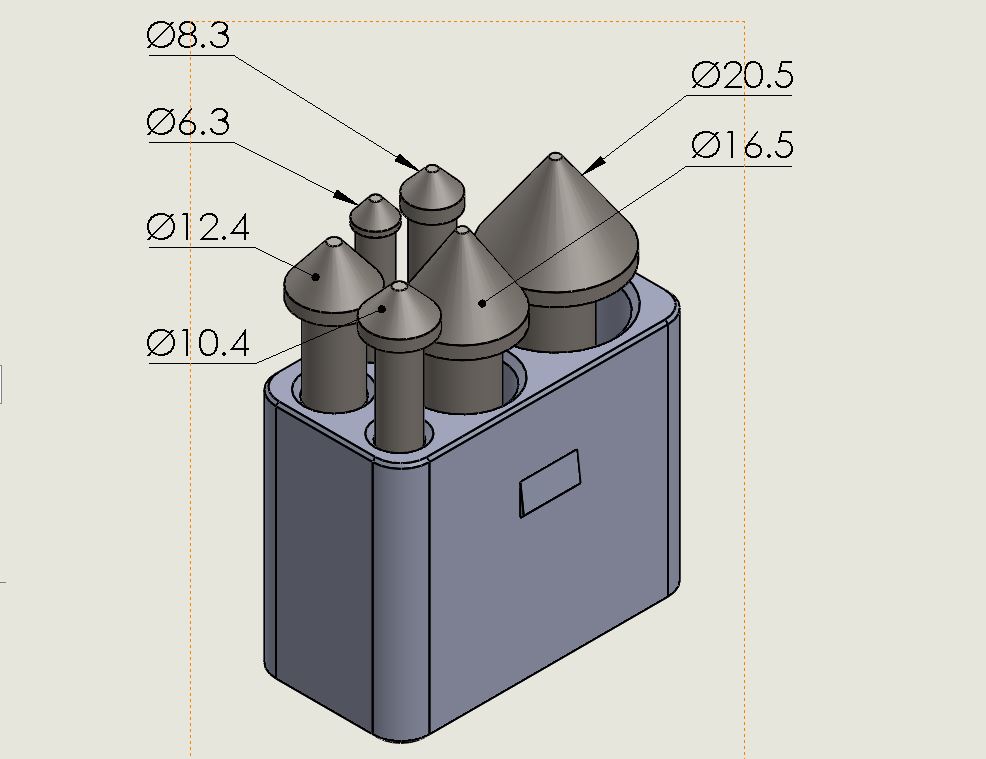

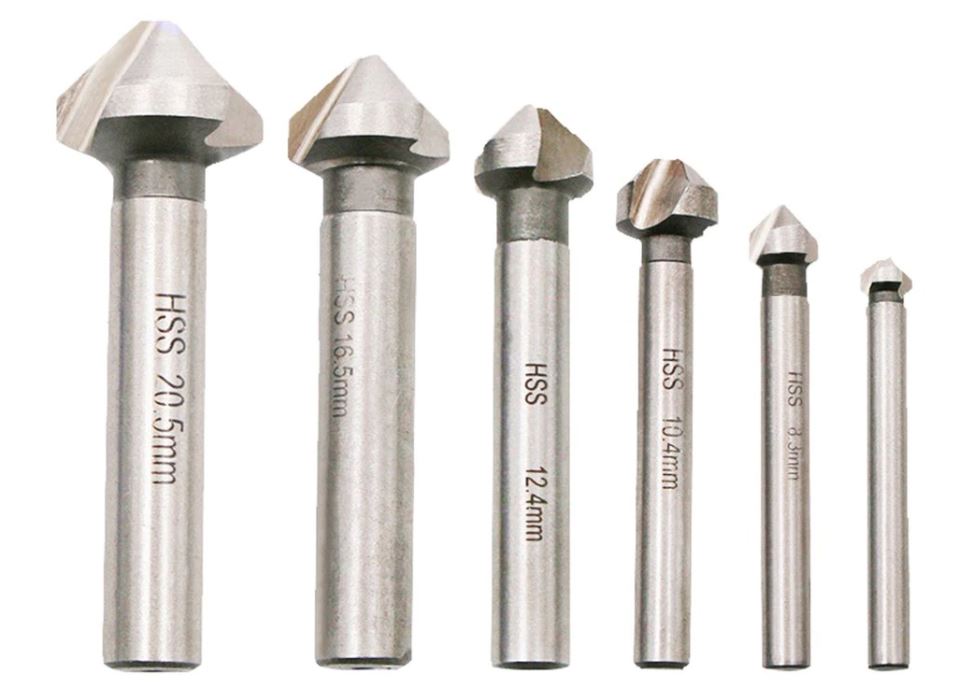

Tool kit:
| Chalmfer tool | ||||||

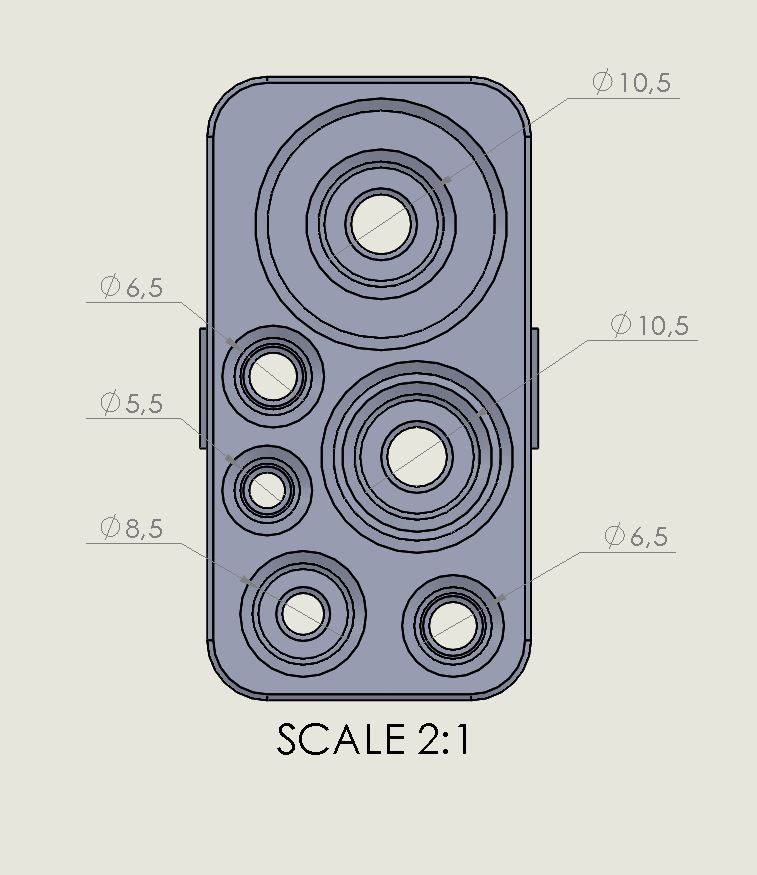

| Head diameter [mm] | 6.3 | 8.3 | 10.4 | 12.4 | 16.6 | 20.6 |
| Shank diameter [mm] | 5 | 6 | 6 | 8 | 10 | 10 |
| Total length [mm] | 46 | 49 | 50 | 56 | 61 | 63 |
If you have chamfering tools with another dimensions bear in mind that it may be problem to place them in this holder.
Added files are 3MF (I gave up STL) and gecode generated for PLA which is enough good for this purpose. No print support material is needed. If you think that print time is too long, you can generate own print files with lower resolution. I prefer print looks than print time.
