PCBite SQ10 probe inserts
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
This model is based on my parametric insert for rugged box v2.

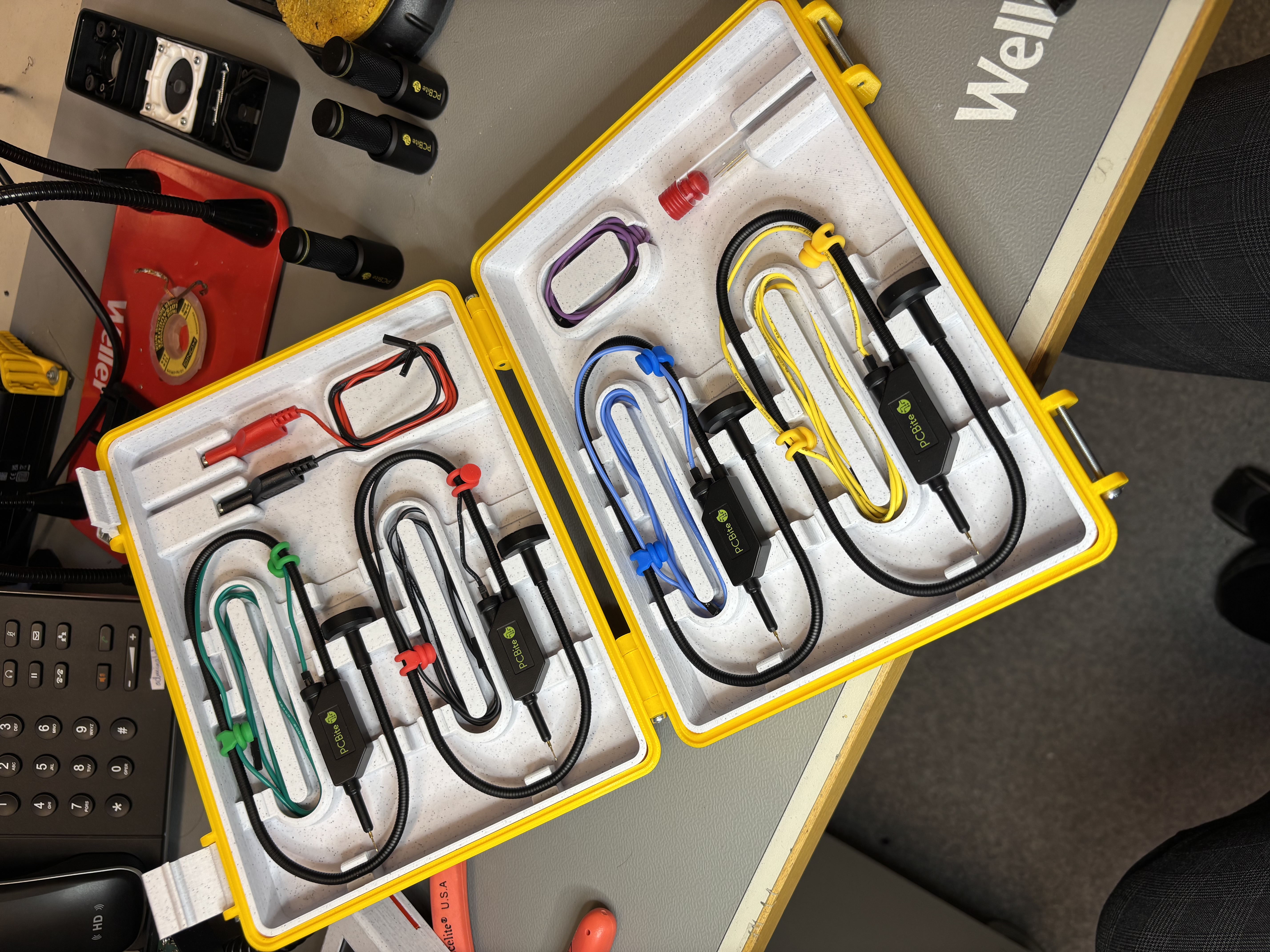

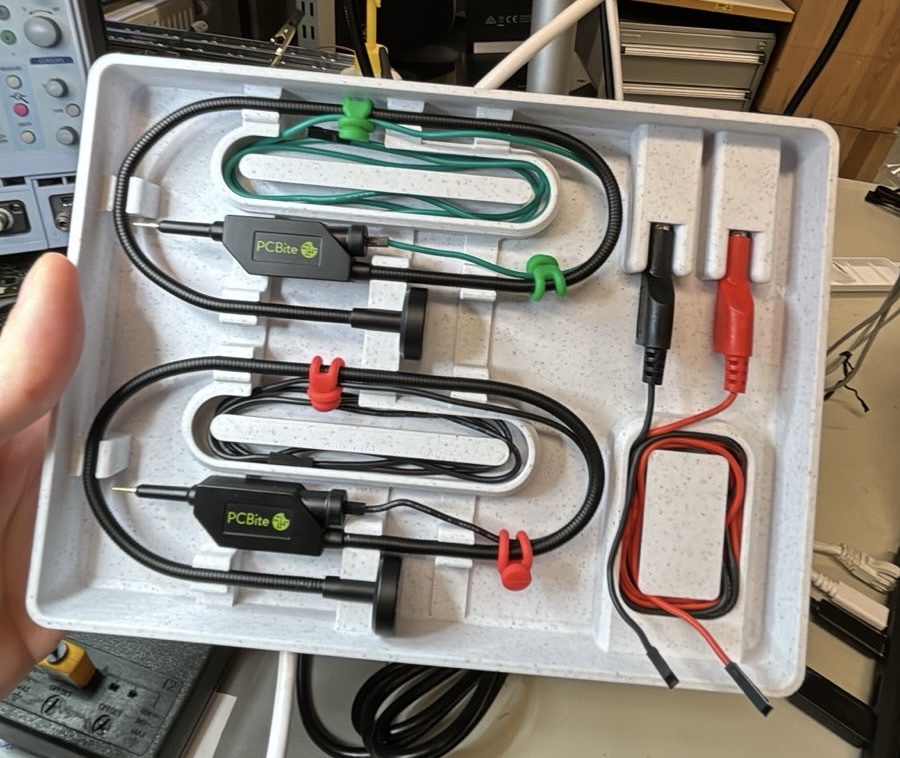

Two inserts that will hold securely all the items included in the PCBITE-6003 kit by Sensepeek. The insert can hold:
4x SQ10 probes (fully assembled with magnetic arm)
5x wires
2x 4mm Banana to dupont cables
1x vial of replacement probe tips

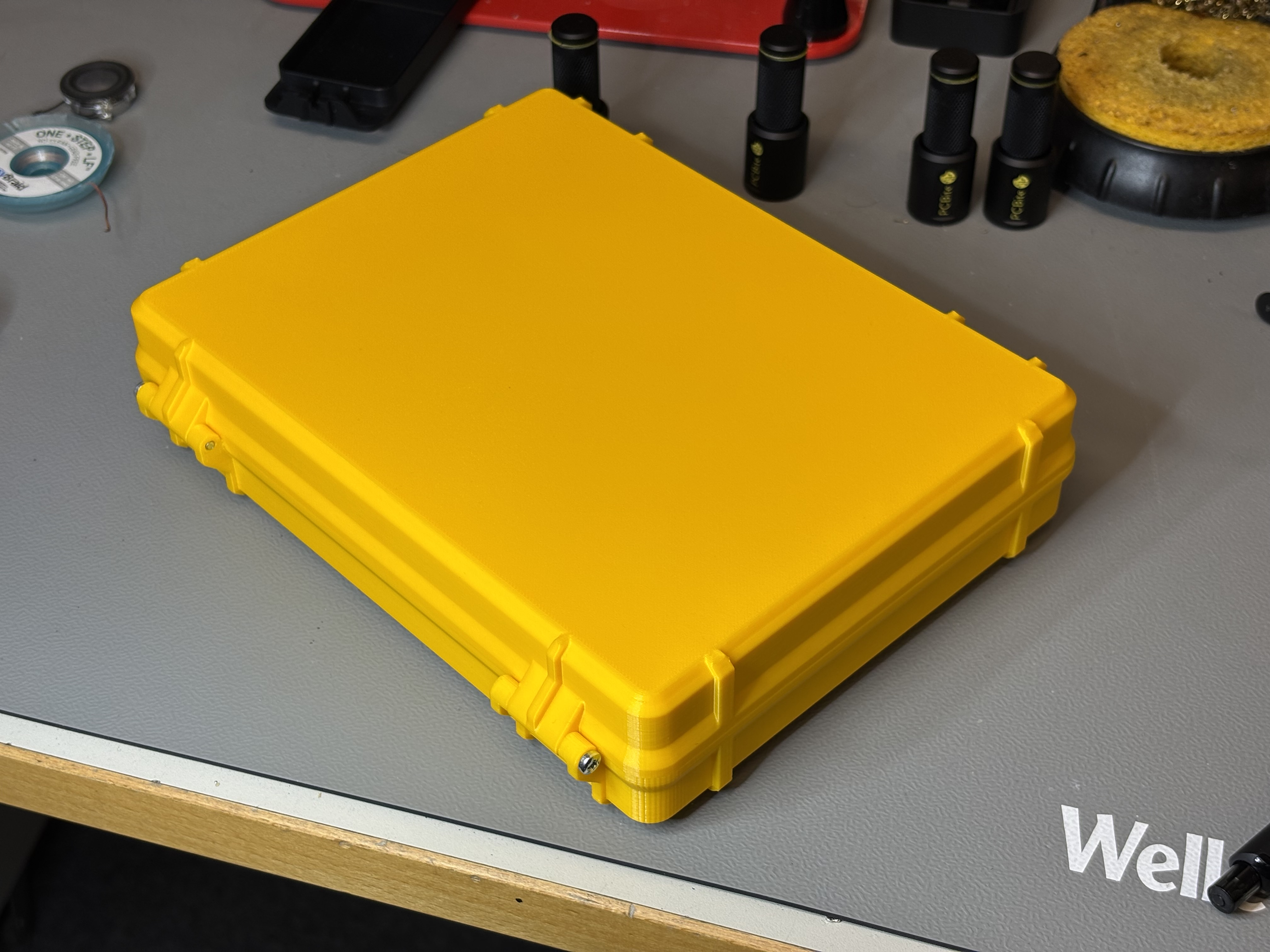

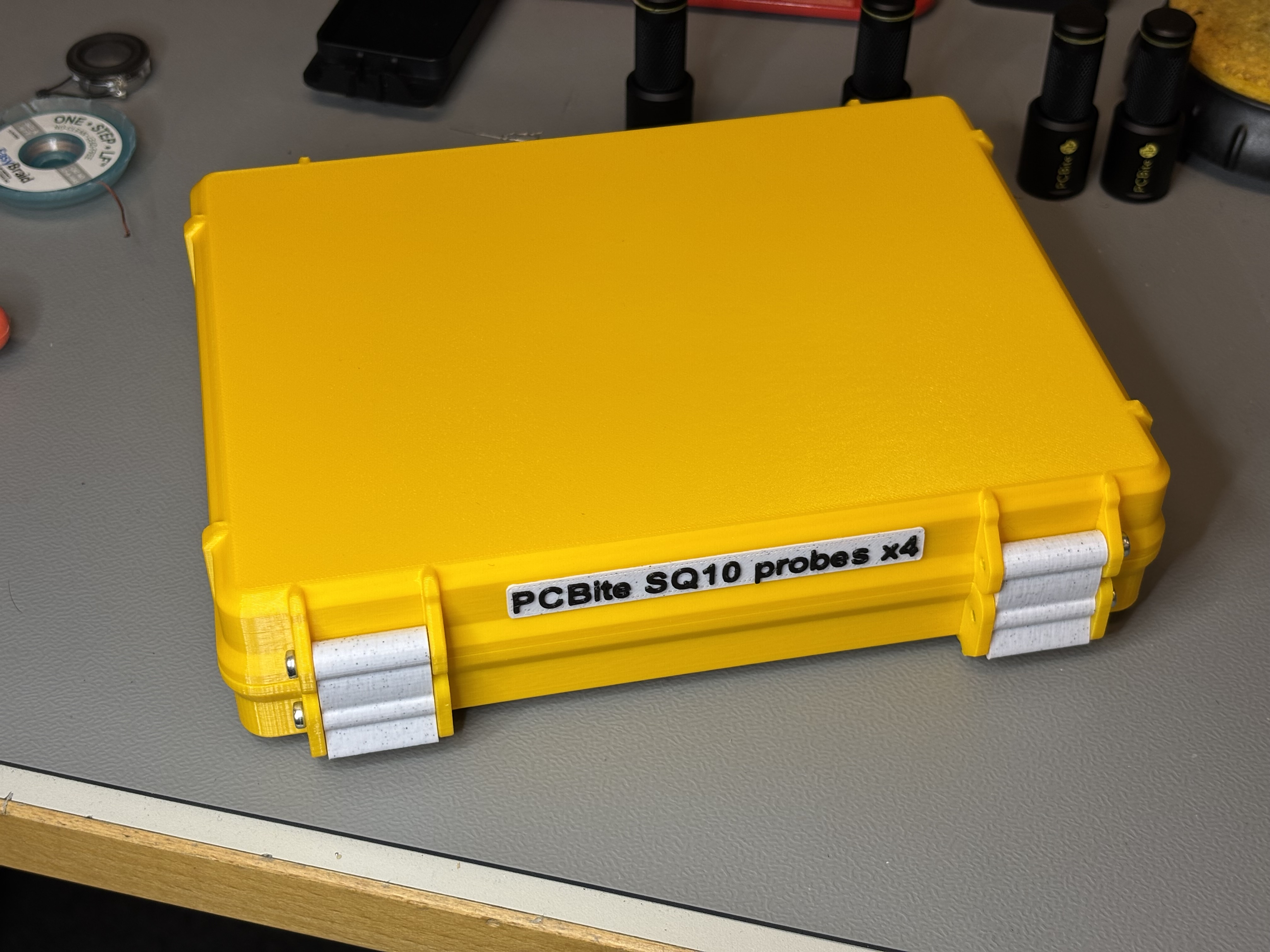

Pair these two inserts with my matching SQx rugged box.
Make sure to calibrate your print's tolerances. The insert and the box is designed to fit and hold without glue so getting a dimensionally accurate print is paramount.
Note! In the pictures, the banana cables do not fit fully into the cable management space. This is only a problem of the particular insert I took the picture of. The files have this corrected.
Note! In the pictures you can see that the corner outer radius of the insert does not match the corner inner radius of the box. This is just on the particular print I took the pictures of, on the downloadable files this has been fixed.
September 25 update:
Added step files to facilitate remixing
Minor cleanup on insert B step file
August 26 update:
Corrected corner radius in 3mf files
